Sanitaire S670A Manuale

Performance You Expect

Quality You Demand

REPAIR PARTS LIST

SANITAIRE UPRIGHT

MODEL

S670A

Date: January 29, 2002

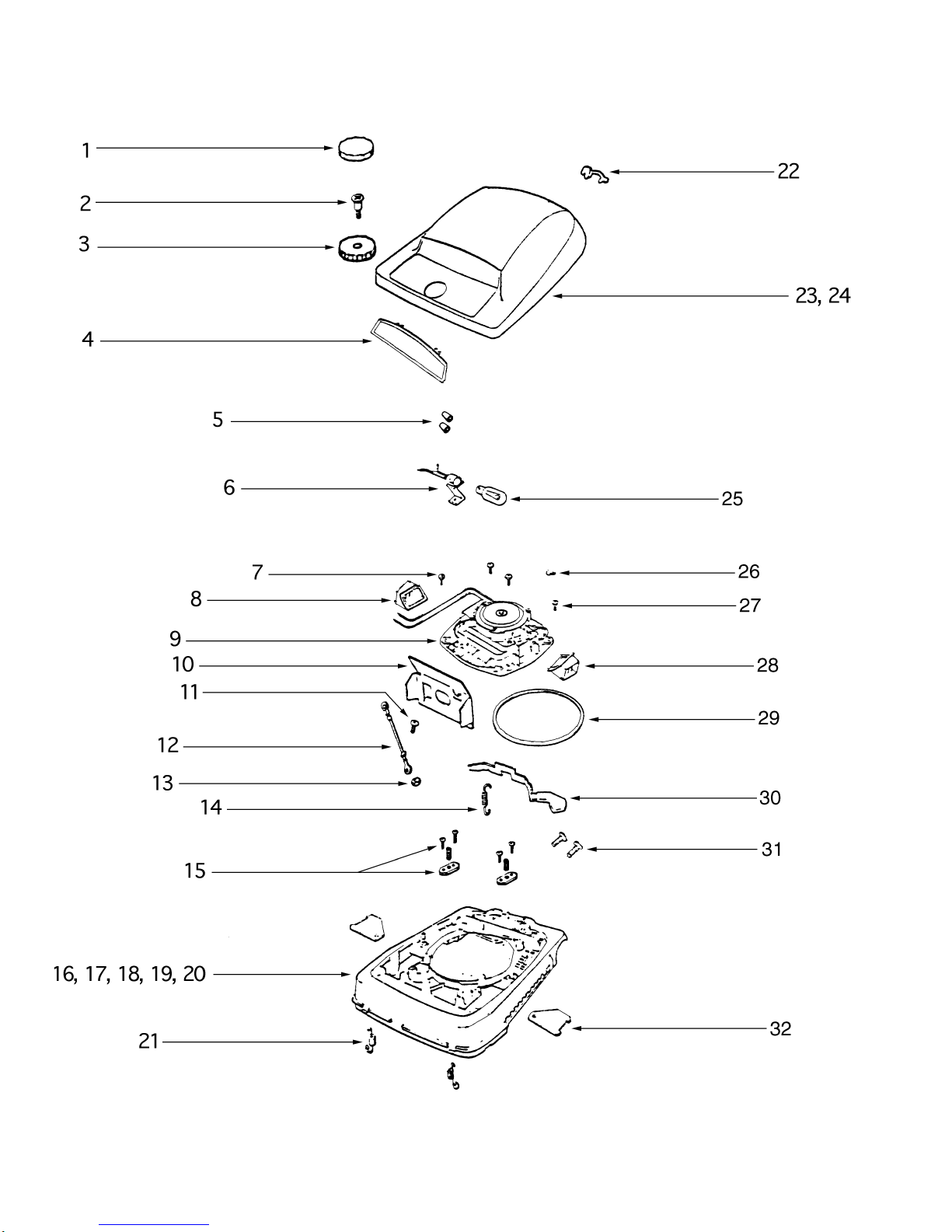

S670A

1. 38054-3 GRIP ASSEMBLY

2. 53143 SCREW - pkg of 10

3. 14302-3 KNOB

4. 12601-8 LENS

5. 60192-1 WIRE SPLICE - pkg of 5

6. 35958A HEADLIGHT SOCKET ASSEMBLY

7. 53238-14 MOTOR MOUNTING SCREW - pkg of 10

8. 56383SV AIR INLET DUCT ASSEMBLY (R.H.)

9. 54352-3 MOTOR ASSEMBLY

10. 25462A LIGHT SHIELD

11. 53228-2 SCREW - pkg of 10

12. 55296 WIRE & TERMINAL ASSEMBLY

13. 53213-5 NUT - pkg of 10

14. 53097 FOOT PEDAL SPRING - pkg of 10

15. 53140 CLAMP & SCREW ASSEMBLY

16. 54408-8 BASE ASSEMBLY*

17. 24964A-1 CAM (R.H.)

18. 24965A-1 CAM (L.H.)

19. 53118 CAM RIVET - pkg of 10

20. 53133 WASHER - pkg of 10

21. 53117 HOOD SPRING - pkg of 10

22. 53089-1 STRAIN RELIEF BUSHING - pkg of 10

23. 54407-4 HOOD & NAMEPLATE**

24. 39500 NAMEPLATE

25. 40009A HEADLIGHT

26. 53160 CABLE CLAMP - pkg of 5

27. 53238-14 MOTOR SCREW - pkg of 10

28. 56382SV AIR INLET DUCT ASSEMBLY (L.H.)

29. 30517 MOTOR SEAL GASKET

30. 24834A-3 FOOT PEDAL

31. 53228-2 SCREW - pkg of 10

32. 36263 WHEEL COVER

* INCLUDES ITEMS 17, 18, 19 & 20

** INCLUDES ITEM 24

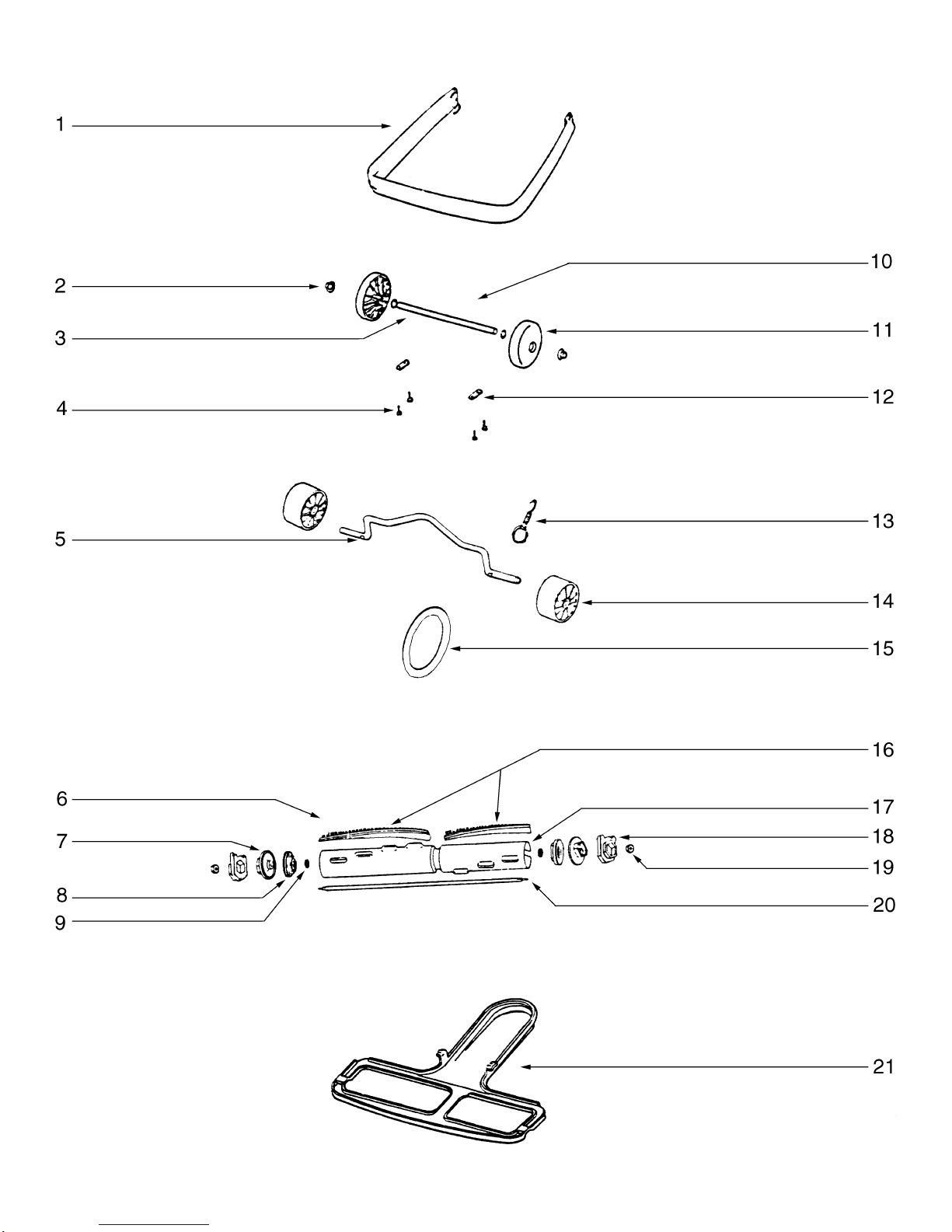

S670A

1. 28504-1 FURNITURE GUARD

2. 53121 PUSH NUT - pkg of 10

3. 37183 REAR AXLE

4. 53238-11 SCREW - pkg of 10

5. 35947A FRONT AXLE

6. 53270 DISTURBULATOR ASSEMBLY*

7. 26057A DISTURBULATOR CAP

8. 54256 BEARING & RETAINER ASSEMBLY

9. 53184 KLIPRING

10. 60161 WHEEL & AXLE ASSEMBLY**

11. 26242-119N REAR WHEEL

12. 53201 AXLE CLAMP - pkg of 10

13. 53076-2 AXLE SPRING - pkg of 6

14. 35859A-1 FRONT WHEEL

15. 52100A BELT - pkg of 2

16. 52282-4 BRISTLE STRIP SET

17. 13236-3 DISTURBULATOR TUBE

18. 26059A CAP COVER

19. 53158 NUT - pkg of 10

20. 25937 SHAFT

21. 25922-1 BOTTOM PLATE ASSEMBLY

* INCLUDES ITEMS 7, 8, 9, 16, 17, 19 & 20

** INCLUDES ITEMS 3 & 12

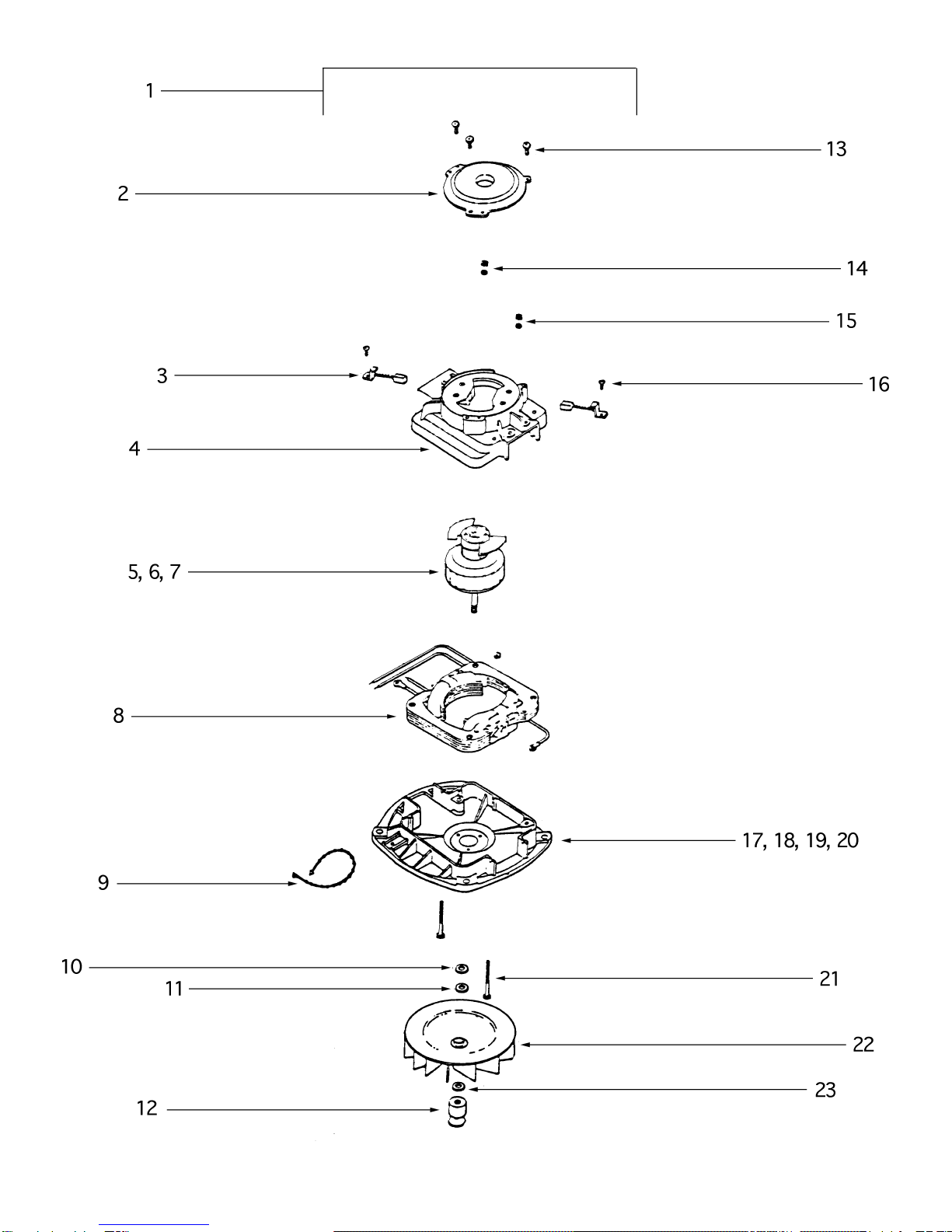

S670A

1. 54352-3 MOTOR ASSEMBLY COMPLETE

2. 20217E RETAINER ASSEMBLY

3. 30478 MOTOR BRUSH ASSEMBLY

4. 54396 MOTOR COVER

5. 54425-3 ARMATURE FAN & BEARING ASSEMBLY*

6. 53088-5 BEARING - pkg of 5

7. 30474A FAN

8. 53441-2 FIELD ASSEMBLY

9. 46713-1 CABLE TIE

10. 54811 WASHER - pkg of 10

11. 53148 FAN WASHER - pkg of 10

12. 37012-2 PULLEY

13. 53138 RETAINER SCREW - pkg of 10

14. 56817 HEX NUT

15. 53222-4 LOCK WASHER - pkg of 10

16. 53219-2 BRUSH SCREW

17. 54169-1 MOTOR BASE ASSEMBLY**

18. 20217E BEARING RETAINER

19. 53088-5 BEARING - pkg of 5

20. 53187-1 RIVET - pkg of 10

21. 53142 ORLO THREAD SCREW - pkg of 10

22. 12988 FAN

23. 53148 FAN WASHER - pkg of 10

* INCLUDES ITEMS 6 & 7

** INCLUDES ITEMS 18, 19 & 20

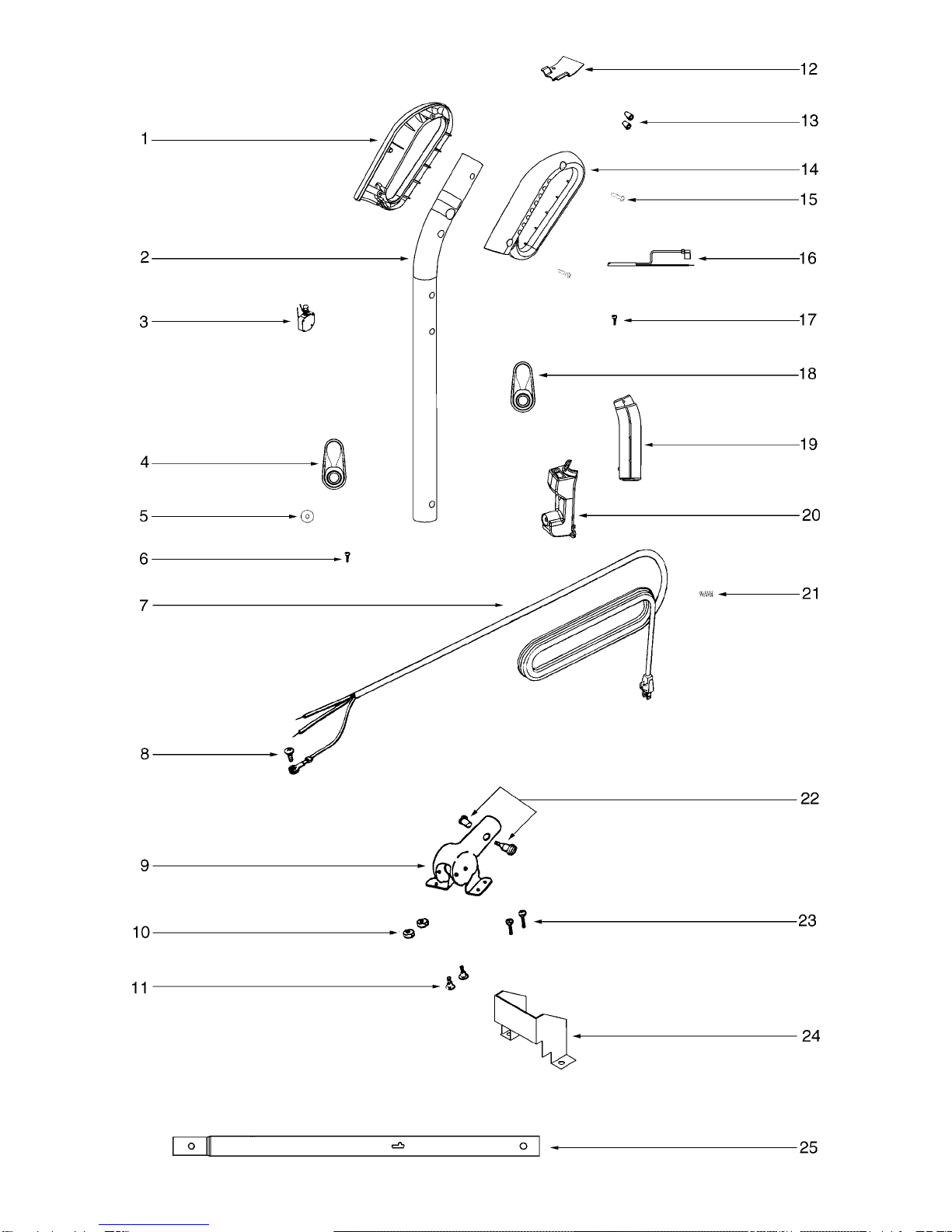

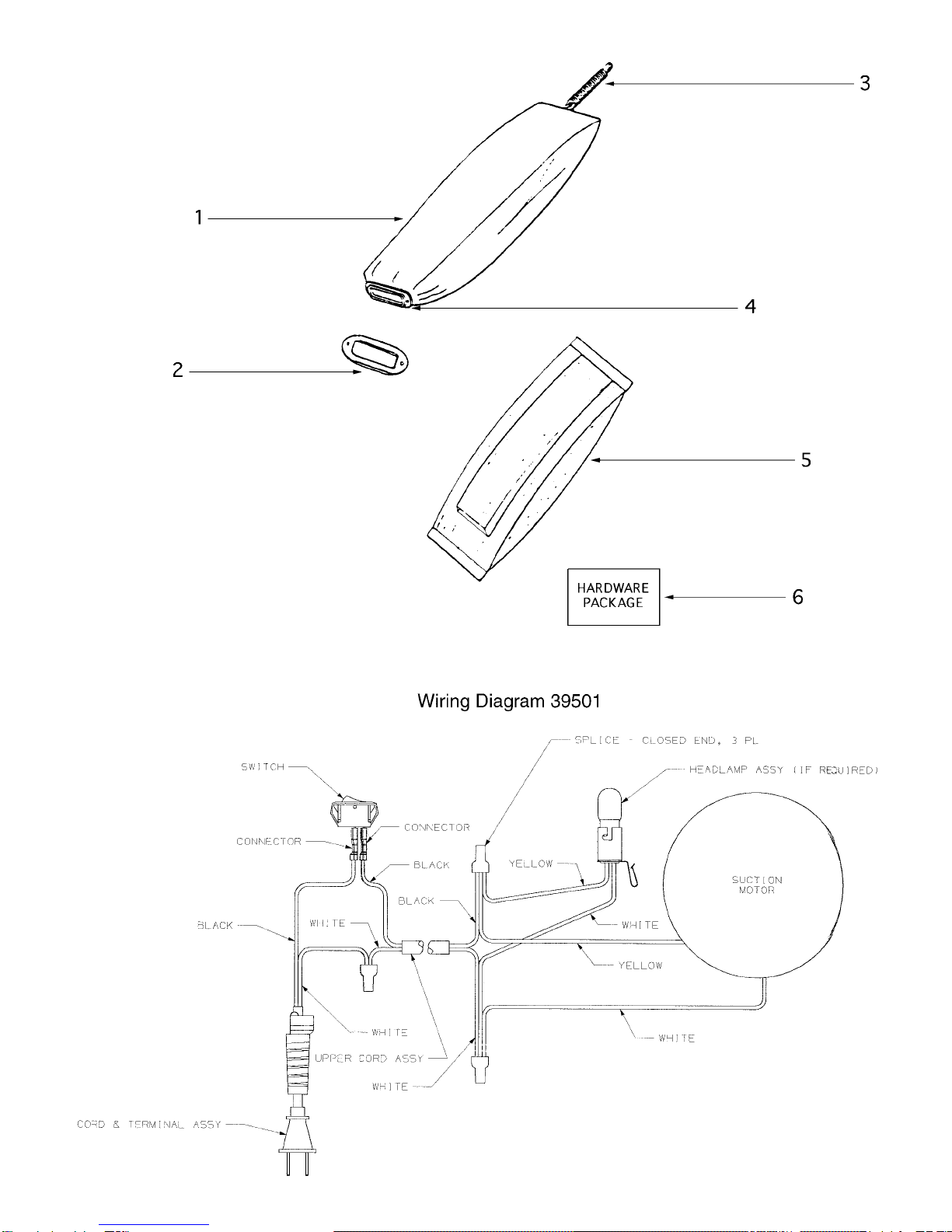

S670A

1. 15596-288N HANDLE GRIP (L.H.)

2. 28639 UPPER HANDLE TUBE

3. 28305 SWITCH

4. 28316-288N UPPER CORD RETAINER

5. 60946 WASHER - pkg of 10

6. 60947 SCREW - pkg of 10

7. 38680-25 SUPPLY CORD

8. 53238-13 SCREW - pkg of 10

9. 38183-1SV HANDLE SOCKET ASSEMBLY

10. 53213-5 NUT - pkg of 10

11. 53145 BOLT - pkg of 10

12. 59741-316N WIRING SHIELD

13. 60192-1 WIRE SPLICE - pkg of 5

14. 15597-288N HANDLE GRIP (R.H.)

15. 53197-1 SCREW - pkg of 10

16. 28011-6 UPPER CORD

17. 53238-18 SCREW - pkg of 10

18. 13521-2 LOWER CORD RETAINER

19. 02349A-288N SWITCH HOUSING (R.H.)

20. 02410A-288N SWITCH HOUSING (L.H.)

21. 60945 SPRING - pkg of 10

22. 53198-1 SCREW & NUT ASSEMBLY - pkg of 6

23. 53238-13 SCREW - pkg of 10

24. 36439 HANDLE SOCKET SHIELD

25. 12637-8 LOWER HANDLE TUBE
