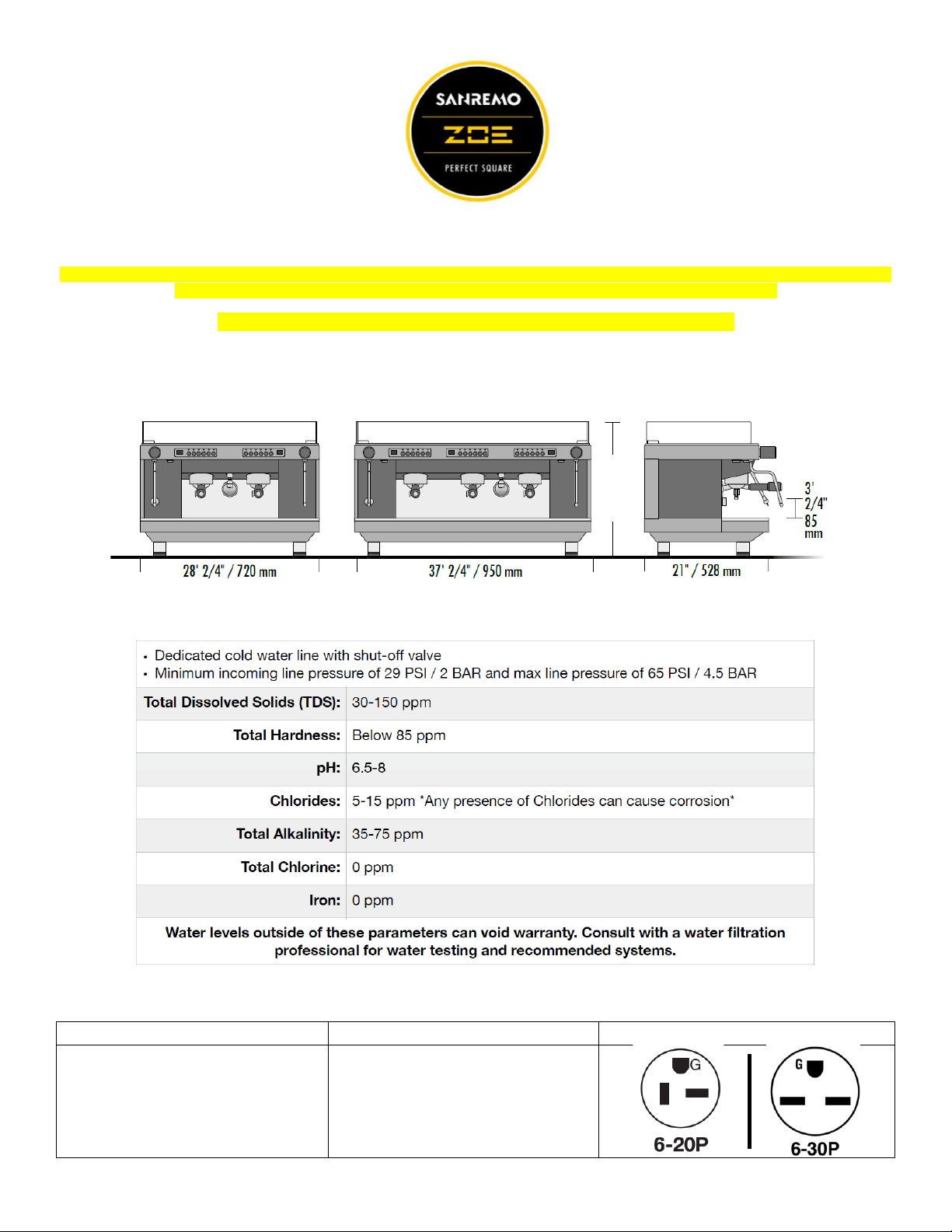

Sanremo Zoe Competition Installation & Quick Start Guide

Disclaimer: Installation must be performed by professional technician. Improper installation can void warranty, permanently damage equipment and/or present burn

& electrical hazard to installer/user. Consult with local municipality for official electrical and plumbing codes/guidelines.

Consult user manual for expanded installation, operation, and safety guidelines.

Dimensions

Water Requirements

Electrical Requirements

2 Group

3 Group

Recommended Plug Configuration

•Volts: 220 (voltage range of 208-240) 60Hz

•Single phase / 3 wire (2 hot + 1 ground)

•Watts: 3350

•Amp draw: 15A

•Recommended receptacle / plug: NEMA 6-20

•Plug NOT included

•Volts: 220 (voltage range of 208-240) 60Hz

•Single phase / 3 wire (2 hot + 1 ground)

•Watts: 6050

•Amp draw: 25A

•Recommended receptacle / plug: NEMA 6-30

•Plug NOT included

2 Group

3 Group

24”

610

Connection & Counter Hole Diagrams

2.5” hole in counter recommended for passage of

electrical cord & water/drain lines.

Counter hole placement recommended to be 5”

inward from rear of machine & 7” inward from

right of machine.

First start (boiler fill) procedure

Turn main switch to position “1”, allow steam boiler to auto fill, confirm boiler fill was successful and has not timed out.

If touchpad LED’s are flashing, machine has timed out.

If machine has timed out, cycle machine off/on (position “1”) again and allow to auto fill. If machine is still timing out, shut machine

down and re-check the inlet water line / filtration system and confirm water flow to machine.

When the machine has successfully auto filled the steam boiler, turn on all groups and confirm water flow. Once

water is flowing from groups, turn them off and switch to position “2”.

Machine will begin to heat

Volumetric Programming

•Press and hold Sanremo logo (continuous) button on group 1 (left most group) until touchpad LED’s

begin flash.

•Insert coffee prepped portafilter into group and select dose button for programming.

•When desired volumetric dose has been reached, press the same dose button to store volumetric

program.

•Repeat steps 2 & 3 for remaining dose buttons.

•Follow same procedure to program hot water tap dispensing volume.

•When finished, do not touch any of the group buttons for 30 seconds. Machine will then store program

and transfer to the remaining groups.

Group Cleaning Mode

PRESS

HOLD

Warranty Terms and Conditions

*** Submit at time of installation ***

Client Name

Date

Machine Model

Machine Serial N°

N°ofGroups

Supply Voltage

Location Address

Type

Install Date

Installed By

Water Quality Report (Before & After Filtration)

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

Recommended Water Specifications

•

Dedicated cold water line with shut-oﬀ valve

•

Minimum incoming line pressure of 29 PSI / 2

BAR and max line pressure of 65 PSI / 4.5 BAR

Total Dissolved Solids (TDS):

30-150 ppm

Total Hardness:

Below 85 ppm

pH:

6.5-8

Chlorides:

*Any presence of Chlorides can causecorrosion*

5-15 ppm

Total Alkalinity:

35-75 ppm

Total Chlorine:

0 ppm

Iron:

0 ppm

Water levels outside of these parameters can void warranty.

Consult with a water filtration professional for water testing

and recommended systems.

E-mail Form and supporting

media to tech@sanremous.com

I have read and acknowledge the above

Client Name:

Client Signature:

Date:

SANREMO Coﬀee Machines USA

99 Grand Street - Unit 20

Moonachie, NJ 07074 Direct Technical Department Line: 201-856-1705

Water Filtration Make

Model

Details (Please Send Photos of Installation and Filtration Setup)

SANREMO Srl guarantees that the machines and the components

supplied are free from defective material and / or workmanship

for a period of twelve (12) months from invoice date.

The warranty does not cover any faults or malfunctions due to

normal wear and tear, inappropriate use and / or use not in

accordance with normal operation, the use of non-original spare

parts and non-compliance with what is indicated in the use and

maintenance manual delivered together with the machine,

accidental events, unauthorized modiﬁcations or adaptations,

tampering, anomalies caused by electrical and hydraulic systems

or inadequate water ﬁltering and insects infestation.

In the case a failure is found; labor, diagnosis fees, travel fees

are not included in the warranty, nor are freight costs in cases of

shipping.

During the warranty period, all parts that are deemed defective

based on the judgment of SANREMO TSD (Technical Service

Department) will be replaced.

SANREMO Srl has the right to make changes to its products at any

time necessary for technical and / or aesthetic reasons, reserving

all rights deriving from these changes.

Consult with Sanremo TSD prior to performing any warranty

repairs.

Terms & Conditions
