Sans Digital EliteSTOR ES208X12 Manuale utente

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Overview: Sans Digital EliteSTOR 12G SAS expander series is a storage rackmount enclosure with 12G SAS

expander build-in to the unit. Using with 12G SAS host bus adapter (HBA) or 12G SAS RAID controller, Sans

Digital EliteSTOR 12G SAS expander series can easily upgrade your storage infrastructure’s performance and

instantly increase your storage sizes.

In this quick installation guide, it will cover the hard drive installation, product connection diagram, and basic

enclosure information and status LED information

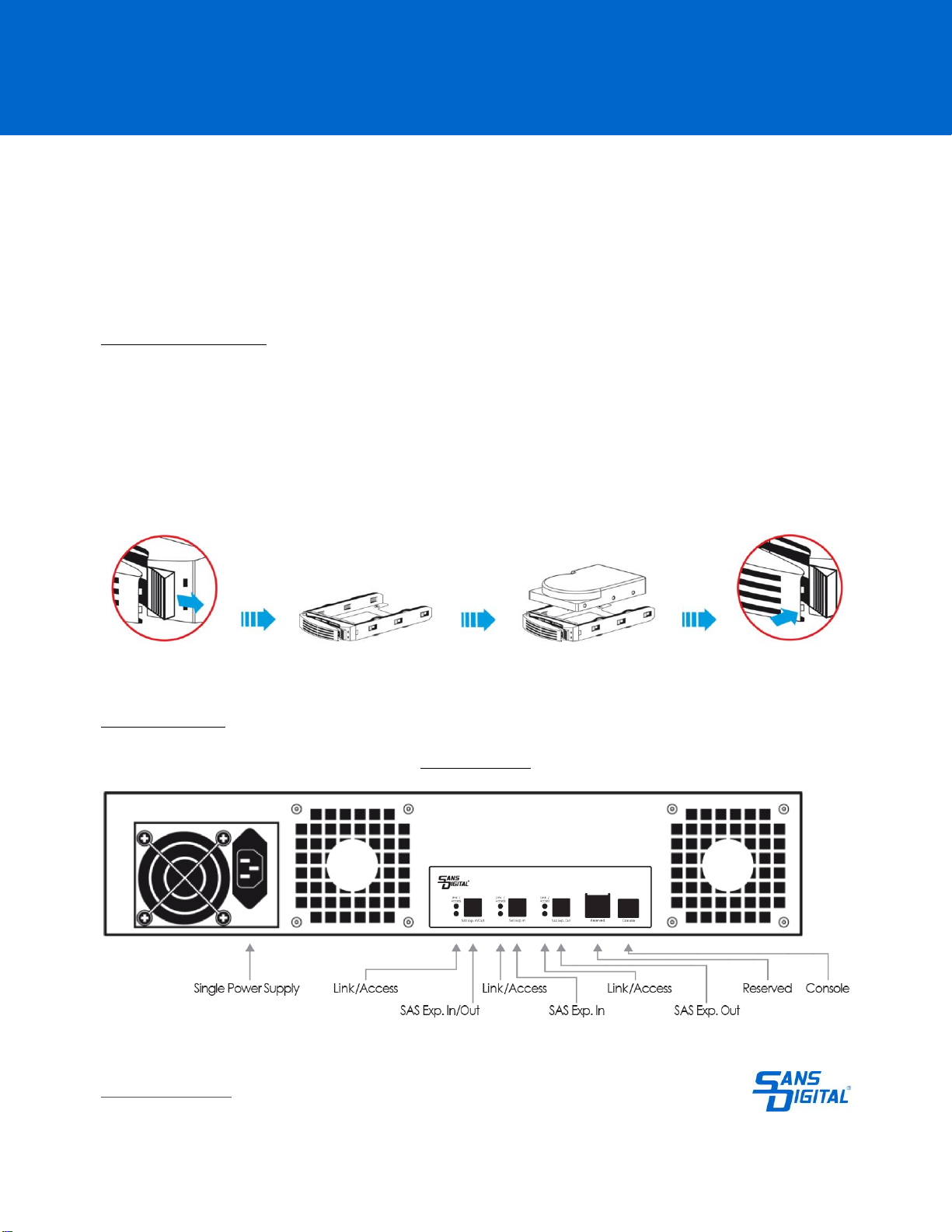

Hard Drive Installation

1. Push the Blue button on the right-side of the hard drive tray to the left releasing the hard drive tray

handle.

2. Pull on the tray handle to remove the tray from the enclosure.

3. Place a hard drive into the tray and line it up with the holes on the hard drive tray.

4. Fasten the hard drive to the tray using the provide screws and a Philips screw driver.

5. Place the tray back into the enclosure and lock the tray by pushing in the tray handle until it clicks

into place.

Product Diagram

Unit Backplane

EliteSTOR ES208X12 Quick Installation Guide

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

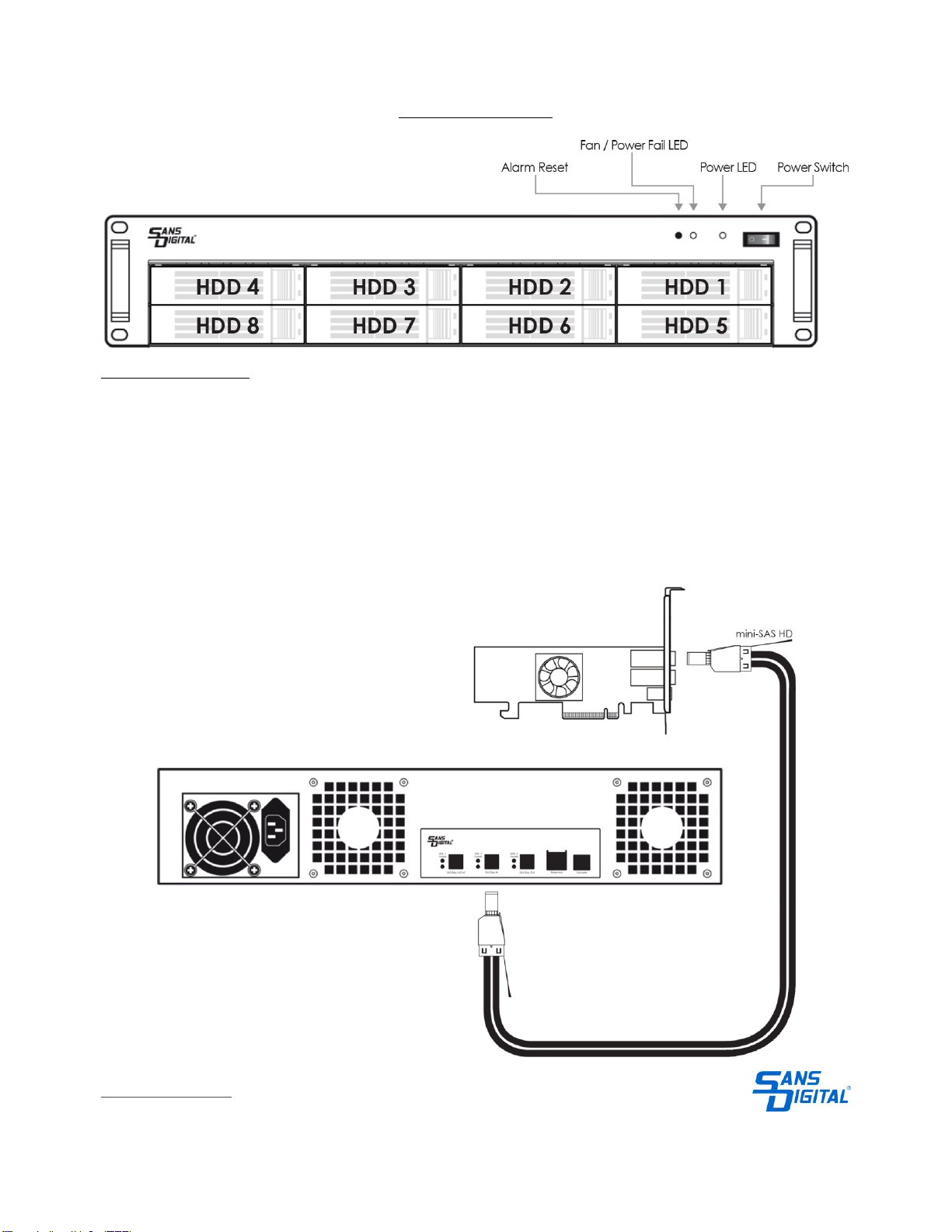

Hard Drive Locations

Installation Diagram

1. Install the PCIe RAID card or HBA into an available PCIe slot on the host computer.

2. Connect the mini-SAS HD cable into port of the PCIe RAID card’s SAS port.

3. Attached the other end of the mini-SAS HD cable into the Sans Digital SAS enclosure mini-SAS HD

port.

4. Power on the SAS enclosure then power on the host computer.

5. Wait for the host computer to boot and follow the RAID controller instructions to install the drivers

and RAID management software.

6. The connected hard drives will display under RAID controller’s management interface, or disk

management/utilities for HBA cards.

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

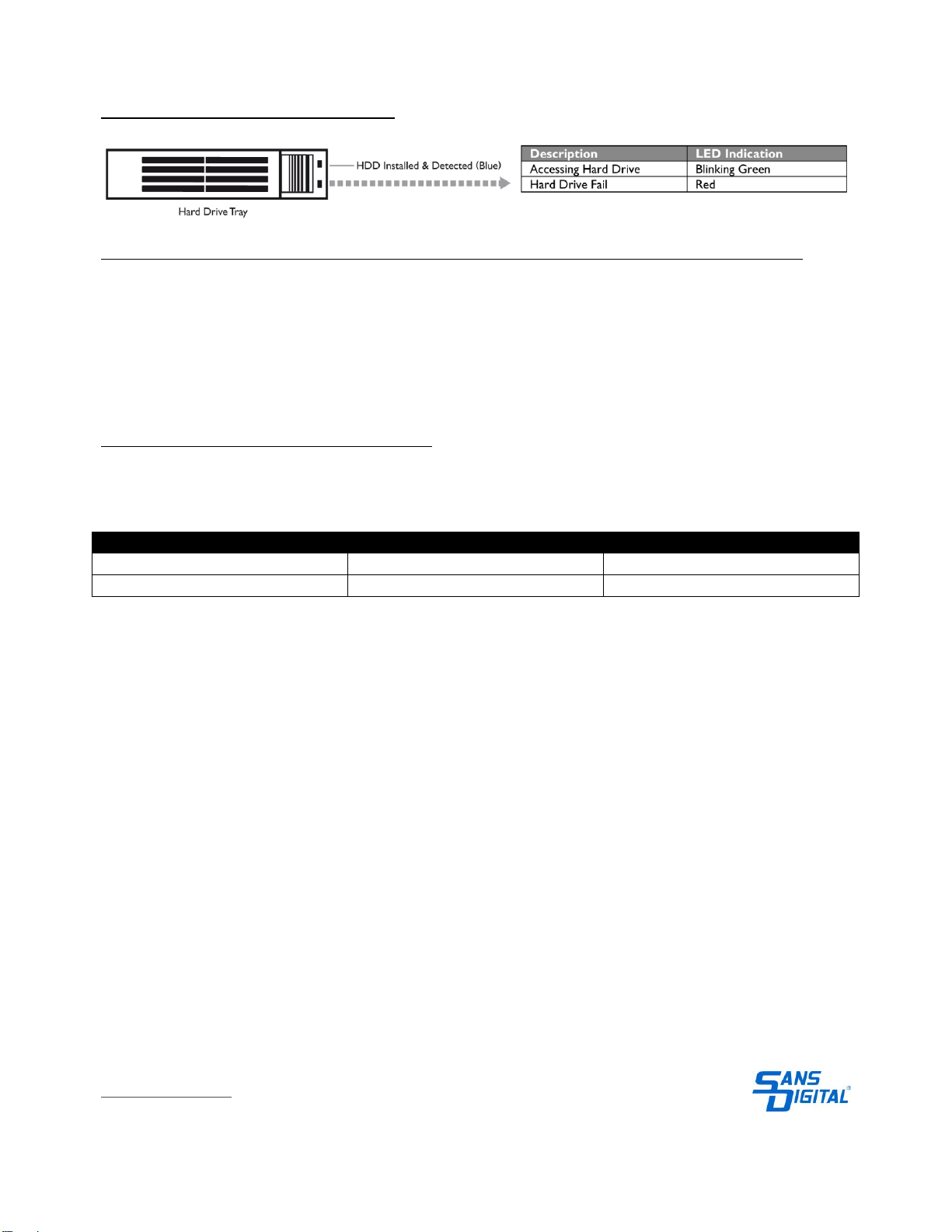

Drive LED information (Hard Drive Tray)

Redundant Power Supply (Standard for ES212X12, ES316X12, ES424X12, optional for ES208X12)

The redundant power supply feature consists of hot-swappable power supply modules. If one of the power

modules fails, the remaining working power supply modules will continue to provide power to the unit so

users do not experience downtime. A replacement power supply could be installed while the unit is running.

Once the replacement power has been installed, the unit will regain its redundant power feature.

Note: Power must be supplied to all power supply modules in order for redundant feature to operate

correctly.

Fan/Power Fail LED information (Front Panel)

When the power supply modules or internal cooling fan malfunctions, the front fail LED will blink and the

alarm will go off. Please see table below:

Description

Alarm Buzzer

Fail LED

Power Supply Failure

Always On

Blinking Red

Cooling Fan Failure

Beep with one second interval

Blinking Red

Note: Pressing down the ‘Alarm Reset’ button temporarily silences the alarm. Alarm will start buzzing again

once the unit has been restarted.
