Santec 3966CI10 Manuale utente
PAGE 01

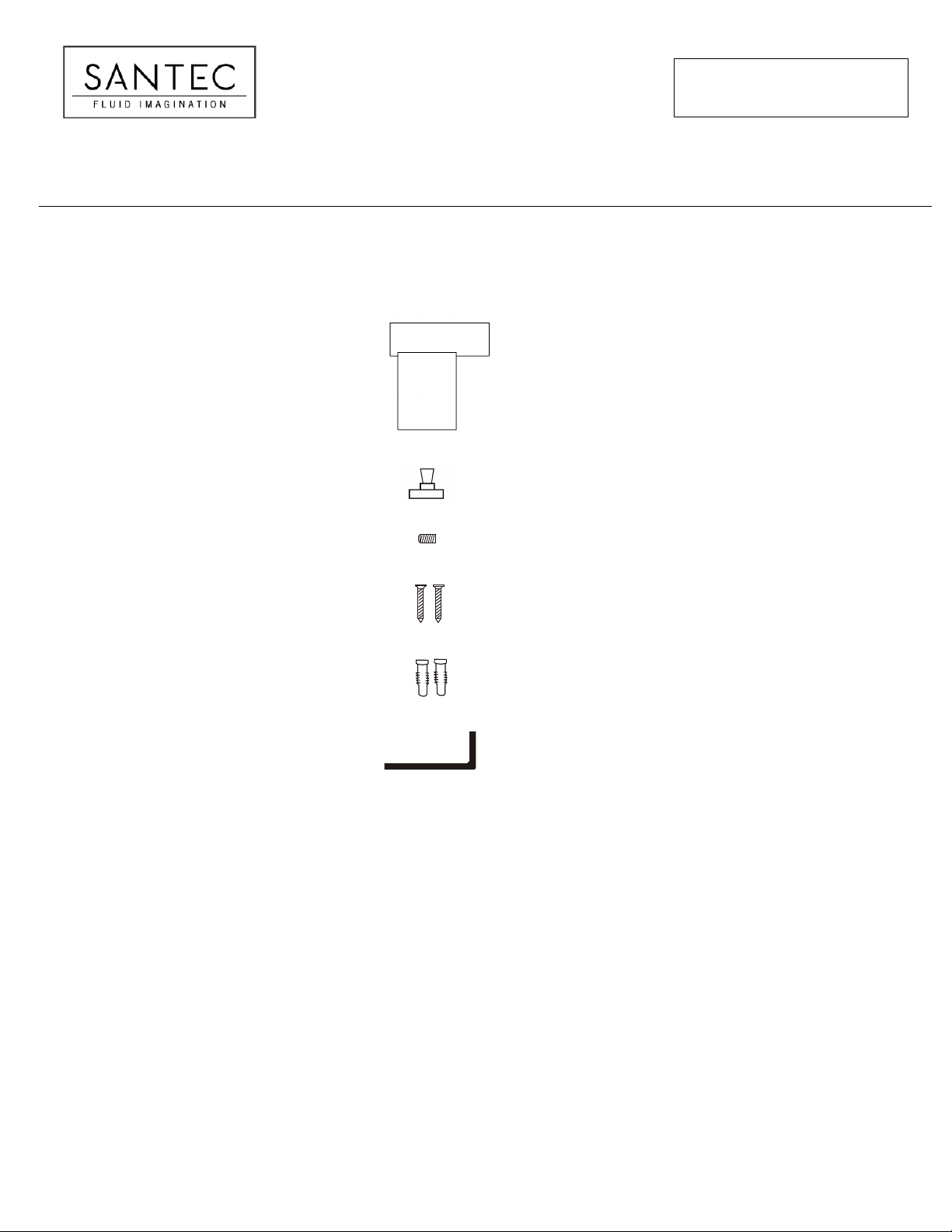

MOUNTING SCREWS (2)
DRY WALLANCHORS(2)
ALLEN KEY
ROBE HOOK POST
SET SCREW
MOUNTING SCREW BRACKET
3966CI _ _
MODEL NUMBER
ROBE HOOK
INSTALLATION INSTRUCTIONS
PAGE 02
1- Take the hook post out of the box.
Place the post against the assigned wall location.
Make sure that the hook is leveled.
Mark the post flange position and remove the trim.
2- Using the Allen key provided, remove the mounting screw bracket from
the hook post.
Press the mounting screw bracket against marked hook post position on
the wall and mark the screw hole positions.
2a- INSTALLING ON WOODEN SURFACE
- For wooden surface, the mounting screw bracket can be secured
by screwing the screws directly into the wall.
2b- INSTALLING ON A DRYWALL
- Using a drill, pre-drill holes for the anchors.
- Insert the anchors into the wall.
- The mounting screw bracket can be secured by screwing the
screws into the anchors.
2c- IF INSTALLING ON A SOLID/HARD SURFACE
- Measure the dimensions carefully.
- Using a drill, pre-drill the holes.
- Secure the mounting screw bracket by screwing the screws
into the wall.
3- Press the hook post against the mounting screw bracket.
Align the hook post and secure it by tightening the set screw.
4- Check the hook post to make sure it is firmly secured.
If not, tighten the set screw with the Allen key.
Santec Inc.
3501 Challenger Street, Torrance, CA 90503
Tel: (310) 542-0063 Fax (310) 542-5681
www.santecfaucet.com
WALL
3966CI_ _
WOODEN SURFACE
DRY WALL SURFACE
HARD SURFACE
post flange mark
mounting screw bracket
