Thank you for choosing the Sanus Systems XAS1A. The XAS1A is designed to mount speakers on each side of a
VMDD26 VisionMount full motion TV mount.The XAS1A will support speakers weighing up to 11 kg (25 lbs.) each.
Do not use this product for any purpose not explicitly specied by Sanus Systems. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts about
the safety of the installation, contact Sanus Systems Customer Service or call a qualied contractor. Sanus
Systems is not liable for damage or injury caused by incorrect mounting, assembly, or use.
CAUTION
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
WARNING
6901-100148 <01>
1/4-20 x 2.0 in.
1/4-20 x 3/8-16 1/4-20 x 3/8-16
M4 x 35mm
1/4-20
1/4-20 Nyloc
1/4-20 x 0.5 in. M4 x 16mm
1/4-20 x 0.75 in.
M4 M6 M6M4 M6M4
1/4-20 x 1.5 in. 1/4-20 x 1.25 in.
Supplied Parts and Hardware
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item
to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!
[01] x 2
[02] x 2
[05] x 4 [06] x 4
[04] x 4
[25] x 1
[03] x 4
[22] x 4
[16] x 4 [17] x 4 [18] x 4 [19] x 4 [20] x 4
[24] x 18[23] x 4
[21] x 4
[11] x 4 [12] x 4 [13] x 4 [14] x 4 [15] x 4
[07] x 4 [08] x 4 [09] x 4 [10] x 4
6901-100148 <01>

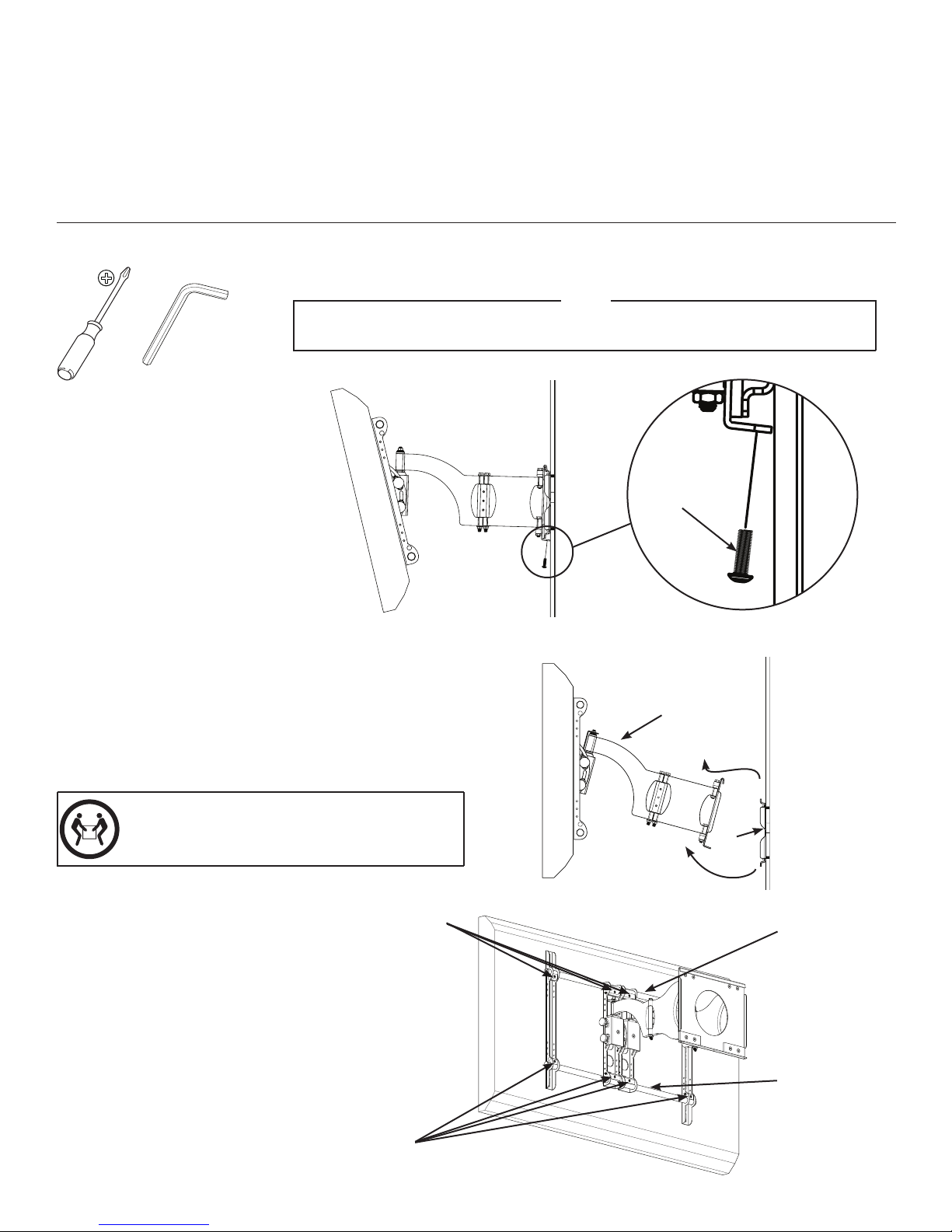

1: Preparation
1- 1: New Installations
If you have purchased a VMDD26 VisionMount™ Full Motion Mount, but have not installed it, begin by following the large
VMDD26 installation instructions. Replace Cross Tube Installation with Step 2: Cross Tube Installation of the XAS1A instructions.
When completed, refer back to this Instruction manual, starting at Step 3: Install Extension Tubes.
1- 2: Existing Installations
Disconnect all electrical connections
and release all cables from any cable tie
downs. Remove the safety bolt [A] as
shown. [A]
All graphics in this section are generic and are only used to illustrate a procedure.
NOTE
[B]
[C]
HEAVY! You will need assistance with this step.
Lift the TV and arm assembly [B] off
the wall plate [C] as shown Lean the
assembly against a wall or other vertical
surface.
Using an Allen Key, loosen the eight vise
assemblies [D]. Remove the lower cross
tube [E]; then, remove the upper cross
tube [F] as shown.
[25]
[E]
[F]
[D]
[D]
6901-100148 <01>
2: Cross Tube Installation
Slide the cross tubes [02] into the first monitor bracket
[G], through the arm assembly [H] and then through
the second monitor bracket [J]. Center the cross tubes
on the back of the TV. Using the Allen Key, tighten the
six vise assemblies until the cross tubes no longer
rotate.
3: Install Extension Tubes
Slide the four extension tubes [03] (felt end
first) into the cross tubes [02].
[03]
[02]
[03]
[03]
[02]
[03]
If you no longer have your VMDD26 Installation
Manual, download one from www.Sanus.com or call
Sanus Systems Customer Service.
NOTE
[25]
Attach the TV and arm assembly to the wall plate
according to the instructions provided with the
VMDD26 Full Motion Mount.
HEAVY! You will need assistance with this step.
[G]
[J]
[H]
[02]
[02]
6901-100148 <01>
4: Install Threaded Tube Clamp & Clamp Knob
Slide the threaded tube clamps [05] onto the extension
tubes [03], aligning the notches in the threaded tube
clamp and cross tubes [02].
Snap the threaded tube clamps onto the cross tubes.
Thread a clamp knob [04] onto each threaded tube
clamp [05]. Do not tighten at this time.
[02]
[02]
[03]
[03]
[06]
[06]
[05]
[05]
5: Secure Vise Assemblies to Brackets
4x
[07]
[22]
[04]
[01]
Do not overtighten the nut [22]. The vise assembly
[04] must rotate freely around the carriage bolt [07].
NOTE
6901-100148 <01>
6: Attach Speaker Brackets
Slide the speaker brackets [01] into the extension tubes [03].
Use the Allen key to tighten the four vise assemblies [04] until
the speaker brackets do not slide on the extension tubes.
[01]
[03]
[04]
[03]
[25]
Maximum extension of the cross tubes is 162 cm
(64 in.). Do not exceed the maximum extension.
NOTE
6901-100148 <01>
[08] - [13]
7: Attach Speakers
The speaker wires may be routed to the speaker terminals
through the extension tubes [03]. Refer to the instructions
provided with the large VisionMount™ Full Motion Mount for
routing speaker wires.
Determine the thread of the fastener required by threading each
size fastener into the back of the speaker. Stop immediately if
you encounter any resistance. Choose the correct thread size and
fastener length for your speakers. If using M4 fasteners, [12] or
[13], be sure to install the lock washer [20].
7 - 1: Attach Speakers Using Threaded Fasteners
Disconnect the speaker wire from the receiver or amplier when you route it through
the upper or lower extension tubes [03] to avoid damage to the speakers, amplier, or
receiver.
CAUTION
[03]
[03]
6901-100148 <01>
CSAV, Inc. and its afliated corporations and subsidiaries (collectively, “CSAV”), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein
covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to
change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the information contained herein. CSAV assumes no responsibility for accuracy,
completeness or sufciency of the information contained in this document.
[14], [15]
The speaker wires may be routed to the speaker terminals
through the extension tubes [03]. Refer to the instructions
provided with the large VisionMount™ Full Motion Mount for
routing speaker wires.
Choose the correct fastener length, [14] or [15] for your speakers.
7 - 2: Attach Speakers Using Hex Studs
Disconnect the speaker wire from the receiver or amplier when you route it through
the upper or lower extension tubes [03] to avoid damage to the speakers, amplier, or
receiver.
CAUTION
[03]
[23]
