F80b INSTRUCTION MANUAL
Scan for easy install video
san.us/252
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-9952. We’re ready to help!
2
Before You Begin
Please check the following items:
Your TV and any accessories you plan to use do not exceed the specified weight limit.
The hole pattern on the back of your TV is compatible with the hole pattern of the TV brackets.
The wall you chose to mount your TV is wood stud, solid concrete, or concrete block.
You read and understand these directions.
You refer to the documentation that came with your TV for additional guidance.
You have the tools needed for installation.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service or call a qualified contractor.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
NOTE: Para instrucciones en Español, ver páginas 20-23.
3

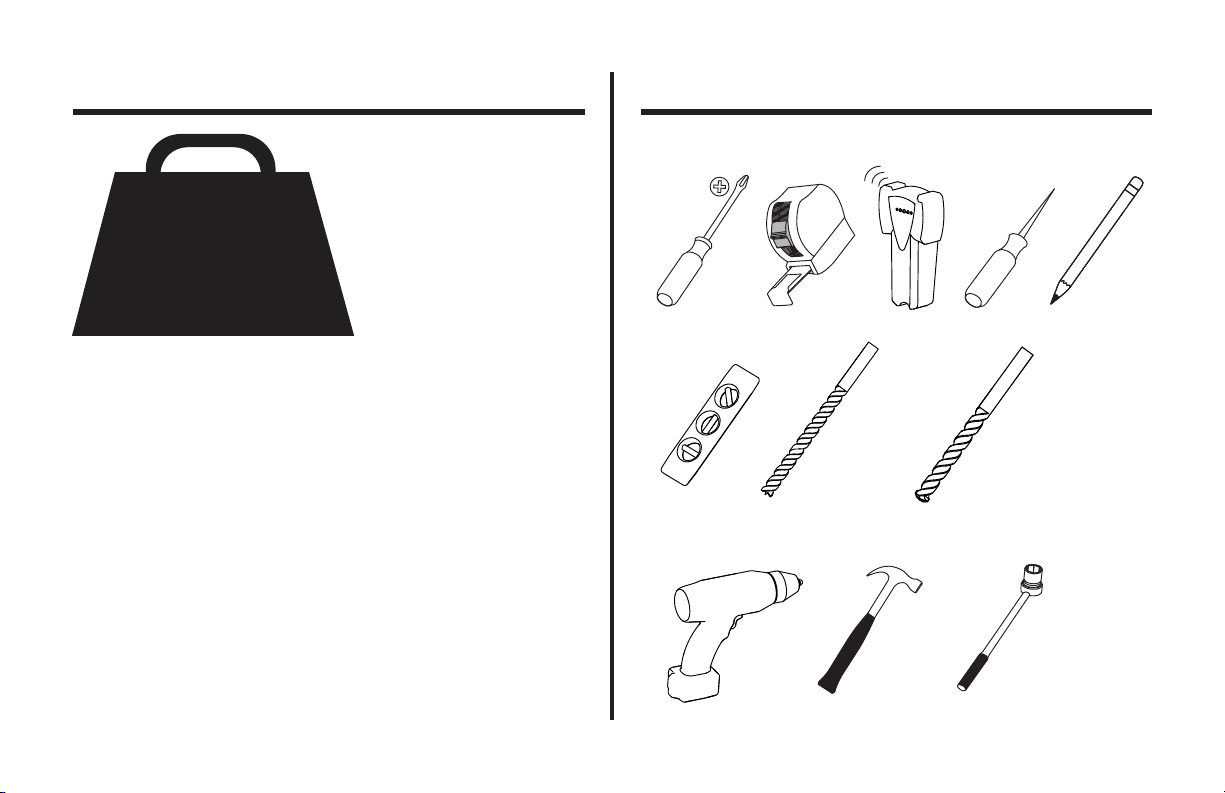

Weight Limit Tools Needed
175 lb (79.4 kg)
DO NOT EXCEED!
(includes TV and any
accessories)
5.5 mm
(7/32 in.)
10 mm
(3/8 in.)
13 mm
(1/2 in.)
4
Dimensions
in.
[mm]
19.7
500
15.7
400
20.5
520
31.26
794.0
7.01
178.0
4.50
114.3
810mm
ADJUSTABLE TO
11.8
300
7.9
200
5°
1.324
33.63
5
NOTE: Not all hardware included will be used.
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
TV Interface Brackets
01 02
M6 x 12mm M8 x 16mm
M6 x 35mm M8 x 35mm
03 04 05
06 07
(4) (4) (4)
(4)
TV Screws
08 (4)
(4)
M5 x 12mm
M5 x 35mm
6
⁄ x2 ⁄ in.
⁄ in.
Wall Plate Template Wall Plate
Lag Bolts Washers
Concrete Anchors
1312
14
15
16
(4)
(4)
(4)
Parts and Hardware for STEP 1 Cont.
Washers
Spacers
M5 M6/M8
09 10
11
(4) (4)
(4)
Parts and Hardware for STEP 2
7
Tilt Brackets Screws Nuts
17 18 19
(4)
(2) (4)
Parts and Hardware for STEP 3
1/4-20 x 1/2 in.
8
STEP 1
1 2
M6 M8
AB
1. Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M5, M6, or M8).
2. Determine what kind of TV you have and if you require extra space between the wall and the TV to accommodate cables.
• If you have a flat back TV and do not require extra space for cables, see STEP 1-A
• If you have an irregular back TV or need extra space to accommodate cables, see STEP 1-B
Select TV Hardware and Attach Interface Brackets to TV
CAUTION: Avoid potential personal injuries and property damage!
Verify that there are adequate threads to secure the brackets to the
monitor. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw and spacer combination to
accommodate your needs. Using hardware that is too long may damage
your TV.
M5
9

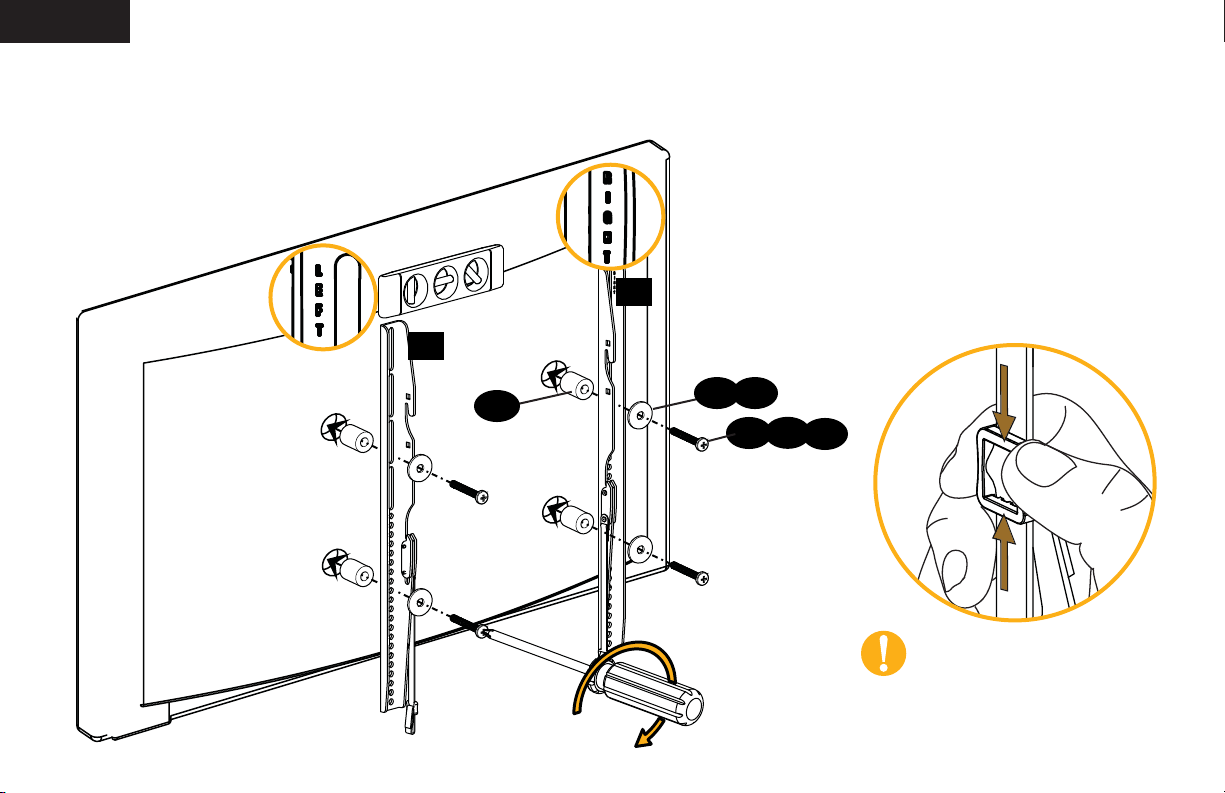

STEP 1-A
A
IMPORTANT: After attaching
the brackets, adjust the
straps so they are level with
the bottom of the TV.
Ensure that your brackets are level on the back of the TV. If you need extra space to accommodate cables, recesses, or protrusions;
use spacers (see the irregular back option on the next page).
01
02
03 04 05
09 10
10
STEP 1-B
B
IMPORTANT: After attaching
the brackets, adjust the
straps so they are level with
the bottom of the TV.
Ensure that your brackets are level on the back of the TV. Standard configurations are shown. For special applications, or if you are
unsure about your hardware selection, contact Customer Service.
01
02
06 07 08
11 09 10
