Sanus SLF9 Manuale utente

Scan for easy install video

http://san.us/1043

SLF

INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-888-333-1376 (UK: 0800-056-2853). We’re ready to help!

—

Perfect!

Yes

—

This mount is NOT compatible. Visit simplicity.sanus.com or call 1-888-333-1376

(UK: 0800-056-2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-888-333-1376 (UK: 0800-056-2853).

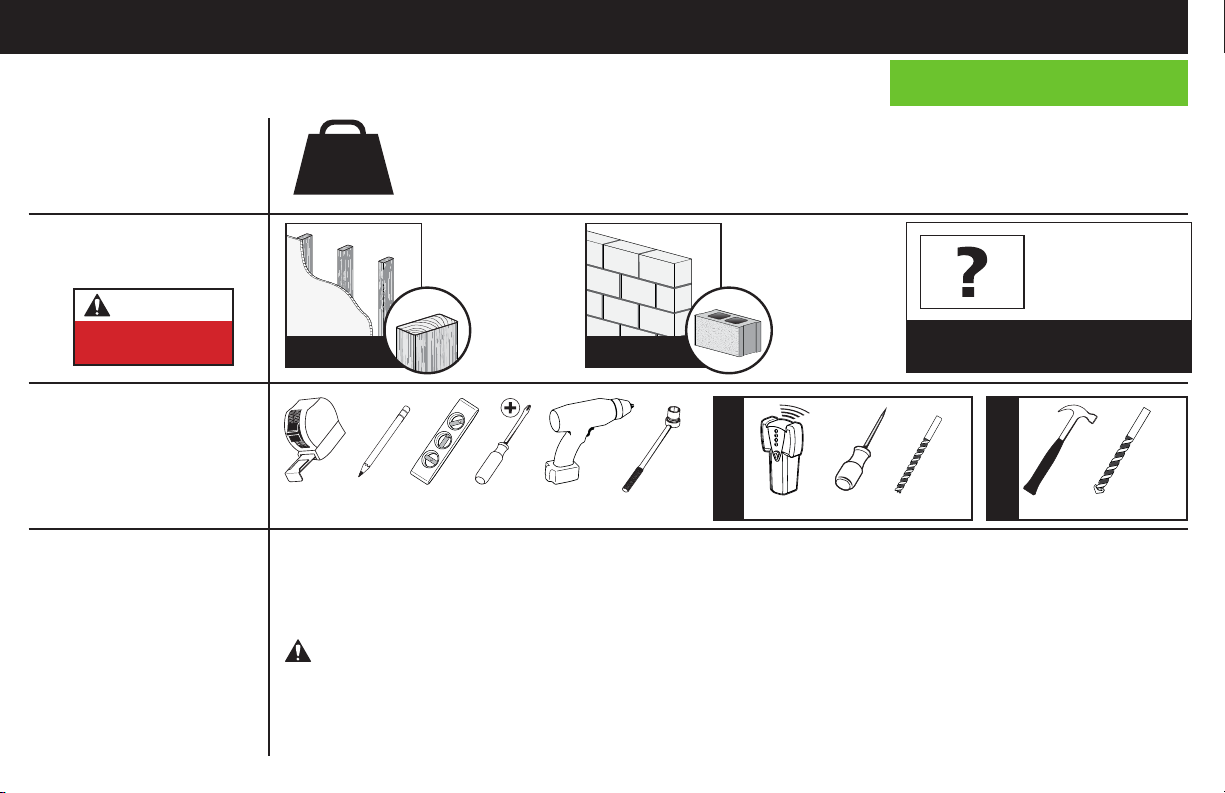

Do you have

all the tools

needed?

What is your

wall made of?

150 lbs.

(68 kg)

Ready to begin?

Does yourTV

(including accessories)

weigh more than

150 lbs. (68 kg)?

CAUTION:

DO NOT install

into drywall alone

Unsure?

Drywall with

wood studs?

Solid concrete or

concrete block?

Call Customer Service:

1-888-333-1376 (UK: 0800-056-2853)

Perfect! Perfect!

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Wood Stud Install

Concrete Install

Awl

Pencil Level Stud Finder

Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit

3/8 in.

(10 mm)

Concrete

Para Español ver página 26

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

Features

TV tilts up

or down for

the perfect

viewing angle

Cable covers hold cables

along mount arm for a

clean look

Adjustment knob allows ﬁngertip

control of TV or restriction of TV

movement

Mounting arm adjusts* within the

wall plate for optimal positioning

Level

adjustment

creates a

worry-free

installation

Fully articulating arm with

3 pivot points, creates

optimal viewing positions

Fit TV VESA hole

patterns from

75 x 75 mm up to

600 x 400 mm

* CAUTION: Avoid potential personal injury or property damage!

For concrete applications, the arm assembly must remain centered in the wall plate.

MIN SWIVEL WITH 90" TV

OFFSET RANGE

FULLY ASSEMBLED MOUNT LEVELING

TOP VIEW - EXTENDED

TOP VIEW - COLLAPSED

SIDE VIEW - EXTENDED

SIDE VIEW - RETRACTED

3-D VIEW

TV INTERFACE

WALL PLATE

15.75 in

[400mm]

15.75 in

[400mm]

3.9 in

[100mm]

3.9 in

[100mm]

3.0 in

[750 mm]

2.95 in

[750 mm]

7.87 in

[200 mm]

7.87 in

[200 mm]

23.62 in

[600mm]

8.7 in

[220 mm]

17.3 in

[440 mm]

3.19 in

[80.9 mm]

3.46 in

[87.8 mm]

24.05 in

[611 mm]

5˚

35˚35˚

4˚

15˚

DOWN

2.5˚

16 in

[406 mm]

24 in

[610 mm]

28.51 in

[724.1 mm]

21.65 in

[549.9 mm]

10.9 in

[277 mm]

13.7 in

[347 mm]

Dimensions

HERE WE GO!

Scan he re to view

your install video.

Model: SLF8-B1

6700-004620 <00>

Locate your studs and choose a height for your

TV,then simply tape this template to the wall,

and you can drill right through.

san.us/969

san.us/971

THIS IS YOUR DRILLING TEMPLATE

FOR STEP 2

WELCOME AND THANKS FOR CHOOSING SANUS SIMPLICITY

YOU’RE REALLY GOING

TO ENJOY STEP 3

Once the wall plate is installed, attach the arm to the

wall plate. Next, simply pick-up your TV,hang it on the

arm, and secure it. Congratulations! You’redone.

We're here to help!

If you have questions at any point, contact customer service at:

1-888-333-1376

Monday – Friday 8

– 9

CST

Saturday– Sunday 10:30

– 7

CST

From your typical viewing location, position your TV so

your eyes are level with the middle of the screen. For most

people, this is between 40 " and 60 " (101 cm and 152 cm)

above the ﬂoor.For precise drilling locations, scan the

HeightWizard

™

link below or contact customer service.

GET STARTED

WITH STEP 1 VIEWING HEIGHT

RECOMMENDATION

Grab the TV brackets and line them up

with the holes on the back of your TV.

Attach using the bolts that ﬁt.

Reference the product manual for

details on mounting to concrete.

Be sure to review the manual for

complete safety instructions.

40– 60 in.

101– 152 cm

10°

THIS WAYUP

5/16 x 3 1/2 in.

M4 M6/M8

22mm

M8 X 12 mm

.890 x .375 x .077 in.

.563 x .266 x .050 in.

1/4-20 x 3/8 in.

1/4-20 x 5/8 in.

M4 x 12mm

M6 x 12mm

M6 x 35mm

M4 x 35mm

M6 x 20mm

M8 x 16mm M8 x 35mm

M8 x 25mm

M8 x 20mm

3/16 in.

2.5mm

M8 x 45mm

M8 x 50mm

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1

STEP 1 Attach Bracket to TV

02 x4

04 x4

05 x4

06 x4

07 x4

08 x4

09 x4

10 x4

11 x4

12 x4

13 x4

14 x4

15 x4 16 x4

17 x4

18 x4

03 x8

TV Bracket

Extenders

Interface Screws

(TV Bracket)

TV Screws Washers

Spacers

1.1 Measure Your TV Hole Pattern

inch dimensions are approximate

75 mm =7.5 cm ≈ 3 in.

100 mm=10 cm ≈ 4 in.

200 mm=20 cm ≈ 7 7/8 in.

300 mm=30 cm ≈ 11 3/4 in.

400 mm=40 cm ≈ 15 3/4 in.

600 mm=60 cm ≈ 23 5/8 in.

Measure the width and height of your TV hole pattern in mm.

Record your measurements for STEP 1.2.

Width _____________ mm X Height _____________ mm

inches

1.2 Assemble Your TV Bracket

Based on your TV hole pattern measurements

from STEP 1.1 (Wmm x Hmm), determine your

TV bracket configuration: A, B, C, D, E or F.

7.87

[200]

15.75

[400] 15.75

[400]

11.81

[300]

11.81

[300]

15.75

[400]

11.81

[300]

2.95

[75]

in.

[mm]

in.

[mm] in.

[mm]

300 x 300 mm

400 x 400 mm 400 x 300 mm

B C

These smaller hole patterns only use TV

bracket 01 . Do not use the four TV bracket

extenders 02 and eight screws 03 .

75 x 75 mm

100 x 100 mm

200 X 200 mm

2.95

[75]

3.94

[100]

7.87

[200]

3.94

[100]

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

0202

in.

[mm] in.

[mm]

600 x 400 mm

400 x 200 mm 200 x 400 mm

E F

03 03

15.75

[400]

15.75

[400]

7.87

[200]

23.62

[600]

15.75

[400]

7.87

[200]

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

0202

M8 FLAT BACK ROUND BACK INSET HOLES CABLES

1.3 TV

Screw Diameter

1.4 TV

Screw Length

b:Spacers and longer screws are

supplied to accommodate:

●Round (irregular) back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Hand thread screws into the

threaded inserts on the back of

your TV to determine which screw

diameter (M4, M6, or M8) to use.

Too Short

Too Long

CAUTION:

Verify adequate thread

engagement with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

a:If your TV has a

flat back AND you

want your TV closer

to the wall, use the

shorter screws.

ab14 15

If your TV included

inset spacers or wall mount

adapters, see Troubleshooting

PAGE 25.

Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.

NOTE: The hanging tab Hon TV bracket 01 must be oriented toward the top of the TV.

Secure the TV bracket using your selection: (a) screw/washer or (b) screw/washer/spacer.

CAUTION: Avoid potential personal injuries and property damage!

DO NOT use a power screwdriver for this step.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

1.5 Attach TV Bracket

TV Bracket Conﬁguration A

Illustrated (with spacers 18 )

TV Bracket Conﬁguration D

Illustrated (with spacers 18 )

HaFlat Back

bRound Back / Extra Space

Standard configurations are shown.

For special applications, or if you are uncertain

about your hardware selection, contact

Customer Service at 1-888-333-1376.

17 15 16

15 16

04 05 06 07 08 09

11 12 13 14
