VLL

INSTRUCTION MANUAL

Scan for easy install video

http://san.us/407

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We’re ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Does your TV weigh more than 125 lb (56 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Do you have all of the tools needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your wall made of?

Perfect! Perfect! Call 1-800-359-5520 (UK: 0800-056-2853)

Unsure?

Drywall with

wood studs

Solid concrete or

concrete block

7/32 in.

(5.5 mm)

Wood

3/8 in.

(10 mm)

Concrete

125 lb

(56 kg)

1/2 in.

(13 mm)

Spacer

M4 x 20mm M5 x 20mm

M6 x 25mm M8 x 25mm

STEP 1 Attach Bracket to TV

TV Bracket

06 07

x4 x4

01 x2

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 1

TV Screws

TV Washers

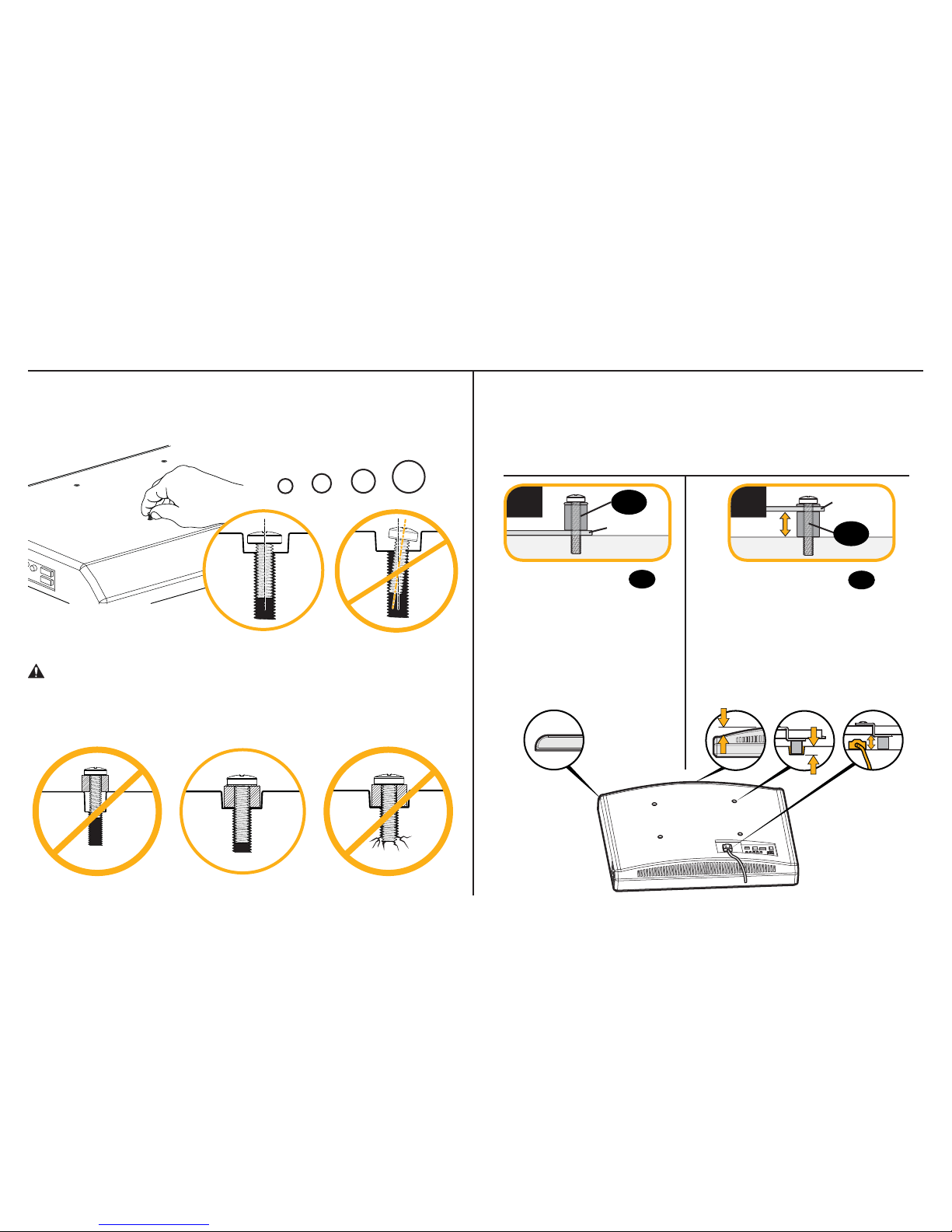

1-1 Select TV Screws

Hand thread screws into the threaded inserts on the back of your TV

to determine which screw diameter (M4, M5, M6, or M8) to use.

1-2 Spacers

CAUTION: Verify adequate thread engagment of the screw/

spacer combination on your TV.

Too short will not hold the TV and too long will damage the TV.

M4 M6 M8

Too Short Correct Too Long

Mount the spacers 08

above the TV bracket,

so the TV bracket sits

close to the TV surface

for Flat Back Panels.

Mount the spacers 08

under the TV bracket to

create extra space needed

for irregular shape TV

backs or large cables.

Spacers and screws are supplied to install your TV bracket.

Determine your preference for spacer configuration when

attaching your TV bracket.

Round Back CablesInset HolesFlat Back

TV Bracket

1-3 Attach TV Brackets

Center the TV brackets 01 over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level.

NOTE: Loosen the adjustment screws on TV brackets 01 to extend the mounting holes over your TV hole pattern.

Install using the spacer, screw and washer combination you selected for your TV.

IMPORTANT: Tighten the adjustment screws on TV brackets 01 when finished.

Adjustment

Screw

Loosen

Tighten

aSpacer, screw and washer

bSpacer, screw and washer

STEP 2 Attach Wall Plate to Wall

5⁄16 in. x 2 3⁄4 in.

Sanus Magnetic Stud Finder

12 x4

09 x1

10 x1

11 x1

13 x4

Parts and Hardware for STEP 2

For wood stud installations, follow STEP 2A on PAGE 7

For concrete installations, follow STEP 2B on PAGE 11

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

Wall Plate

Template Lag Bolt

Concrete Anchor

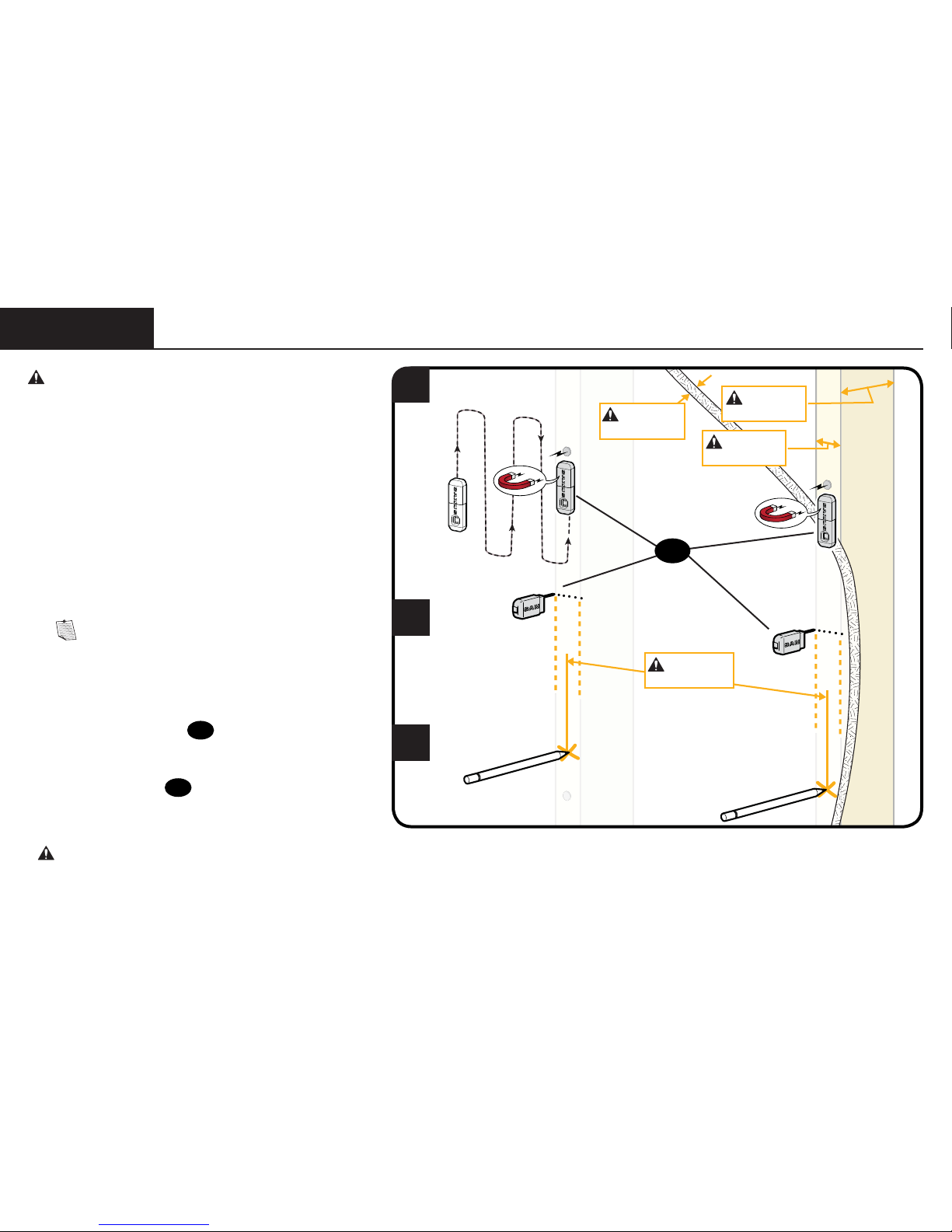

STEP 2A Wood Stud Option

CAUTION: Avoid potential personal injuries and

property damage!

●Drywall covering the wall must not exceed

16 mm (5/8 in.)

●Minimum wood stud size: common 51 x 102 mm

(2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.)

●Minimum horizontal space between fasteners:

406 mm (16 in.)

●Stud centers must be verified – not all walls have

conventional 406 mm (16 in.) or 610 mm (24 in.)

stud spacing

NOTE: See Introducing Sanus Magnetic Stud

Finder*located in your Welcome folder for more

detailed operation of stud finder.

1. Locate a nail/screw in the studs using the Sanus

magnetic stud finder 11 provided.

2. Find the edges of the studs using the probe

of the stud finder 11 .

3. Mark the centers of the studs with pencil.

*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD)

is in use, magnetic ﬁelds may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at

least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.

Min. 406 mm

(16 in.)

Max. 16 mm

(5/8 in.)

Min. 89 mm

(3 1/2 in.)

Min. 38 mm

(1 1/2 in.)

4 5

75 mm

(3 in.)

5.5 mm

(7/32 in.)

4. Place the wall plate template 09 at your desired height and position the slotted holes over your stud center lines. Level the wall plate

template 09 and tape in place.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

IMPORTANT: Be sure you mark and drill into the center of the stud.

5. Drill the four pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.).

09 09

6 7

≈ 13 mm

(1/2 in.)

6. Partially install the top two lag bolts 12 ,leaving about 13 mm (1/2 in.) space from the wall.

NOTE: This space allows you to remove the wall plate template 09 and hang the wall plate 10 onto the top lag bolts 12 .

7. Remove the wall plate template 09 .

8 9

8. Hang the wall plate 10 on the top lag bolts 12 .

9. Install the bottom two lag bolts 12 . Tighten all four lag bolts 12 only until they are pulled firmly against the wall plate 10 .

NOTE: Hold the wall plate 10 in place when tightening the first lag bolt 12 to keep the plate from shifting out of place.

CAUTION: Improper use could reduce the holding power of the lag bolt 12 . DO NOT over-tighten the lag bolts.

Go to STEP 3 on PAGE 14.
