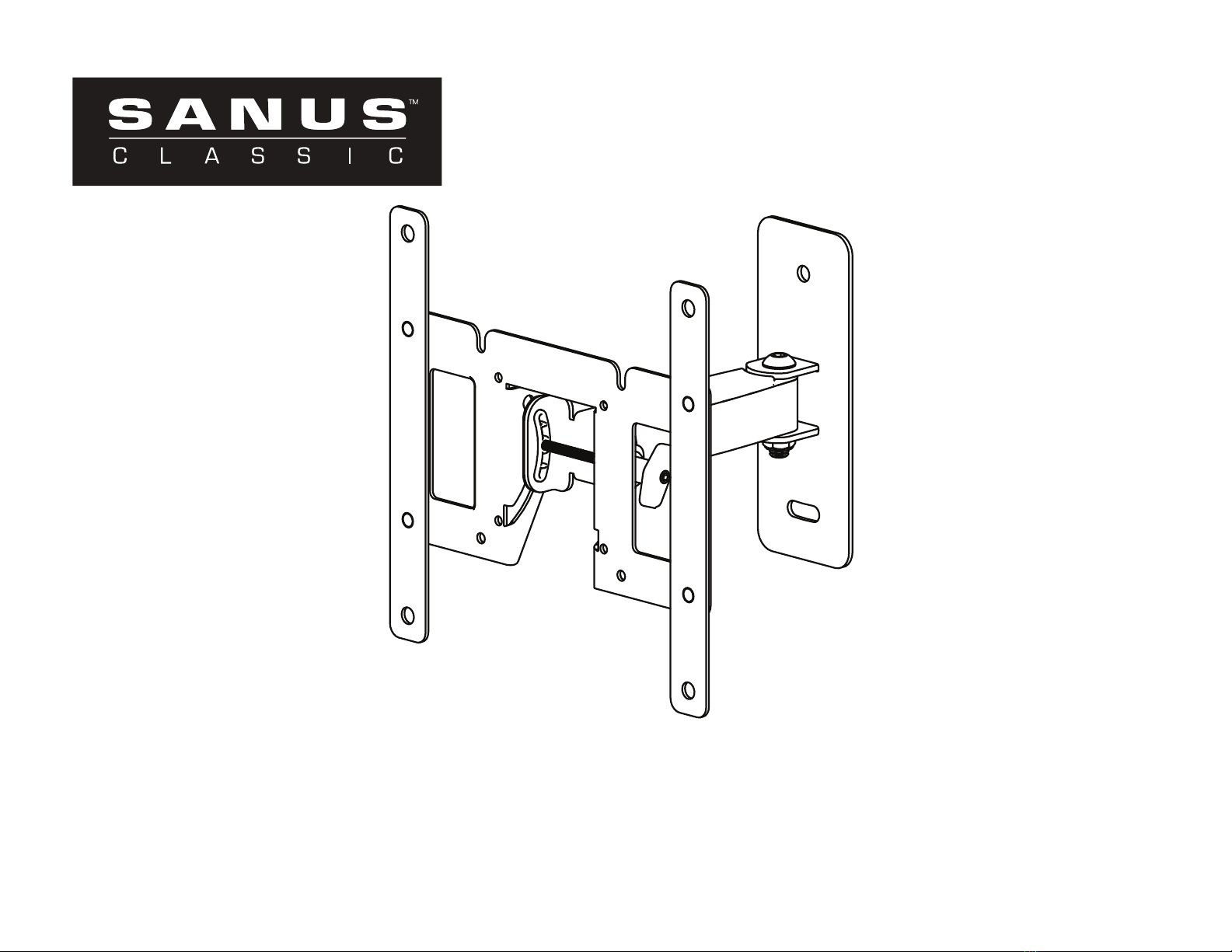

Sanus CLASSIC MSF07c Manuale utente

MSF07c Instruction Manual

Unsure? Call 1-800-359-5520

(UK: 0800-056-2853)

Does your TV weigh more than 35 lb (15.8 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

35 lb

(15.8 kg)

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

What is your wall made of?

Drywall with

wood studs? Perfect!

CAUTION: Avoid potential personal injuries and property damage!

• This product is designed for use in wood stud walls - DO NOT install into drywall alone

• The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

• Do not use this product for any purpose not explicitly speciﬁed by manufacturer

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

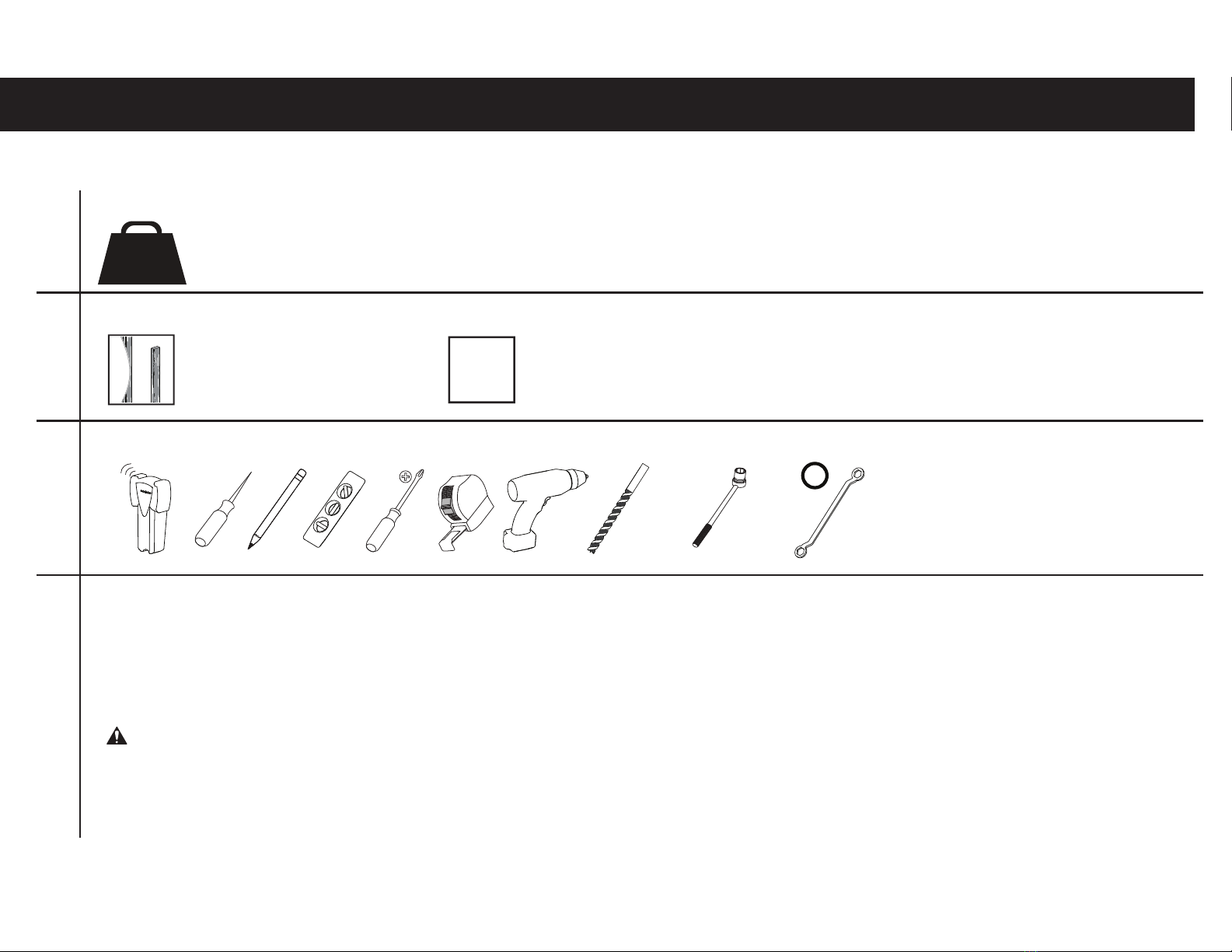

Do you have all of the tools needed?

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm) 3/8 in.

(10 mm)

OPT

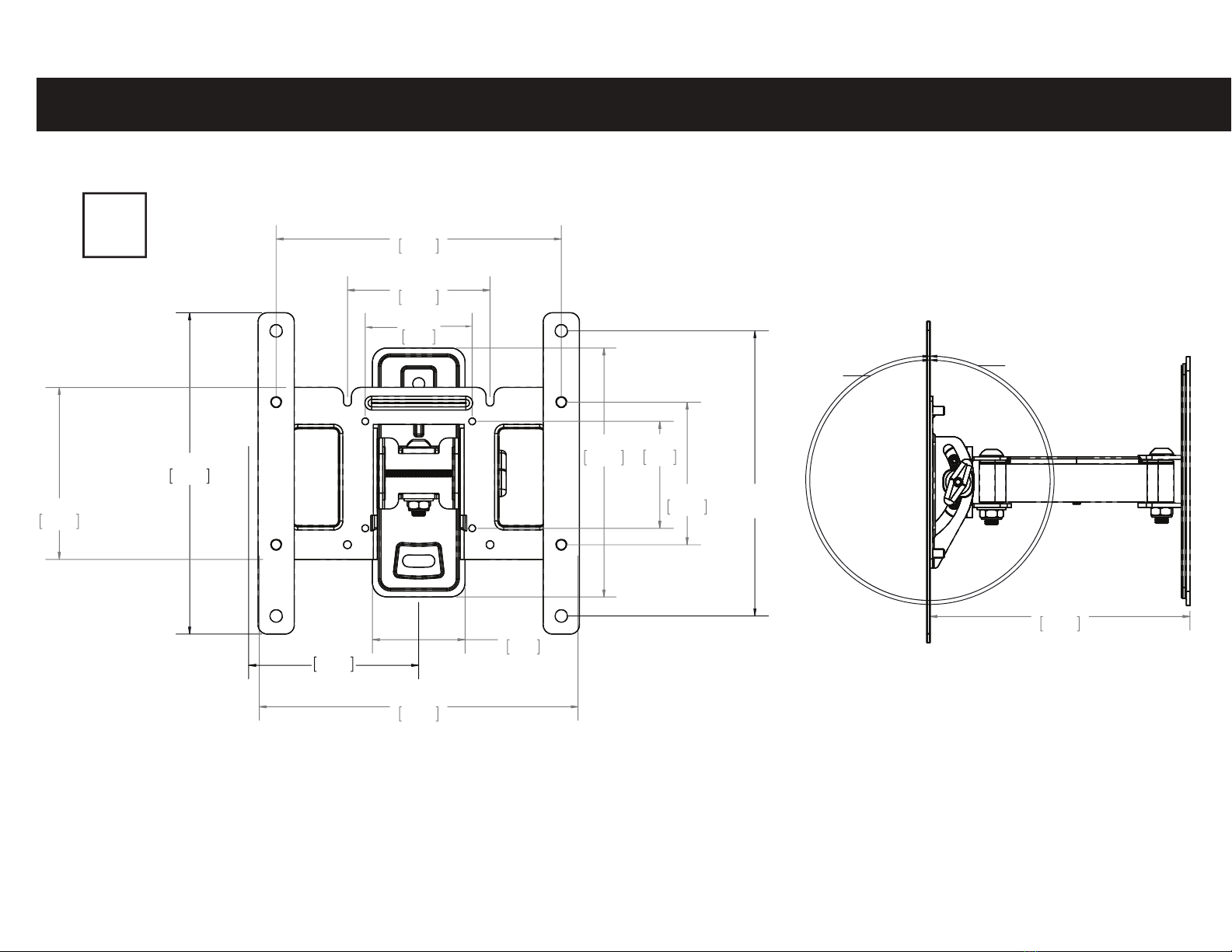

Dimensions

in.

[mm]

8.87

225.4

6.87

174.6

2.56

65.0

4.75

120.7

3.94

100.0

2.95

75.0

8.80

223.6

7.87

200.0

4.70

119.3

OFFSET

7.87

200.0

3.94

100.0

2.95

75.0

7.18

182.4

12°

20°

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

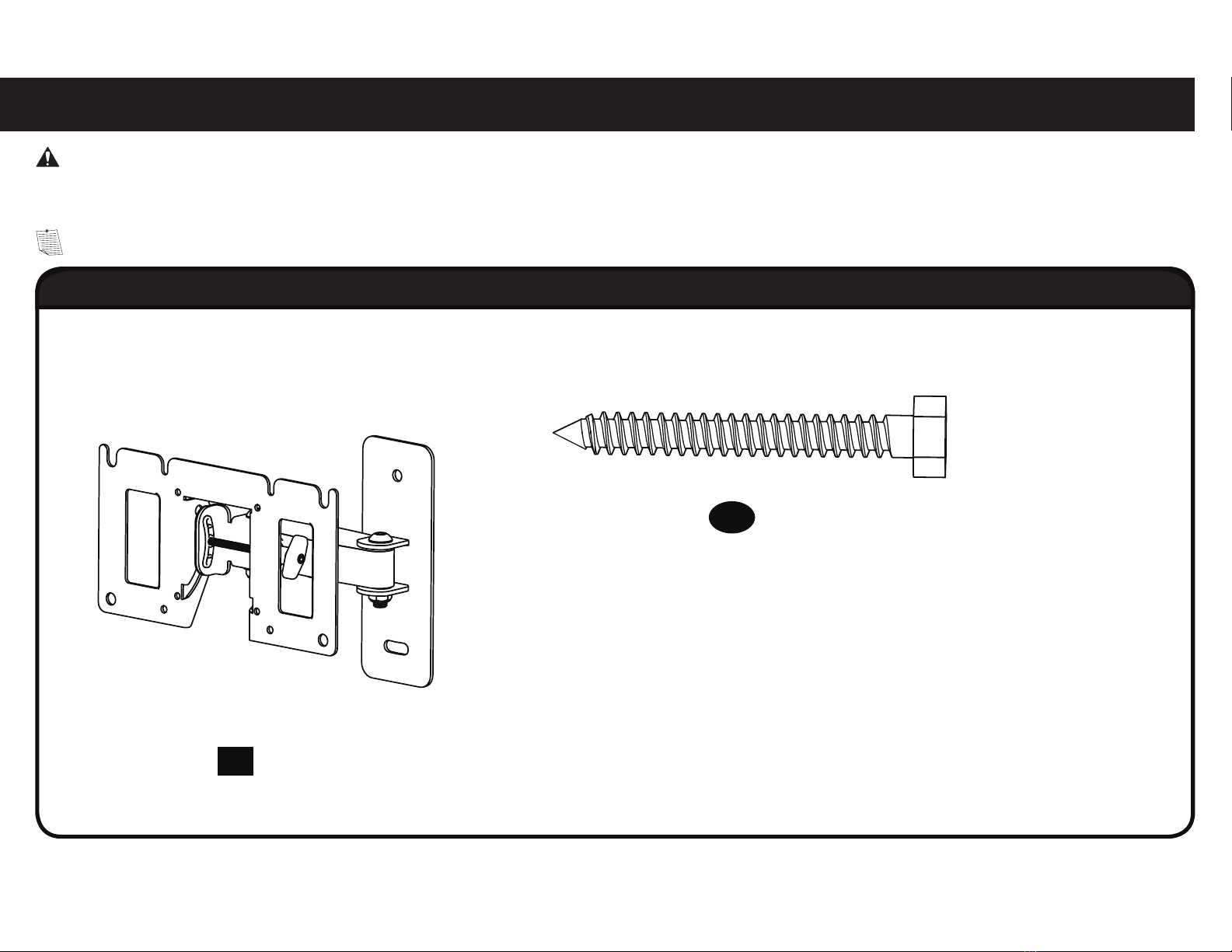

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

TV Interface Bracket/Wall Plate Assembly

01 x1

5/16 x 2 ½ in.

Lag Bolts

02 x2

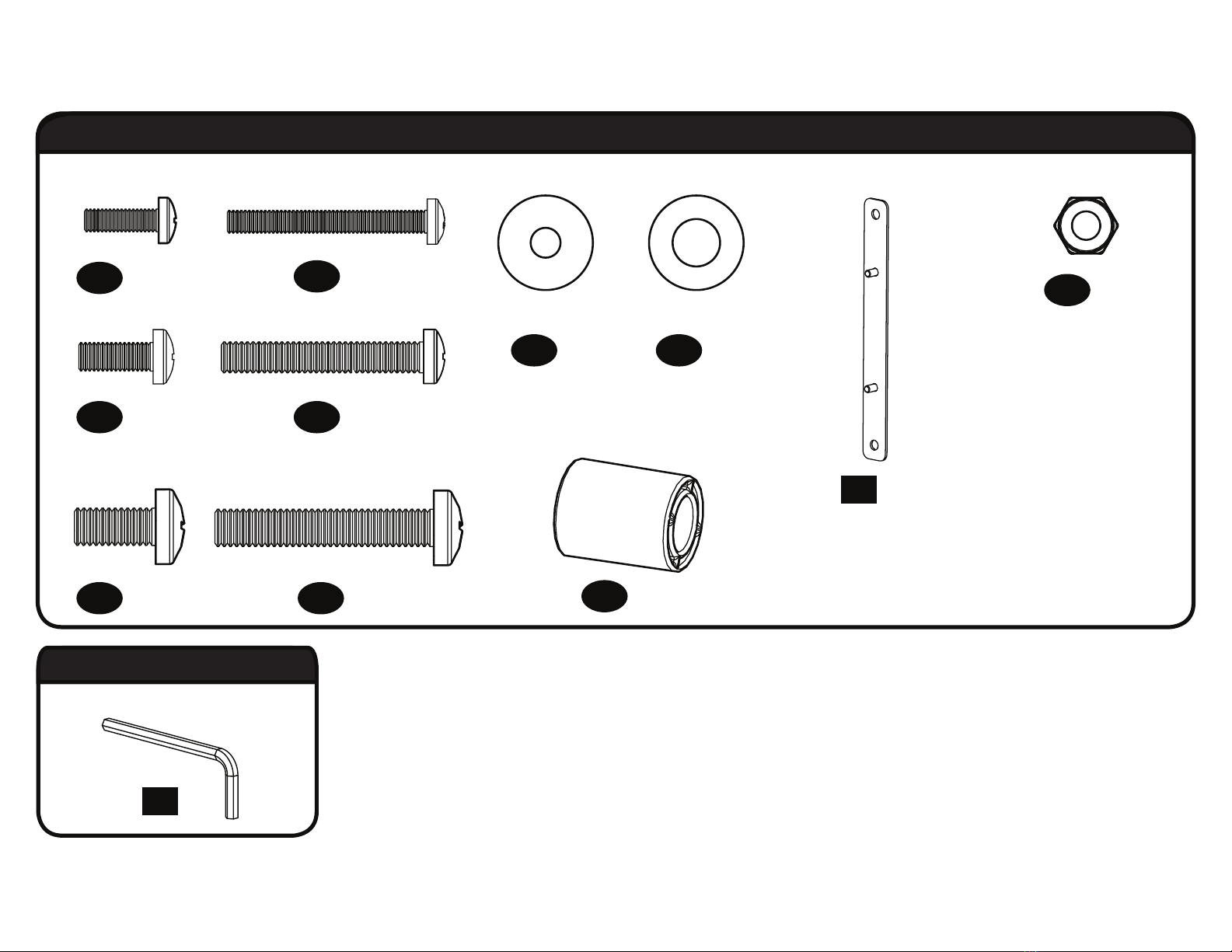

Parts and Hardware for STEP 2

Additional Hardware

M4 x35mm

M6x35mm

M5x35mm

M4 x12mm

M6x12mm

M5x12mm

M4/M5M6

TV Screws Washers

Spacers

09 10

x4 x4

*Only needed for TVs with 200x200

mm (7 7⁄8 x 7 7⁄8 in.) hole patterns

Extender Brackets* Extender Bracket Nuts*

13 x4

7/32 in. Hex Key

7/32 in.

(4.7 in.)

119.3 mm

182.4 mm

(7.18 in.)

HOME

EXTENDED

Oset

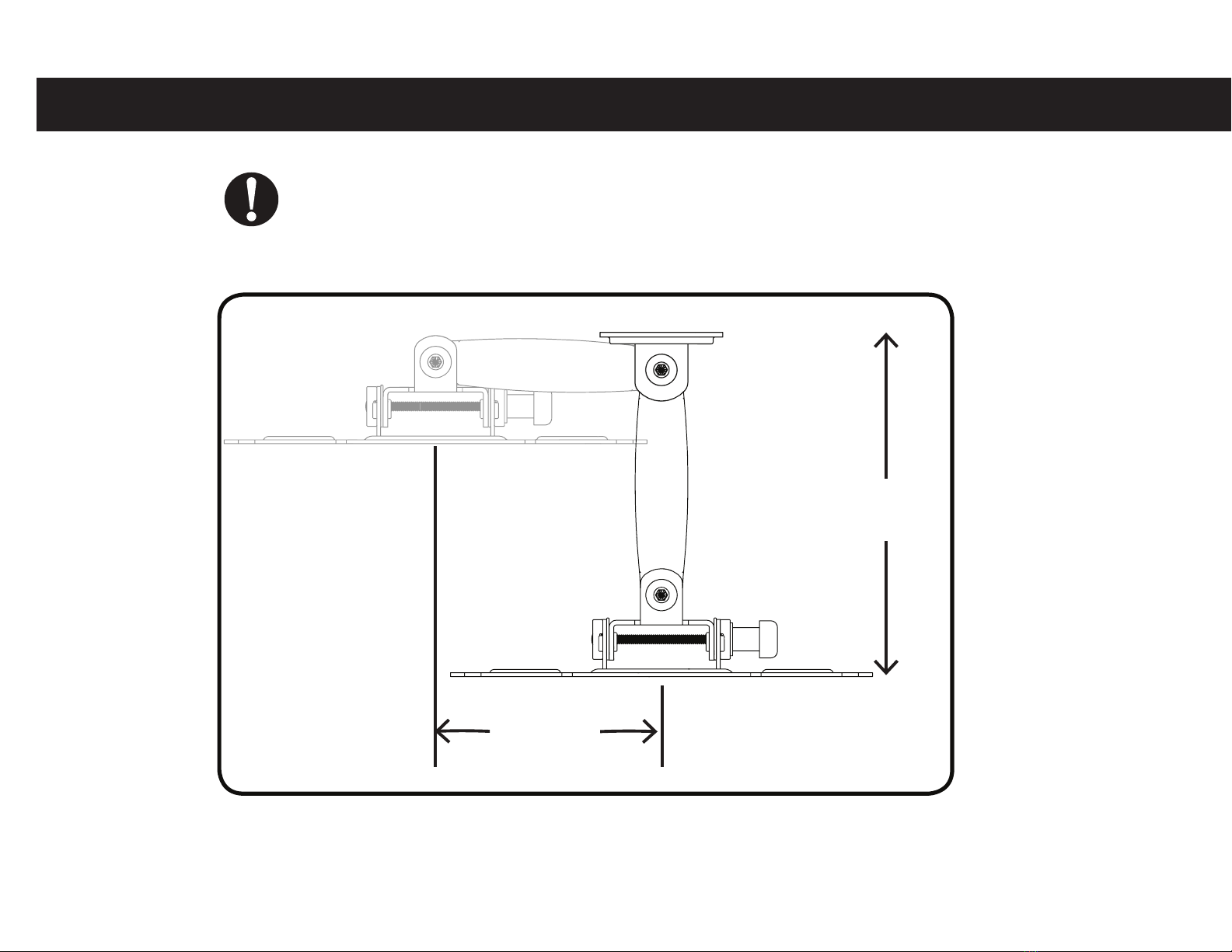

IMPORTANT: When choosing a location for your TV on the wall, please keep in

mind that the TV will shift 119.3 mm (4.7 in.) from the EXTENDED to the HOME

positions.

Before You Begin - Consider TV Location and Offset

STEP 1 Attach Wall Plate to Wall - Wood Stud ONLY!

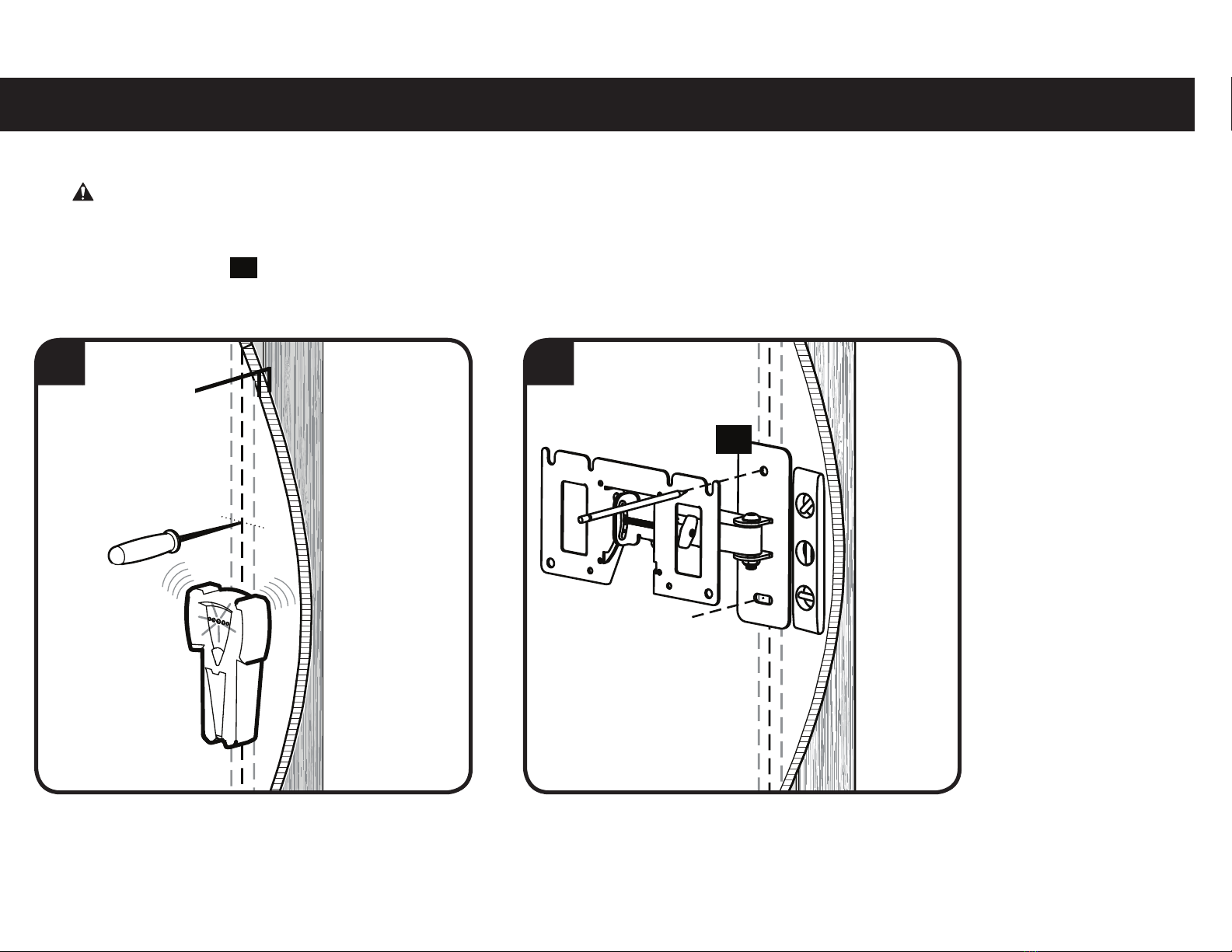

1. Locate your stud. Verify the center of the stud using an awl, a thin nail, or an edge to edge stud finder.

CAUTION: Avoid potential personal injuries and property damage!

ƕDrywall covering the wall must not exceed 16 mm (5/8 in.).

ƕMinimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.).

2. Level the wall plate 01 and mark the hole locations.

≤ 16 mm

(5/8 in.)

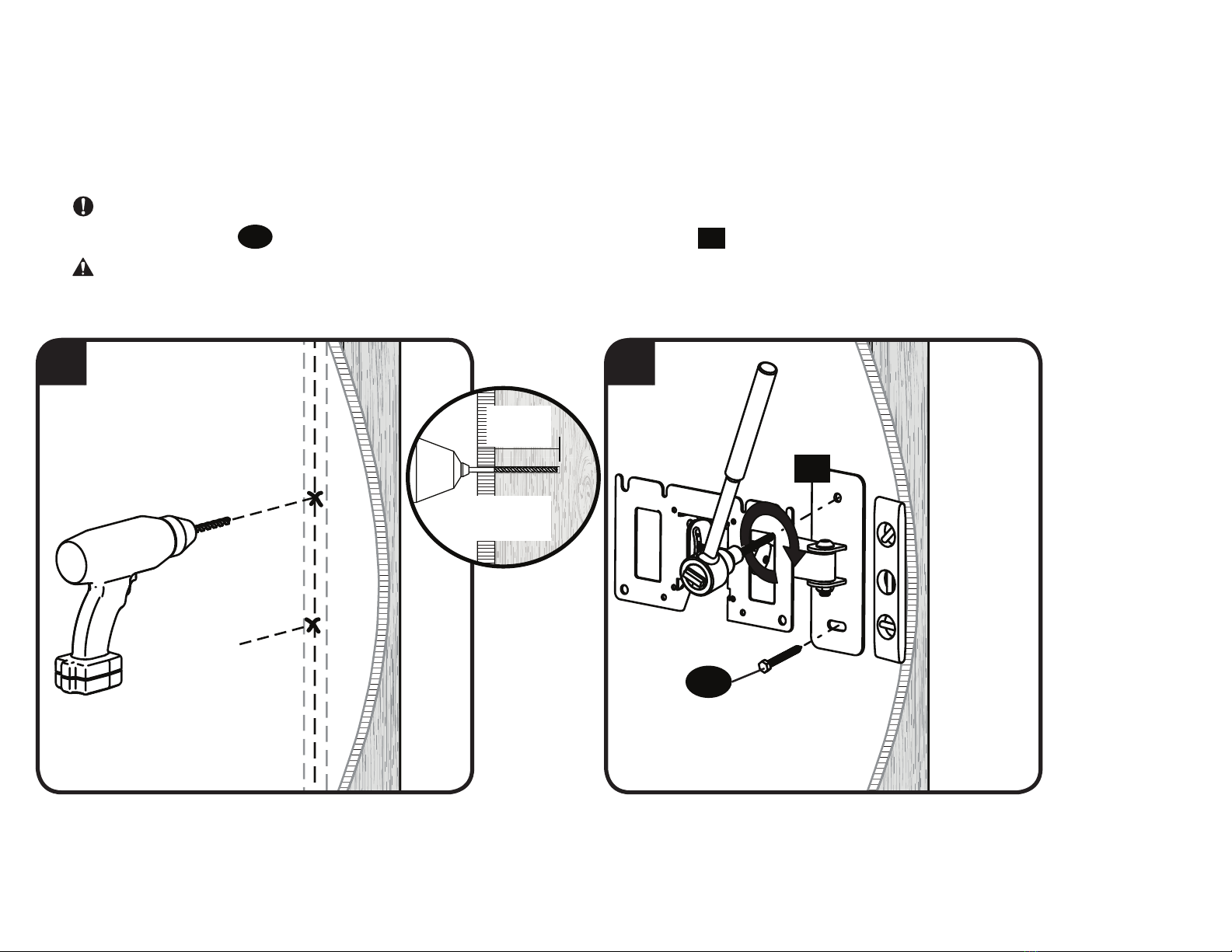

3. Drill pilot holes.

IMPORTANT: Pilot holes must be drilled to a depth of 63.5 mm (2½ in.), using a 5.5 mm (7/32 in.) diameter drill bit.

4. Tighten the lag bolts 02 only until they are pulled firmly against the wall plate 01 .

CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.

63.5 mm

(2½in.)

5.5 mm

(7/32 in.)

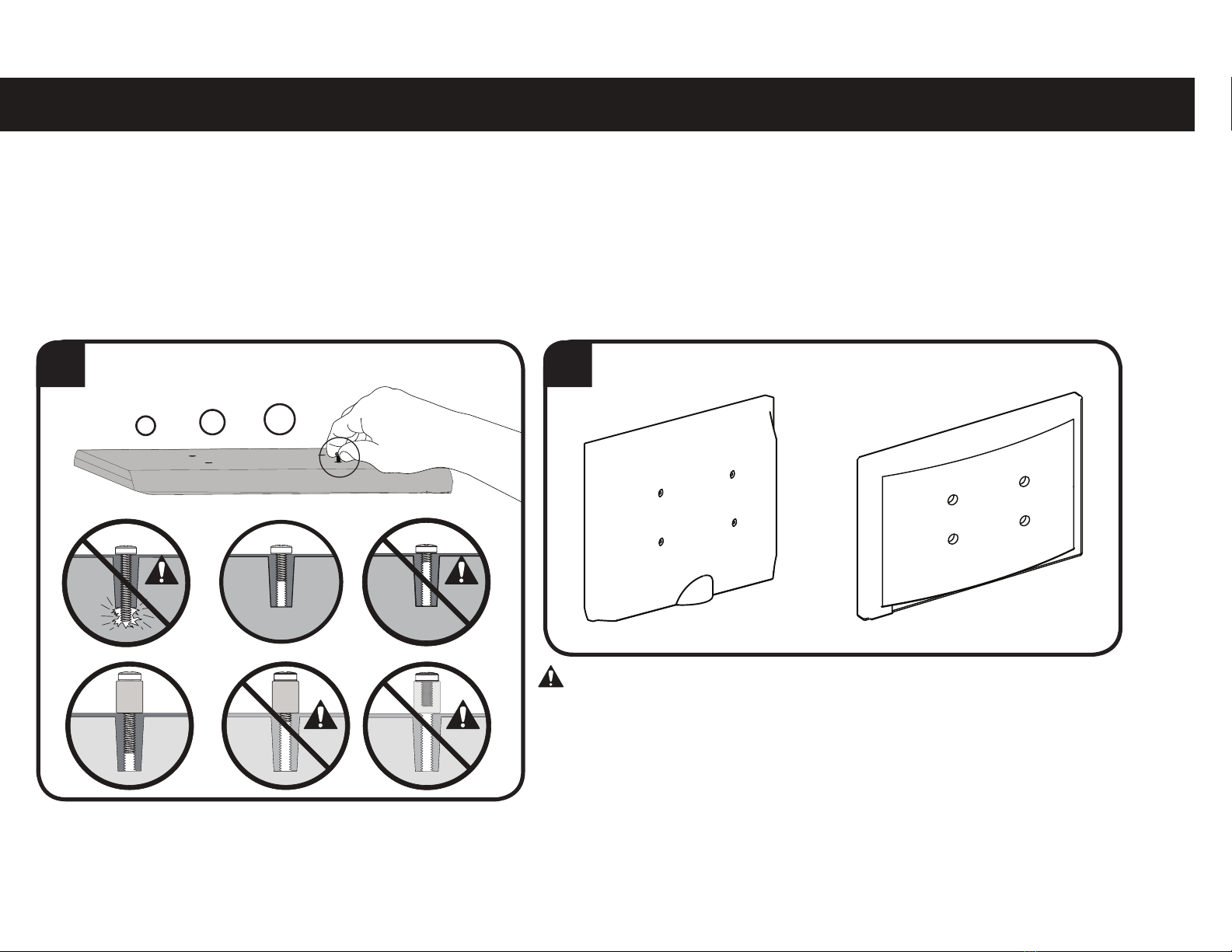

1. Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M5, or M6).

2. Determine what kind of TV you have and if you require extra space between the wall and the TV to accommodate cables.

• If you have a flat back TV and do not require extra space for cables, see STEP 2-A

• If you have an irregular back TV or need extra space to accommodate cables, see STEP 2-B

SELECT TV HARDWARE

CAUTION: Avoid potential personal injuries and property damage!

Verify that there are adequate threads to secure the brackets to the

monitor. If you encounter resistance, stop immediately and contact

customer service. Use the shortest screw and spacer combination to

accommodate your needs. Using hardware that is too long may damage

your TV.

0 0 0

STEP 2 Attach TV Bracket to TV
