CAUTION:

DO NOT install

into drywall alone

Steel stud kit required (not included)

Does your TV

(including accessories)

weigh MORE than?

150 lbs.

(68 kg) 130 lbs.

(59 kg)

For walls

with

steel

studs.

For walls with

wood studs,

solid concrete

or concrete

block.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

—

Perfect!

Yes

—

This mount is NOT compatible. Visit Sanus.com or call

1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Do you have

all the tools

needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your

wall made of?

CAUTION: Avoid potential personal injuries and property damage!

●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –

DO NOT install into drywall alone.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Ready to

begin?

Wood Stud Install

Concrete Install

Steel Stud Install

Pencil Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit Drill Bit

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

Steel

15.75

400.0

23.62

600.0

16.97

431.0

15.75

400.0

25.37

644.5

7.00

177.8

.33

8.4 16.00

406.4

24.00

609.6

17.72

450.0

8.00

203.2

8.86

225.0

23.62

600.0

12.00

304.8

11.81

300.0

26.30

668.0

5.55

141.0

9.50

241.3

30.00

762.0

2.68

68.0

2.31

58.8

1" POST INSTALLATION

HEIGHT ADJUSTMENT

11°

TV INTERFACE

WALL PLATE

WALL PLATE OPENING

TOP VIEW - DEPTH

SIDE VIEW - HEIGHT ADJUSTMENT

SWIVEL RANGE

3-D

Dimensions (in. [mm])

M8 x 35mm

M8 x 30mm

M8 x 40mm

M8 x 25mm

M8 x 20mm

22mm

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

STEP 1 Parts and Hardware

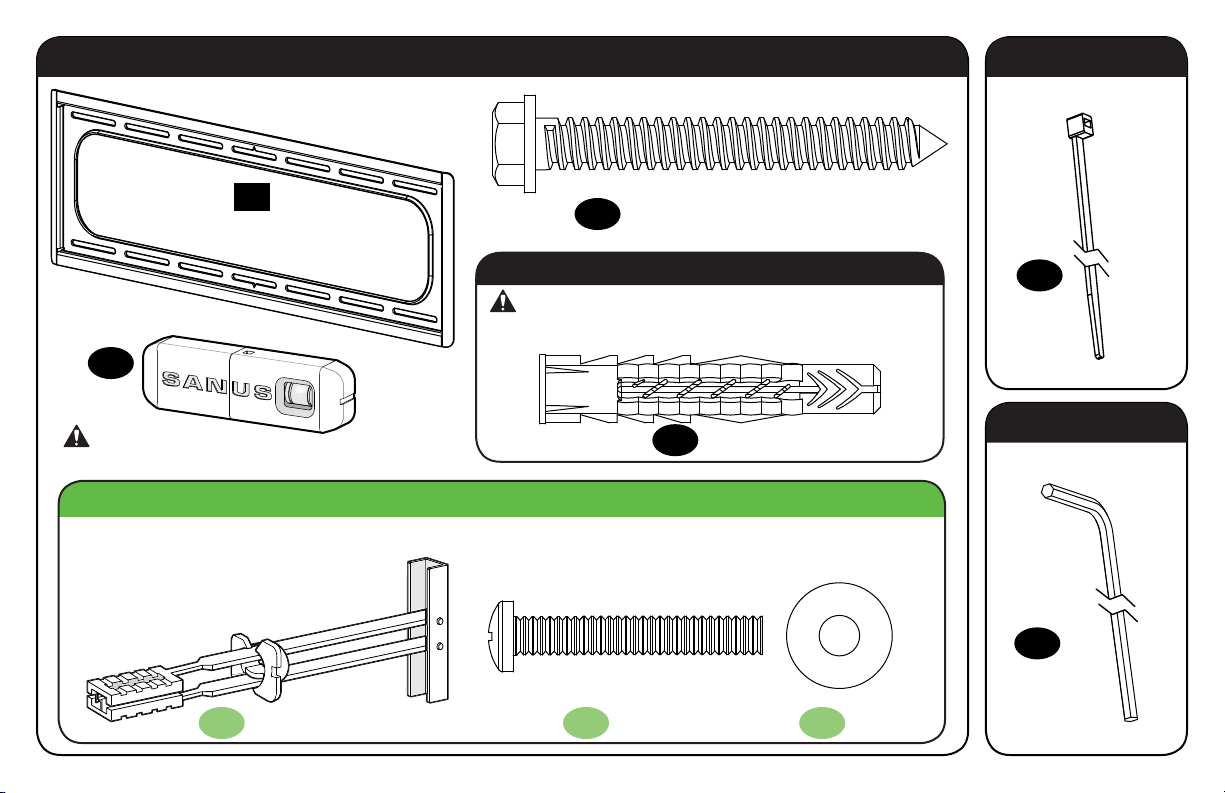

Supplied Parts and Hardware

TV Bracket

TV Screws

Washers

Spacers

5⁄16 in. x 2 3⁄4 in.

1/4-20 x 1.75

.734 x .312 x .065 in.

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

11 x4

12 x4

Cable

Ties

Anchors (Concrete) UX10x60R

Sanus Stud Finder *

Parts and Hardware for STEP 2

Adjustments

S1 x4 S2 x4 S3 x4

Wall Plate Lag Bolt

Screw

Washer

Anchor

Hex Key

3/16 in.

Hardware for STEP 2C Steel Stud Installation [Steel Stud Anchor Kit is NOT INCLUDED]

Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.

1/4-20 SnapToggle BB

Cable Management

*WARNING: This product contains a magnet.

See PAGE 8 for details.

STEP 1 Attach TV Bracket to TV

1.1 TV

Screw Length

b:Spacers and longer screws are supplied

to accommodate:

●Extra space needed for cables

●Irregular back TVs

Too Short

Too Long

CAUTION:

Verify adequate

thread engagement with your

screw/washer/spacer combination

AND TV bracket (STEP 1.2).

-Too short will not hold the TV.

-Too long will damage the TV.

If your TV included inset

spacers or wall mount adapters,

see Troubleshooting

on PAGE 21.

Correct

a: Use the shorter screws if you

want your TV closer to the wall,

AND TV bracket 01 sits flat

onto the back of your TV.

TV TV

ab08

0101

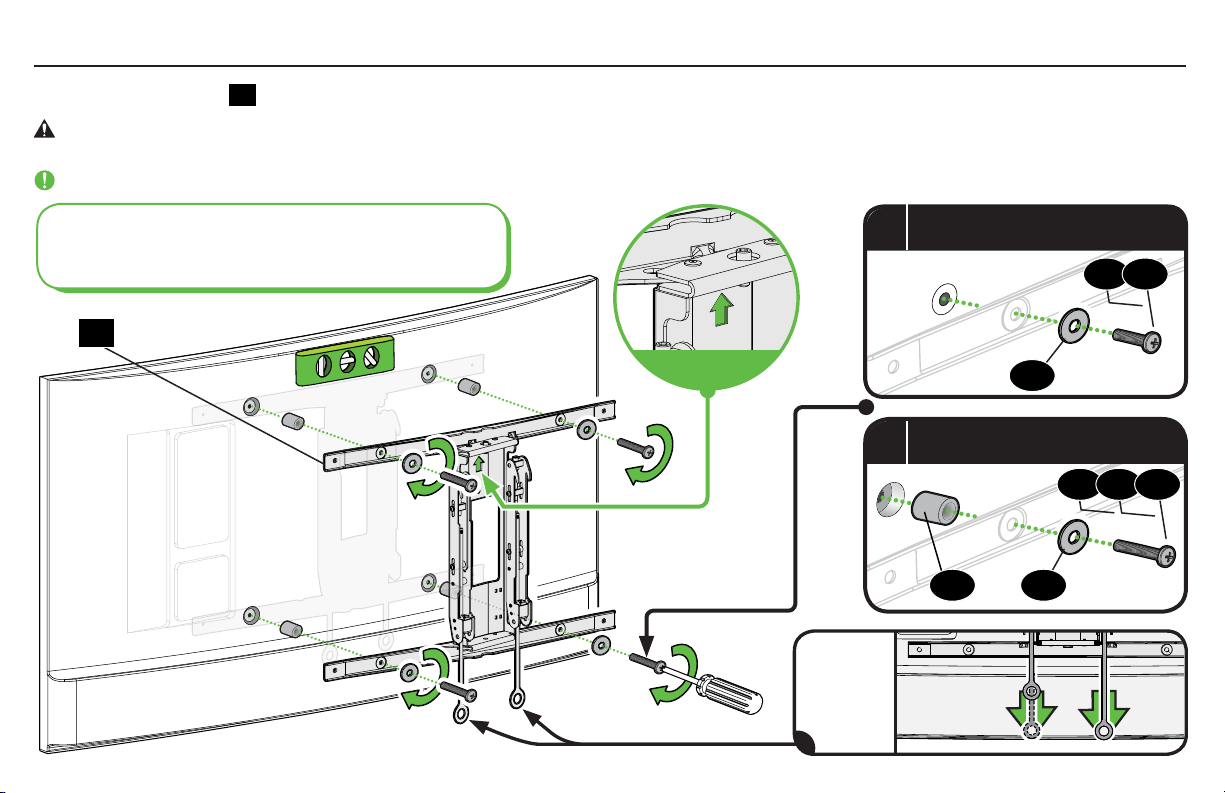

Position your TV bracket 01 onto your TV and secure using your selection: (a) screw/washer or (b) screw/washer/spacer.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to

secure the TV bracket to the TV. DO NOT overtighten the screws.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

Standard configurations are shown. For special applications,

or if you are uncertain about your hardware selection, contact

Customer Service at 1-800-359-5520.

1.2 Attach TV Bracket

08 07

aFlat Back

bIrregular Back / Extra Space

04 05

Adjust the

straps to

the bottom

of the TV.

UP ARROW

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD) is in use, magnetic ﬁelds may aect the operation of

those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical

professional prior to using this product.

SANUS

MAGNETIC STUD FINDER

Designed to ﬁnd your studs and make life easier– included in hardware kit.

TWO SIMPLE STEPS

TO FINDING YOUR STUDS:

Holding it vertically, lightly move the SANUS

Magnetic Stud Finder up and down while

sliding across your wall. The magnet within

will be attracted to the screws in the stud.

Once the magnet has landed on a screw,

place a pencil mark on the wall

directly below the magnet.

You can verify this is a stud by moving the

Magnetic Stud Finder up or down to ﬁnd

a second or third screw within the wall.

Pull apart the SANUS Magnetic Stud Finder to

expose the probing pin within. Starting about

1/2inch away from the ﬁrst pencil mark insert

the probing pin into the wall every 1/8inch until

it inserts completely into the wall. Once that

happens, you know you've found one edge of

your stud. Repeat this process till you have

found the stud edges and center of the stud.

Step 1 Step 2

magnet

locates screws in drywall

to show exactly where

your studs are

probing pin

helps ﬁnd the edges of

your stud within the wall

level

attaches to your wall plate

for hands free leveling

CAUTION: Avoid potential personal injuries and property damage!

●Drywall covering the wall must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1 ½ x 3 ½ in. (38 x 89 mm)

●Minimum horizontal space between fasteners: 16 in. (406 mm)

●Stud centers must be verified – not all walls have conventional 16 in. (406 mm) stud spacing

1. Locate a nail/screw in the studs using the Sanus magnetic stud finder 10 provided. Find the edges of the studs using the probe of the stud

finder 10 . Mark the centers of the studs with a pencil.

2. Level the wall plate 09 and mark the hole locations in the center of the studs.

Min. 16 in.

(406 mm)

Max. 5/8 in.

(16 mm)

STEP 2A Attach Wall Plate Wood Stud Installation

3 4

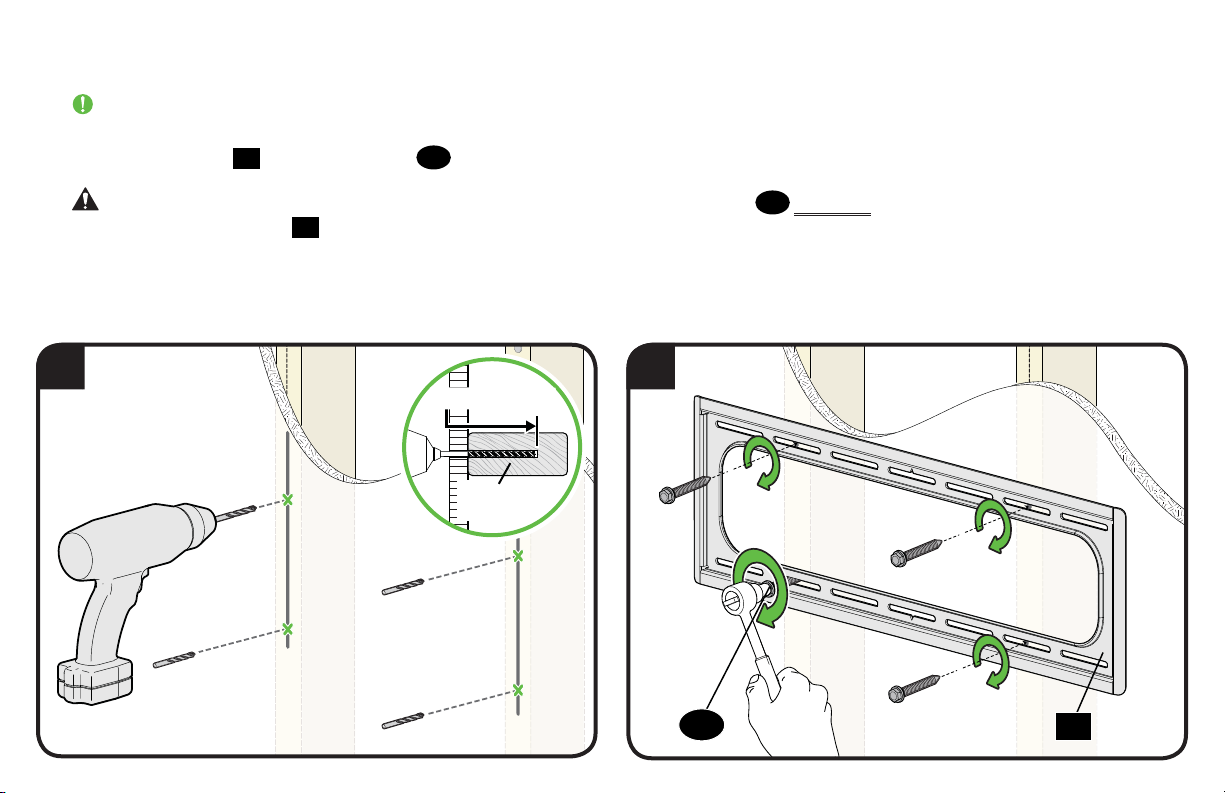

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 2 3/4 in. (70 mm). Be sure to drill into the center of the stud.

4. Install the wall plate 09 using four lag bolts 11 . Tighten all lag bolts only until they are pulled firmly against the wall plate.

CAUTION: Avoid potential personal injury or property damage! All four lag bolts 11 MUST BE firmly tightened to prevent unwanted

movement of the wall plate 09 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

Go to STEP 3 on PAGE 16.

11 09

2 3/4 in. (70 mm)

7/32 in.

(5.5 mm)
