Sanus VLF320 Manuale utente

VLF

320

INSTRUCTION MANUAL

Scan for easy install video

http://san.us/725

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Does your TV weigh more than 120 lb (54 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Do you have all of the tools needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your wall made of?

Perfect! Perfect! Call 1-800-359-5520 (UK: 0800-056-2853)

Unsure?

Drywall with

wood studs

Solid concrete or

concrete block

120 lb

(54 kg)

7/32 in.

(5.5 mm)

Wood

3/8 in.

(10 mm)

Concrete 1/2 in.

(13 mm)

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

MIN 4.62 - MAX

30.62

777.8

32.16

816.9

20.39

518.0

16.54

420.0

0.43

11.0

1.76

44.7

WALL

PLATE

BRACKET

1.50

ROLL CONTROL

1.61

40.9

20.80

528.3

6.40°

11.81

299.9

0.34

8.6

2.00

50.8

24.00

609.6

16.00

406.4

16.00

406.4

in.

[mm]

Dimensions

M4 x 12mm M4 x 30mm

M6 x 14mm M6 x 40mm

M8 x 16mm

M8 x 20mm

M8 x 40mm

M4 M6 / M8

14mm 24mm

03 x4

06 x4

07 x4

08 x4

02 x4

04 x4

05 x4

TV Brackets

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

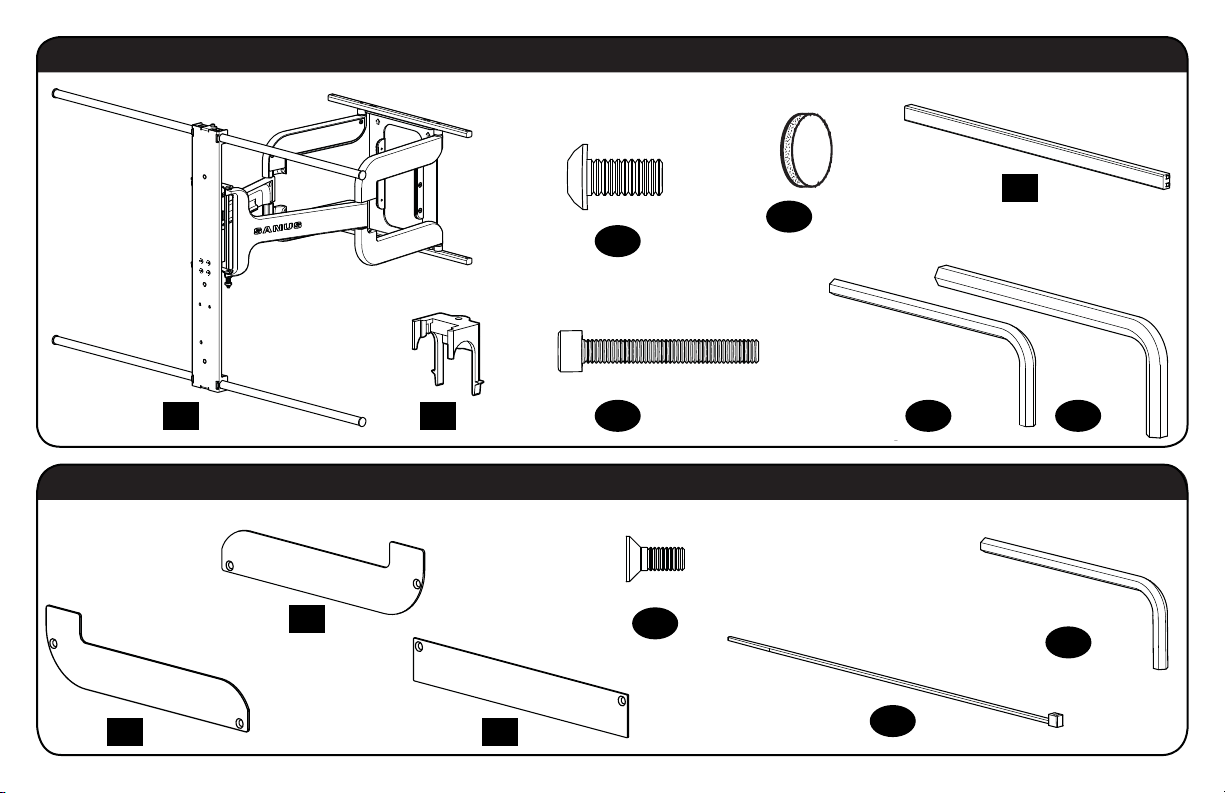

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

TV Screws

Washers

Spacers

01 x2

09 x4 10 x4

11 x4 12 x4 13 x4

5/16 x 2 3/4 in.

5/16 in.

Parts and Hardware for STEP 2

Wall PlateWall Plate Template

Lag Bolts

Washers

16 x4

15 x1

14 x1

Anchors

18 x4

17 x4

Hex Keys

5/32 in.

M 3

25 x1 26 x1

1/4 20 x 1/2 in.

M4 x 30mm

Parts and Hardware for STEP 3

Parts and Hardware for Cable Management

Wall Plate Covers

Felt Pads

Click Caps

Arm Assembly Wall Plate–

Arm Assembly

Screws

TV Bracket–Click Cap

Screws

Cable Cover

27 x1

Cable Covers

29 x2

Cable Cover

28 x1

19 x1

24 x2

20 x2

M4 x 10mm

Cable Cover Screws

30 x8 Wire Management

Cable Ties

31 x2

21 x8

22 x2

23 x4

Hex Key

M 2.5

32 x1

1-1 Select TV Screws

Hand thread screws into the threaded inserts on the back of your TV

to determine which screw diameter (M4, M6, or M8) to use.

1-2 Select TV Spacers

CAUTION: Verify adequate thread engagment of the screw

and spacer combination on your TV.

Too short will not hold the TV and too long will damage the TV.

M4 M6 M8

Too Short Correct Too Long

Do not use spacers if

your TV has a flat back

AND you want your TV

closer to the wall.

Use spacers 12 or 13 to

accommodate:

●Round/irregular back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Spacers and screws are supplied to install your TV bracket.

Determine your preference for spacer configuration when

attaching your TV bracket.

Round Back CablesInset HolesFlat Back

STEP 1 Attach Brackets to TV

1312

1-3 Attach Spacers to TV Brackets

NOTE: Skip this step if your TV has a flat back AND you want your TV closer to the wall.

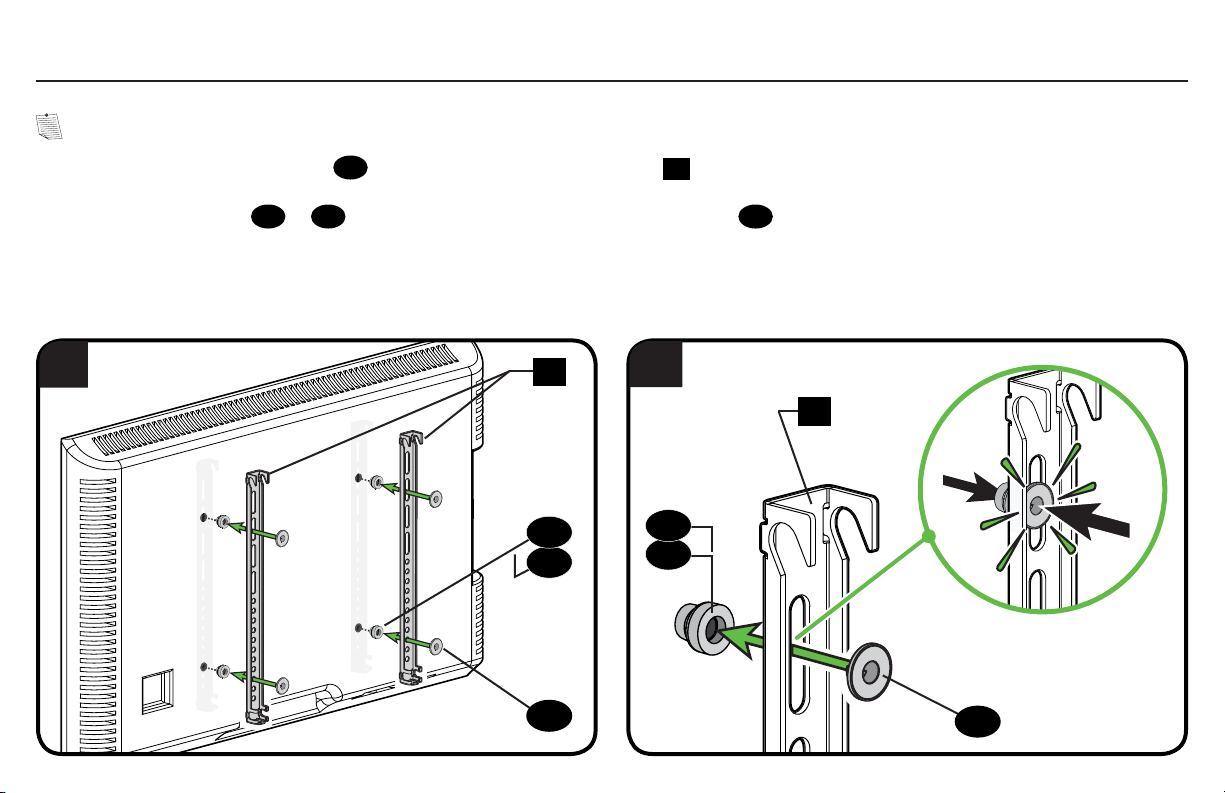

1. Press the four shoulder washers 11 through the openings of TV brackets 01 that line up with your TV hole pattern.

2. Snap the four spacers 12 or 13 you selected in STEP 1-2, onto shoulder washers 11 .

11 11

13 13

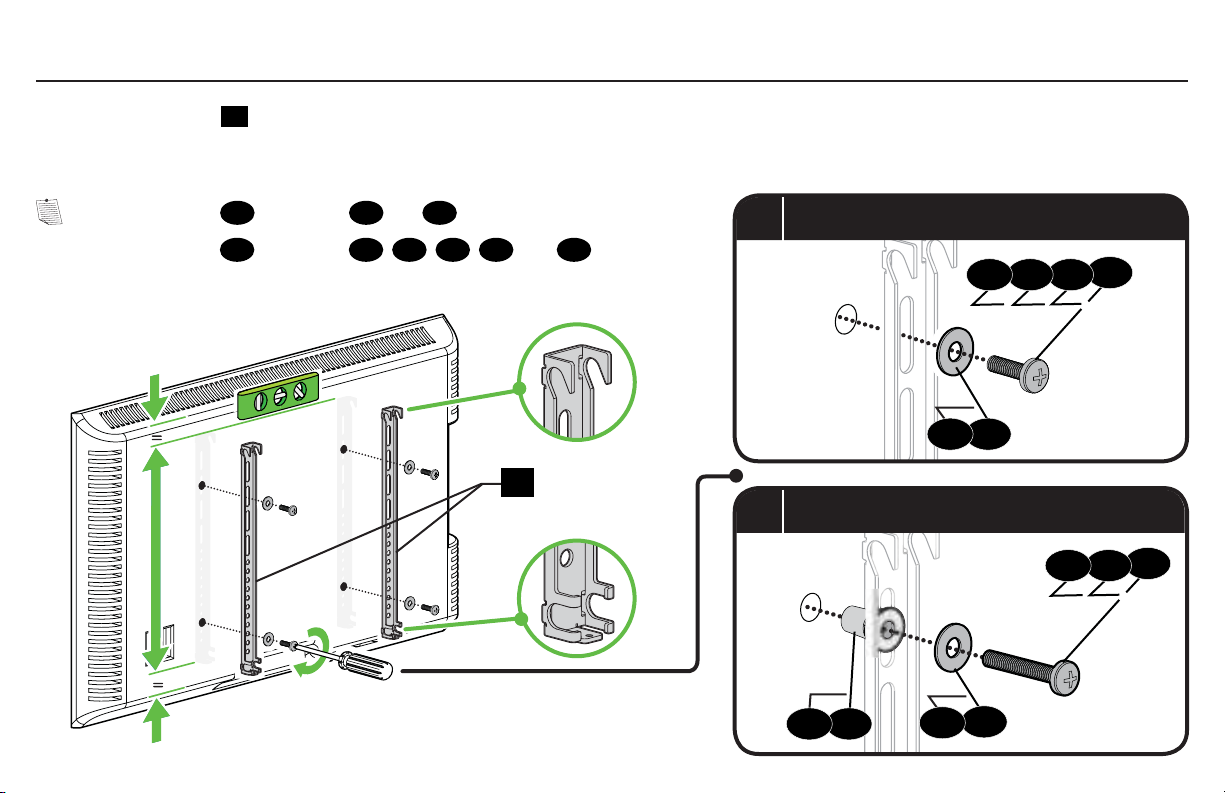

Center the TV brackets 01 over your TV hole pattern as shown, making sure the brackets are level with each other.

Install using the screw and washer combination [a] or [b] you selected for your TV.

NOTE: Use washer 09 for screws 02 and 06 .

Use washer 10 for screws 03 , 04 , 05 , 07 , and 08 .aFlat Back

bRound Back / Extra Space

1-4 Attach TV Brackets to TV

040302

0706

STEP 2A Attach Wall Plate to Wall Wood Stud Option

CAUTION: Avoid potential personal injuries and property damage!

●Drywall covering the wall must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

●Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Stud centers must be verified – not all walls have conventional 16 in. (406 mm) stud spacing. Verify the center of the stud(s) using an awl,

a thin nail, or an edge to edge stud finder.

2. Level the wall plate template 14 and mark the four hole locations.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

Max.

5/8 in.

(16 mm)

Min. 16 in.

(406 mm)
