Sapido BRC70x Manuale utente
http://www.sapido.com.tw/ User Manual v1.0.0
1
CE Statement of Conformity
Our product has been tested in typical configuration by Ecom Sertech Corp and was found
to comply with the essential re uirement of “Council Directive on the Approximation of the
Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC;
92/31/EEC; 93/68/EEC)
http://www.sapido.com.tw/ User Manual v1.0.0
Chapter 1 Introduction
1.1 Hardware Features
Main Chipset
Realtek RTL8196E Network Processor
Flash & RAM
Flash：4Mbytes Serial Flash
RAM：32Mbytes SDRAM
Ethernet Interface
WAN: 1 x 10/100 Mbps RJ45 with auto MDI/MDIX
LAN: 4 x 10/100 Mbps RJ45 with auto MDI/MDIX
Buttons
Reboot/Reset：Press 1 second is for reboot; press 10 seconds is for
reset to default configuration
ower Supply
Power Adapter DC5V / 0.5A
DC Jack Connect
BSMI
LED Indicators
Power LED x1
Status LED x1 (Reset Indicator)
WAN LED x 1
LAN LED x 4
Security Certification
FCC
CE
BSMI
http://www.sapido.com.tw/ User Manual v1.0.0
1.2 roduct Appearance
LED Indicator Status Description:
LED Function Color Status Description
ower System status Green On System is ready to work
Status Reset indicator Green On System is ready to work
Blinking
(120ms)
Reset or firmware upgrade in
progress
WAN x 1 WAN port activity Green On 100Mbps Ethernet is
connected
Blinking
(30ms)
100Mbps Ethernet Tx/Rx
activity
Green On 10Mbps Ethernet is
connected
Blinking
(120ms)
10Mbps Ethernet Tx/Rx
activity
http://www.sapido.com.tw/ User Manual v1.0.0
LAN x 4 LAN port activity Green On 100Mbps Ethernet is
connected
Blinking
(30ms)
100Mbps Ethernet Tx/Rx
activity
Green On 10Mbps Ethernet is
connected
Blinking
(120ms)
10Mbps Ethernet Tx/Rx
activity
http://www.sapido.com.tw/ User Manual v1.0.0
Chapter 2 System and Network Setup
The BRC70X is an easy to setup device for various application and environment, especially
for large installs such as hotels, offices space, warehouses, hot-spots and more.
To begin with BRC70X, you must have the following minimum system re uirements. If your
system can’t correspond to the following re uirements, you might get some unknown
troubles on your system.
Internet Account for XDSL/Cable Modem
One Ethernet (10/100mbps) network interface card.
TCP/IP and at least one web browser software installed (E.g.: Internet Explorer, Firefox,
Safari、Chrome latest version).
Recommended OS: WinXP, Visata or Win7 / Linux.
2.1 Build Network Connection
Administrator can manage the settings for WAN, LAN, NTP, password, User Accounts,
Firewall, etc.
Please confirm the network environment or the purpose before setting this product.
2.2 Connecting BRC70X
Prepare the followings before the connection:
PC or Notebook for setup
Ethernet cable
1. Make sure you are under “Router Mode”.
2. Connect BRC70X to xDSL/ Cable modem with the Ethernet cable, WAN to LAN.

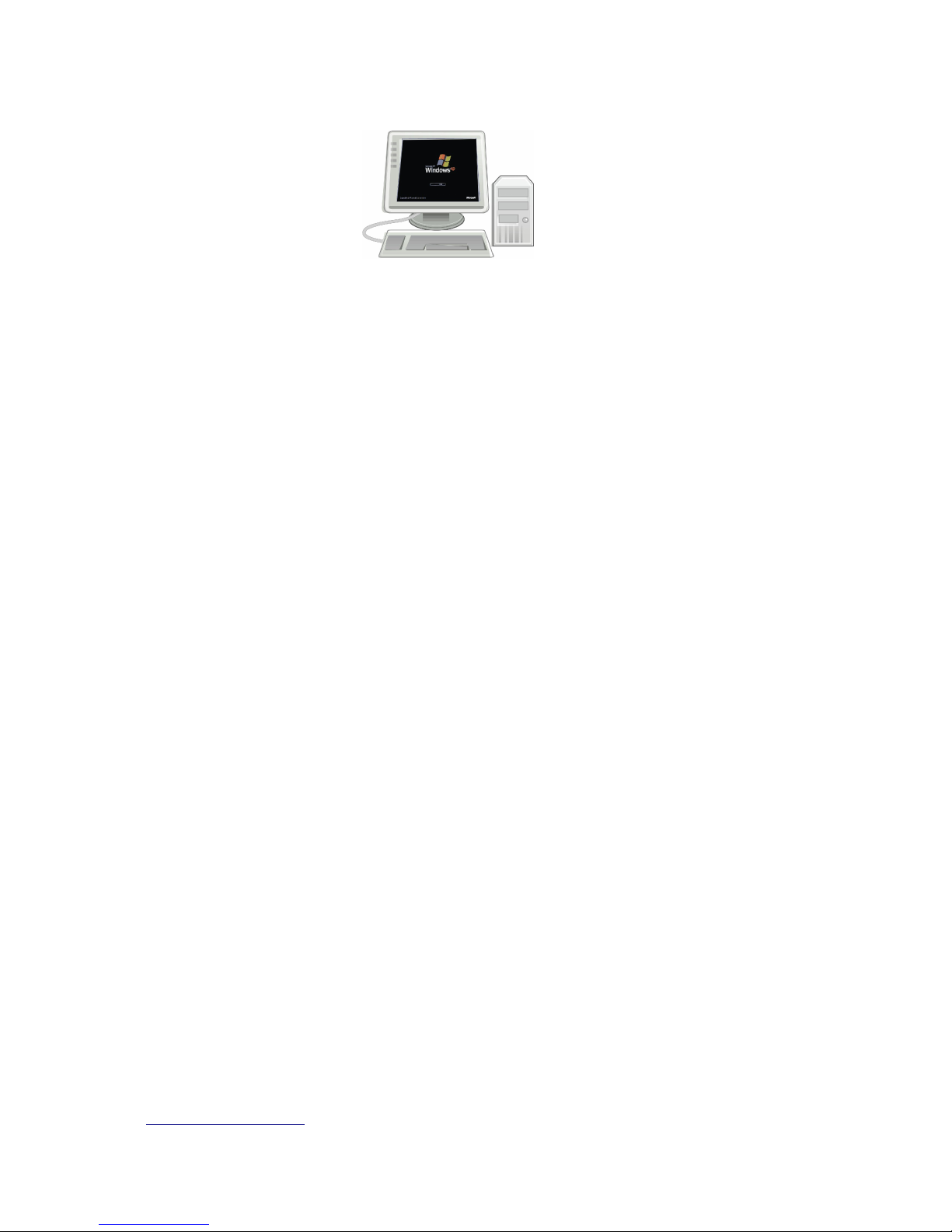

3. Turn on your Computer.
http://www.sapido.com.tw/ User Manual v1.0.0
2.3 Network setup
After the network connection is built, the next step is setup the router with proper network
parameters, so it can work properly in your network environment. Before you connect to the
router and start configuration procedures, your computer must be able to get an IP address
from the router automatically (use dynamic IP address). If it’s set to use static IP address, or
you’re unsure, please follow the below instructions to configure your computer with dynamic
IP address:
If the operating system of your computer is….
Windows 2000 - please go to section 2.3.1
Windows XP - please go to section 2.3.2
Windows Vista/Win7 - please go to section 2.3.3
2.3.1 Windows 2000
Click “Start” button (it should be located at lower-left corner of your computer), then click
control panel. Double-click Network and Dial-up Connections icon, double click Local Area
Connection, and Local Area Connection Properties window will appear. Select “Internet
Protocol (TCP/IP)”, then click “Properties”.
http://www.sapido.com.tw/ User Manual v1.0.0
1. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.3.2 Windows X
1. Click “Start” button (it should be located at lower-left corner of your computer), then
click control panel. Double-click Network and Internet Connections icon, click Network
Connections, then double-click Local Area Connection, Local Area Connection Status
window will appear, and then click “Properties”.
http://www.sapido.com.tw/ User Manual v1.0.0
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.3.3 Windows Vista / Windows 7
1. Click “Start” button (it should be located at lower-left corner of your computer), then
http://www.sapido.com.tw/ User Manual v1.0.0

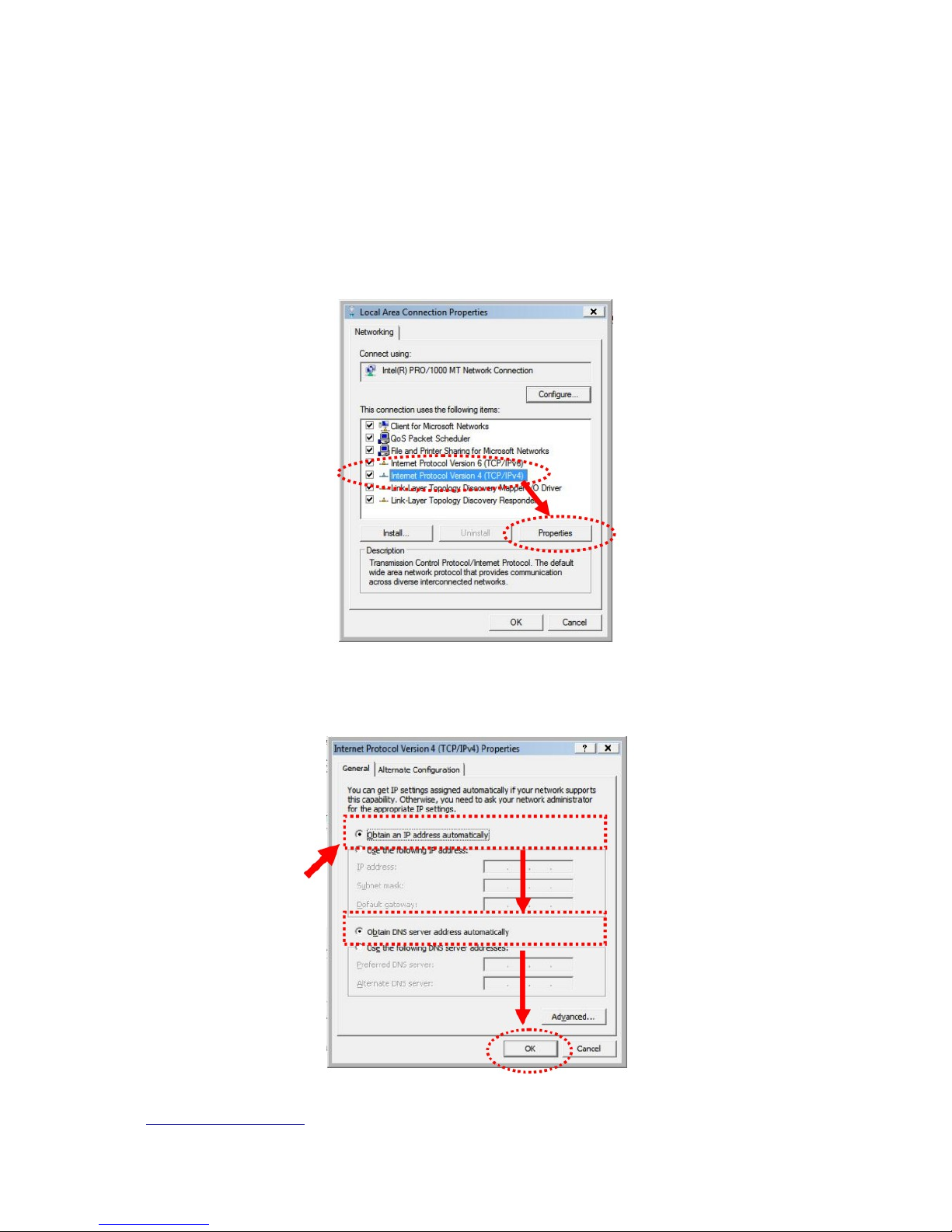

click control panel. Click View Network Status and Tasks, and then click Manage Network
Connections. Right-click Local Area Network, then select “Properties”. Local Area
Connection Properties window will appear, select “Internet Protocol Version 4 (TCP /
IPv4)”, and then click “Properties”.
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
http://www.sapido.com.tw/ User Manual v1.0.0
