TELL US WHAT YOU THINK

REGISTER YOUR PRODUCT FOR UPDATES

26676C Glide EX Manual.indd 2 10/12/2018 11:10:25 AM

3

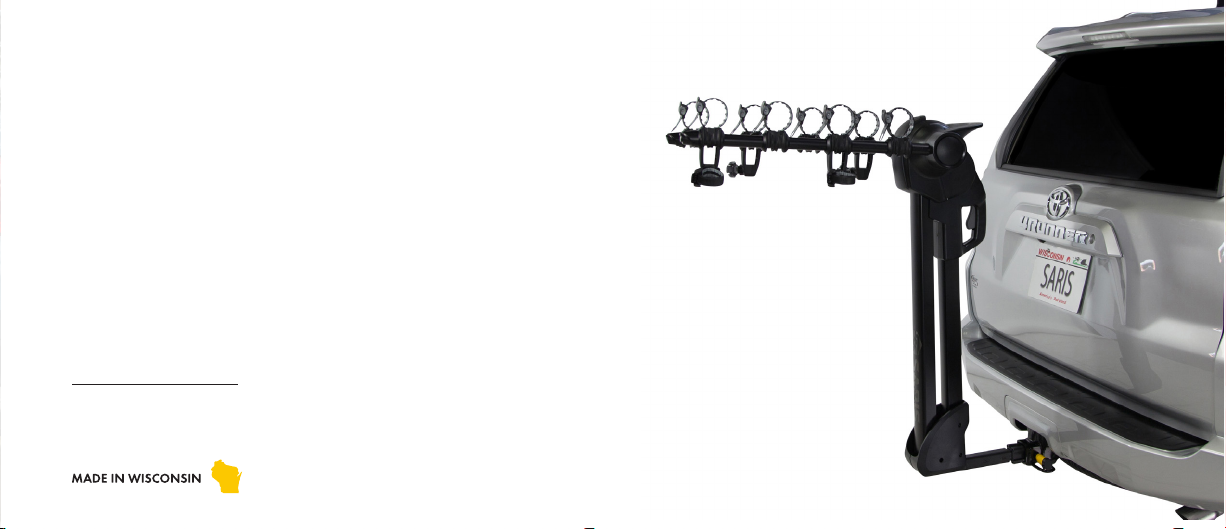

LONG FOR THE RIDE

Just as no garage is complete without a bicycle, at Saris, we believe no car is

complete without a bike rack.

Since setting off on this journey nearly 30 years ago, Saris racks have freed

millions of bike-lovers to explore new territory and terrain, take part in group

rides, bike pool to races, and commute to and from work.

And we continue to do so in style.

As the all-time #1 best-selling bike rack, Saris Bones® continues to set the

standard for excellence in design. Today all Saris bicycle racks are intuitive to

load and secure, and guaranteed for life.

Built by cyclists for cyclists in Madison, Wisconsin, we strive to create the

world’s best bike racks.

Because cycling is what we live for.

26676C Glide EX Manual.indd 3 10/12/2018 11:10:26 AM

4

Max = 35 lbs/kg 16 Max = 140 lbs/63.5kg

Specifications: GLIDE EX

Fit

Guide

Max = 150 lbs/68 kg

4

BIKE

5

BIKE

Max = 30 lbs/kg 13.5

For use with receiver hitches Class II or higher. 5-bike model

designed for 2’’ Class II or higher.

26676C Glide EX Manual.indd 4 10/12/2018 11:10:26 AM

5

Tools Needed: Items Included:

x 2

Optional Accessories:

View our installation video at

http://www.saris.com/en/instructional-videos-1.html

Vea nuestro vídeo de instalación en

http://www.saris.com/en/instructional-videos-1.html

Visionnez notre vidéo d’installation à l’adresse

http://www.saris.com/en/instructional-videos-1.html

Adjustable or 3/4” Wrench

5mm Hex Key

3040 – Bike Beam

26676C Glide EX Manual.indd 5 10/12/2018 11:10:28 AM

Install receiver tube into hitch. Hitch pin should enter in on the

driver’s side. Tighten hitch pin with wrench. Secure with lock.

Note: If your receiver is 1.25” remove the adapter block as shown

(A/B). Tools Required: 3/4’’ Wrench, 5mm Hex Key (to remove

adapter block). 2’’ adapter on 5-bike model is not removable.

1

INSTALL RACK

EN

6

2”

1.25”

1.25”

A

B

26676C Glide EX Manual.indd 6 10/12/2018 11:10:31 AM

EN

2

7

Raise rack arms up by lifting the lever at the top of the rack, then

rotate arms up. You will hear an audible click when the arms are

inlocked position.

26676C Glide EX Manual.indd 7 10/12/2018 11:10:33 AM

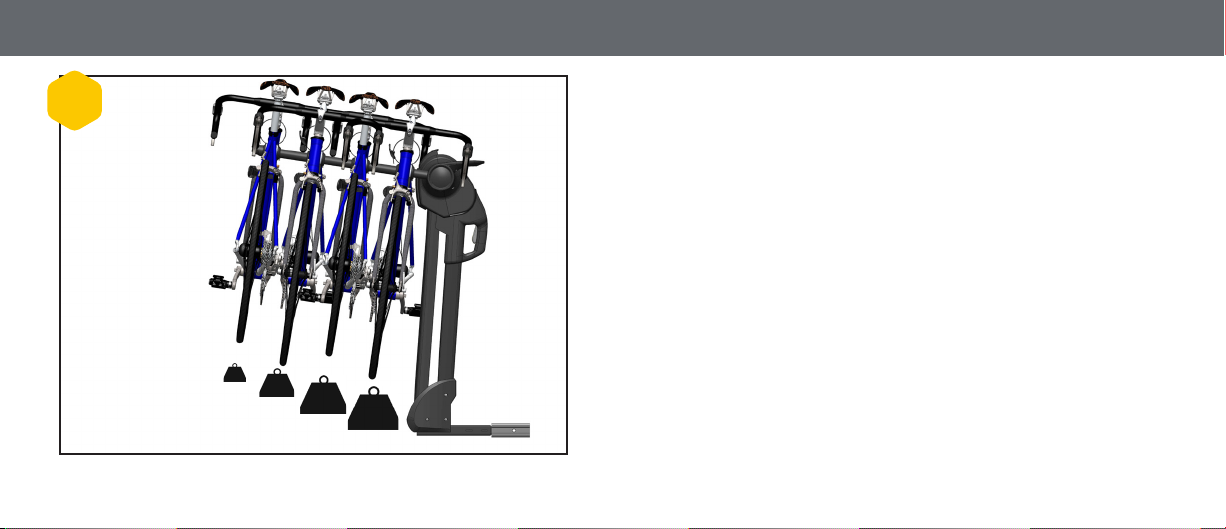

Load bikes, heaviest to lightest, with heaviest bikes closest to car.

The rear of each bike should be on the same side as the anti-sway

strap that hangs below the rack arm. Load bikes on the arms

alternating directions.

EN

3

8

lb

lb

lb

lb

LOAD BIKES

26676C Glide EX Manual.indd 8 10/12/2018 11:10:34 AM

4EN

9

Insert straps through buckles and pull tightly around bike frame.

The top straps secure the top tube of bicycle. The anti-sway straps

that hang below the rack arms secure the bike’s vertical seat tube.

26676C Glide EX Manual.indd 9 10/12/2018 11:10:37 AM

EN

5

10

To lock bikes with integrated lock, pull cable lock out of housing,

loop over top of bikes and insert cable into end of right arm.

Turnkey to lock.

LOCK BIKES

26676C Glide EX Manual.indd 10 10/12/2018 11:10:40 AM
