Sartorius IB 31 Manuale utente

Sartorius Industry

IB 16000 S,

IB 31000 P, IB 31.

Electronic Precision Scales

Installation and Operating Instructions

98648-000-60

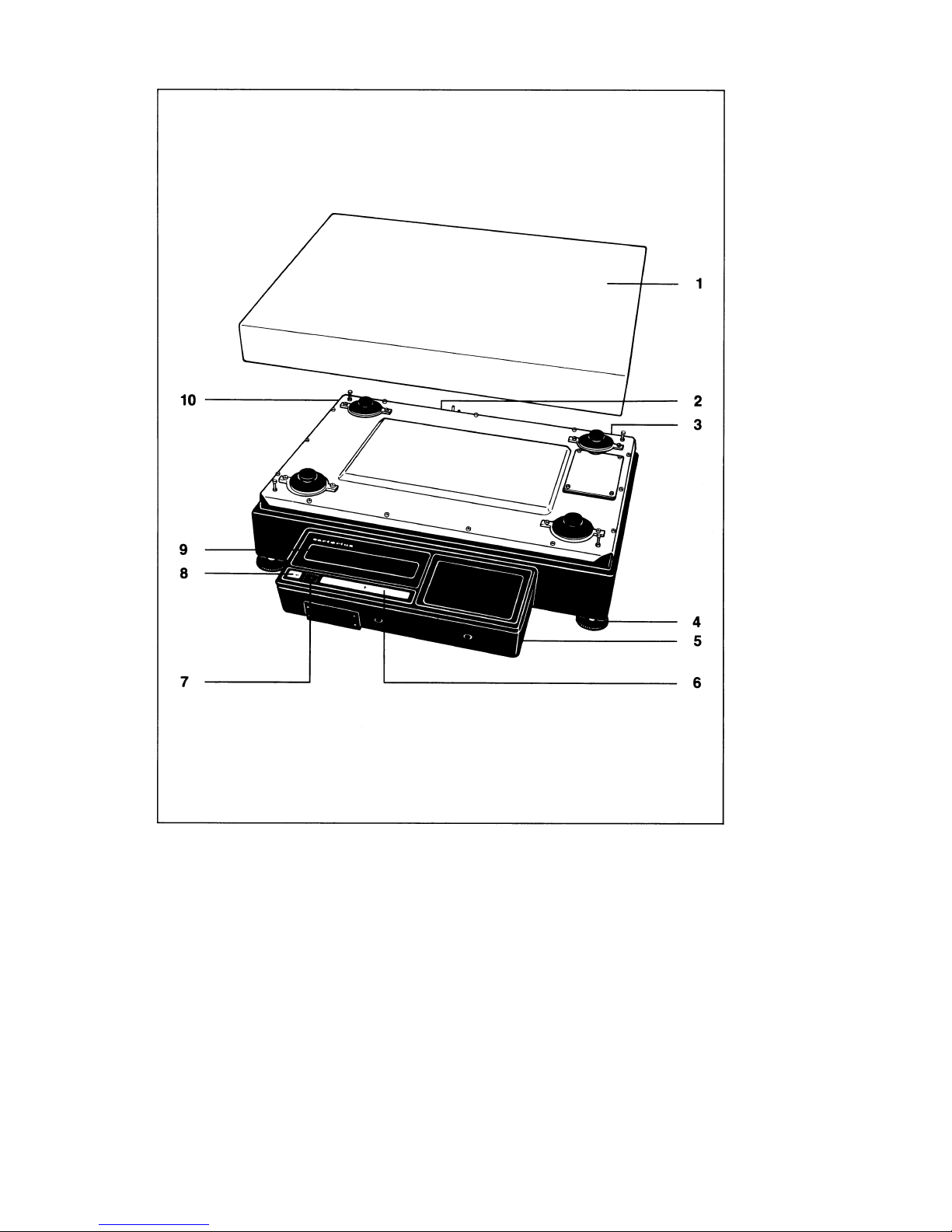

Platform cover for scale base 6 Tare control

2 Level indicator (only for IB 16000S) 7CAL key

3 Power receptacle 8ON/OFF key

Leveling foot 9 Weight display

5 Menu access switch 10 Manufacturer’s label

(for scale operating program)

Contents

Page

About the Product (Warranty) 4

Storage and Shipping Conditions 5

Equipment Supplied 6

Installations Instructions 7

Ambient Conditions 7

How to Mount the Display Unit 8

Mounting the Display Unit on the

Short Side of the Scale Base 9

Mounting the Remote Display Unit 11

Mounting the Display Unit on the

YDH 01 B Support Arm (Option) 13

Startup 16

Connecting the scale to Line Power 16

Voltage Selection 16

Safety Precautions 17

Connecting Electronic Devices (Peripherals) 17

Leveling the Scale using the Level Indicator 17

Operation 18

Turning the Display On and Off 18

Self-Test 19

Weighing 19

Taring 19

Auto Zero 19

Automatic Shutoff 20

Calibration 20

Scale Operating Program 21

Reading a Program Menu Code (List Mode) 21

Changing a Program Menu Code (Change Mode) 21

List of the Programmable Menu Code Settings 23

Troubleshooting Guide 24

Care and Maintenance 25

Cleaning 25

Safety Inspection 25

Accessories (Options) 26

Interfacing Devices with the Scale (RS Interface 26

Specifications 27

About the Product (Warranty)

With this Sartorius Scale you have acquired a high-quality electronic

Instrument that will ease your daily work load.

Please read these installation and operating instructions carefully be-

fore operating your new scale.

Pursuant to the German Directive for the Implementation of

Regulations for Prevention of Accidents "Elektrische Anlagen

und Betriebsmittel (VBG 4)" [Electrical Installations and

Equipment] of April 1986, it is hereby certified that the

equipment delivered, "Electronic Precision Scale, series IB," is

manufactured and tested in compliance with the following

DIN/VDE regulations

DIN IEC 348/VDE 0411 Safety requirements for electronic

measuring apparatus

DIN IEC 380/VDE 0806 Safety of electrically energized Office

machines

DIN IEC 601/VDE 0750 Safety of medical electrical equipment

and with Article 10 of the Low Voltage Directive 73/23/EEC

issued on February 19, 1973 by the European Community

When you use electrical equipment in installations and under

ambient conditions requiring higher safety Standards, you must

comply with the provisions specified in the applicable

regulations for installation in your country.

Do not miss out on the benefits of our full warranty.

Please complete the warranty card, indicating the date of installation,

and return the card to your Sartorius dealer.

Unpack the scale. Remove the plastic covering and adhesive

strips.

Place the platform cover (1) on the scale base.

Storage and Shipping Conditions

Allowable storage temperature: -40°C ...+70°C

-40°F ...+158°F

The packaging of the scale has been designed to ensure that the

scale will not be damaged even if it is dropped from a height of 80 cm

(about 32 inches).

After unpacking the scale, please check it immediately for any visible

damage as a result of rough handling during shipment. lf this is the

case, proceed as directed in the section entitled "Safety Inspection."

Save all parts of the packaging. and the box because you may

need to ship your scale. Before you pack your scale to ship it,

unplug all connected cables to prevent damage.

Do not expose the scale unnecessarily to extreme temperatures,

moisture, shocks, blows or vibrations.

Equipment Supplied

The equipment supplied includes the components shown on the left:

- Scale with platform and display unit

- AG adapter

- Dust cover

- 3 Allen wrenches

- Retainers for mounting the display

- 2 M 4 x 8 screws and washers (for mounting the "Remote Display

Unit")

Installation Instructions

Ambient Conditions

Unfavourable ambient conditions can influence weighing results.

Therefore, please select a suitable place to set up

your scale. lt should not be exposed to the

following:

- heat radiation

- drafts

- vibrations

- aggressive chemical atmospheres (the scale must not be used in a

hazardous location/area)

Do not expose the scale to extreme moisture over long periods.

Moisture in the air can condense on the surfaces of a cold scale

whenever it is brought to a substantially warmer area. lf you need to

transfer the scale to a warmer area, make sure to condition it for

about 2 hours at room temperature, leaving it unplugged. Afterwards,

ifyou keep the scale connected to AC power, the continuous positive

difference in temperature between the inside of the scale and the

outside will practically ruie out the effects of moisture condensation.

The components used in the scale are rated to at least Class KSF

according to DIN 40040.

Your Sartorius scale provides accurate readouts even when it is

exposed to unfavorable ambient conditions.

You can adapt the scale to your requirements simply by changing the

code settings in the scale operating menu. For more information,

please read pages 21 through 23.

How to Mount the Display Unit

The display unit can be mounted as follows:

— base-mounted on the front of the scale

(factory-mounted)

— base-mounted on the side of the scale (see next page for direc-

tions)

— mounted as a remote display unit (see page 11)

— mounted on a support arm as a raised display unit; YDH 01 IB

is an Option (see page 13)

Mounting the Display Unit on the Short Side of Scale Base

Leave the platform cover on the scale base. To mount the display,

turn the scale upside down so that it rests on the platform cover.

Remove the screws from the base plate using the Allen wrench sup-

plied (see arrows) and then remove the base plate.

Unscrew the four screws of the angular cover plate, and remove the

angular cover plate.

Remove the fastening screws from the display unit using the Allen

wrench to untighten them. Remove the cable from the raceway

(channel).

Attach the display unit to the short side of the scale base by tightening

the two screws.

Insert the cable in the raceway as shown in the diagram on the left.

Make sure that the rubber seal (see arrow) is not damaged.

Reposition the base plate and fasten it in place by tightening the three

M3x8 screws (see the large arrows) and the two M3x10 screws (see

the small arrows).

Afterwards, fasten the angular cover plate in place by tightening the

screws.
