Sauder 418630 Manuale utente
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-14
Français pg 15-16
Español pg 17-18
Lot # 376049 08/27/15
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Full/Queen Headboard
Orchard Hills Collection | 418630
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
You are getting sleepy.
Very sleepy.
Table of Contents Assembly Tools Required
2-3
4
5-14
15-16
17-18
19
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
418630 www.sauder.com/servicesPage 2

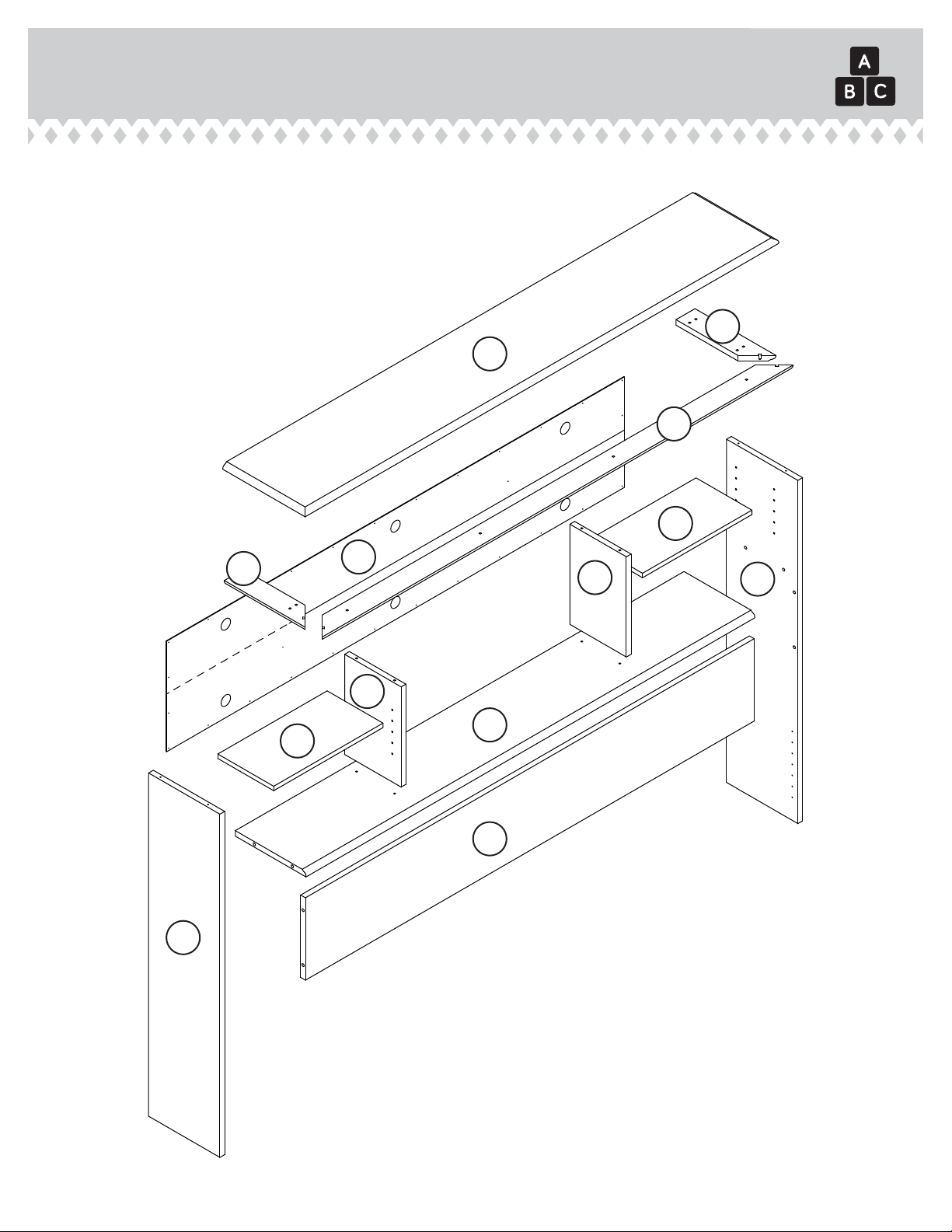

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C ADJUSTABLE SHELF (2)
D SHELF (1)
E TOP (1)
F PANEL (1)
G BACK (1)
H UPRIGHT (2)
I FRONT MOLDING (1)
J RIGHT MOLDING (1)
K LEFT MOLDING (1)
Part Identification Now you know
our ABCs.
418630www.sauder.com/services Page 3
A
B
CD
E
F
G
H
I
J
K
H
C
Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
HEADBOARD BRACKET - 2
16G
HIDDEN CAM - 8
1F CAM DOWEL - 8
2F
ANGLE BRACKET - 4
27G
MOLDING
CONNECTOR - 2
19F
NUT - 4
24M
WASHER - 4
13M
METAL PIN - 16
1R RUBBER SLEEVE - 8
2R
BLACK 1-7/8" FLAT HEAD SCREW - 4
2S
SILVER 1-1/8" FLAT HEAD SCREW - 8
10S
BLACK 9/16" LARGE HEAD SCREW - 16
1S
NAIL - 32
1N
418630 www.sauder.com/servicesPage 4
SILVER 1-1/4" BOLT - 4
117S
Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å Push eight HIDDEN CAMS (1F) into the SHELF (D) and
PANEL (F). Then, insert the metal end of a CAM DOWEL (2F)
into each HIDDEN CAM.
418630www.sauder.com/services Page 5
Arrow
1F
2F
Arrow
1F
2F
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Do not tighten the HIDDEN CAMS in this step.
D
F
(8 used)
Step 2
å Tap two MOLDING CONNECTORS (19F) into the notches
in the MOLDINGS (I, J, and K).
418630 www.sauder.com/servicesPage 6
K
I
J
Flat end
Flat end
Use your hammer to tap the MOLDING CONNECTORS (P) into the notches in the MOLDINGS.
19F 19F
å Fasten the LEFT END (B) to the LEFT MOLDING (K). Use
two BLACK 1-7/8" FLAT HEAD SCREWS (2S).
Step 3
418630www.sauder.com/services Page 7
Finished edge
Finished surface
B
K
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
2S
Remember:
Righty tighty.
Lefty loosey.
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Step 4
å Fasten four ANGLE BRACKETS (27G) to the PANEL (F).
Use four BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure the edges of the ANGLE BRACKETS are
even with the edge of the PANEL.
å Fasten the PANEL (F) to the SHELF (D). Use four BLACK
9/16" LARGE HEAD SCREWS (1S) through the ANGLE
BRACKETS on the PANEL and into the SHELF.
418630 www.sauder.com/servicesPage 8
F
D
27G
F
BLACK 9/16" LARGE HEAD SCREW
(8 used in this step)
1S
Surface with HIDDEN CAMS
Surface with HIDDEN CAMS
Surface with HIDDEN CAMS
Rounded edge
å Fasten the SHELF (D) and PANEL (F) to the LEFT END (B).
Tighten four HIDDEN CAMS.
Step 5
418630www.sauder.com/services Page 9
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
Surface without HIDDEN CAMS
F
D
B
Suface with HIDDEN CAMS

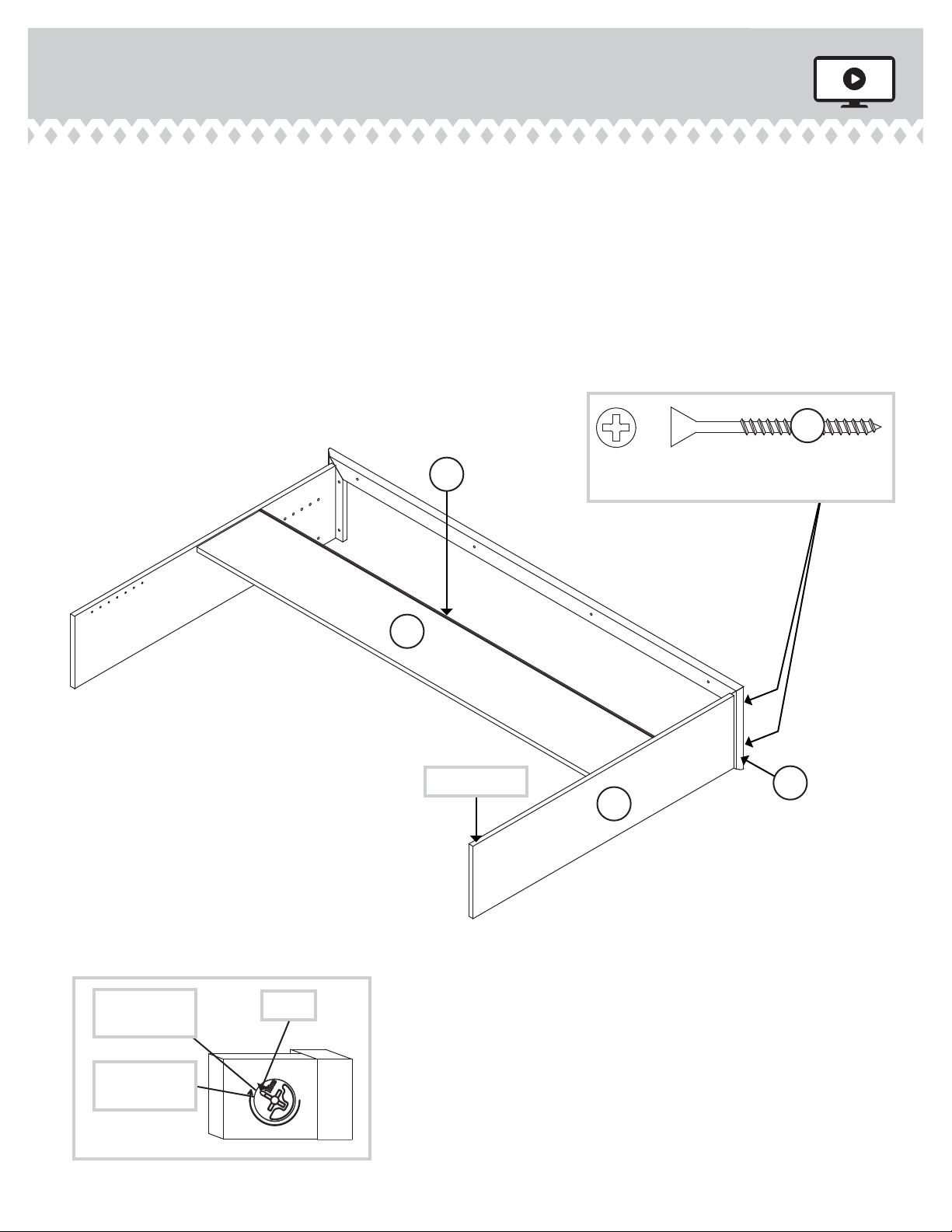

Step 6
å Fasten the RIGHT END (A) to the RIGHT MOLDING (J).
Use two BLACK 1-7/8" FLAT HEAD SCREWS (2S).
å Fasten the RIGHT END (A) to the SHELF (D) and
PANEL (F). Tighten four HIDDEN CAMS.
418630 www.sauder.com/servicesPage 10
Arrow
Minimum
190 degrees
Maximum
210 degrees
Finished edge
A
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
2S
J
F
D
