Sauder 429430 Manuale utente
sauder.com
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-18
Français pg 19-21
Español pg 22-24
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE STORE.
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE RETAILER.
Visit sauder.com/service to order replacement parts, view video assembly tips, or chat with a live rep.
Prefer the phone? Give us a ring at 1-800-445-1527.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
Sauder.com
Share your journey! Lot # 559158 01/11/21
Purchased: __________________
Storage Cabinet
Model 429430 / Sku 168-0094-8
Store behind
closed doors.
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty

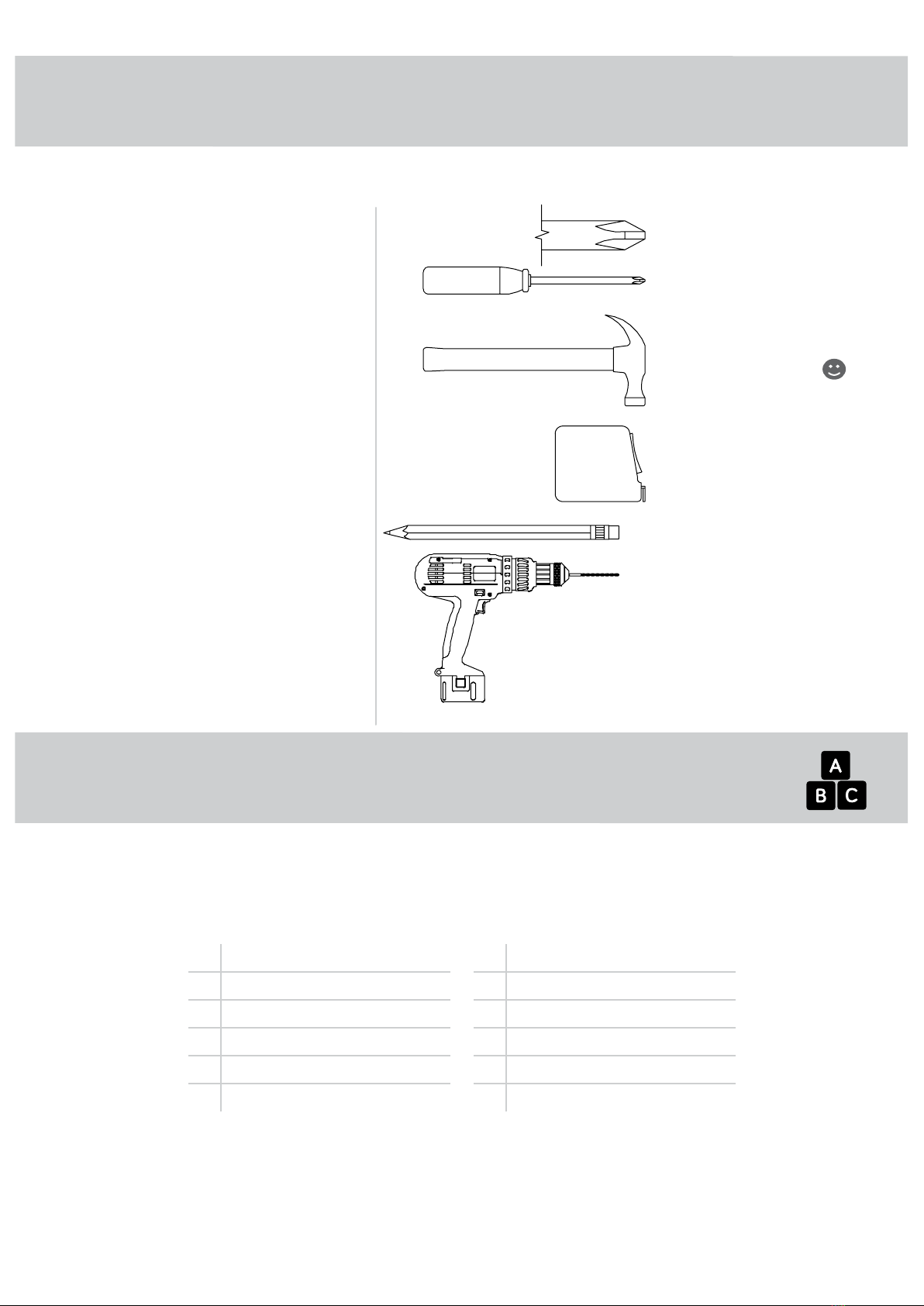

Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Assembly Tools RequiredTable of Contents
2-3
4
5-18
19-21
22-24
25-26
27
A RIGHT END (1)
B LEFT END (1)
C UPRIGHT (1)
D TOP (1)
E BOTTOM (1)
F SHELF (1)
H RIGHT DOOR (1)
J ADJUSTABLE SHELF (4)
K VALANCE (2)
L SKIRT (1)
M BACK (1)
N LEFT DOOR (1)
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
Part Identification
Tape Measure
Page 2 www.sauder.com 429430 / 168-0094-8
Electric drill with 1/8" or 3/8" bit
(ONLY in indicated step)
Pencil

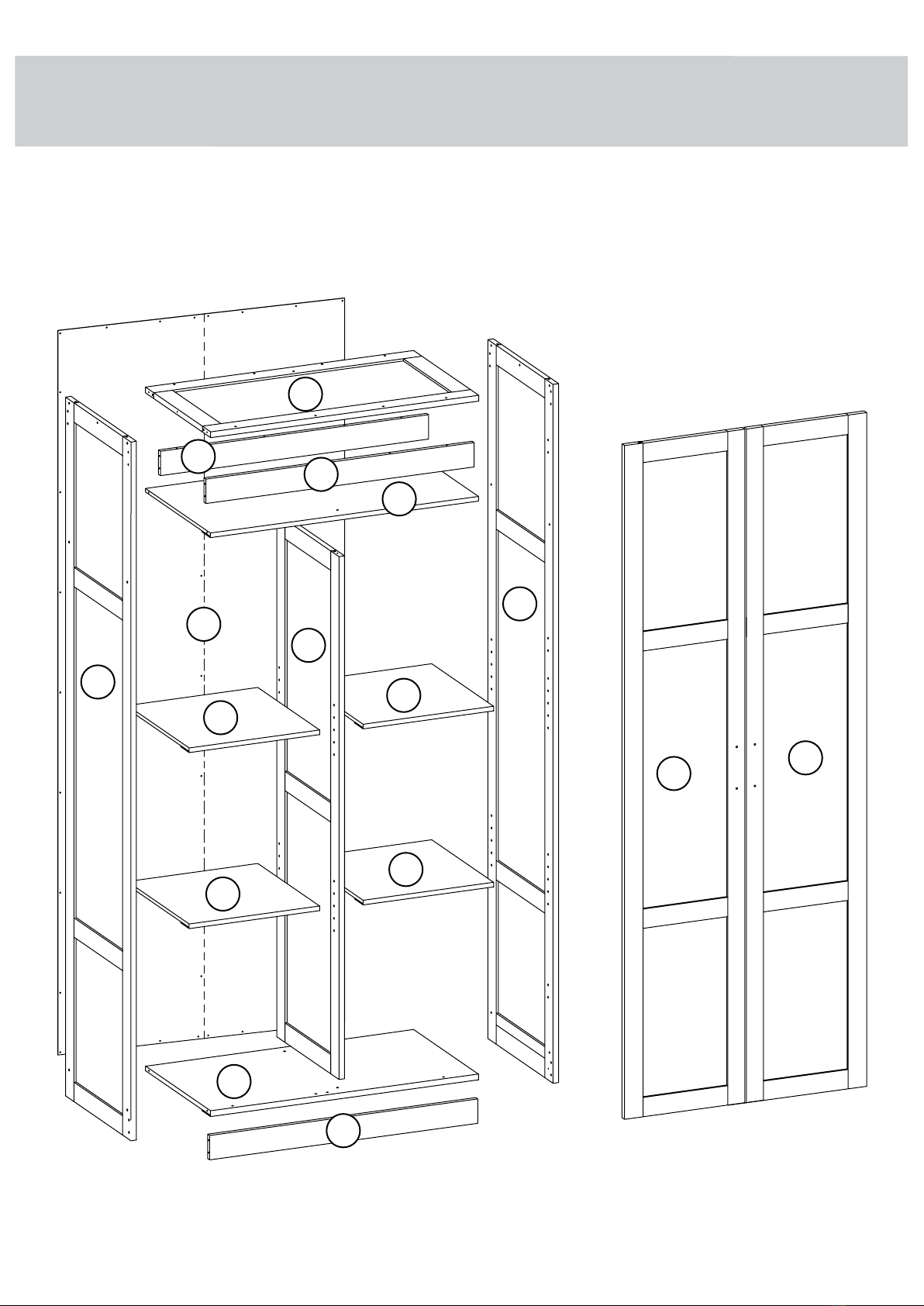

Part Identification
A
B
C
D
E
F
H
N
J
K
L
J
J
J
K
Page 3www.sauder.com429430 / 168-0094-8
M

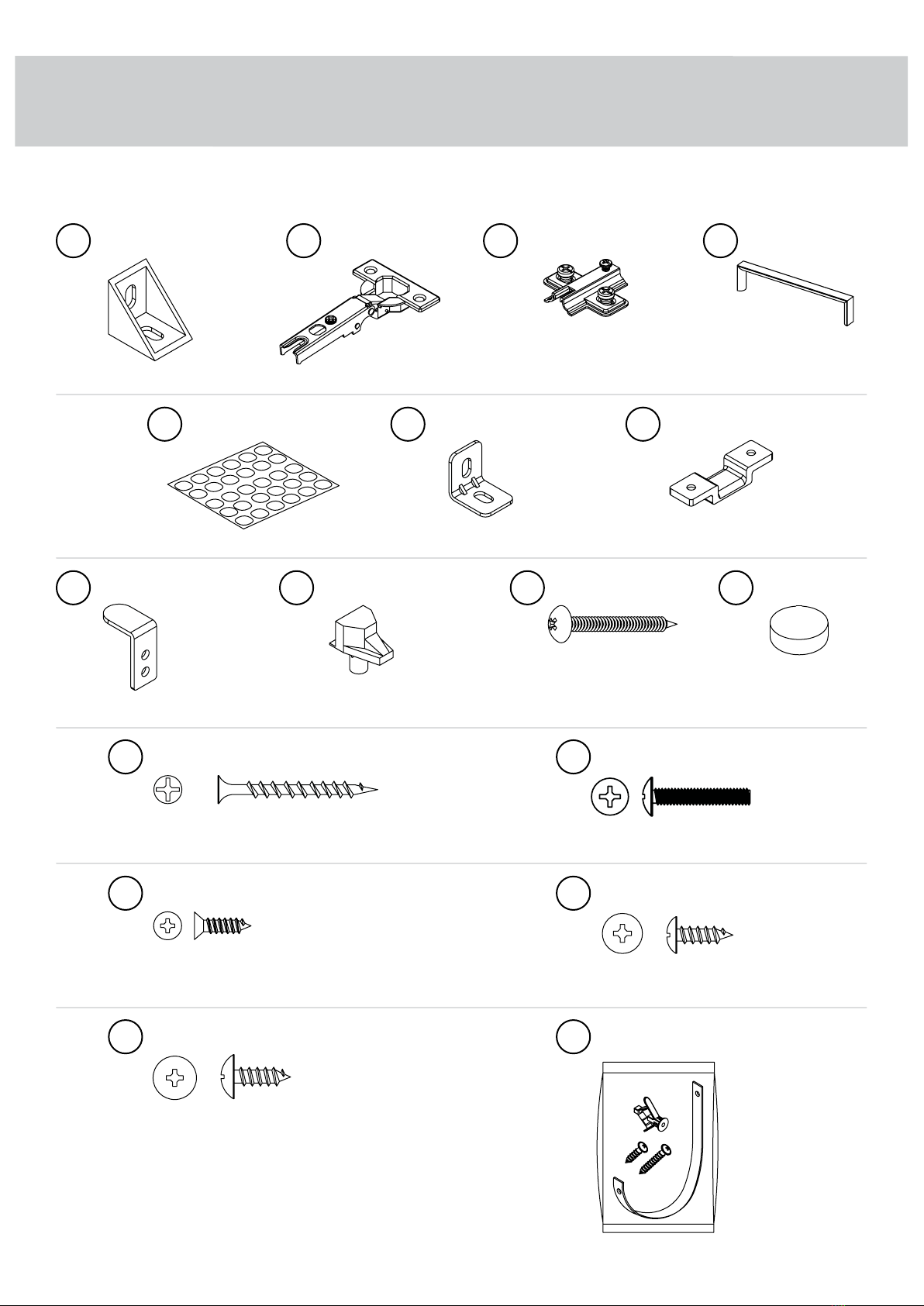

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
1/2" PAN HEAD SCREW - 8
18
1/2" FLAT HEAD SCREW - 12
17
APPLIQUE - 30
7METAL BRACKET - 2
8BOTTOM BRACKET - 1
9
NAIL - 36
12
DOOR BRACKET - 1
10 SHELF SUPPORT - 16
11 FELT DISC - 4
20
LARGE 1/2" PAN HEAD SCREW - 10
19 FURNITURE TIPPING
RESTRAINT KIT - 1
96
ANGLE BRACKET - 5
1HINGE - 6
2HINGE BRACKET - 6
3PULL - 2
4
1-3/8" FLAT HEAD SCREW - 40
13 7/8" MACHINE SCREW - 4
15
Page 4 www.sauder.com 429430 / 168-0094-8

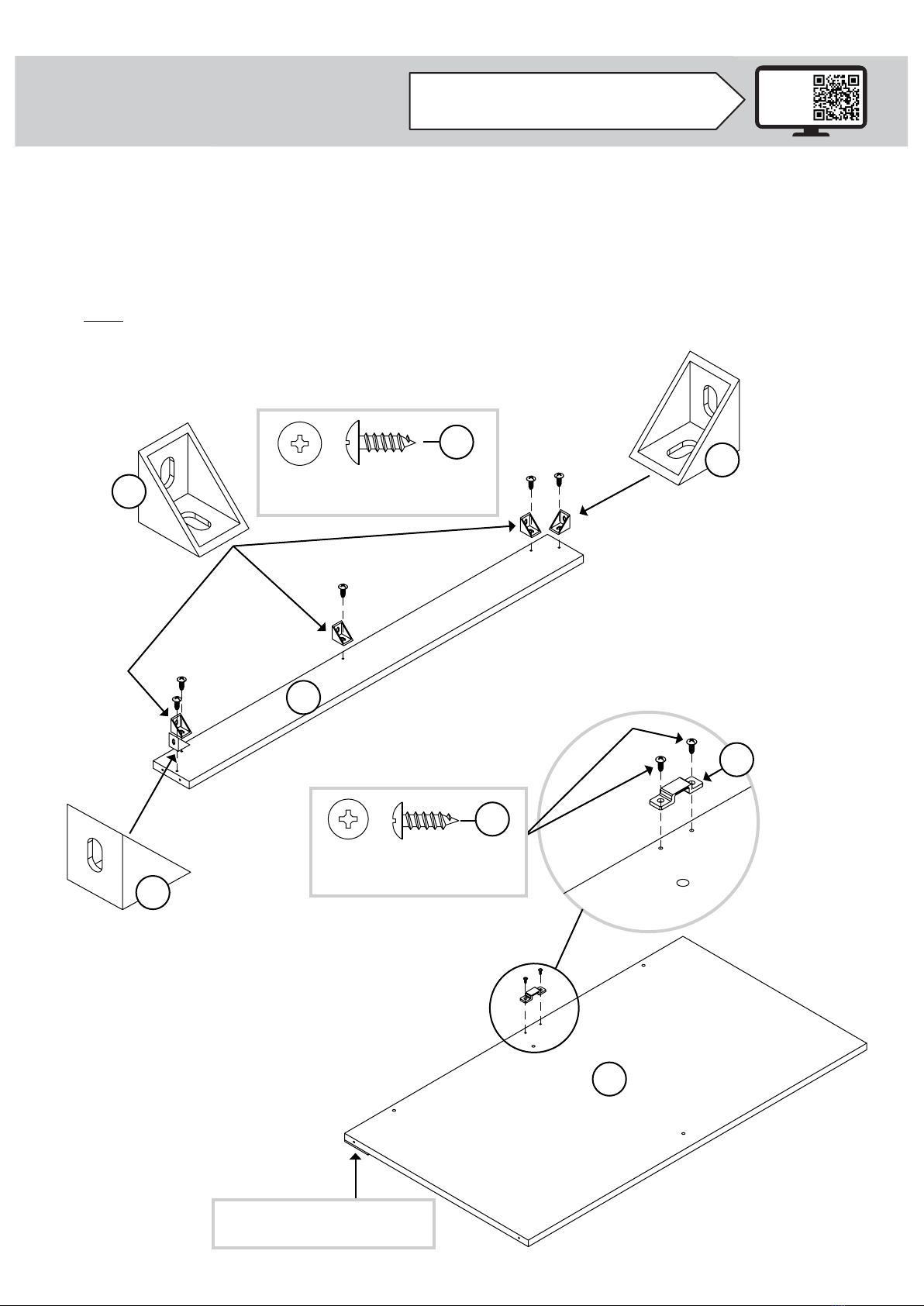

Step 1
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å Fasten five ANGLE BRACKETS (1) to the SKIRT (L). Use
five LARGE 1/2" PAN HEAD SCREWS (19).
å NOTE: Be sure the edges of the ANGLE BRACKETS are
even with the edges of the SKIRT.
å Fasten the BOTTOM BRACKET (9) to the BOTTOM (E).
Use two 1/2" PAN HEAD SCREWS (18).
1
1/2" PAN HEAD SCREW
(2 used in this step)
18
L
1
1
E
9
The molding on the other surface
of the BOTTOM should be here.
LARGE 1/2" PAN HEAD SCREW
(5 used for the ANGLE BRACKETS)
19
Look for this icon. It means a video assembly tip is
available at www.sauder.com/service/tips
Find the numbered video or scan the QR code. 0
Page 5www.sauder.com429430 / 168-0094-8

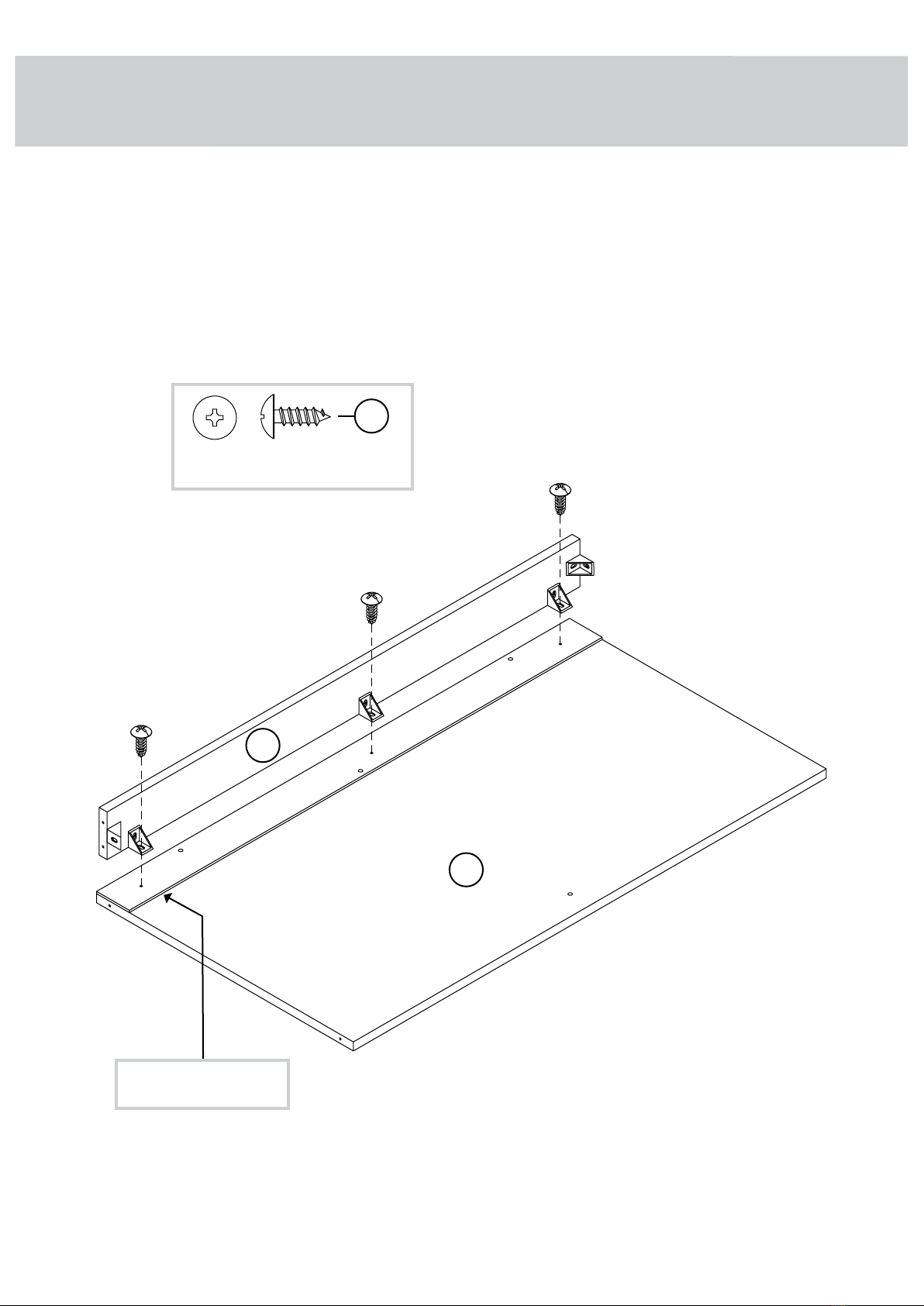

å Fasten the SKIRT (L) to the BOTTOM (E). Use three
LARGE 1/2" PAN HEAD SCREWS (19) through the ANGLE
BRACKETS on the SKIRT and into the BOTTOM.
Step 2
L
E
The molding on the
BOTTOM should be here.
LARGE 1/2" PAN HEAD SCREW
(3 used in this step)
19
Page 6 www.sauder.com 429430 / 168-0094-8
RRTT
FF OONN
FF
RR
OO
N
N
T
T

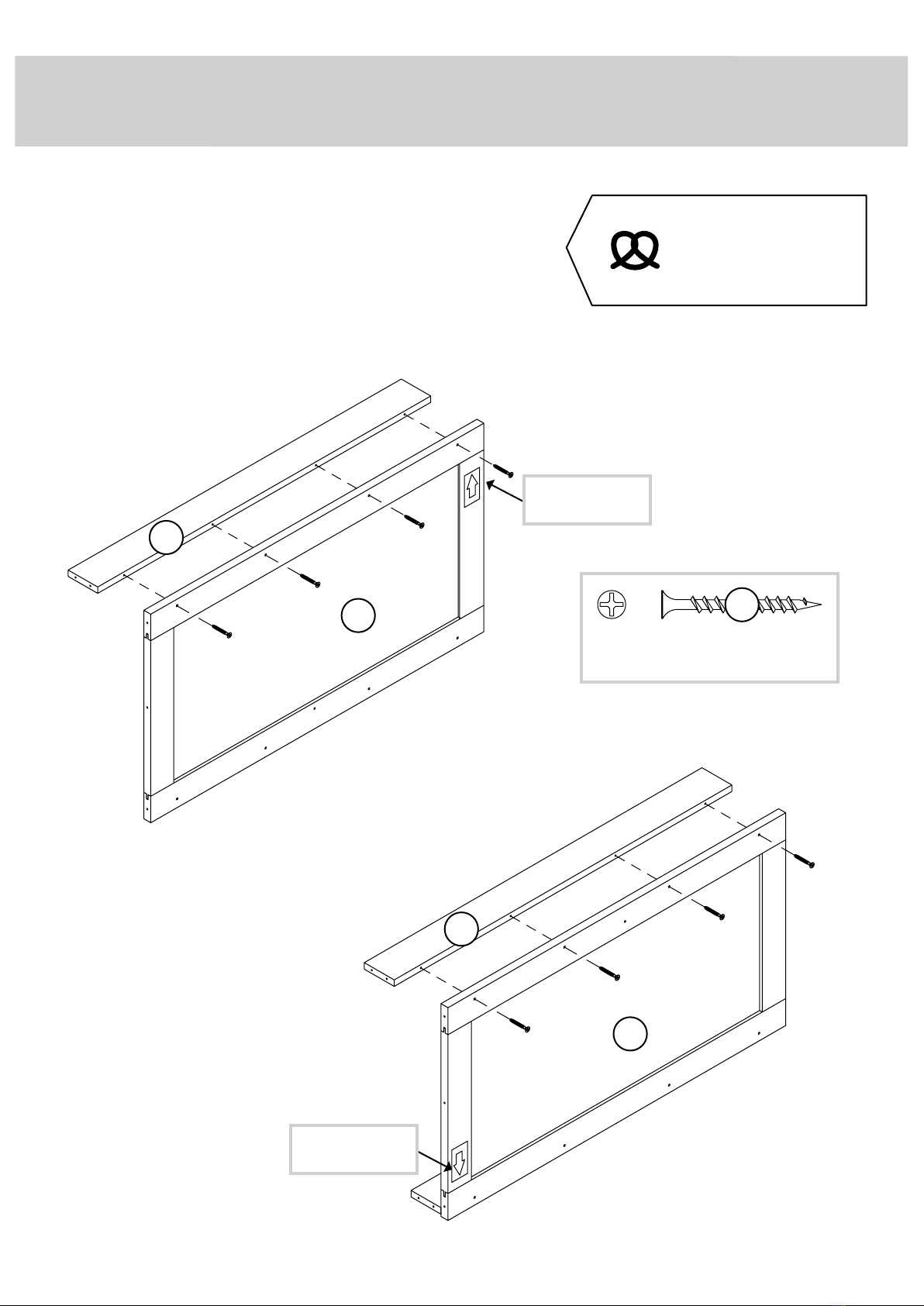

å Fasten the VALANCES (K) to the TOP (D). Use eight
1-3/8" FLAT HEAD SCREWS (13).
Step 3
D
K
Some assembly
(and snacks) required.
K
D
Unfinished surface
1st
2nd
This arrow should
be pointing up.
This arrow should
be pointing down.
Finished surface
1-3/8" FLAT HEAD SCREW
(8 used in this step)
13
Page 7www.sauder.com429430 / 168-0094-8

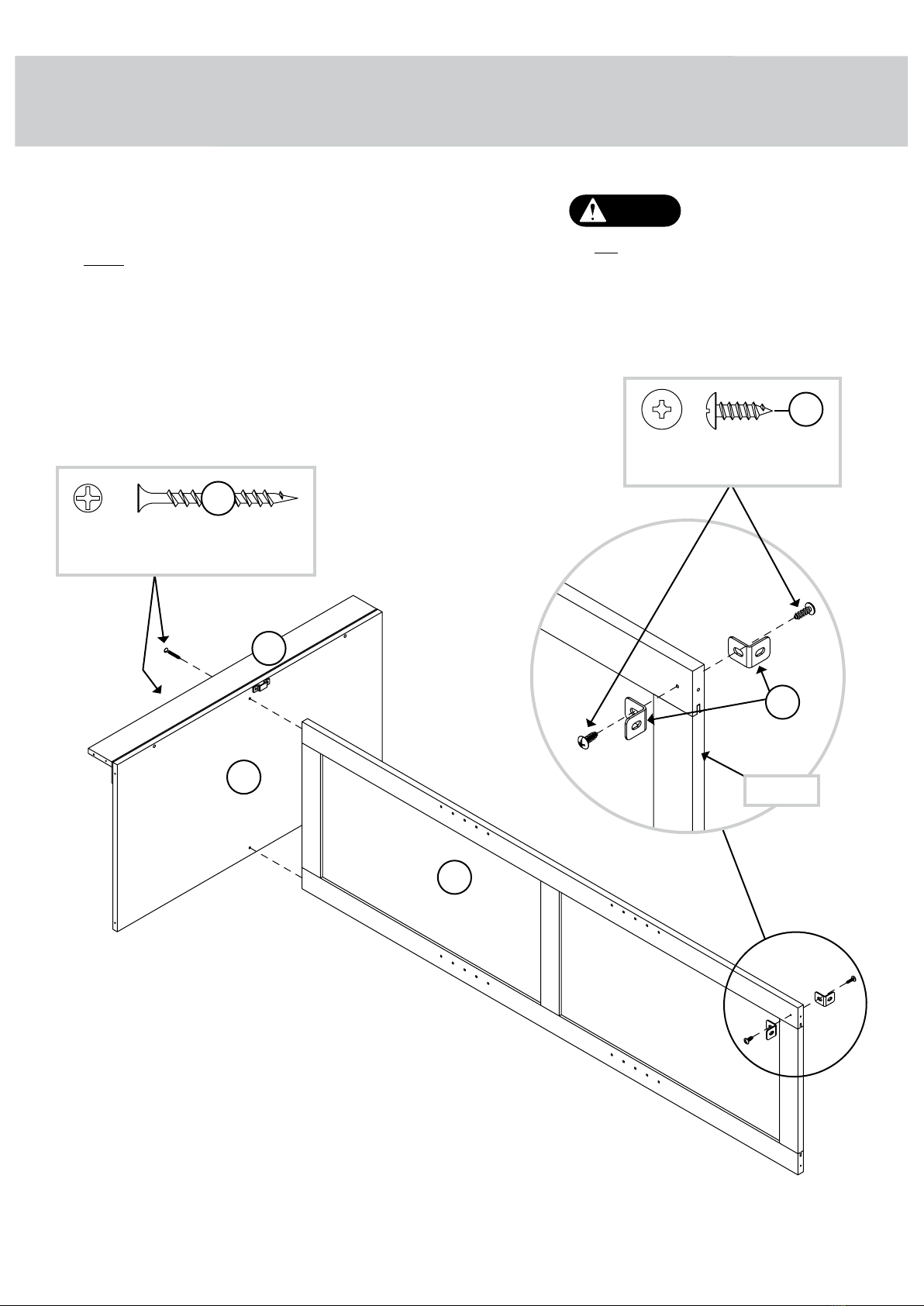

Step 4
å Fasten two METAL BRACKETS (8) to the UPRIGHT (C).
Use two 1/2" PAN HEAD SCREWS (18).
å NOTE: Be sure the edges of the METAL BRACKETS are
even with the top edge of the UPRIGHT.
å Fasten the BOTTOM (E) to the UPRIGHT (C). Use two
1-3/8" FLAT HEAD SCREWS (13).
E
L
C
8
1/2" PAN HEAD SCREW
(2 used in this step)
18
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Top edge
1-3/8" FLAT HEAD SCREW
(2 used in this step)
13
Page 8 www.sauder.com 429430 / 168-0094-8

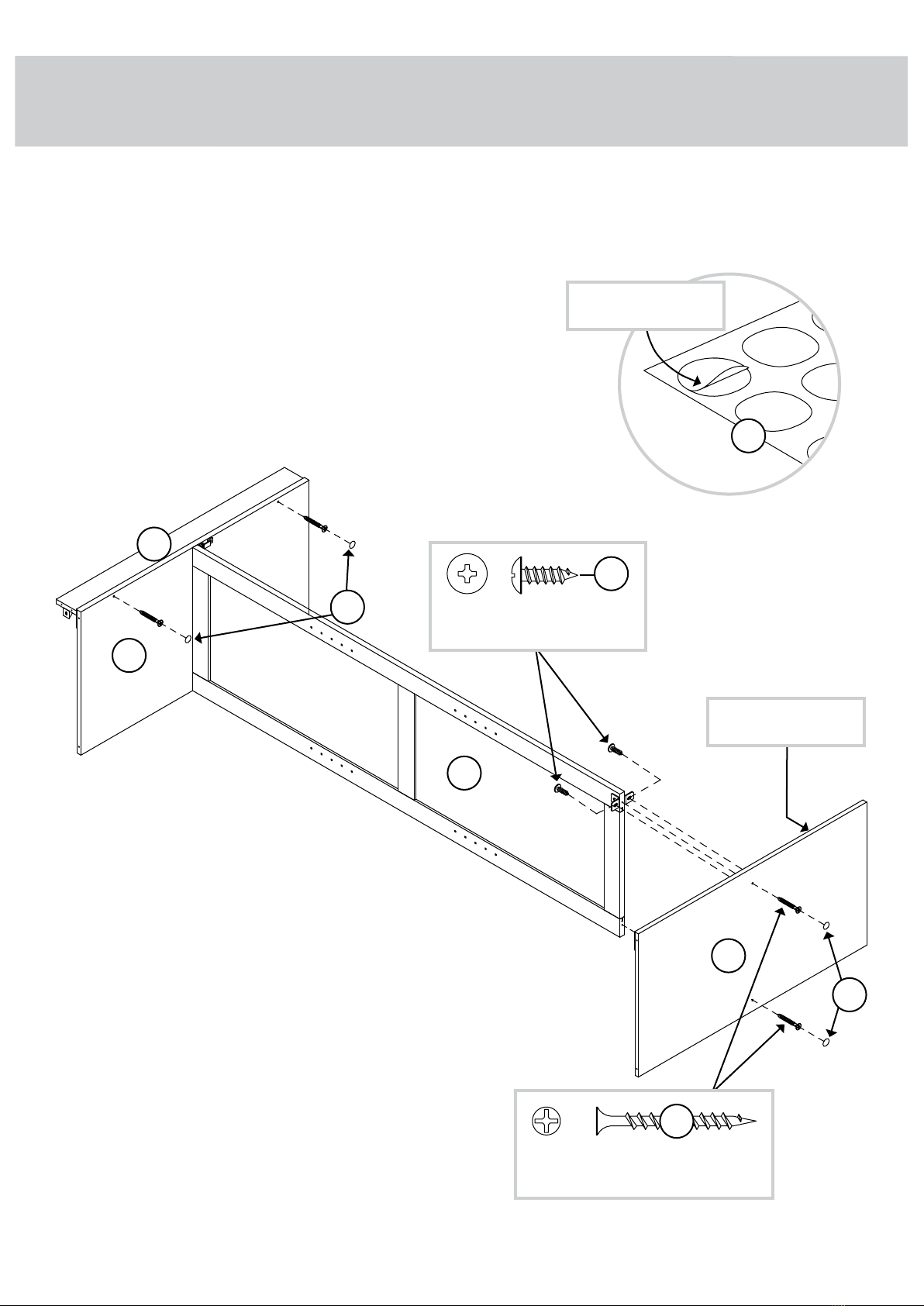

Step
å Finish fastening the BOTTOM (E) to the SKIRT (L). Use
two 1-3/8" FLAT HEAD SCREWS (13).
å Fasten the SHELF (F) to the UPRIGHT (C). Use two 1-3/8"
FLAT HEAD SCREWS (13).
å Finish fastening the SHELF (F) to the UPRIGHT (C). Use
two 1/2" PAN HEAD SCREWS (18) through the METAL
BRACKETS on the UPRIGHT and into the SHELF.
å Then, peel four APPLIQUES (7) from the applique card
and stick them over the heads of the SCREWS (13).
Step 5
E
C
F
Peel the APPLIQUES
from the applique card.
7
L
7
The molding on the
SHELF should be here.
1/2" PAN HEAD SCREW
(2 used in this step)
18
7
1-3/8" FLAT HEAD SCREW
(4 used in this step)
13
Page 9www.sauder.com429430 / 168-0094-8
Step

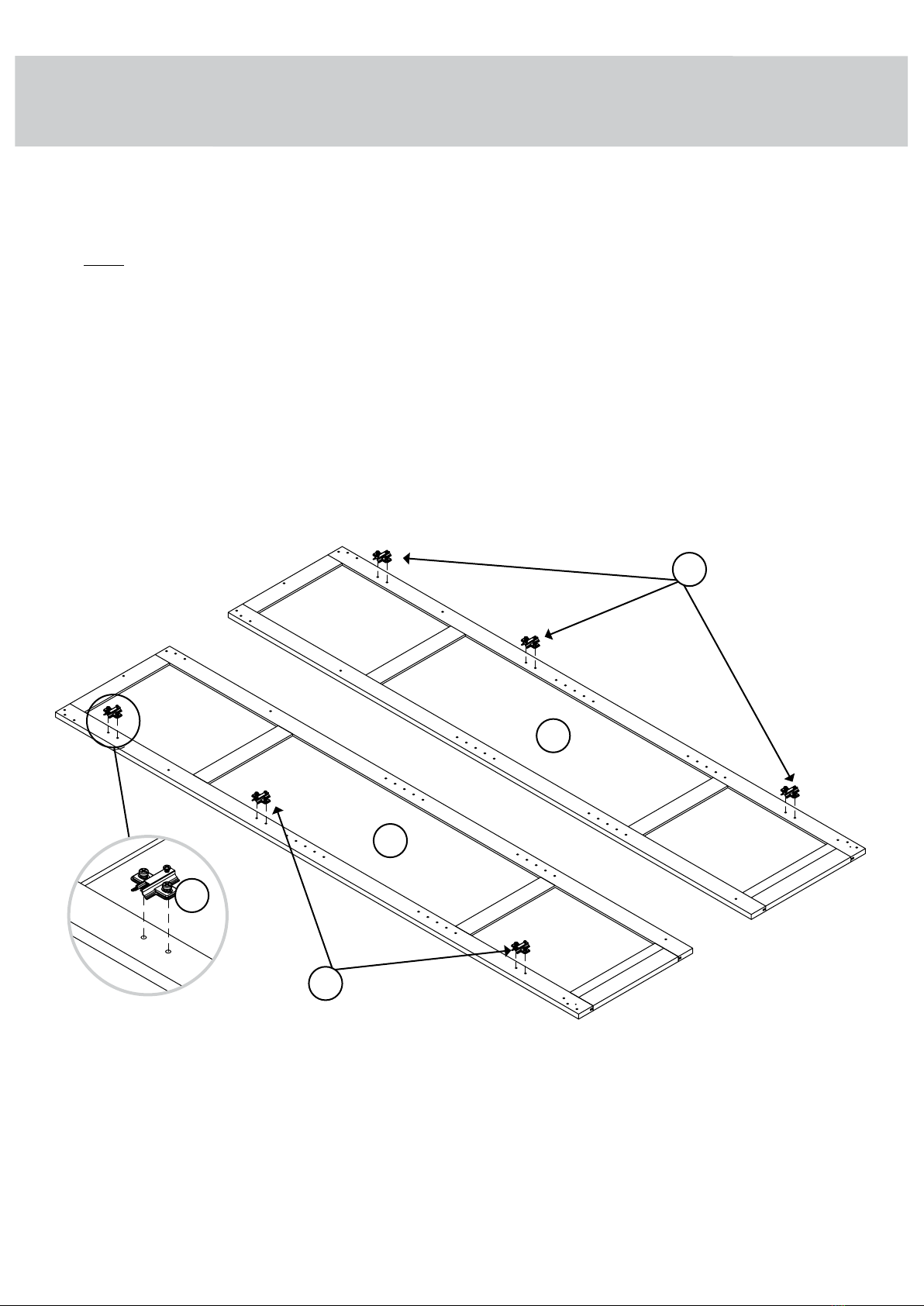

å Fasten the HINGE BRACKETS (3) to the ENDS (A and B).
Use the SCREWS in the HINGE BRACKETS.
å NOTE: The arrow on the HINGES should face towards the
edge of the ENDS.
Step 6
B
A
3
3
3
Page 10 www.sauder.com 429430 / 168-0094-8
