Storage Organizer
Model 422647
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-18
Français pg 19-21
Español pg 22-24
Lot # 531686 07/17/19
Purchased: __________________
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE STORE.
Share your journey!
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE STORE.
Visit sauder.com/service to order replacement parts, view video assembly tips, or chat with a live rep.
Prefer the phone? Give us a ring at 1-800-445-1527.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
You'll love what we
have in storage.
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty

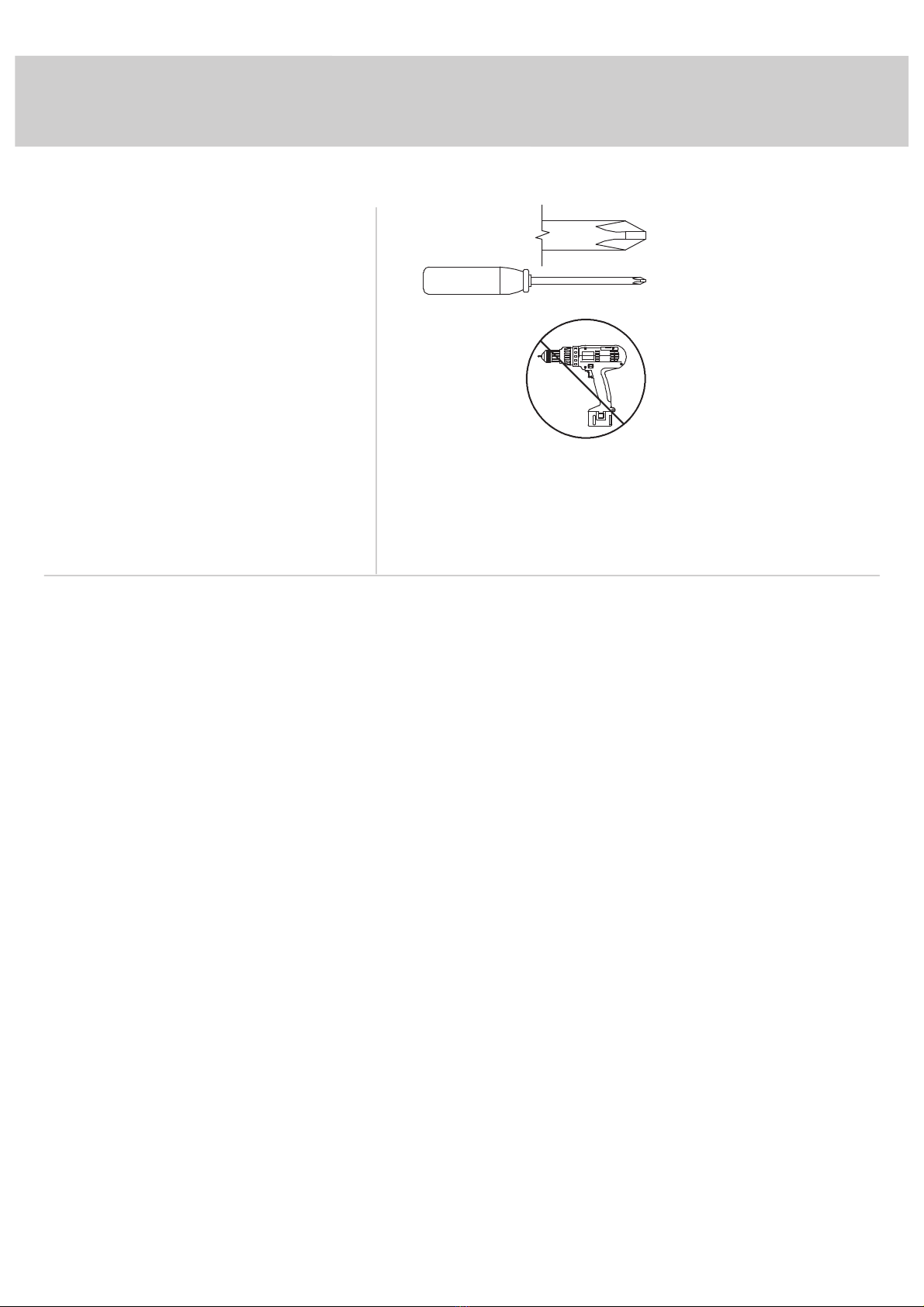

No. 2 Phillips Screwdriver
Tip Shown Actual Size
Table of Contents Assembly Tools Required
Skip the power trip.
This time.
3
4
5-18
19-21
22-24
25-26
27
Page 2 www.sauder.com 422647
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.

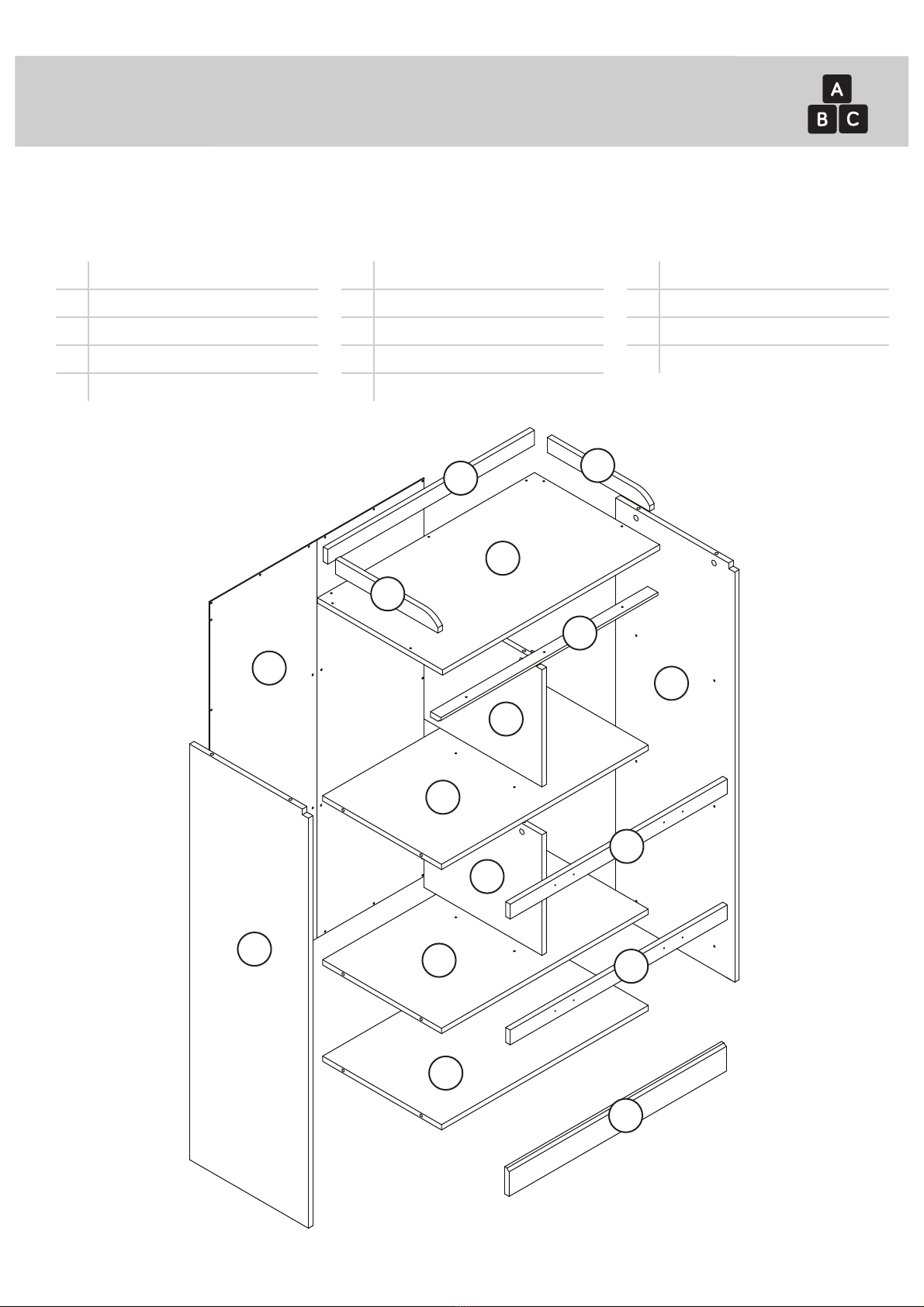

Part Identification Now you know
our ABCs.
A RIGHT END (1)
B LEFT END (1)
C UPPER UPRIGHT (1)
D LOWER UPRIGHT (1)
E TOP (1)
F UPPER SHELF (1)
G LOWER SHELF (1)
H BOTTOM (1)
I BACK (1)
J FRONT SKIRT (1)
K SIDE RAIL (2)
L BACK RAIL (1)
M FRONT MOLDING (1)
N SHELF MOLDING (2)
A
B
C
D
F
H
I
J
K
M
N
E
G
L
K
N
Page 3www.sauder.com422647
Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
FURNITURE TIPPING RESTRAINT KIT - 1
99
Page 4 www.sauder.com 422647
HIDDEN CAM - 20
1CAM SCREW - 20
2METAL BRACKET - 9
3
CARD HOLDER - 4
4APPLIQUE - 16
5
BLACK 7/8" FLAT HEAD SCREW - 3
7
BLACK 5/16" MACHINE SCREW - 8
9
BLACK 1-3/16" FLAT HEAD SCREW - 11
6
BLACK 1/2" PAN HEAD SCREW - 43
8
Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å Turn eighteen CAM SCREWS (2) into the ENDS (A and B)
and TOP (E).
å NOTE: Be sure to use the exact holes shown in the TOP.
Page 5www.sauder.com422647
A
B
E
(18 used)
2
UP
UP

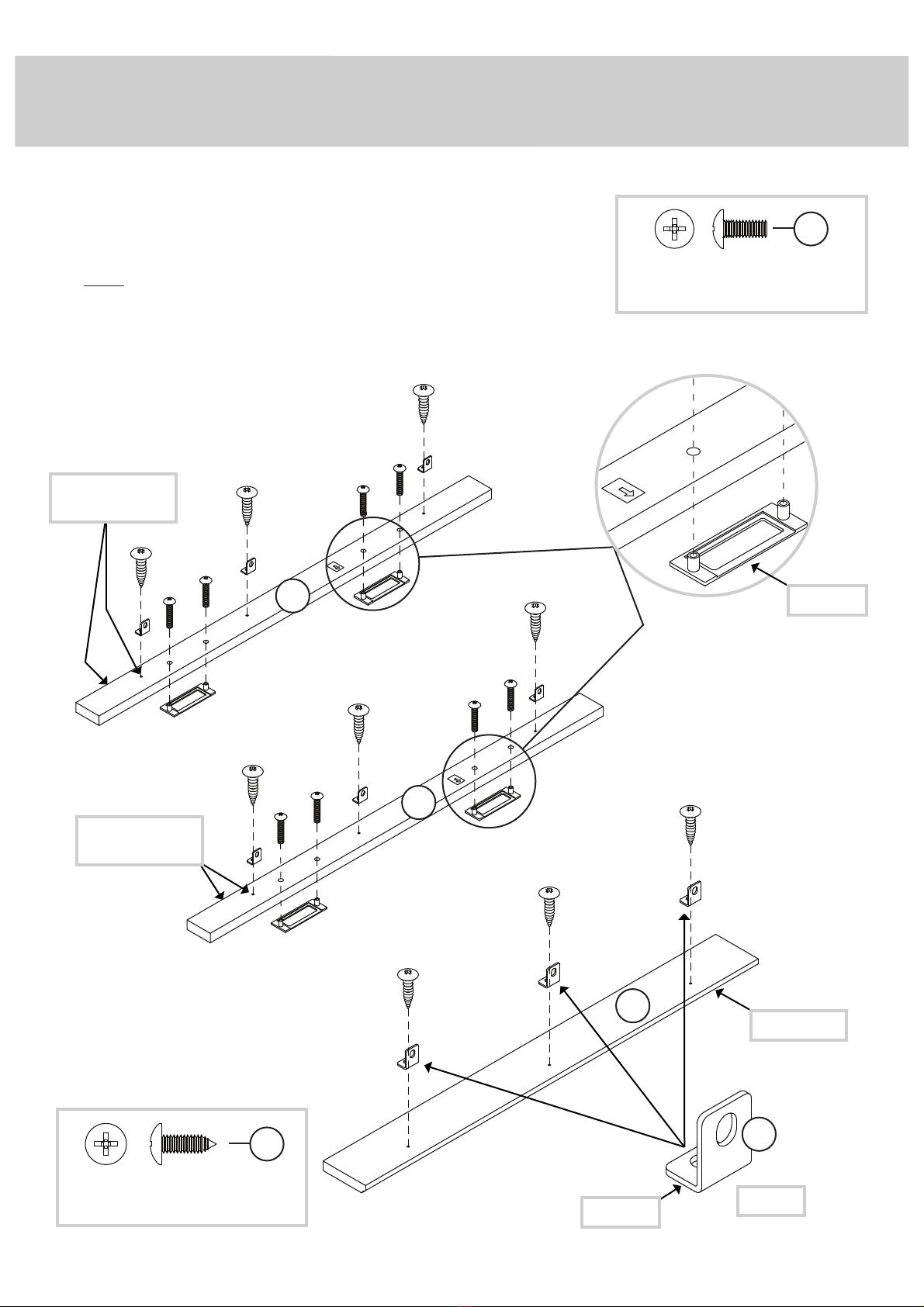

å Fasten nine METAL BRACKETS (3) to the FRONT
SKIRT (J) and SHELF MOLDINGS (N). Use nine
BLACK 1/2" PAN HEAD SCREWS (8).
å NOTE: The short end of the METAL BRACKET should be
fastened to the FRONT SKIRT and SHELF MOLDINGS.
å Fasten the CARD HOLDERS (4) to the SHELF MOLDINGS (N)
exactly as shown in the enlarged diagram. Use eight BLACK 5/16"
MACHINE SCREWS (9).
Step 2
Page 6 www.sauder.com 422647
J
N
N
3
(9 used)
BLACK 1/2" PAN HEAD SCREW
(9 used for the METAL BRACKETS)
8
BLACK 5/16" MACHINE SCREW
(8 used for the CARD HOLDERS)
9
Curved edge
Short end
UP
Open end
The hole is closer
to this edge.
The hole is closer
to this edge.
å Fasten the UPPER SHELF (F) to the UPPER UPRIGHT (C).
Use two BLACK 1-3/16" FLAT HEAD SCREWS (6).
Step 3
Page 7www.sauder.com422647
C
F
Notched edge
Surface with holes
Surface with
more holes
BLACK 1-3/16" FLAT HEAD SCREW
(2 used in this step)
6
Remember:
Righty tighty.
Lefty loosey.

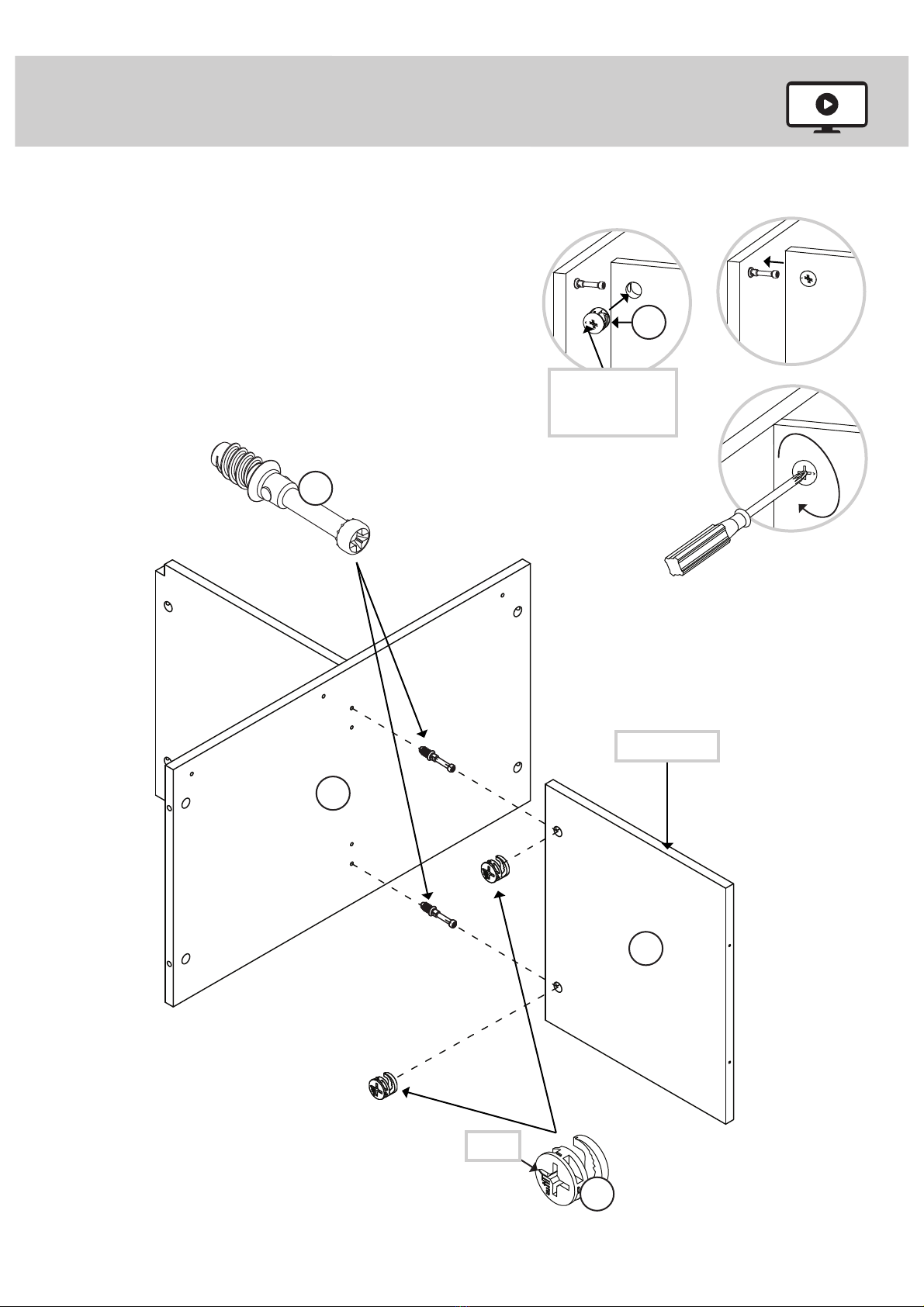

å Turn two CAM SCREWS (2) into the exact holes shown in
the UPPER SHELF (F).
å Push two HIDDEN CAMS (1) into the LOWER UPRIGHT (D).
å Fasten the LOWER UPRIGHT (D) to the UPPER SHELF (F).
Tighten two HIDDEN CAMS.
Step 4
Page 8 www.sauder.com 422647
F
D
Surface with holes
Arrow
3
21
1
2
Finished edge
1
The arrow must
point toward the
edge of the board.
Step 5
Page 9www.sauder.com422647
D
G

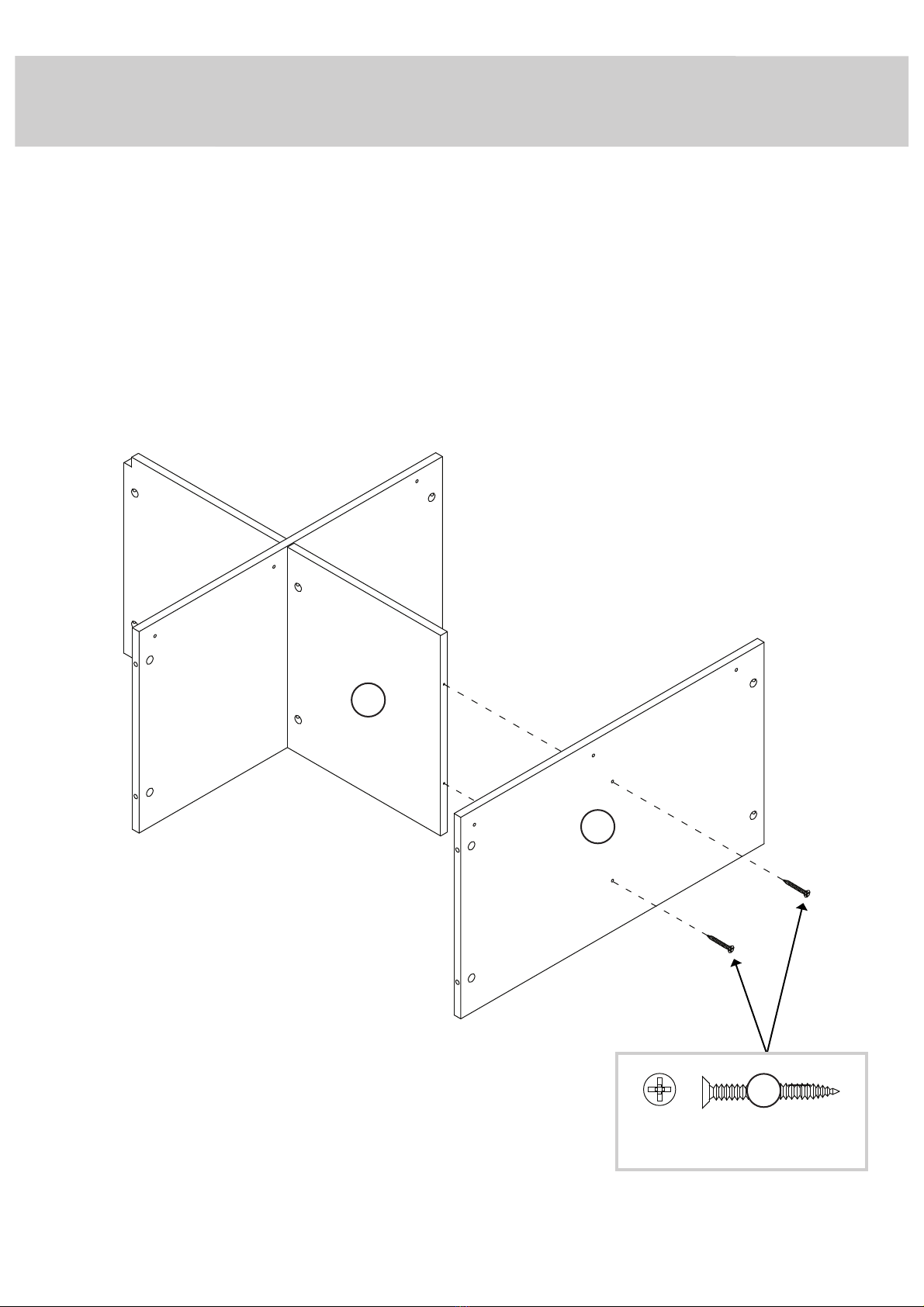

å Fasten the LOWER SHELF (G) to the LOWER UPRIGHT (D).
Use two BLACK 1-3/16" FLAT HEAD SCREWS (6).
Surface with
more holes
BLACK 1-3/16" FLAT HEAD SCREW
(2 used in this step)
6

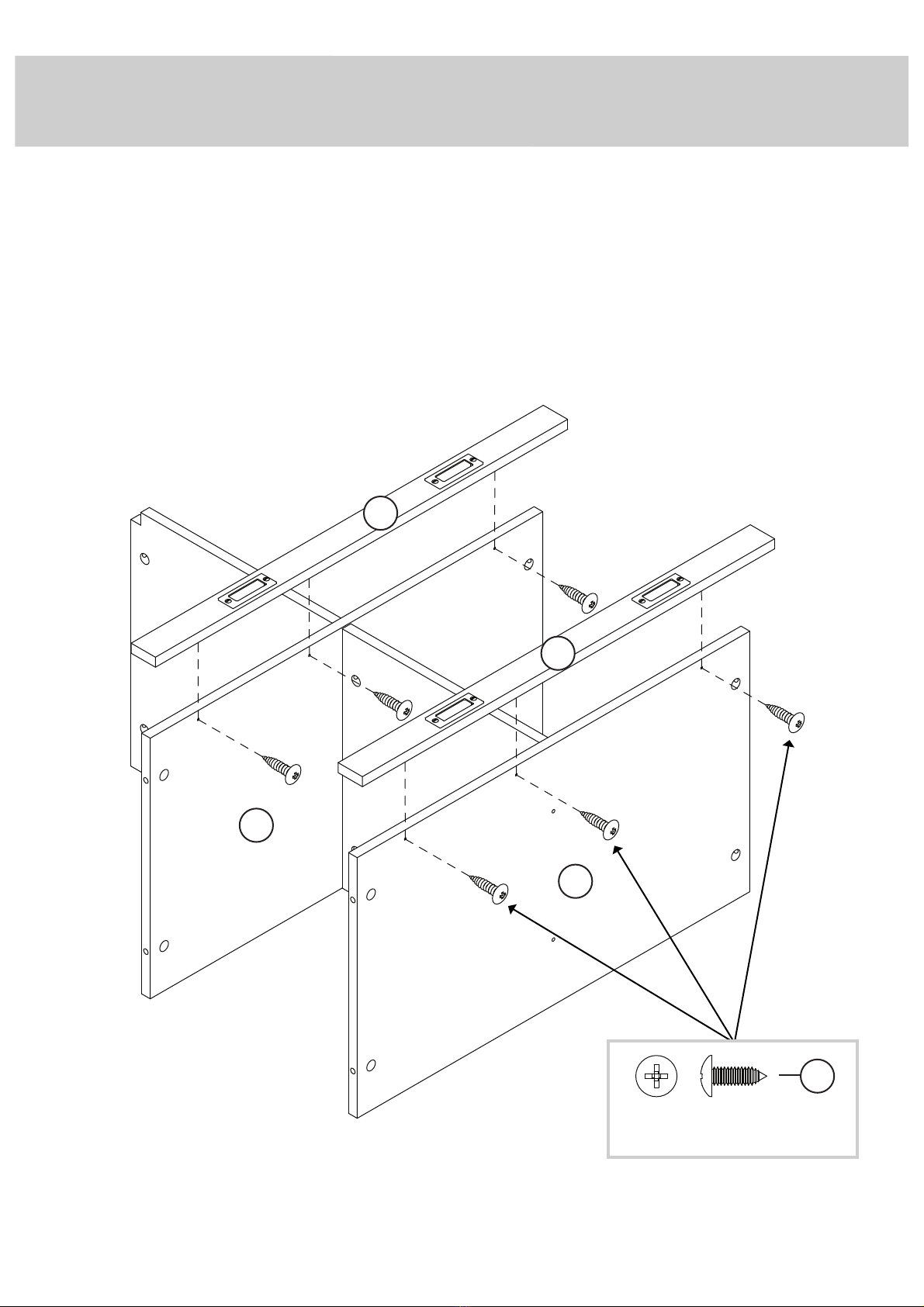

å Fasten the SHELF MOLDINGS (N) to the SHELVES (F and G).
Use six BLACK 1/2" PAN HEAD SCREWS (8) through the METAL
BRACKETS on the SHELF MOLDINGS and into the SHELVES.
Step 6
Page 10 www.sauder.com 422647
F
G
N
N
BLACK 1/2" PAN HEAD SCREW
(6 used for the SHELF MOLDINGS)
8
