Product Manual
PLU 368609
3 SHELF SERVICE CART
Page 1
WARRANTY
ASSEMBLY INSTRUCTIONS:
Contents: (A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
Contents:
Contents:
Contents:
Contents:
Contents:
Contents:
Contents:
3x 60mm Deep shelves
4x Posts
2x 76mm (3”) 360° Swivel solid rubber wheels with locking brake
2x 76mm (3”) Rigid solid rubber wheels
1x Tubular steel handle
48x M6 x 10mm Short bolt and nut sets
16x M8 x 10mm Wheel bolt and nut sets
3x EVA Mats
Specifications: Overall dimensions - L765 x W360 x H760 mm
Maximum rated capacity:
- 30kg per shelf
Includes three 60mm deep shelves
76mm (3”) smooth rolling solid rubber wheels
Specifications:
Specifications:
Specifications:
Specifications:
Tools required (not included): 1x 10mm Spanner
2x 12mm SpannerTools required (not included):
Our product is guaranteed to be free from quality and manufacturing defects for a period of
12 months.
If your product becomes defective during this period, SRGS PTY LTD will offer you either a
replacement, credit or refund where a product is faulty; wrongly described; different from the
sample shown to you or do not do what they are supposed to do.
This warranty will not cover substantially modified product; misuse or abuse of the product
contrary to user instructions or packaging label; change of mind and normal wear and tear.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and failure does not amount
to a major failure.
To claim the warranty, take the product to the front Service Desk of your nearest store of
purchase. You will need to show receipt or other proof of purchase. Additional information
may be required to process your claim. Should you not be able to provide proof of purchase
with a receipt or bank statement, identification showing name, address and signature may
be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be paid
by you. For online store purchases, SRGS PTY LTD will pay for the return freight for any
product assessed as having a major failure.
The benefits to the customer given by this warranty are in addition to other rights and
remedies of the Australian Consumer Law in relation to the goods or services to which this
warranty relates.
This warranty is provided by SRGS PTY LTD, 6 Coulthards Avenue, Strathpine QLD
4500, Australia. Phone: 1300 175 010.
.....................................................................................................................................
.............................................
...
............................................................................................................................
................................................................................................
.................................................................................
.............................................................................................................................
....................................................................................
Page 2

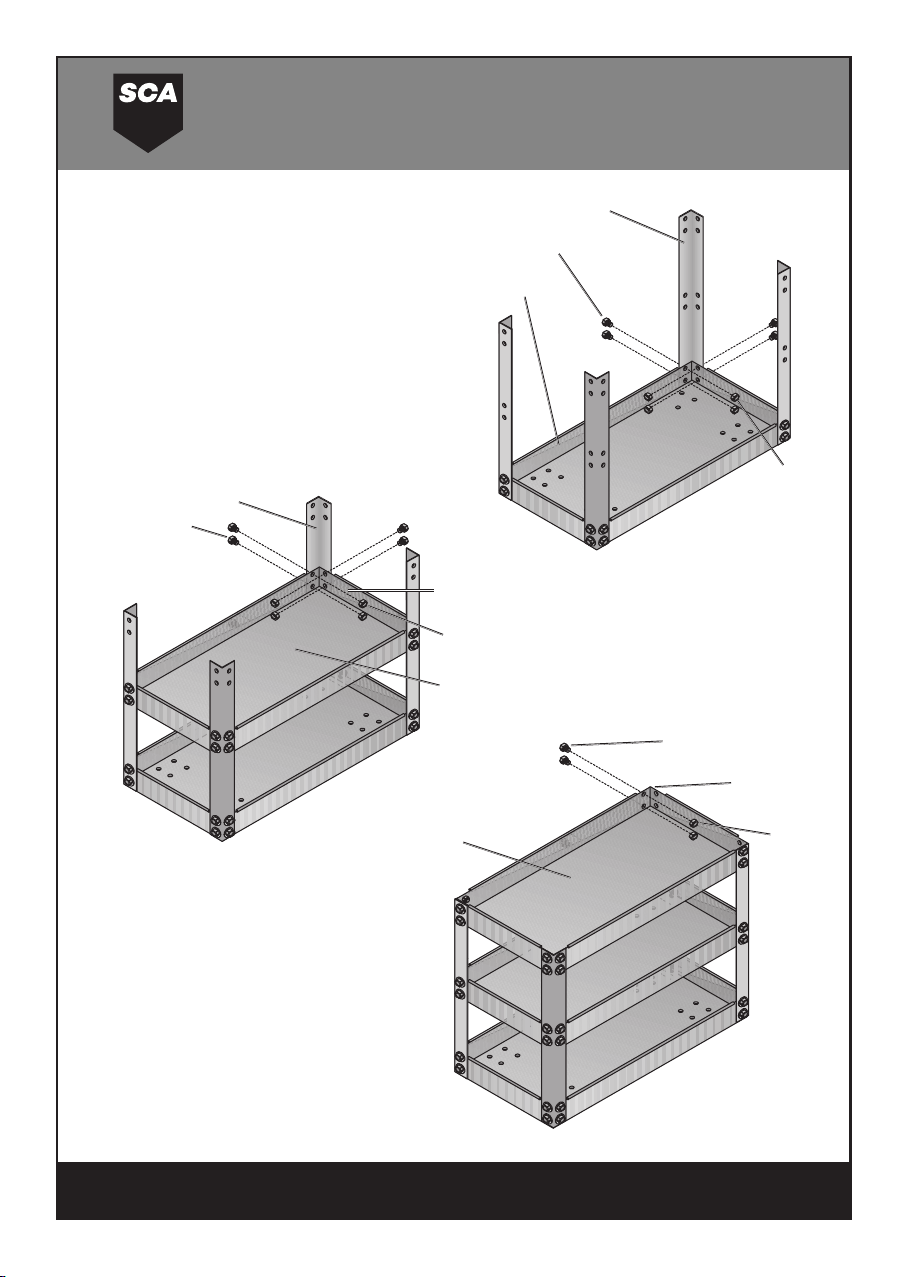

Attaching Posts (B) to Shelf (A)
1. Lay one (A) (The one with four sets
of four holes on the bottom) on the
floor and attach the Posts (B) to the
outside corners of the shelf using sixteen
Short Bolt and Nut Sets (F) - 1x M6 x
10mm Short Bolt and 1x M6 Nut per set.
Shelf
2. Attach the other Shelf (A) to the inside
of the Posts (B) at all four corners
using sixteen Short Bolt and Nut
Sets (F) - 1x M6 x 10mm Short Bolt
and 1x M6 Nut per set.
Tips: Set the Service Cart on its side and work on
two posts at a time for ease of assembly.
3. Attach the last Shelf (A) to the inside
top of the Posts (B) using twelve
Short Bolt and Nut Sets (F) - 1x M6
x 10mm Short Bolt and 1x M6 Nut
per set. (Four holes on one end of this
top Shelf (A) are reserved for attaching
the Tubular Steel Handle (E) in the
next step.)
Tips: Set the Service Cart on its side and work on
two posts at a time for ease of assembly.
Post (B)
M6 x 10mm
Short Bolt (F)
Shelf (A)
Nut
M6 x 10mm
Short Bolt (F)
Post (B)
Nut
Shelf (A)
M6 x 10mm
Short Bolt (F)
Post (B)
Shelf (A) Nut
Page 3
Attaching Tubular Steel Handle (E)
Attaching Solid Rubber Wheels (C & D)
Attach the Tubular Steel Handle (E) to end
of Posts (B) using four Short Bolt and Nut
Sets (F) - 1x M6 x 10mm Short Bolt and
1x M6 Nut per set.
Attach each
Rubber Wheel with Locking
Brake (C) to the Tubular Steel
Handle (E) end of the Shelf (A)
using four Wheel Bolt and Nut
Sets (G) - 1x M8 x 10mm
Wheel Bolt and 1x M8 Nut
per set.
Attach each Rigid
Solid Rubber
Wheel (D) to the
remaining end of the
Shelf (A) using the
remaining Wheel
Bolt and Nut Sets
(G) - 1x M8 x
10mm Wheel Bolt
and 1x M8 Nut per
set.
360° Swivel Solid
Manufactured and packaged for SRGS PTY LTD ABN 23 113 230 050
6 Coulthards Avenue, Strathpine QLD 4500, Australia
MADE IN CHINA
Place 3x EVA Mats (H) on shelves.
Nut
M6 x 10mm
Short Bolt (F)
Handle (E)
Post (B)
360° Swivel Solid
Rubber Wheel with
Locking Brake (C)
Rigid Solid
Rubber Wheel (D)
Shelf (A)
M8 x 10mm
Wheel Nut (H)
M8 x 10mm
Wheel Bolt (H)
