Schick SCHICK ceramic Manuale utente

Operating Instruction

SCHICK ceramic - milling set

Original

Georg Schick Dental GmbH

Lehenkreuzweg 12

D-88433 Schemmerhofen

Telefon 07356/9500-0

Telefax 07356/9500-95

E-Mail [email protected]

Internet www.schick-dental.de

Contents:

1. Application and use

2. General notes

Caution

3. Scope of delivery

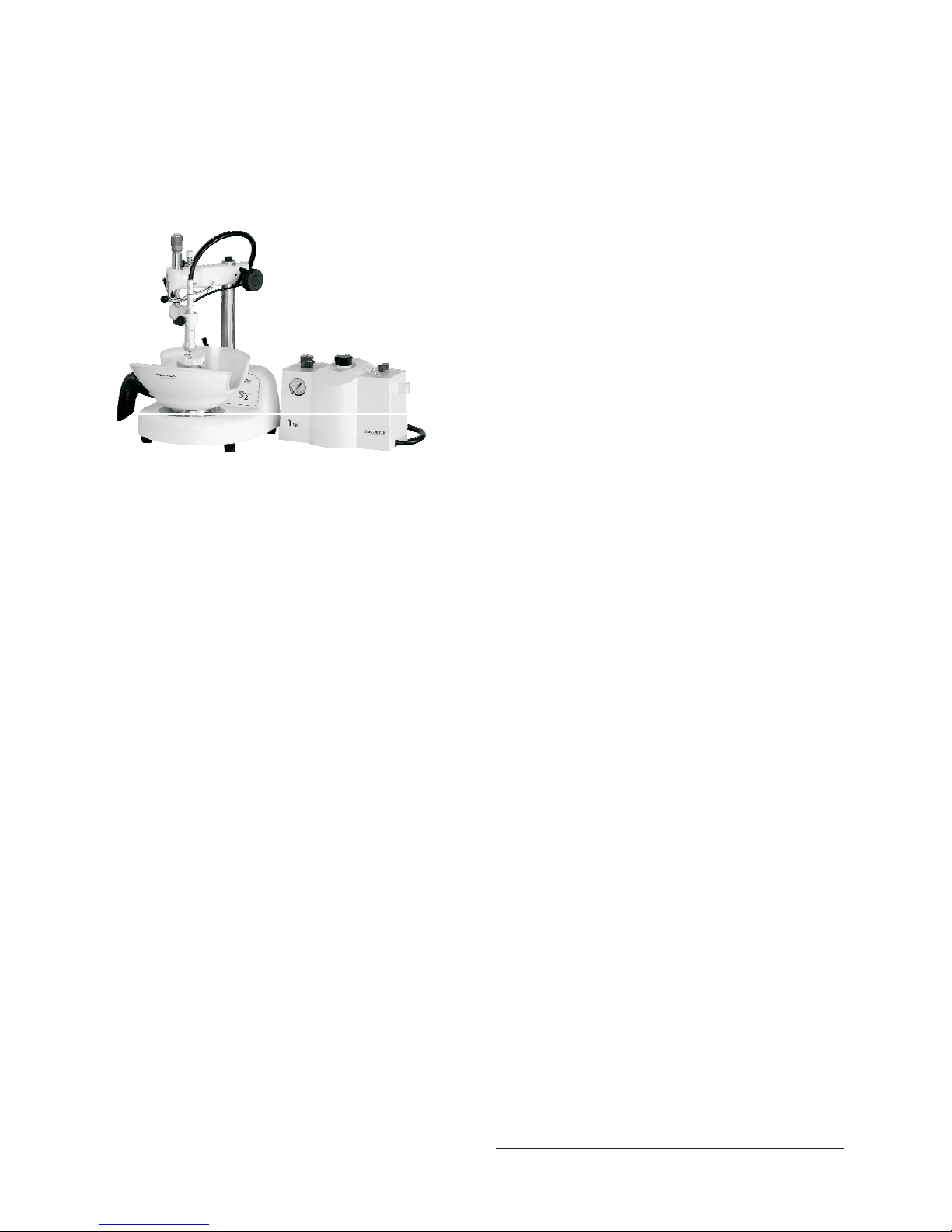

4. Description/ Illustration of construction

5. Operation

6. Malfunction

7. Care and maintenance

8. Technical data

9. Manufacturer's declaration

The ceramic milling set is intended for use in the dental laboratory and can be used both

on milling devices and separately. The ceramic milling set was developed for the treatment

of primary parts and implant superstructures made of zircon, alumina and pressable

ceramic. When working with the turbine, the resulting grit and cooling water are

transported through the suction tub into the separator and the suction. Impairment of

visibility by the water mist produced is substantially minimized by connecting it to the

extractor.

A further area of use is the treatment of titanium. Here the normal milling spindle is used

instead of the turbine. By connecting it to the extractor, the resulting light grit is

transported through the suction tub into the extractor; visibility is thus not impaired, the

workplace remains clean and the harmful grit is eliminated directly where it is produced.

2.1. Before using the turbine the manufacturer's instructions for use should be

read. Check that the details of the air compressor connector correspond to

the details on the nameplate.

2.2. Use distilled water only in order to avoid deposits on the nozzle and water

reservoir.

2.3. During use, always follow the relevant regulations of the professional

association (always use safety goggles)

NOTE:

- When using rotary tools the limits given by the tool manufacturer must be

observed

Repairs or other interventions must be carried out only by SCHICK or by

technical personnel authorized by SCHICK

SCHICK accepts no warranty if the ceramic milling set is not handled in

accordance with the instructions for use.

2. General notes

SCHICK - ceramic - milling set

1. Application and use

3. List of contents - accessories

S3 - Ceramic-milling set complete art.-no. 2650/01

(without S3 Master)

turbine art.-no. 2640/1

S3 adapter for turbine art.-no. 2481

retaining clip art.-no. 2245

light head for turbine art.-no. 2510/1

suction tub art.-no. 2470

separator art.-no. 2655

model table art.-no. 2407/9

diamond tool set turbine 1,6 mm

(8 items) art.-no. 2660

polishing-set 2,35 mm (3 items) art.-no. 2665

S1 - Ceramic-milling set complete art.no. 2650/11

(without S1 Junior and base)

turbine art.-no. 2640/1

retaining clip art.-no. 2245

light head for turbine art.-no. 2510/1

controller for light head art.-no. 2480

cable for light head art.-no. 2485

suction tub art.-no. 2470

separator art.-no. 2655

model table art.-no. 2407/9

diamond tool set turbine 1,6 mm

(8 items) art.-no. 2660

polishing-set 2,35 mm (3 items) art.-no. 2665

turbine

art.-no. 2640/1

separator

art.-no. 2655

suction tub

art.-no. 2470

light head

art.-no. 2510/1

diamond tool set

turbine 1,6 mm

art.-no. 2660

controller for light

head art.-no. 2480

model table

art. no. 2407/9

polishing - Set 2,35 mm

art.-no. 2665

S2 Ceramic-milling set complete art.no. 2650/41

(without S2 Master)

turbine art.no. 2640/1

S2 adapter for turbine art.no. 2481

retaining clip art.no. 2793

light head for turbine art.-no. 2510/1

suction tub art.-no. 2470/1

separator art.-no. 2655

model table art.-no. 2407/9

diamont tool set turbine 1,6 mm

(8 pieces art.-no. 2660

polishing-set 2,35 mm (3 pieces) art.-no. 2665

turbine

art.-no. 2640/1

separator

art.-no. 2655

suction tub

art.-no. 2470/1

light head for turbine

art.-no. 2510/1

diamond tool set

turbine 1,6 mm

art.-no. 266

model table

art.-no. 2407/9

polishing - Set 2,35 mm

art.-no. 2665

Pic 1

Pic 2

Turbine

Standard

extractor

Separator Suction tub

The arrow must

point to the side when

assembling

Suction tub

Separator side extractor hose

4. Description / Illustration of construction

5. Operation

Pic 3 Pic 4

5.1Check that the compressed air details agree with the details given by the turbine

manufacturer (BienAir).

5.2Connect the compressor port of the turbine station (4) to the compressed air system.

- Connect the suction tub (1) to the extractor hose of the separator (2) (without plastic

adapters see pic. 1 page 4.

- Connect the end of the hose to the side opening of the separator.

- The second hose should be connected to the upper port of the separator (2) and the

extractor/central extractor. The system can be operated by connecting the separator

to any commercially available extractor or central extractor.

- Both of the supplied extractor hoses can be laid and shortened individually.

Caution: Do not lay the hose with excessively small radii; risk of kinking.

5.3- The separator has a check valve, which prevents water from being sucked into the

extractor. The need to empty the separator depends on use and on the intensity of the

cooling water delivery.

- To empty, the two clamps at the top of the separator should be opened and the side

extractor hose (3) removed.

Caution: After emptying ensure that the arrow visible on the lid points to the hose port

attached to the side of the separator.

5.4- To assemble the light head the front sleeve (pic. 3) of the supplied turbine must be

unscrewed and taken off forward. The light head must be pushed on and screwed

in the reverse order (pic. 4).

5.5- To use in a SCHICK S3 / S2 milling set, the supplied adapter sleeve must also be pushed on

so that the turbine can be housed in the milling arm. For other manufacturers' milling

devices, corresponding adapters are available on request.

5.6-

Instead of the motor milling spindle the turbine provided with the light head is inserted

into the holder on the milling arm from below. The turbine operates at a speed of

300 000 rpm. To avoid temperature-dependent micro cracks in the ceramic the system

works with water cooling. The amount of water necessary for cooling can be adjusted

continuously through the green knurled screw (6) at the turbine station. The air flow

for atomizing the cooling water can be adjusted at the station with the blue knurled

screw (7)

5.7- Fix the milling arm to change the tool. The tool is ejected downward by firmly pressing

down the upper part of the turbine (pic. 5-7). In order to insert a new tool, the upper

part of the turbine should again be pushed down and the tool should be pushed in as

far as it will go. By returning the upper part of the turbine to the starting position the

tool is fixed in the turbine.

5.8- The clips for the turbine hose can be secured individually to a suitable place on the

respective milling device. Before securing them, the surface beneath must be dry and

free from grease and dust.

8.9- When the turbine is used, bearing lubrication should be carried out with the supplied

grease after approx. 4 - 6 hours of operation (fig. 8/9). Remove the cover from the

grease cartridge and insert the cartridge into the clamping mechanism. The required

quantity of grease is delivered by 1/2 turn of the rear sleeve. After lubricating the

bearing, run the turbine for approx. 15 seconds at a moderate speed (10%) without a

load so that the lubricant is distributed evenly.

Pic 5 Pic 7

Pic 6

Pic 8 Pic 9

7. Care and maintenance

8. Technical Data

6. Troubleshooting

- If the delivery of the cooling agent is interrupted, check that there is a sufficient quantity

of the cooling agent in the reservoir and the feed from the foot switch (8) should be

checked for kinking.

- If there is a drop in the turbine output or speed, the pressure setting should be checked

at the station and the feed should be checked for sufficient compressed air.

- If there is a decrease in suction in the suction tub, check the amount of water in the

separator or filter of the extractor

Painted surfaces should be cleaned by wiping down with a dust- and lint free cloth. Do

not use aggressive cleaning agents as otherwise the painted surface can be damaged.

Gross dirt should be removed beforehand with a brush.

The water separator should likewise be cleaned with a cloth from the inside depending on

use.This serves particularly to prevent the development of odors and bacterial growth in the

container.

After emptying and/or cleaning the water separator ensure that the arrow visible

on the lid points to the hose port attached to the side of the separator (see pic. 2 page 4)

Caution:

8. Technical Data

separator art.-no. 2655

LxWxH: 45x45x50cm

Weight: 4,9kg

Adaptor port: internal Ø31,4mm

external Ø37,1mm

Hose:

Hose length: 2 x 4m

Weight incl. adaptor 2,0kg

Hose port: internal Ø32,7mm

external Ø40mm

suction tub art.-no. 2470

LxWxH: 30x24,5x12,5cm

Weigth: 1,3kg

Connection: 31mm -

38,1mm

(Conical)

9. Declaration by manufacturer

EG-Herstellererklärung

EC declaration by manufacturer

(nach Art. 4, Abs.2 der EG-Richtlinie 89 / 392 / EWG)

(in accordance with Art. 4 paragraph 2 of EC directiv

Hersteller:

Manufacturer:

Anschrift:

Address:

Typ/Type:

Das bezeichnete Produkt ist zum Gebrauch mit einer anderen Maschine (Turbine/Micromotor)

bestimmt. Die Inbetriebnahme ist solange untersagt, bis die Konformität der verwendeten

Maschine mit der Richtlinie 89 / 392 / EWG festgestellt ist.

The product indicated is intended to be used in connection with another machine

(turbine/micromotor) Use is prohibited until conformity of the used product with EC directive

89 / 392 / EEC has been confirmed.

Wir bestätigen die Konformität des oben bezeichneten Produktes mit den Normen:

We confirm conformity of the product indicated above with the standards:

DIN EN ISO 12100-1

DIN EN ISO 12100-2

Schick Dental GmbH

Schemmerhofen, 31.05.2005

________________

W. Schick

Geschäftsführer

Managing Director

Diese Erklärung ist keine Zusicherung von Eigenschaften

im Sinne des Produkthaftungsgesetzes!

This declaration is not warranty of attributes within the

meaning of the product Liability!

Die Sicherheitshinweise der Produktdokumentation

sind zu beachten!

The safety notes given in the product documentation

must be observed!

Hersteller:

Georg Schick Dental GmbH

Lehenkreuzweg 12

D-88433 Schemmerhofen

Telefon 07356/9500-0

Telefax 07356/9500-95

E-Mail [email protected]

Internet www.schick-dental.de

Schick Dental GmbH

Lehenkreuzweg 12

88433 Schemmerhofen

Bundesrepublik Deutschland

Absaugwanne / Abscheider

D20502

01/11 bg
