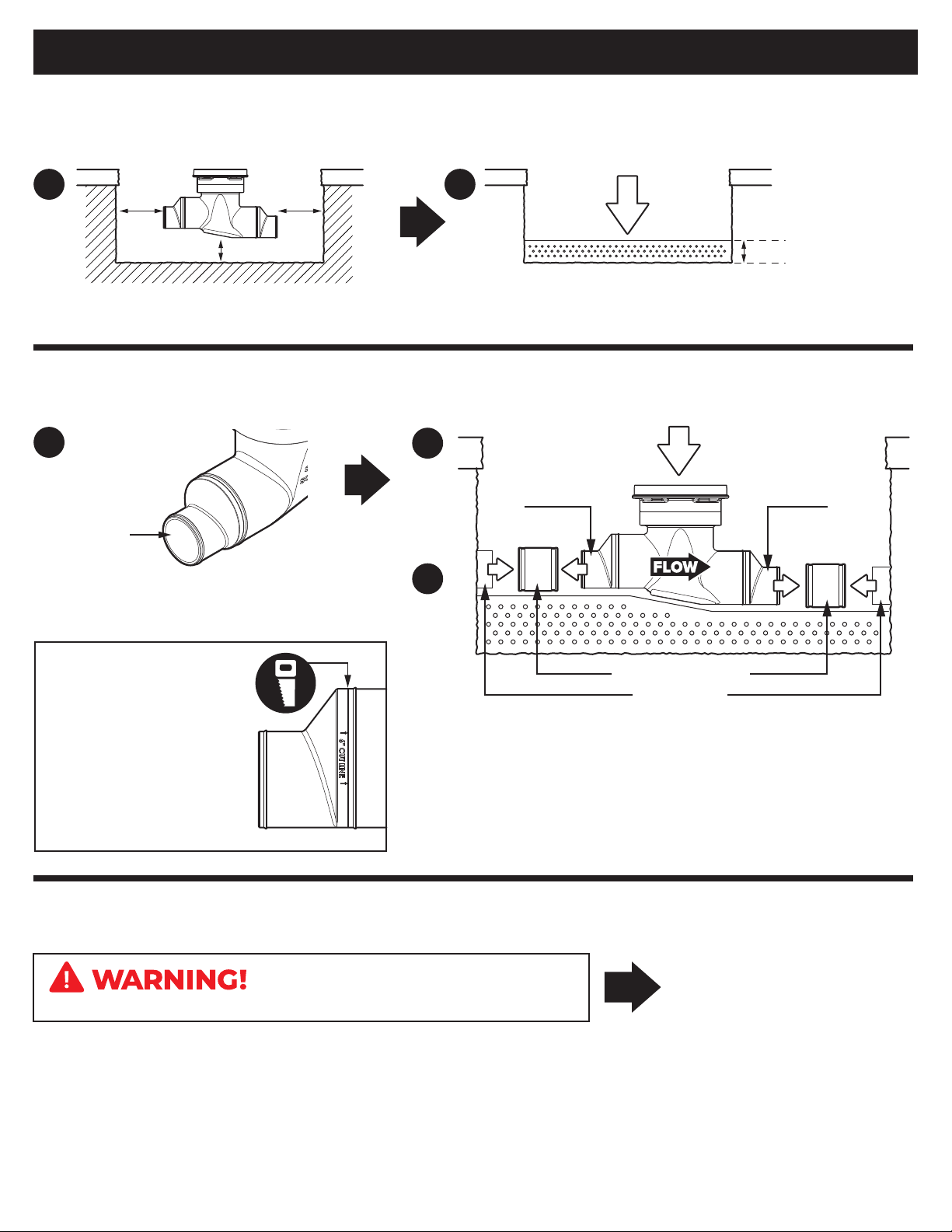

BURIED INSTALLATION
page 7 of 8

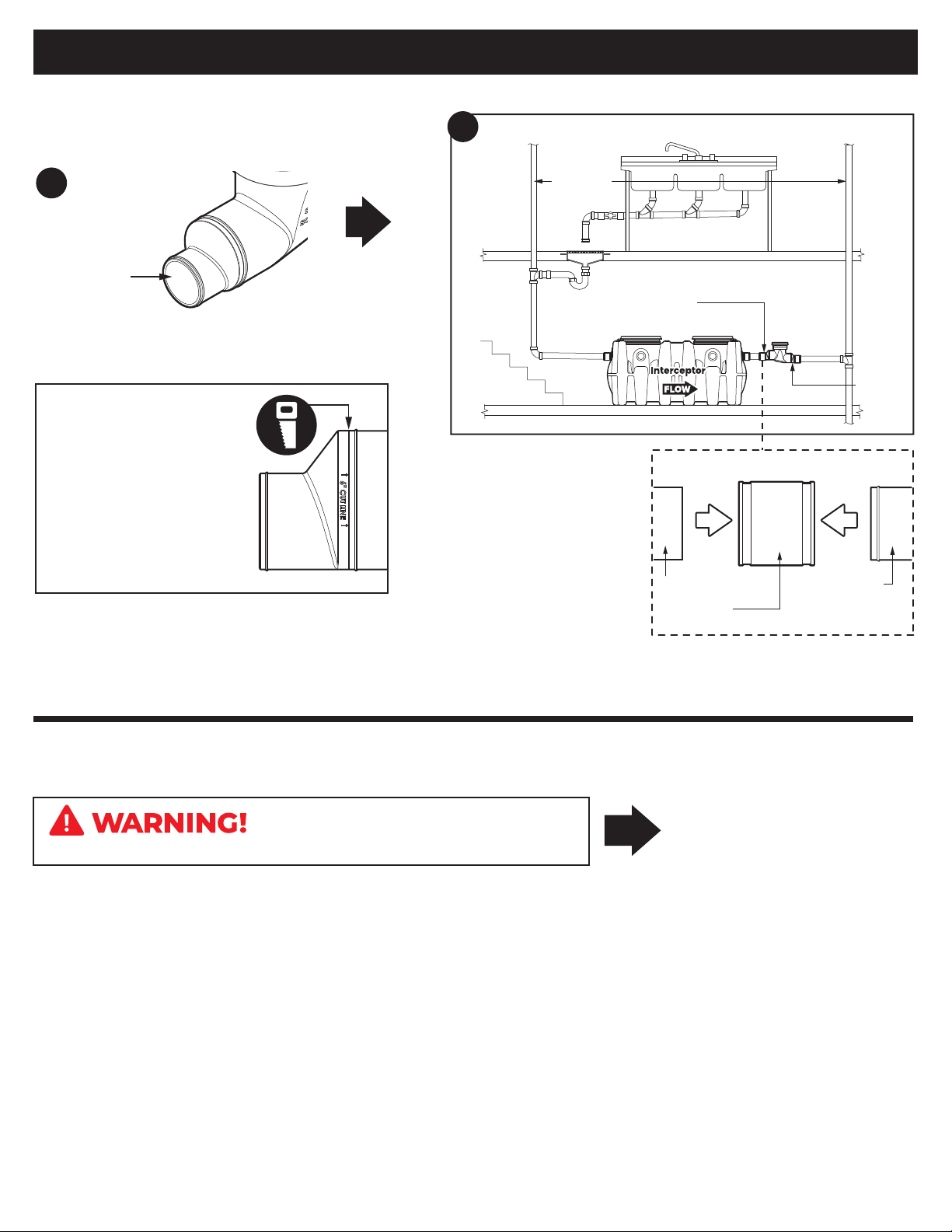

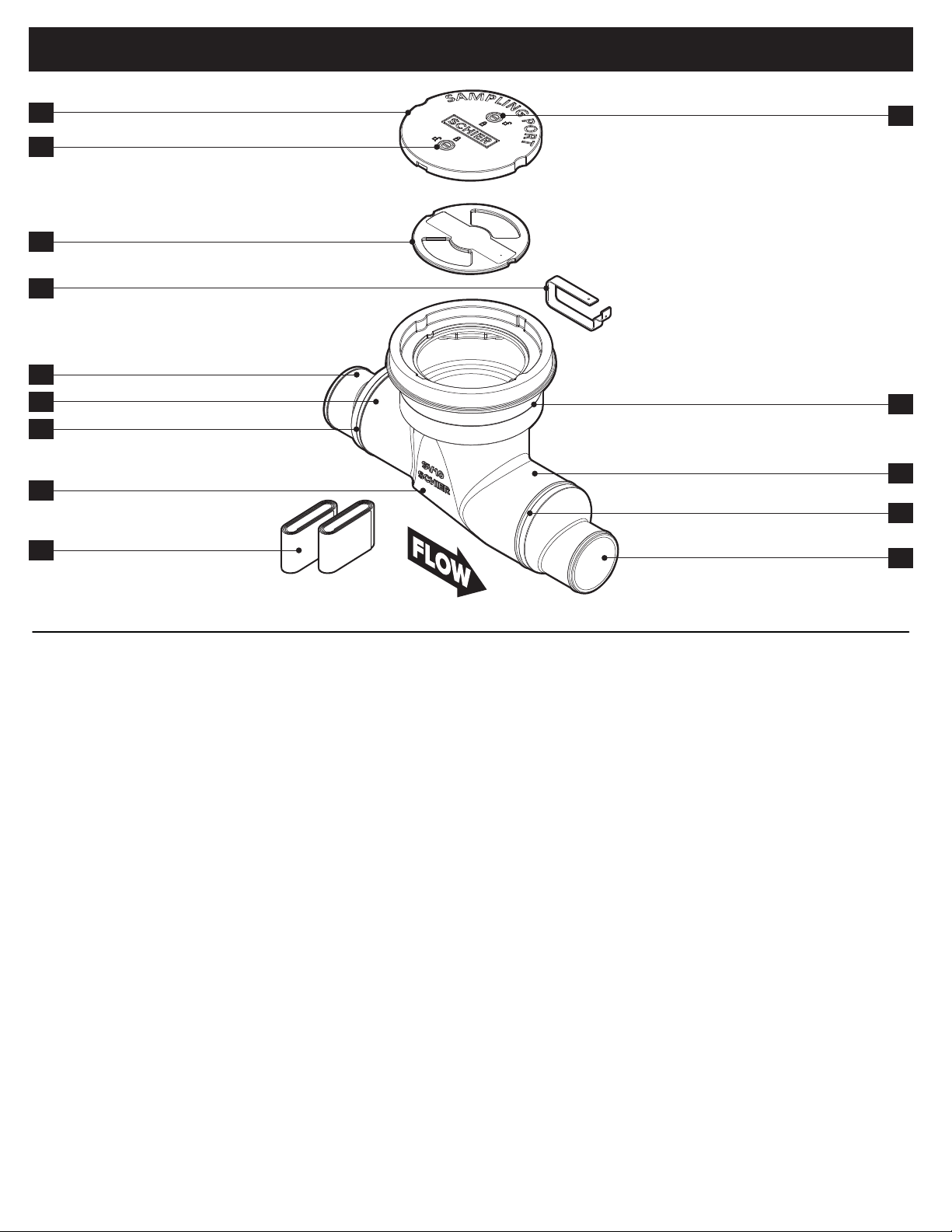

SV10 Installation Guide

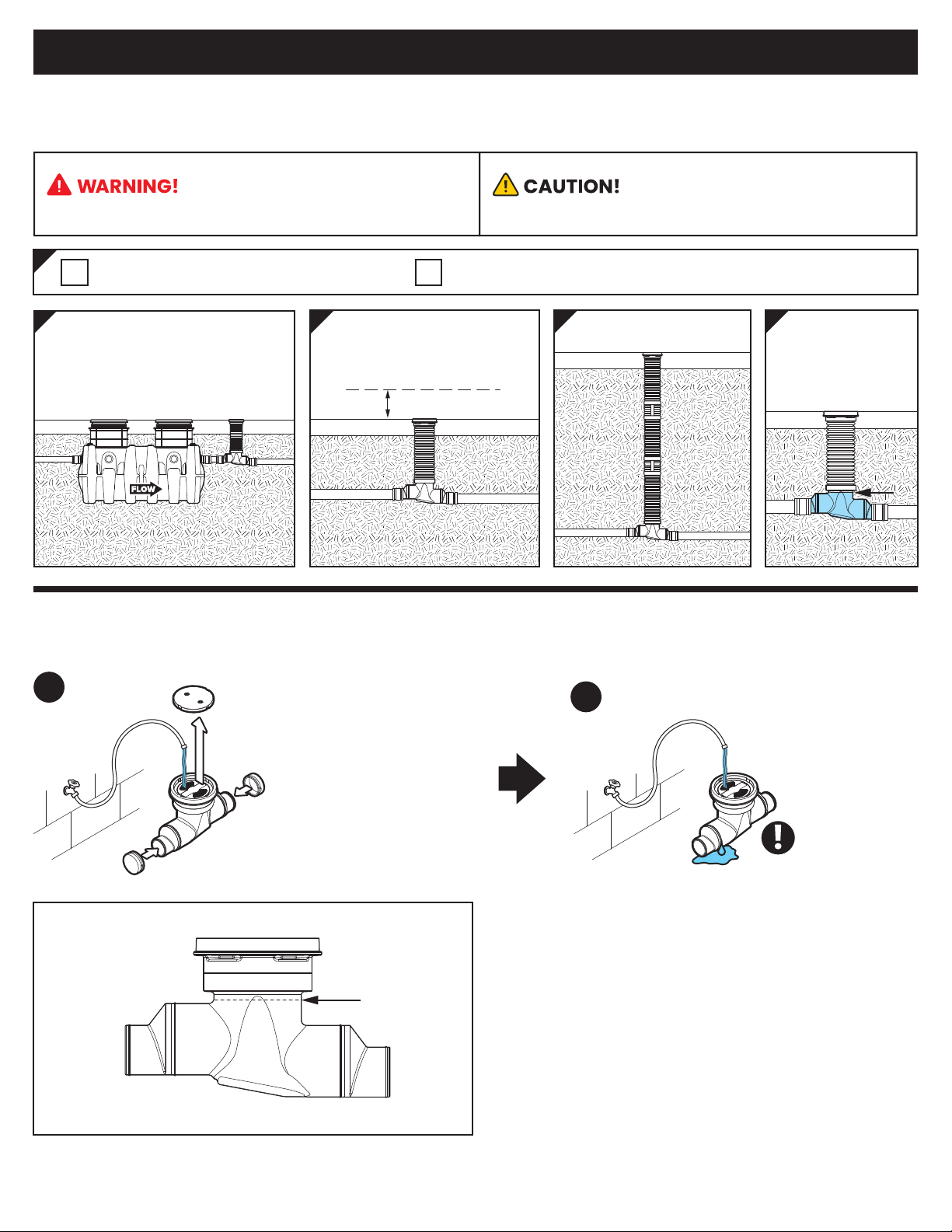

5 Bring Cover Flush-to-Grade
The SV10 is ready for burial depth of 14-1/2" from finished grade to bottom of unit (or 10-1/4" to centerline of inlet,
12-1/4" to centerline of outlet). Deeper burials will require adding a risers.
Measure dimension X to determine riser height needed.
5a
Disconnect the SV10 and remove it from
the burial pit. Cut the SV10 at the Riser
Cut Line, freeing the cover adapter from
the sampling port body.
5b
Riser Height Risers
Needed Required
>0" - 31" FCR10
>31" - 64" FCR10 (x2)
>64" - 97" FCR10 (x3)
See instructions included with
FCR10 for installation details.
Install Schier Riser(s) FCR10
5c1
6
OR Install Your Own Riser. The SV10 is designed to accommodate
any non-perforated, 8" nominal diameter drain pipe for riser use.
Sch. 40 PVC or corrugated drain pipe is recommended.
5c2

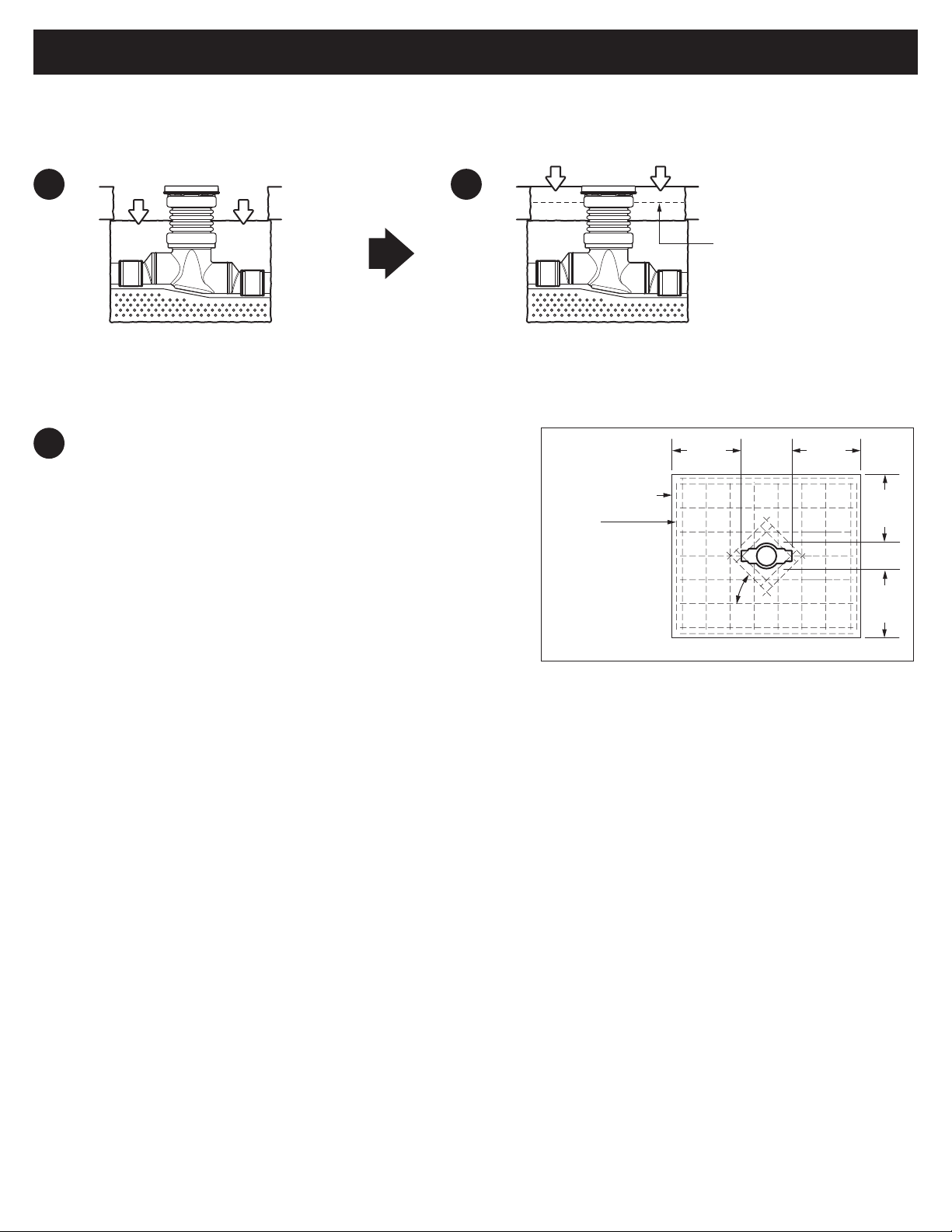

Return the SV10 to the burial pit
and reconnect the drain lines
45
Place the cover/cover adapter
onto the top of the riser and
check to see if flush with grade.
If too high, remove cover and
trim riser as needed.
2
Insert Riser into
SV10 Body.
1
Cut riser to a length
2" longer than the riser
height needed.
Secure cover/cover adapter using
the other piece of the provided
butyl mastic tape. Make sure joint
is completely sealed and cover is
level and flush-to-grade.
Use 1 piece of the provided
butyl mastic tape to secure
the riser joint. Make sure
joint is completely sealed
and riser is aligned square
to the SV10 Body.
3
x+2"
