Schiit GJALLARHORN Manuale utente
COMPACT SPEAKER AMP

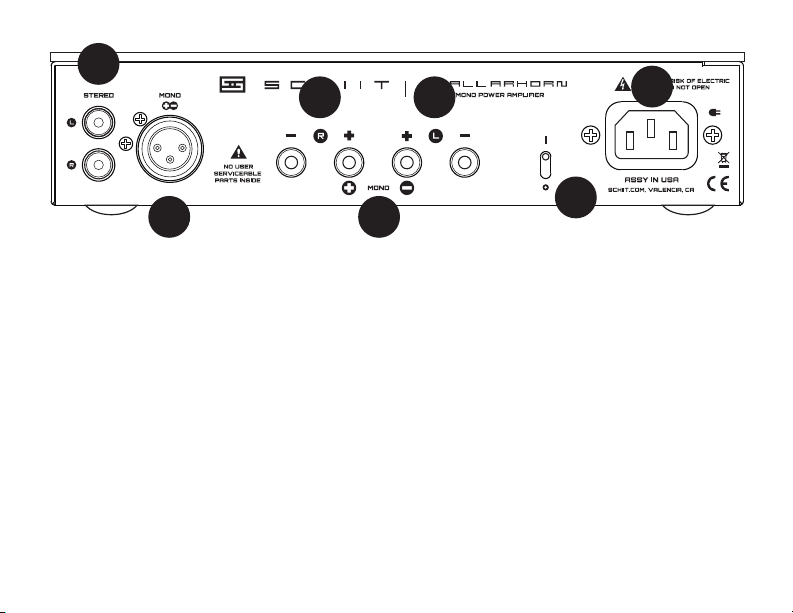

CONNECTIONS
STEREO
1 Connect a stereo source to the RCA jacks.
Connect both left and right channels with
good RCA cables. Don’t connect anything to
the XLR socket.
2 Connect both left and right speakers.
Use good-quality, banana-terminated cables
for this. “L” is left, and “R” is right. Black is
ground, red is hot. Simple as that.
MONO
3 Connect a mono balanced source to the
XLR jack. You’ll need a good XLR cable.
Don’t connect anything to the RCA inputs.
4 Connect one speaker to the two center
jacks. “+” is positive, “-” is negative. Both
are active. Don’t short the negative sides
together, or the amp may go into protection.
More on this later.
POWER
5 Connect the power cord here. The amp
won’t work wirelessly without power; we’re
not Nikola Tesla or anything fancy like that.
6 Turn the amp on and off with this switch.
There will be a short delay, about 10 sec-
onds, until the relay clicks in. And then you’ll
have music!
1
3 4
25
6
2
1
1 When the amp is on, this LED is lit. When
it’s off, the LED is off. Simple as that.
PROTECTION
Gjallarhorn includes internal protection
against over-current, over-temperature, and
excessive DC.
If Gjallarhorn clicks and mutes, it has gone
into protection mode. Gjallarhorn’s protection
will reset automatically in a few seconds.
Check the following:
Are speaker cables shorted? Shorted cables
will cause Gjallarhorn to go into protection.
Is there a speaker problem? Sometimes,
speakers can short internally. Check with a
voltmeter or try a different pair of speakers.
Are you using low-impedance, inecient
speakers? Gjallarhorn may protect with very
low impedance or inecient speakers.
Are you listening very loudly? Gjallarhorn is a
capable amplier, but it’s best on the desktop
or in a small room. If you need a ton of power,
Vidar is a better choice.
OPERATION
SCHIIT.COM
IN THE BOX
(1) Gjallarhorn
(1) Power Cord
(Innite) Appreciation
from the whole Schiit
crew in Valencia, CA
and Corpus Christi, TX
This product is in compliance with standards
and regulations of the European Community.
WARRANTY
Schiit Audio warrants to the original purchaser that this product
shall be free from defects in material and workmanship for ve
(5) years from the date of purchase. If a defect covered by this
warranty occurs during this period, Schiit Audio will repair the
defective product, free of charge. Date of purchase will be based
on customer receipts, otherwise date of manufacturing will be
used.
If you believe you need warranty service, contact us rst. Schiit
Audio products sent back to us without a Return Authorization
(RA) will be returned to the sender without repair. To contact us
Warranty Limitations. This warranty shall not apply if a product:
(a) is modied or tampered with; (b) is damaged by negligence,
accident, unreasonable use, or other causes unrelated to defec-
tive materials or workmanship, or (c) has had the serial number
altered or removed.
Any implied warranties, including warranties of merchantability
and tness for a particular purpose, are hereby limited in dura-
tion to the warranty period of 5 years. In no event shall Schiit
Audio be liable for consequential or incidental damages resulting
from the breach of any implied or expressed warranties. Some
states do not allow these limitations, so they may not apply to
you. You may also have other rights which vary from state to
state or province to province.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
DEVICE TO RAIN OR MOISTURE.
