OP / PARTS MANUAL

MAN 4176363

Rev. A 04-2018

MODEL:

75-70644B

TURBINE BLOWER PB200

(S/N 0300 and Above)

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some

of its constituents are known to the

State of California to cause cancer,

birth defects and other reproductive

harm.

Californie Proposition 65 Avertisse-

ment

Les échappements des moteurs diesel et

certains de leurs composés sont recon-

nus par l’Etat de Californie pour être

cancérigènes, provoquer des défauts con-

génitaux et d’autres dangers en matière de

reproduction.

ADVERTENCIA

AVERTISSEMENT

WARNING

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

California Advertencia

de la Proposicion 65

El estado de California hace saber

que los gases de escape de los mo-

tores diesel y algunos de sus com-

ponentes producen cáncer, defectos

de nacimiento y otros daños en el

proceso de reproducción humana.

L’

mission du moteur de ce mat

riel

contient des produits chimiques que

l’Etat de Californie consid

tre

canc

rig

nes, provoquer des d

fauts

cong

nitaux et d’autres dangers en

mati

re de reproduction.

El estado de California hace saber

que los gases de escape de este

producto contienen productos quÍmi-

cos que producen cáncer, defectos

de nacimiento y otros daños en el

proceso de reproducción humana.

CALIFORNIA

Proposition 65 Warning

Battery posts, terminals, wiring

insulation, and related accessories

contain lead and lead compounds,

chemicals known to the State of

California to cause cancer and birth

defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

TURBINE

BLOWER

IMPORTANT MESSAGE

Thank you for purchasing this Schiller Grounds Care. Inc. product. You have purchased a world class product,

one of the best designed and built anywhere.

This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this

product depends to a large extent on how well you read and understand this manual. Treat this product properly

and adjust it as instructed, and it will give you many years of reliable service.

See a Schiller Grounds Care. Inc. dealer for any service or parts needed. Schiller Grounds Care. Inc. service

ensures that you continue to receive the best results possible from Schiller Grounds Care. Inc. products. You

can trust Schiller Grounds Care. Inc. replacement parts because they are manufactured with the same high

precision and quality as the original parts.

Schiller Grounds Care. Inc. designs and builds its equipment to serve many years in a safe and productive man-

ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety

warnings and instructions. You'll always be glad you did.

Schiller Grounds Care. Inc.

One Bob Cat Lane

Johnson Creek, WI 53038-0469

04-2018

TABLE OF CONTENTS FIGURES PAGE

DESCRIPTION / SPECIFICATIONS ................................................................................................................ 2

SAFETY........................................................................................................................................................3, 4

DECALS ...........................................................................................................................................................5

INSTALLATION ................................................................................................................................................6

OPERATION.....................................................................................................................................................7

SERVICE.......................................................................................................................................................... 8

PARTS SECTION.............................................................................................................................................9

MAIN FRAME...................................................... FIGURE 1 ................................................................... 10, 11

MOUNTING ASSEMBLY ..................................... FIGURE 2 ................................................................... 12, 13

DRIVE PARTS / HYDRAULICS........................... FIGURE 3 ................................................................... 14, 15

TURBINE PARTS ................................................ FIGURE 4 ................................................................... 16, 17

DECALS .............................................................. FIGURE 5 ......................................................................... 18

BELT CHART....................................................... FIGURE 6 ......................................................................... 19

TURBINE

BLOWER

DESCRIPTION / SPECIFICATIONS

SPECIFICATIONS

Overall Width..................................................................................................................................... 27"

Overall Height.................................................................................................................................... 33"

Overall Length ...................................................................................................................................75"

Weight ...............................................................................................................................................235 lbs.

Weight on caster wheel .....................................................................................................................195 lbs.

Air ow............................................................................................................................................... 8000 cfm

Wind speed........................................................................................................................................114 mph

Wind speed (deected to front) ......................................................................................................... 78 mph

Sound level (while seated in operator's seat).................................................................................... 91 dBA

* These specications are subject to change without notice.

DESCRIPTION

The PB200 Turbine Power Blower is designed to attach to the quick-hitch of Steiner power units. Noise

pollution will not be a concern with this turbine power blower. Quiet but powerful, it quickly cleans walkways,

parking lots, leaves, debris, and more.

Features:

• Nozzle rotation 360 degrees continuous

• Nozzle rotation by hydraulic motor

• Kickstand for easy hookup

• Axial ow turbine design

• Quiet operation

• Direct airow to either side from operator’s seat

• Quick-Hitch, Front-Mount

• Caster Wheel follows ground contours

• Steel bumper protects nozzle

TURBINE

BLOWER

SAFETY

NOTICE !!!

Unauthorized modications may present extreme

safety hazards to operators and bystanders and

could also result in product damage.

Schiller Grounds Care. Inc. strongly warns against,

rejects and disclaims any modications, add-on

accessories or product alterations that are not

designed, developed, tested and approved by Schiller

Grounds Care. Inc. Engineering Department. Any

Schiller Grounds Care. Inc. product that is altered,

modied or changed in any manner not specically

authorized after original manufacture–including the

addition of “after-market” accessories or component

parts not specically approved by Schiller Grounds

Care. Inc.–will result in the Schiller Grounds Care.

Inc. Warranty being voided.

Any and all liability for personal injury and/or

property damage caused by any unauthorized

modications, add-on accessories or products not

approved by Schiller Grounds Care. Inc. will be

considered the responsibility of the individual(s) or

company designing and/or making such changes.

Schiller Grounds Care. Inc. will vigorously pursue

full indemnification and costs from any party

responsible for such unauthorized post-manufacture

modications and/or accessories should personal

injury and/or property damage result.

This symbol means:

ATTENTION!

BECOME ALERT!

Your safety and the safety of others is involved.

Signal word denitions:

The signal words below are used to identify levels

of hazard seriousness. These words appear in this

manual and on the safety labels attached to Schiller

Grounds Care. Inc. machines. For your safety and

the safety of others, read and follow the information

given with these signal words and/or the symbol

shown above.

DANGER indicates an imminently hazardous

situation which, if not avoided, WILL result in death

or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, COULD result in

death or serious injury.

CAUTION indicates a potentially hazardous situation

which, if not avoided, MAY result in minor or moderate

injury. It may also be used to alert against unsafe

practices or property damage.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, MAY result in property damage

MODEL NUMBER: This number appears on

sales literature, technical manuals and price lists.

SERIAL NUMBER: This number appears only

on your machine. It contains the model number

followed consecutively by the serial number.

Use this number when ordering parts or seeking

warranty information.

TURBINE

BLOWER

SAFETY

GENERAL SAFETY

• Read and understand the owner’s manual,

before attempting to operate this machine.

• Operate all controls from the operator’s seat,

(if so equipped). NO RIDERS.

• Keep all shields in place and safety switches

adjusted properly.

• Do not leave equipment unattended. STOP

the engine and remove the key (if so

equipped).

• Do not allow minors or the inexperienced to

operate this machine.

• Never allow anyone to operate or service this

machine while under the inuence of alcohol

or drugs.

• Keep people and pets a safe distance

away from machines using power driven

attachments. Injury could result from ying

debris.

• Wear all the necessary protective clothing

and personal safety devices to protect your

head, eyes, ears, hands, and feet.

• Operate the machine only in daylight or in

good articial light.

OPERATING SAFETY

1. Do not attempt to work on unit or any

attachments with the engine running!

The tractor may coast when the engine stops.

Set the parking brake.

2. Before leaving the tractor seat:

1. Disengage PTO drive.

2. Set PARKING brake.

3. Stop Engine.

DO NOT ATTEMPT TO CLEAN INLET OR

OUTLET AREAS WITH BLOWER RUNNING.

DO NOT OPERATE WITH PERSONS IN THE

AREA. HIGH SPEED BLOWER MAY PROPEL

OBJECTS CAUSING POSSIBLE INJURY OR

DEATH.

TURBINE

BLOWER

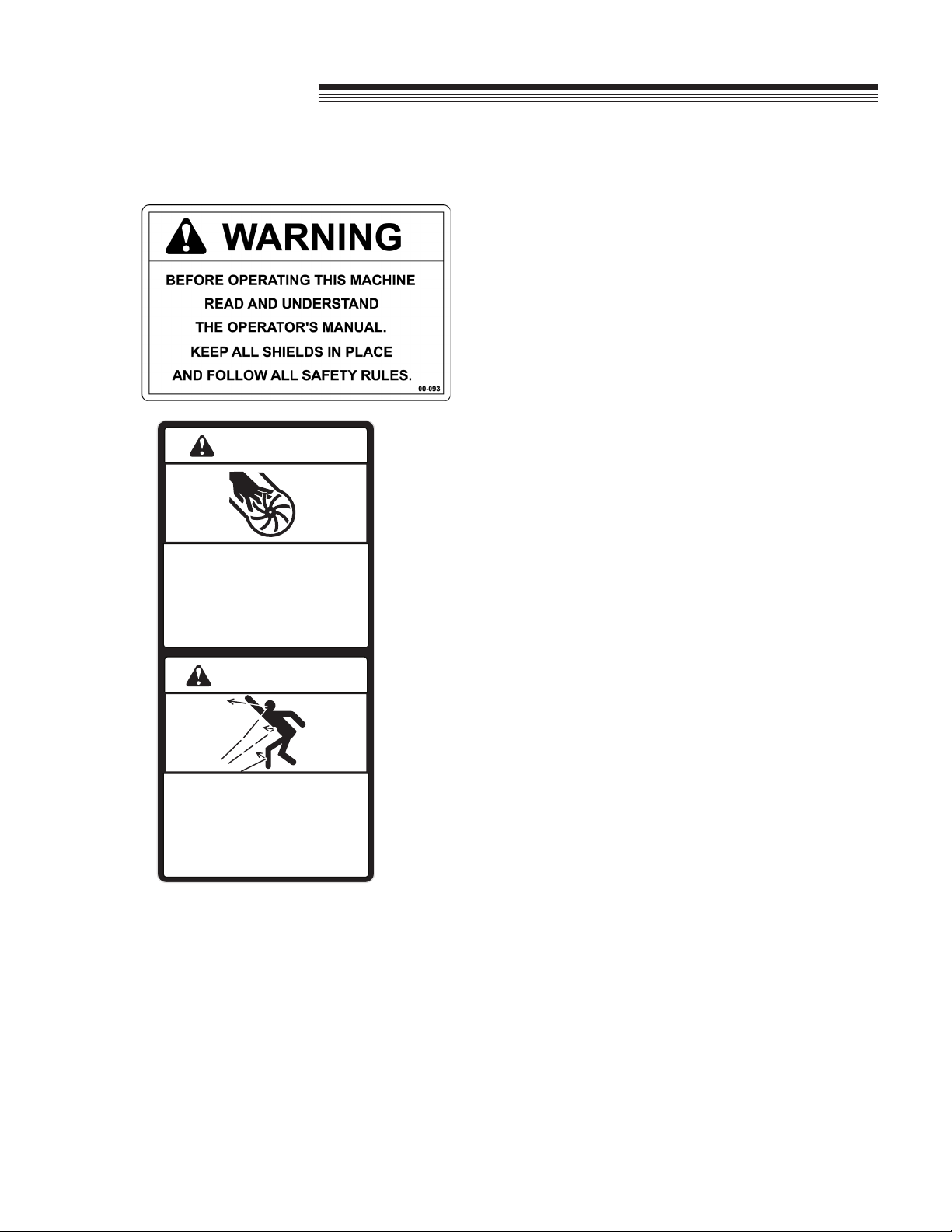

DECALS

Location: Main Frame

Location: Side of Main Frame

WARNING

Thrown objects

-Keep bystanders away.

-Do not blow toward people or pets.

-Do not blow toward items that may

be damaged by flying debris.

-Keep hands and feet away.

-Stop engine and remove spark plug

wire before servicing.

-Do not operate without guards in

place.

Fan blades can cut/crush.

DANGER

4165975

TURBINE

BLOWER

INSTALLATION

ATTACHING THE TURBINE POWER

BLOWER

•

Open the quick hitch latches and drive the

tractor into position, aligning the quick hitch.

Be sure that both latches are fully engaged

and locked.

• Stop the engine! Do not attempt to install the

drive belt with the engine running.

• Put the belt over the drive pulley and engage

or adjust the double idler assembly.

• Attach the hydraulic hoses to the quick-

couplers. Route the hoses in a place where

they will not be damaged. If the hydraulic

lever movement seems backward, reverse

the hoses at the quick-couplers.

• Remove the clip pin from the support stand.

Rotate the stand to the highest setting

and insert clip pin. This stand is used to

dismount the blower and position it at the

correct height to simplify attaching the next

time.

• A rear weight bar with 2 weights is required

when this turbine power blower is attached to

the Model 410 or 430 power unit.

NOTE: Always remove rear weights when front

mounted attachment is removed!

TURBINE

BLOWER

OPERATION

OPERATING THE TURBINE POWER

BLOWER

Controls

• The Front Lift lever controls the lift. Normal

operation is to have the lever in the “FLOAT”

position.

• The Auxiliary Hydraulic lever controls the

position of the nozzle. It will rotate in a

continuous 360 degree rotation.

Always wear eye protection when operating this

blower.

Operating Instructions

• Rotate the nozzle for desired air ow

direction.

• Observe the wind direction and work with

the wind whenever possible. The blower

works equally well when traveling forward

or reverse. When clearing large areas it is

advisable to use patterns which blow all the

debris in the same direction.

• Adjust weight transfer to decrease weight on

the front caster wheel.

USE CAUTION WHEN OPERATING NEAR

PERSONS, PETS, AND LIGHTWEIGHT OBJECTS

WHICH MAY TIP OR ROLL WITH THE HIGH

VELOCITY OF THE BLOWER. NOTE THAT THE

VELOCITY IS OF HURRICANE RATING.

FLYING DEBRIS CAN ALSO CAUSE DAMAGE TO

PERSONS, AUTOS, WINDOWS, ETC.

Operator Warnings!

Visual check

• Check for damaged or missing parts or

fasteners each time the blower is operated.

Repair or replace.

• Do not operate if the nozzle or drive have

been modied in any way.

Chemical applications

• Use of the turbine blower to apply spray

chemicals is not recommended.

Bystanders

• Warn all bystanders to keep a safe distance

away while blower is in operation.

Machine stability

• A rear weight bar with 2 weights is required

when this unit is mounted on the Model 410

and 430 power units.

Nozzle

• Use care that the nozzle does not bump into

objects during operation. Do not operate with

damaged nozzle.

TURBINE

BLOWER

SERVICE

SERVICE SCHEDULE

Daily:

• Check for any signs of loose bolts and

tighten as needed.

• Check inlet area and outlet nozzle for

collection of foreign material and clean as

needed.

25 hour:

• In addition to daily service, grease the two

bearings on the drive shaft, the caster swivel,

and caster wheel.

NOTE: The turbine has sealed bearings and does

not require periodic lubrication.

ADJUSTMENTS

Turbine drive belt:

Remove the drive belt shield. Tighten the drive belt

by loosening the front bearing mount bolts, move the

drive shaft with the adjusting screw, and re-tighten

mount bolts. Replace the shield.

Nozzle rotation belt:

Remove the nozzle drive belt shield. Adjust the belt

by loosening the hydraulic motor mounting bolts,

and move the pump in the mounting slot. Replace

the shield.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Schiller Soffiatore

Schiller

Schiller Steiner 75-70644A Manuale utente

Manuali Soffiatore popolari di altre marche

Weed Eater

Weed Eater VS2000BV Manuale utente

KRAUSMANN

KRAUSMANN U37020-00 Manuale utente

Bosch

Bosch ALB 36 LI Manuale utente

Cub Cadet

Cub Cadet HB425 Manuale utente

GreenWorks Pro

GreenWorks Pro BLB482 Manuale utente

ARIETE

ARIETE 2768 Manuale utente

NuTone

NuTone 331H Manuale utente

GÜDE

GÜDE GLB 200 18 Li-Ion Manuale utente

I.VA.CO.

I.VA.CO. SC Series Istruzioni operative

DeWalt

DeWalt DCE100 Manuale utente

Becker

Becker SV 7.330 Manuale utente

Metabo

Metabo AG 18 Pro Manuale utente

Desa

Desa GA3650TB Manuale utente

Echo

Echo Power Blower PB-230LN Manuale utente

Echo

Echo PB-413H Manuale utente

Black & Decker

Black & Decker BV3100 Manuale utente

Ryobi

Ryobi RY08570 Manuale utente

Haaga

Haaga 355 Manuale utente
