672 Series TouchBar

INSTALLATION AND WIRING MANUAL

GENERAL DESCRIPTION: The 672 Series Request to Exit TouchBar is a non-latching releasing device. It is most

often used as a switch to release a magnetic lock. A double pole output is standard, and allows for use when

integrating with a monitoring system which requires a signal for legal egress. The device can be ordered to fit 3

standard door openings or can be cut to size in the field. A 24-inch (minimum) pre-connected cable comes standard

to make installation easier.

These devices are to be installed in accordance with the applicable codes and the local authorities having jurisdiction.

It is up to local authority having jurisdiction whether this is to be installed in lieu of panic hardware.

WHAT MODEL DO YOU HAVE?

EXAMPLE: 672-36-628-RD-RHR-WD

DOOR WIDTH:

36”

42”

48” PUSHPAD:

RD Black Pushpad w/ RED letters

GID Glow-in-dark

OPTIONS:

AR 18” armored door cord (no wire)

WD Sex nuts/screws for wood or hollow metal door applications

SHK Aluminum door mounting shim kit (screws included)

TYPICAL INSTALLATION:

BAR FINISHES:

628 Satin aluminum

313 Dark Satin Bronze

HANDING:

RHR or LHR (Shown above) to change

hand (if required) see page 2.

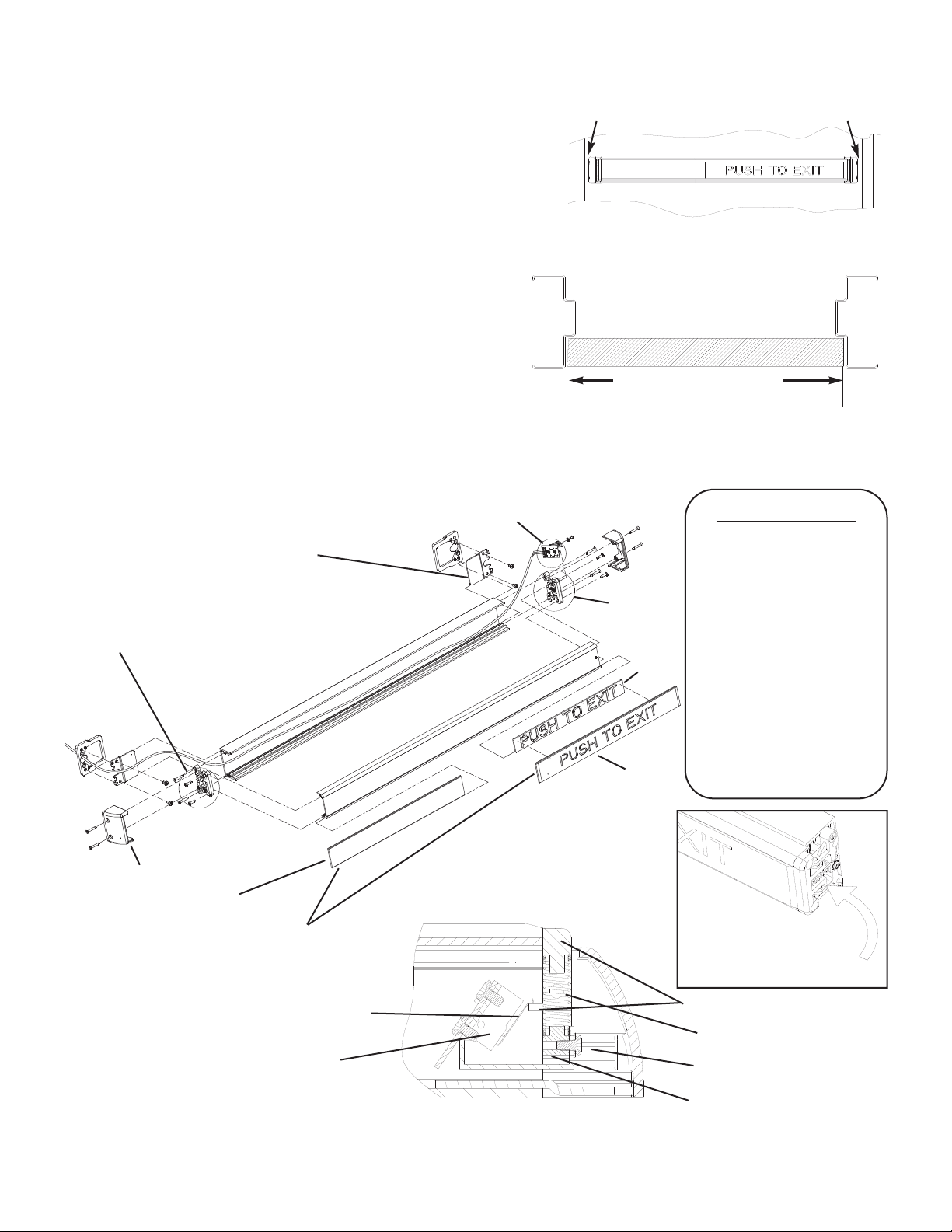

STEP 1

Place the TouchBar on the door and measure the distance

between each end and the stop (or frame on a blade stop

door). It should be at least 3/8” of an inch. If so, proceed

to step 2. If not, the TouchBar will need to be cut to size.

1. REMOVE END CAPS AND BRACKETS.

2. REMOVE PIVOT HINGE COMPONENTS AND

SWITCH COMPONENTS. KEEP THE PIVOT

HINGE AND SWITCH ASSEMBLIES TOGETHER

WHEN DISASSEMBLING DEVICE.

3. SLIDE OUT PUSH PAD AND EXIT SIGN

(IF FURNISHED) AS SHOWN. SLIDE OUT

COVER PLATE.

SWITCH ASSEMBLY

CROSS SECTION OF SWITCH AREA:

SWITCH LEVER

SWITCH

PUSHBAR END CAP

SPRING

SWITCH ADJUSTMENT SCREW

PUSHBAR END CAP BRACKET

PUSHBAR

END CAP:

SEE INSET

BELOW

3/8”(min)

SLIDE PUSHBAR END CAP UNDER

SWITCH LEVER AND CAPTURE

SPRING.

SEE BACK COVER FOR COMPLETE EXPLODED VIEW.

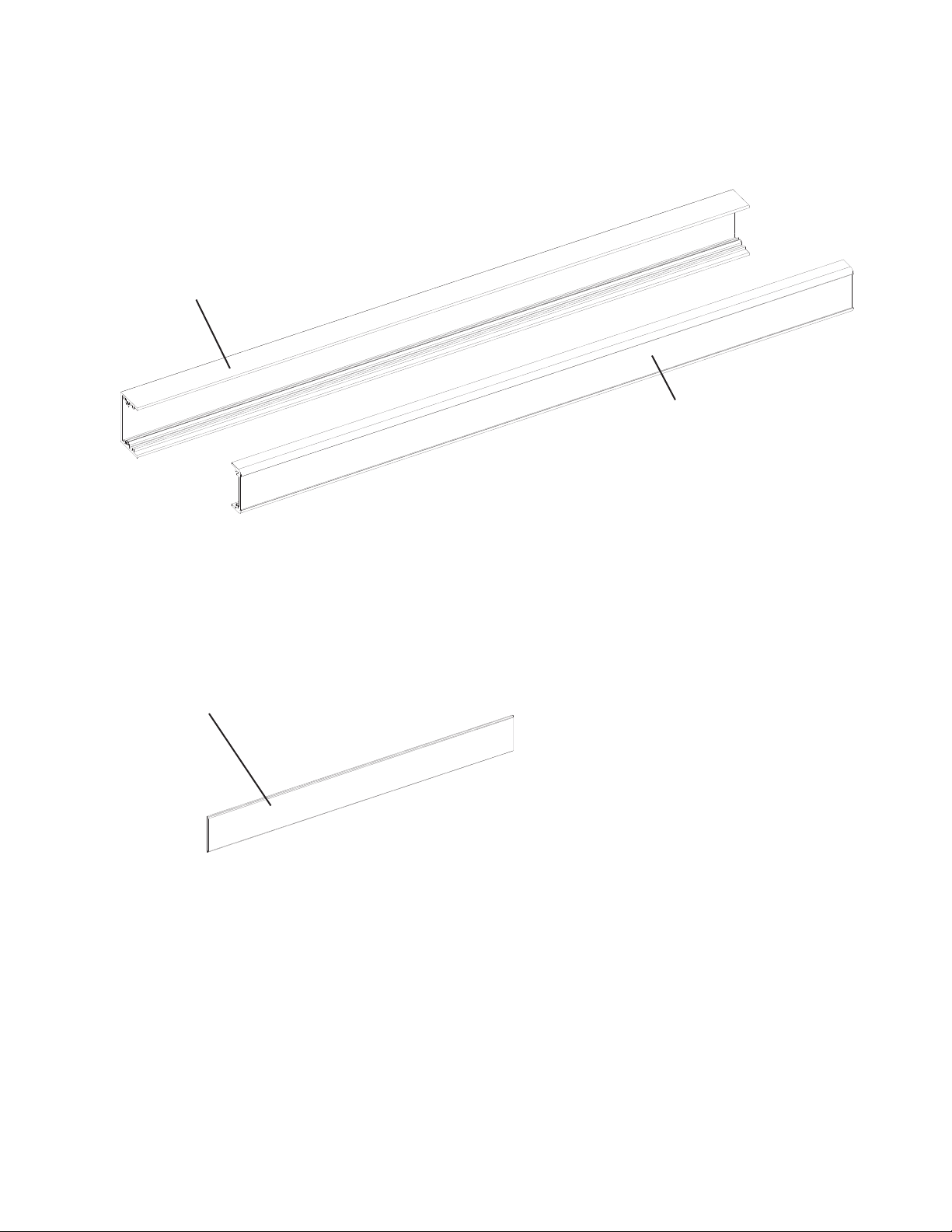

CUTTING TOUCHBAR TO SIZE:

A. Measure the DOOR WIDTH, hereafter referred

to as dimension “X”

HOLLOW METAL OR WOOD DOOR:

DIMENSION “X”

B. Disassemble the TouchBar as shown below: CHANGING HAND:

1. REMOVE SWITCH SIDE

END CAP AND PUSHBAR

END CAP.

2. REMOVE “PUSH TO EXIT”

SIGN AND INSERT AND

REVERSE LETTER DIREC-

TION.

3. REFER TO THIS PAGE TO

RE-INSTALL END CAPS.

SWITCH SIDE END CAP

COVER PLATE

INSERT

PUSH PAD

C. Calculate the correct length to cut the housing extrusion and pushbar extrusion using the door

width as determined in step 1 (dimension “X”).

D. Calculate the correct length to cut the cover plate extrusion using the door width determined in

step 1.

E. Cut metal parts to length determined above (using a metal miter saw is recommended to

ensure a good clean cut and a right angle). Do not cut the plastic push pad.

F. Reassemble the TouchBar (without installing the end caps). Note that the screws which connect

parts to the aluminum extrusions are self tapping (thread forming) screws. It is recommended that

a power tool be used to drive them in. This will make assembly easier.

NOTE: AT THIS TIME THE TOUCHBAR CAN BE HANDED BY ASSEMBLING THE

“PUSH TO EXIT” SIGN (IF FURNISHED) IN THE CORRECT ORIENTATION.

EXTRUSION LENGTH = “X” - 4 13/16”

COVER PLATE LENGTH = “X” - 20 7/8”

CHANNEL EXTRUSION

PUSHBAR EXTRUSION

COVER PLATE

STEP 2 LOCATING AND DRILLING THE WIRE HOLE

a. On the hinge-side of door, mark a horizontal centerline at the desired height for the TouchBar.

b. Place a channel end cap bracket over the centerline.

c. Center wire hole in the adaper plate with the centerline that was marked on door. (See below)

d. Mark center of wire hole and center of one mounting hole.

d. Drill a 5/8” wire access hole at wire hole mark. DO NOT DRILL WIRE HOLE THRU DOOR.

WIRE HOLE

LOCATION:

Note that hole

size and loca-

tion depends on

fastener type

(SEE STEP 3).

WIRE HOLE IS

ALWAYS ON

HINGE SIDE

OF FRAME

STEP 3 MARK AND DRILL MOUNTING HOLES

Fasten TouchBar to door. There are three methods of fastening the device to the door:

SELF DRILLING SELF TAPPING SCREWS:

a. Hold device in position determined in step 2.

b. Using a powered screw driver, screw in one screw on one side.

c. Level the device. Secure other side with self drilling screw.

d. Install remaining two screws.

USE A LEVEL WHEN MARKING HOLES

ALUMINUM DOOR MOUNTING SHIMS

MUST BE USED FOR ALL NARROW

STYLE ALUMINUM DOORS. THEY

CAN BE OMITTED FOR HOLLOW

METAL AND WOOD DOORS.

SHK Option for REX

STEP 3: WIRING

Provision must be made for conductors to get to the

device on the door. Common methods are an electric

hinge, door cord, or power transfer device. Purchase

with AR option to receive a model 798-18 armored

door cord to facilitate power transfer. Make wiring

connections as required by the system wiring dia-

gram. Contact colors are shown below:

DPDT(STANDARD)

4 AMPS @30VDC

SWITCH ADJUSTMENT:

The switch sensitivity is set at the factory. If the switch is

determined to be too sensitive or not sensitive enough it

can be adjusted by loosening the screw which secures

the switch assembly and sliding the switch to the left or

right. BE SURE TO TIGHTEN THE SCREW AFTER

ADJUSTMENT.

ADJUSTMENT

SCREW

BLIND NUT INSTALLATION:

a. Drill four 9/32” holes on device side only of door in positions marked in step 3.

b. Install blind nuts as shown to right.

c. Secure device using # socket cap screws.

I. Assemble tool to install blind

nut as shown using the parts

supplied.

II. Install blind nut assembly

into pre-drilled 9/32” hole in

door. Hold the socket head

screw firmly with the hex

wrench to prevent rotations as

shown.

III. Using a 3/8” wrench, rotate

the nut clockwise until the nut

collapses against the inside of

the door skin. Some resistance

will be felt. Carefully tighten

until nut is secure.

Do not overtighten.

WD OPTION - SEX NUTS FOR WOOD DOORS:

a. Drill four 13/32” holes thru door in positions marked in step 3.

b. Using a rubber mallet, hammer in sex nuts from opposite side of door.

c. Secure device using #10-24 pan head screws.

ALUMINUM DOOR

MOUNTING SHIMS

900275

QTY. 2 EXIT INSERT

972792 RD

972794 GID

972791

114281

PUSHBAR

ENDCAP

972785

QTY. 2

972800

972796

PUSHBAR

ENDCAP

BRACKET

972795

QTY. 2

972799

COVER PLATE

972766 36"

742

848

97276 "

CHANNEL END CAP

972784

QTY. 2

990584

SCREW

990583

QTY. 4

MOUNTING

SCREW

PACK

900256

QTY. 1

END CAP

BRACKET

972797

QTY. 2

CHANNEL

972781 36"

82 42

83 48

9727 "

PUSH BAR

972772 36"

73 42

74 48

9727 "

PARTS BREAKDOWN
