Schwank Select12 Series Manuale utente

schwankgroup.com/schwankair

Schwank Select12 Series

Air Curtain

schwankgroup.com/schwankair

3Electrical heat - (IP20)

Model Output (kW) Airflow*1

(CFM)

Sound

power*2

(dB(A))

Sound

Pressure

(dB(A))

FLA (full load

amperage)*3

(A)

Motor

power

(W)

Amperage

motor

(A)

Voltage (V)

Amperage (A)

(heat)

Weight (lb)

AC-TE36-20 4/7 1150 73 55 21 135 0.86 208V3~/19 57

AC-TE60-20 7/10 1600 72 54 29 147 0.94 208V3~/28 82

AC-TE72-20 8/13 2250 75 57 39 270 1.71 208V3~/36 112

AC-TE36-48 4/8 1150 73 55 11 135 0.86 480V3~/10 57

AC-TE60-48 6/12 1600 72 54 16 147 0.94 480V3~/15 82

AC-TE72-48 8/16 2250 75 57 21 270 1.71 480V3~/20 112

AC-TE36-60 4/8 1150 73 55 9 135 0.86 600V3~/8 57

AC-TE60-60 6/12 1600 72 54 13 147 0.94 600V3~/12 82

AC-TE72-60 8/16 2250 75 57 17 270 1.71 600V3~/16 112

1Ambient, no heat - (IP21)

Model Output

(MBH)

Airflow*1

(CFM)

Sound power*2

(dB(A))

Sound Pressure

(dB(A))

Motor

power (W)

Voltage

motor (V)

Amperage

motor (A)

Weight (lb)

AC-TA36-23 0 1150 73 55 135 208V~ 0.86 49

AC-TA60-23 0 1600 72 54 147 208V~ 0.94 71

AC-TA72-23 0 2250 75 57 270 208V~ 0.72 93

Model Output*4

(MBH)

Airflow*1

(CFM)

Sound

power*2

(dB(A))

Sound Pressure

(dB(A))

Motor

power

(W)

Voltage

motor

(V)

Amperage

motor

(A)

Water

volume

(US gal)

Weight

(lb)

AC-TW36-23 27 1050 72 54 109 208V~ 0.71 0.34 57

AC-TW60-23 48 1550 72 54 135 208V~ 0.86 0.55 79

AC-TW72-23 65 2150 74 56 218 208V~ 1.42 0.71 106

2Water heat - (IP21)

1. Highest airflow at 3 fan speed.

2. Values shown are for total sound power levels for Installation Type A: free inlet, free outlet.

3. The Sound power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA

Standard 301.

4. FLA: total amperage for motor and heat.

5. Applicable at water temperature 140/104F, air temperature, in +64F.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for

230V/1ph/60Hz will differ from stated data.

Protection class for units with electrical heating: (TE) IP20.

Protection class for units without electric heating and units with water heating: (TW) IP21.

Technical Speciﬁcation

schwankgroup.com/schwankair

1. Recommended outlet air temperature for good comfort and optimized output.

2. Nominal output at given supply and return water temperature.

Model Nozzle

width x depth (in)

Max Velocity

at nozzle (fpm)

Outlet Velocity

(fpm)

Outlet Velocity Uniformity

(%)

AC-TA36-23 38.4x2.6 2346 1974 81

AC-TE36-20(48)(60) 38.4x2.6 2346 1974 81

AC-TA60-23 58.5x2.6 2267 1860 80

AC-TE60-20(48)(60) 58.5x2.6 2267 1860 80

AC-TA72-23 77.8X2.6 2346 1974 81

AC-TE72-20(48)(60) 77.8X2.6 2346 1974 81

AC-TW36-23 38.4x2.6 2165 1785 75

AC-TW60-23 58.5x2.6 1791 1545 82

AC-TW72-23 77.8X2.6 2165 1785 75

Model Fan

Speed

Airflow

(CFM)

Output

(MBH)

Return water

temp. (°F)

Water flow

(GPM)

Pressure

drop (kPa)

Output*2

(MBH)

Outlet air

temp. (°F)

Water

flow (GPM)

Pressure

drop (kPa)

AC-TW36-23 max 1050 34.1 108 1.0 1.4 50.9 108 2.9 8.8

AC-TW60-23 max 1550 52.2 100 1.4 2.0 82.6 113 4.7 16.2

AC-TW72-23 max 2150 72.4 100 1.9 2.6 114.0 111 6.5 21.6

Technical Speciﬁcation

Supply water temperature: 176 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 176/140 °F

Room temperature: +64 °F

Model Fan

Speed

Airflow

(CFM)

Output

(MBH)

Return water

temp. (°F)

Water flow

(GPM)

Pressure drop

(kPa)

Output*2

(MBH)

Outlet air

temp. (°F)

Water flow

(GPM)

Pressure drop

(kPa)

AC-TW36-23 max 1050 34.8 118 3.1 10.9 28.0 90 1.6 3.2

AC-TW60-23 max 1550 49.8 108 3.2 8.7 46.4 91 2.6 6.1

AC-TW72-23 max 2150 73.7 113 5.5 17.2 64.5 91 3.6 8.1

Supply water temperature: 140 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 140/104 °F

Room temperature: +64 °F

AC TE 72 60

Select12 Series

Electric Heated

Air Curtain

Nominal Length of unit

in inch

Voltage Code 600V

schwankgroup.com/schwankair

The introduction pages consist mainly of pictures.

For translation of the English texts used, see the respective language pages.

Les pages de présentation contiennent principalement des images.

Pour la traduction des textes en anglais, consultez la page correspondante à la

langue souhaitée.

schwankgroup.com/schwankair

Valve (3/4

E / C / A

GKN

R H

F / D / B Valve (3/4"),

outside thread

L = 6.6 ft

A/W

Valve (3/4

L KG G E

Ref (inch) Model

A81.40 AC-TA72-23

AC-TE72-20(48)(60)

AC-TW72-23

B80.5 AC-TA72-23

AC-TE72-20(48)(60)

AC-TW72-23

C62.1 AC-TA60-23

AC-TE60-20(48)(60)

AC-TW60-23

Ref (inch) Model

P2 All Models

Q1.65 All Models

R0.39 All Models

Ref (inch) Model

D61.2 AC-TA60-23

AC-TE60-20(48)(60)

AC-TW60-23

E42 AC-TA36-23

AC-TE36-20(48)(60)

AC-TW36-23

F41.1 AC-TA36-23

AC-TE36-20(48)(60)

AC-TW36-23

Ref (inch) Model

G81.40 All Models

H18 All Models

I10 All Models

J8.22 All Models

K6.57 All Models

L6.49 All Models

M4.68 All Models

N8.22 All Models

O1.96 All Models

Dimensions

schwankgroup.com/schwankair

A B

Gland

Knock-out

ø17,5 ø17,5

ø32,5

ø25,5

ø20,5

ø17,5

Gland Gland

A A

Fig. 2

Knock-out A

Open the unit

Ref (inch)

A0.69

B0.81

C1.00

D1.28

schwankgroup.com/schwankair

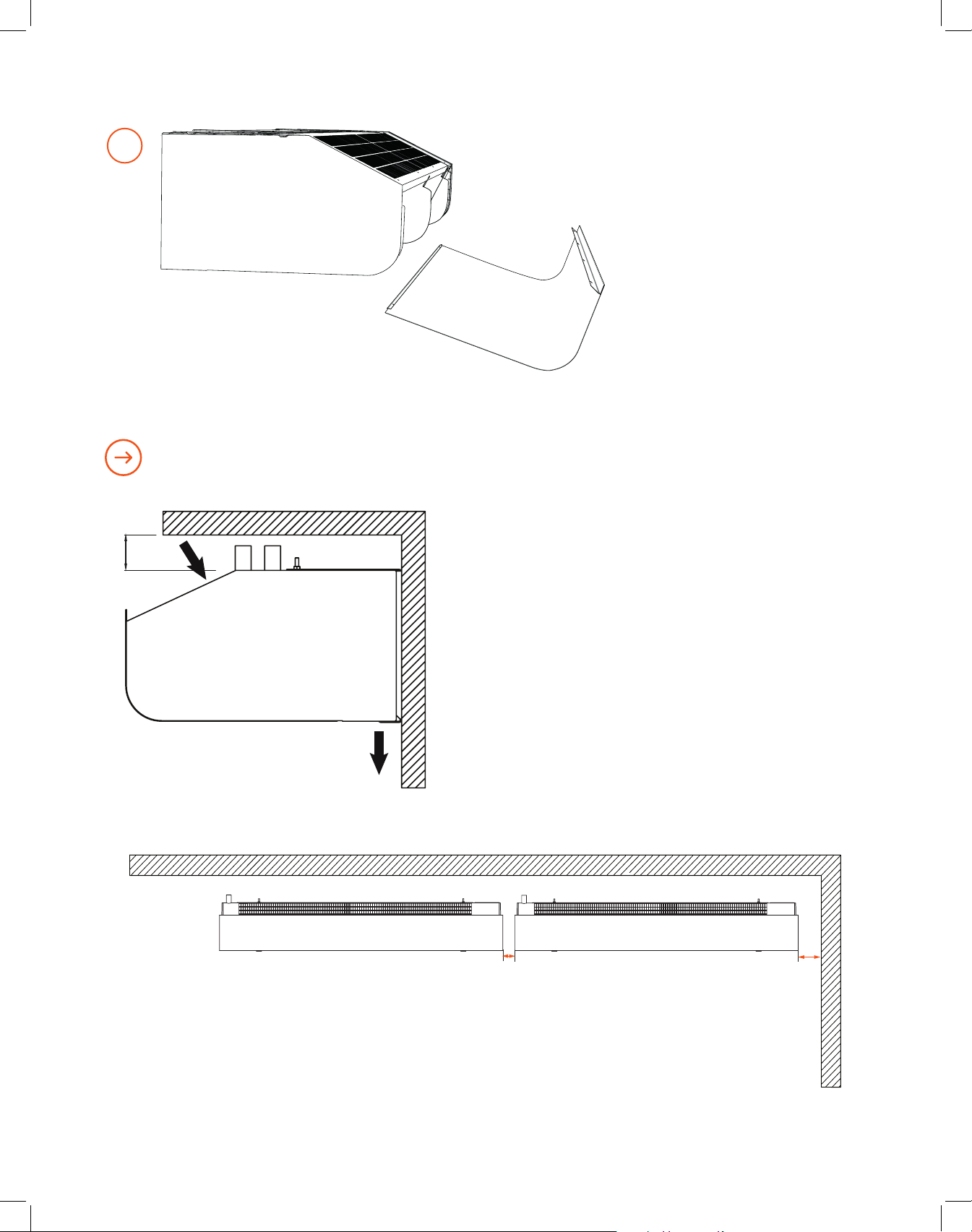

Fig. 3: Open the unit.

Fig. 4

Fig. 5

min 60

1.18 in 2.36 in

2.36 in

Minimum distance

schwankgroup.com/schwankair

Fig. 6: Mounting with wall brackets

B C

min 500 mm

36" Models 2 pcs

60" Models 2 pcs

72" Models 3 pcs

Ø8 (3x)

Ø7

Ø16

213

260

75 35

Ref (inch)

A10.24

B1.46

C8.39

D2.95

E1.38

F0.79

G0.31

H0.28

I0.63

min 19.7 in

G (x3)

D E F

Mounting with wall brackets

schwankgroup.com/schwankair

JC-0702-15/20JC-0754-15/20 JC-0704-15/20

Accessories

JC-0752-XX

Water Heated Plumbing Kit

Nipple

JC-0754-15/20 - Threaded Rods for Ceiling Mount (3.4ft)

JC-0702-15/20 - Pendulum Ceiling Bars

JC-0704-15/20 - Pendulum Ceiling Brackets

JC-0752-XX - 3/4 Plumbing Kit for Water Heated Models

Kit includes:

• Valve kit: TAC, pressure independent regulation

and adjustment valve + shut off valve

• Nipple connection for valve, female thread (x2)

• Actuator ON/OFF 230V

• Bypass valve

schwankgroup.com/schwankair

5A x 3

N H1H2

Off

F1 F2 F3

on/off 2

LPE N L

6 5 4 2 31 ALPE N

S E NS OR

208V1~

0 -10V

Only water

N L

1L EP

3L 2L

B lue

Yellow

R ed

White

~~ ~

Left motor Right motor

6 5 4 2 31 ALPE N

R ed / +10 V

Yellow / 0-10

B lue / GND

White /Tach

0 - 10V

DOOR

AFT E R

WAT E R

16A

EP 2L1L

Only 72” version

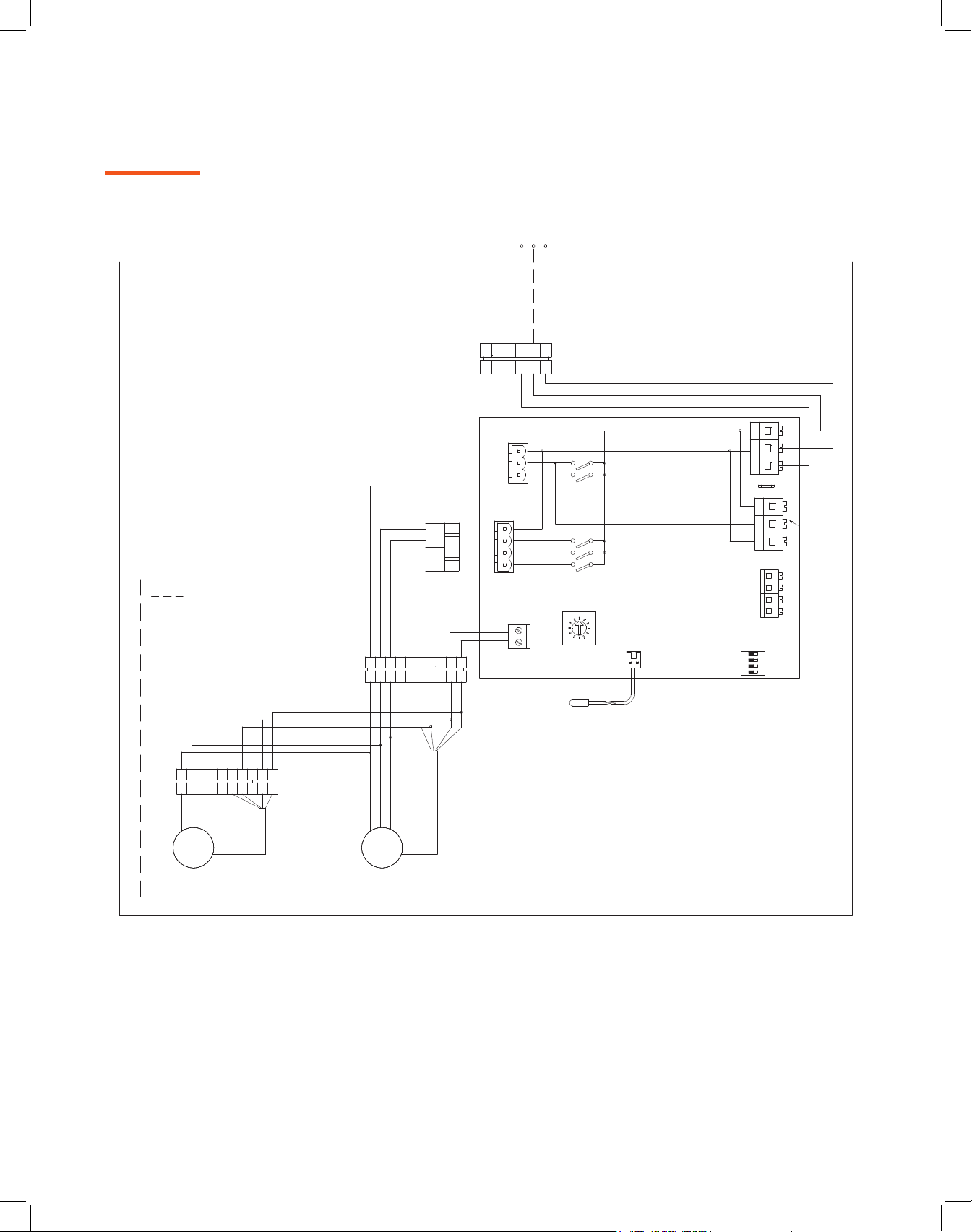

Wiring Diagram - Schwank Select12 Series Air Curtain

Ambient & Water Heated
