!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Scion,

amarque of Toyota Motor Sales, U.S.A., Inc.,

wish you many years of satisfied driving in

your new SCION tC.

This Pocket Reference Guide is not a full

description of SCION tC operations. Every

tC owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed

information highlighted in yellow

throughout the Owner’s Manual.Each box

contains safe operating instructions to

help you avoid injury or equipment

malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

Spare tire & tools

Tool location

Removing the spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Remove the spare tire cover.

Loosen and remove the bolt.

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

Wheel nut wrench

Front towing

eyelet

Jack handle

Spare tire

Jack

07 Scion-tC PRG Cover In 6/13/06 5:13 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door opener and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry 6

FEATURES/OPERATIONS

Air Conditioning/Heating 14

Automatic transmission 8

AUX audio jack 15

Clock 14

Cruise control 10

Cup holders 14

Door locks 8

Light control-Instrument panel 13

Lights & turn signals 11

Panorama moonroof 12

Parking brake 8

Power outlet 13

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seats-Head restraints 9

Steering wheel switches 15

Tilt steering wheel 10

Windows 13

Windshield wiper & washer 12

SAFETY AND EMERGENCY FEATURES

Seat belts 16

Spare tire & tools 17

Tire Pressure Warning System reset 16

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Headlight and turn signal controls

Steering wheel switches

Wiper and washer controls

Emergency flasher switch

Clock, Air Conditioning and outside temperature

display

Air Conditioning controls

Rear window defogger switch

Outside temperature display button

Clock adjustment buttons

Front passenger seat belt reminder light

Front passenger occupant classification

indicator light

Cigarette lighter

Engine immobilizer system indicator light

Ignition

Cruise control

Tilt steering lock release

Power rear view mirror controls

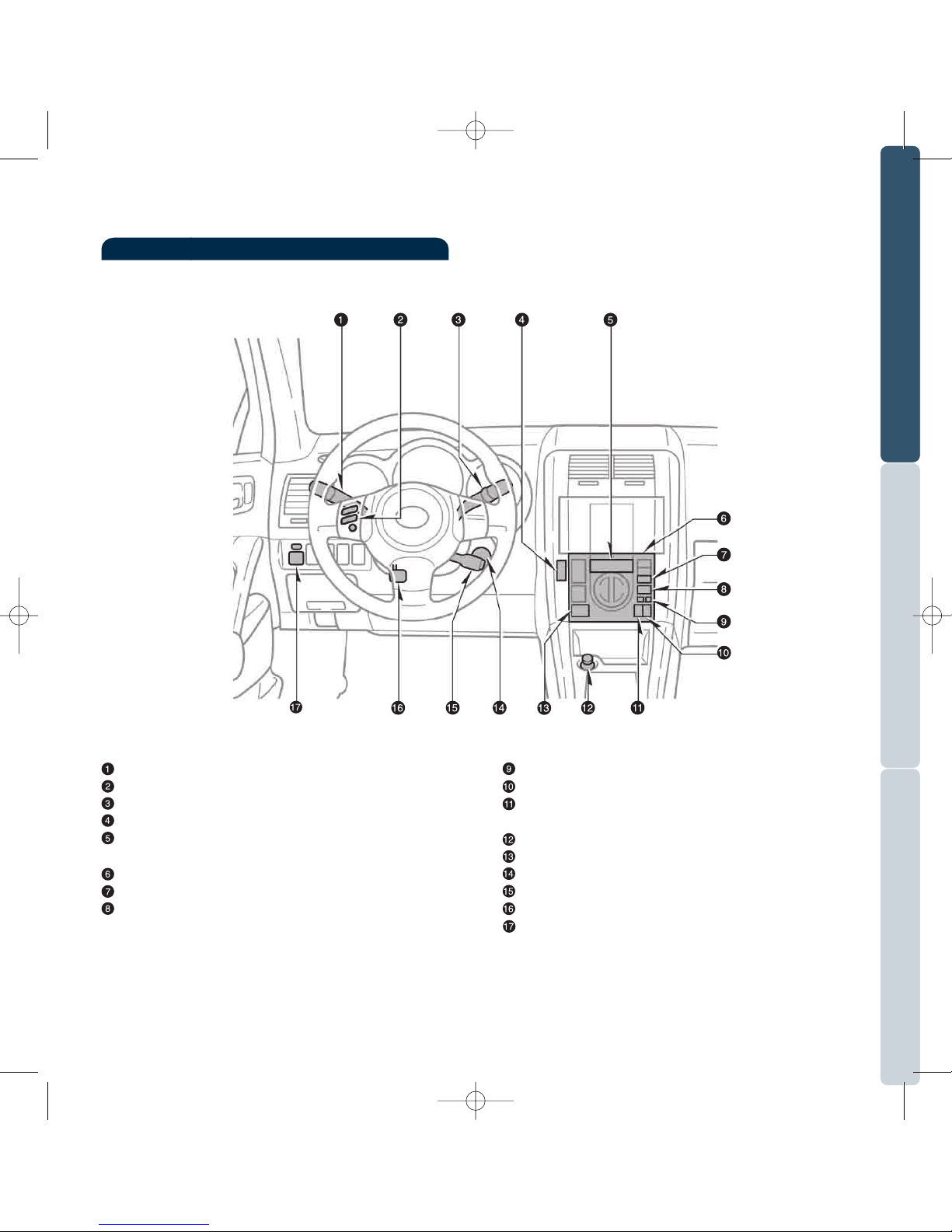

Instrument panel

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Driver seat belt reminder1

Front passenger seat belt reminder1

Brake system warning1

Battery warning1

Low engine oil pressure warning1

Anti-lock Brake System warning1

Malfunction/Check Engine indicator1

1For details, refer to “Service reminder indicators and

warning buzzers,” Section 1-6, 2007 Owner’s Manual.

2If this light flashes, refer to “Cruise control,” Section

1-7, 2007 Owner’s Manual.

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

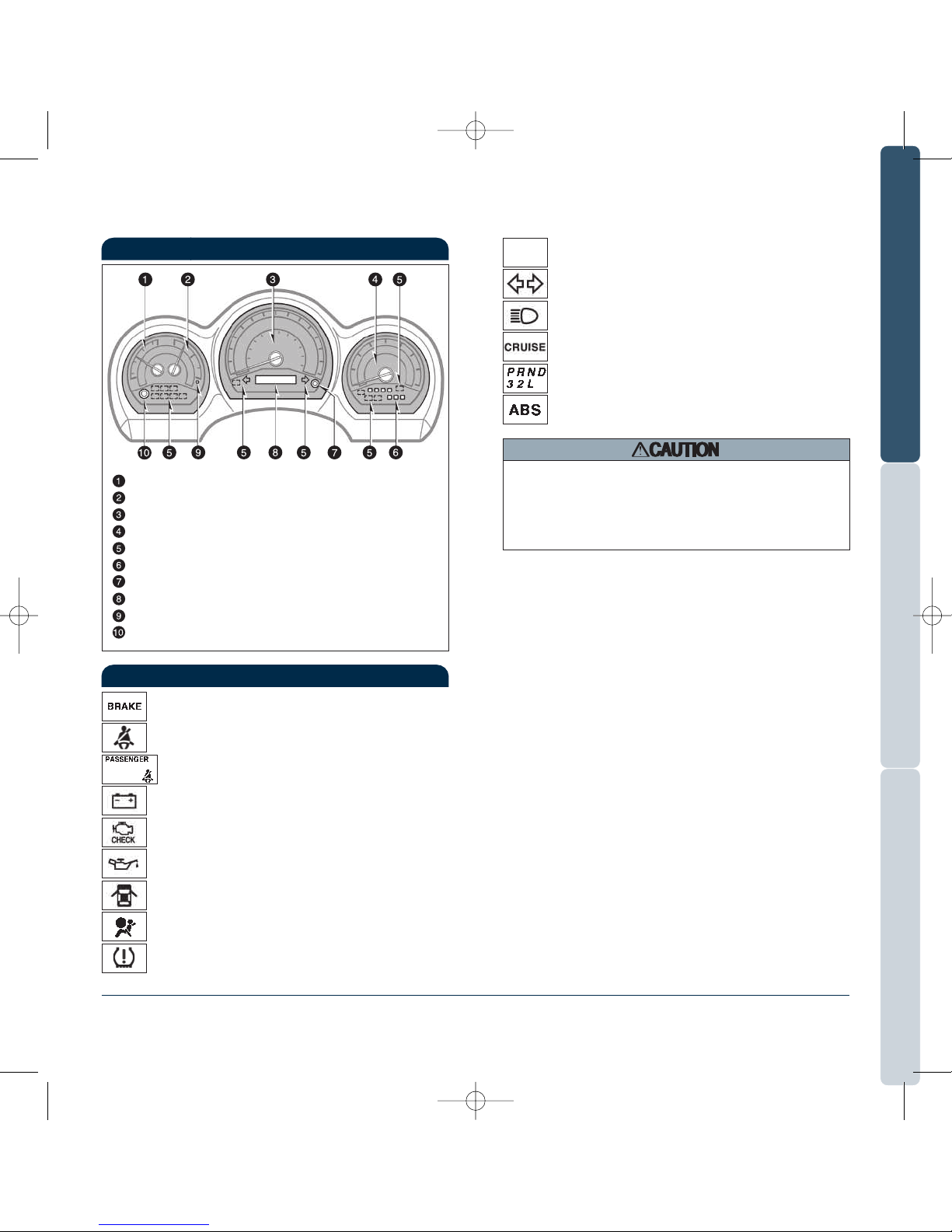

Indicator symbols

Open door warning1

Engine oil replacement reminder1

Turn signal indicators

Headlight high beam indicator

Cruise control indicator2

Airbag SRS warning1

Low Tire Pressure Warning1

Engine coolant temperature

Fuel

Speedometer

Tachometer

Service reminder and indicator

Automatic transmission shift range position

Trip meter reset knob

Odometer and two trip meters

Low fuel level warning

Dimmer control knob

Instrument cluster MAINT

REQD

Automatic transmission indicator

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 4

Alarm operation

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

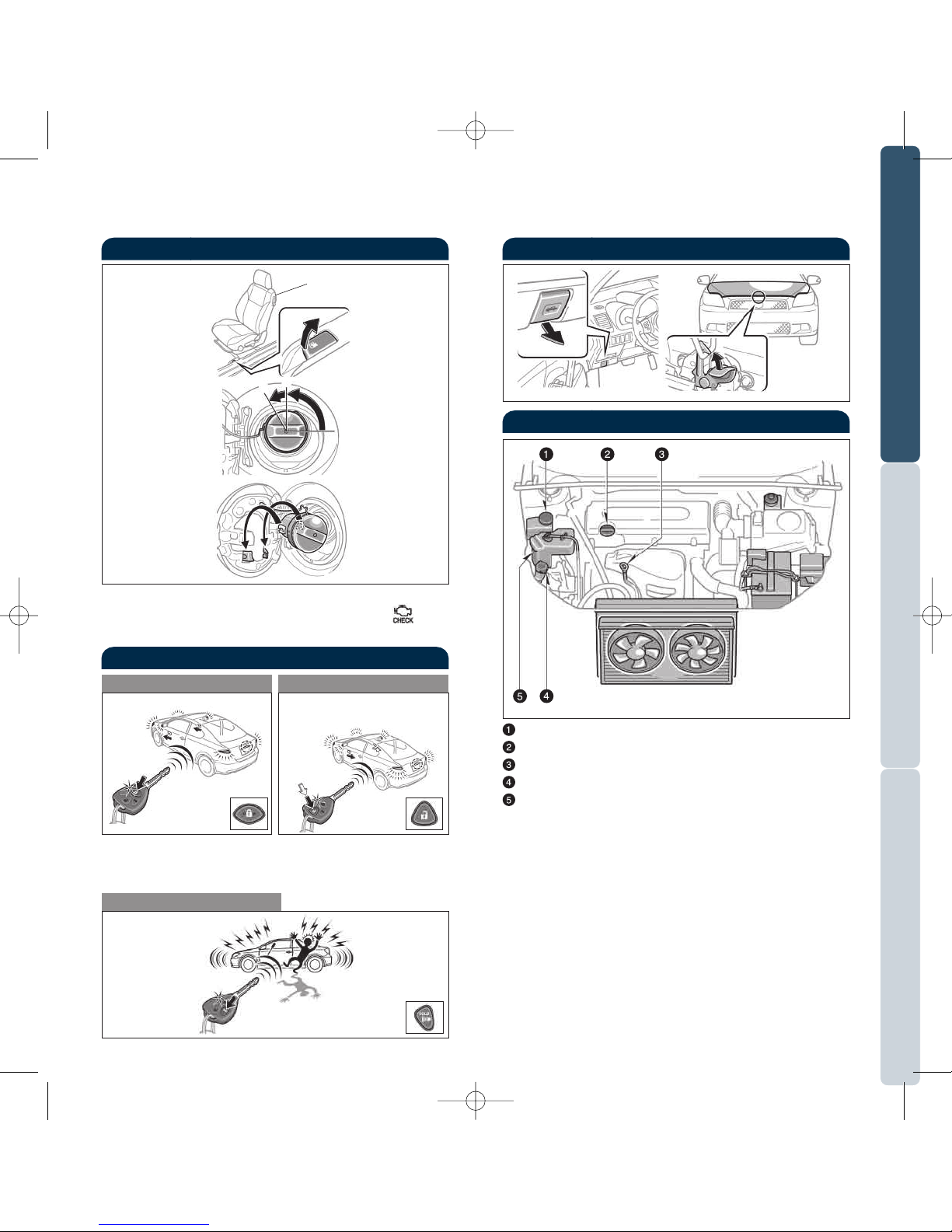

Hood release

Pull

Pull up to

release, then

raise hood

Keyless entry

NOTE: After unlocking, if a door is not opened

within thirty (30) seconds, all doors will relock for

safety.

Locking operation Unlocking operation

Push Push ONCE: Driver door

TWICE: All doors

Push and hold

Fuel tank door opener and cap

Turn

Store

Pull up

Driver seat

Engine maintenance

Power steering fluid reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield washer fluid tank

Engine coolant reservoir

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

NOTE: Tighten cap until one click is heard. If the

cap is not tightened enough, Check Engine “ ”

indicator may illuminate.

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

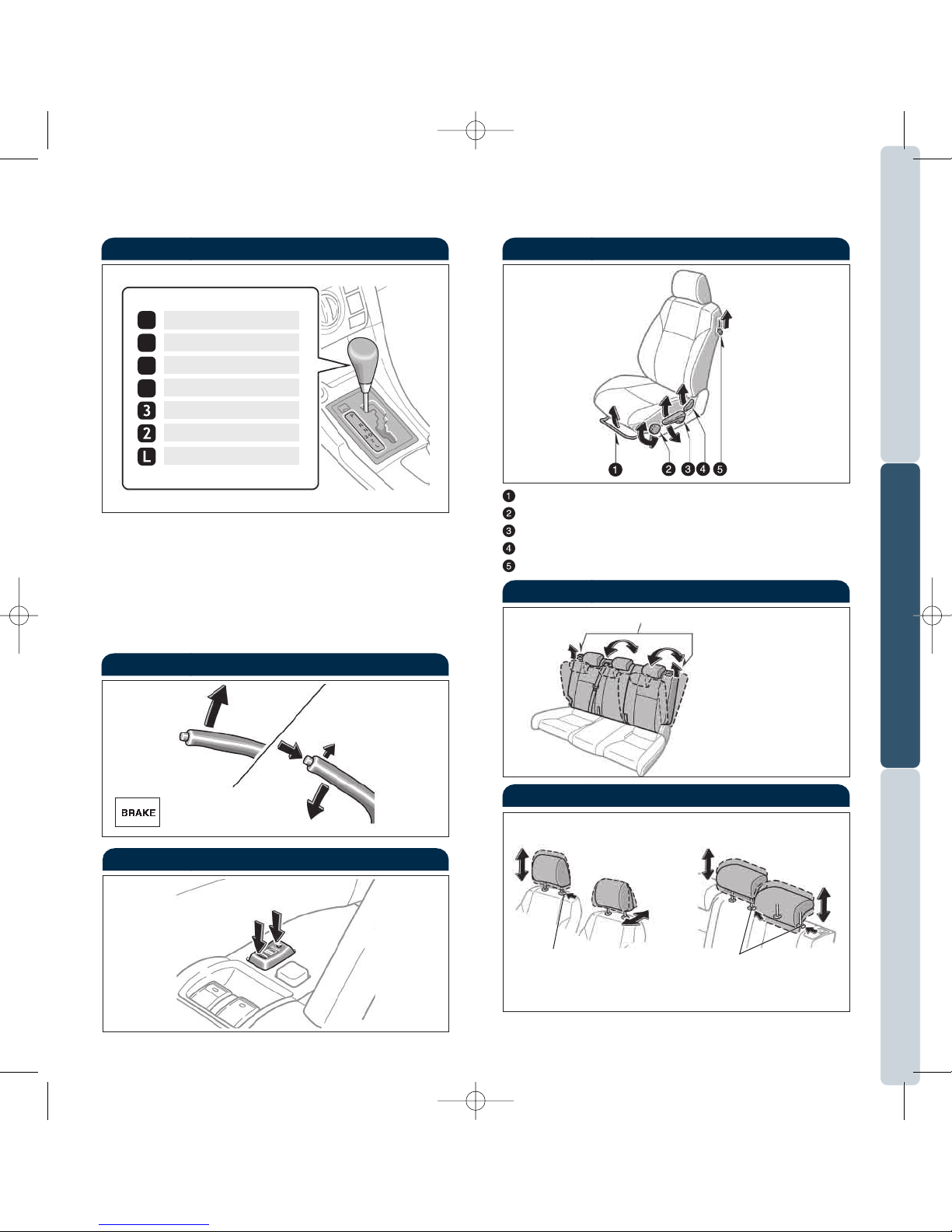

Automatic transmission (if equipped)

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

1The ignition switch must be ON, and the brake

pedal depressed to shift from “Park.”

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Parking brake

Pull

(2) Push

(1) Pull slightly

(3) Lower

Set Release

Seat adjustments-Front

Position

Cushion angle (if equipped)

Height crank (driver side only)

Seatback angle

Seatback lock release (if equipped)

Seat adjustments-Rear

Seatback/Angle adjusting lever*

Seats-Head restraints

Height

Angle*

Lock release button Lock release button

Front Rear

Lock

Unlock

Door locks

*Driver side only (if equipped)

* Pull the lever up to

adjust seatback angle,

or fold down

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Tilt steering wheel

Lock release

lever

Angle

Hold wheel, push lever down, set angle then return

lever.

Note: Do not attempt to adjust while the vehicle

is in motion.

Lights & turn signals

Headlights

Turn signals

Parking lights

High beam

Low beam

Headlights

Automatic light cutoff system Automatically turns

lights off when driver’s door is opened with the

engine off.

Right turn

Left turn

Lane change

High beam flasher

Cruise control (if equipped)

1The set speed may also be cancelled by depressing

the brake pedal or pushing ON/OFF.

2If vehicle speed falls below 25 mph, the set speed

will not resume.

Turning system ON/OFF

Functions

System ON/OFF

Resume2/Increase speed

Set/Decrease speed

Cancel1

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 10

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Windshield wiper & washer

Interval wipe

Slow

Fast

Pull to wash and wipe

Adjust interval Single wipe

Windows

Window operation

Window

lock switch

Driver side

Automatic operation Push the switch completely

down or pull* it completely up and release to fully

open or close. To stop window mid-way, lightly push

the switch in the opposite direction.

Window lock switch Deactivates all passenger

windows. Driver’s window remains operable.

NOTE: If battery is disconnected, the windows need

to be reinitialized. Refer to the Owner’s Manual for

more details.

* If equipped with auto close

Down

Panorama moonroof (if equipped)

NOTE: If battery is disconnected, the moonroof

needs to be reinitialized. Refer to the Owner’s

Manual for more details.

Open

Close Push and hold

“CLOSE”

Power outlet (if equipped)

Designed for car accessories. Key must be in the

“ACC” or “ON” position to be used.

Light control-Instrument panel

Push and hold

“CLOSE”

Brightness

control

Push “OPEN”

to vent/tilt

Push “OPEN”

again for

recommended

driving position

Push “OPEN”

again to fully open

NOTE: This is also the trip meter reset button.

07 Scion-tC PRG Inside 6/13/06 5:05 PM Page 12

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Clock

H-Hour set

M-Minute set

Cup holders

Front Rear

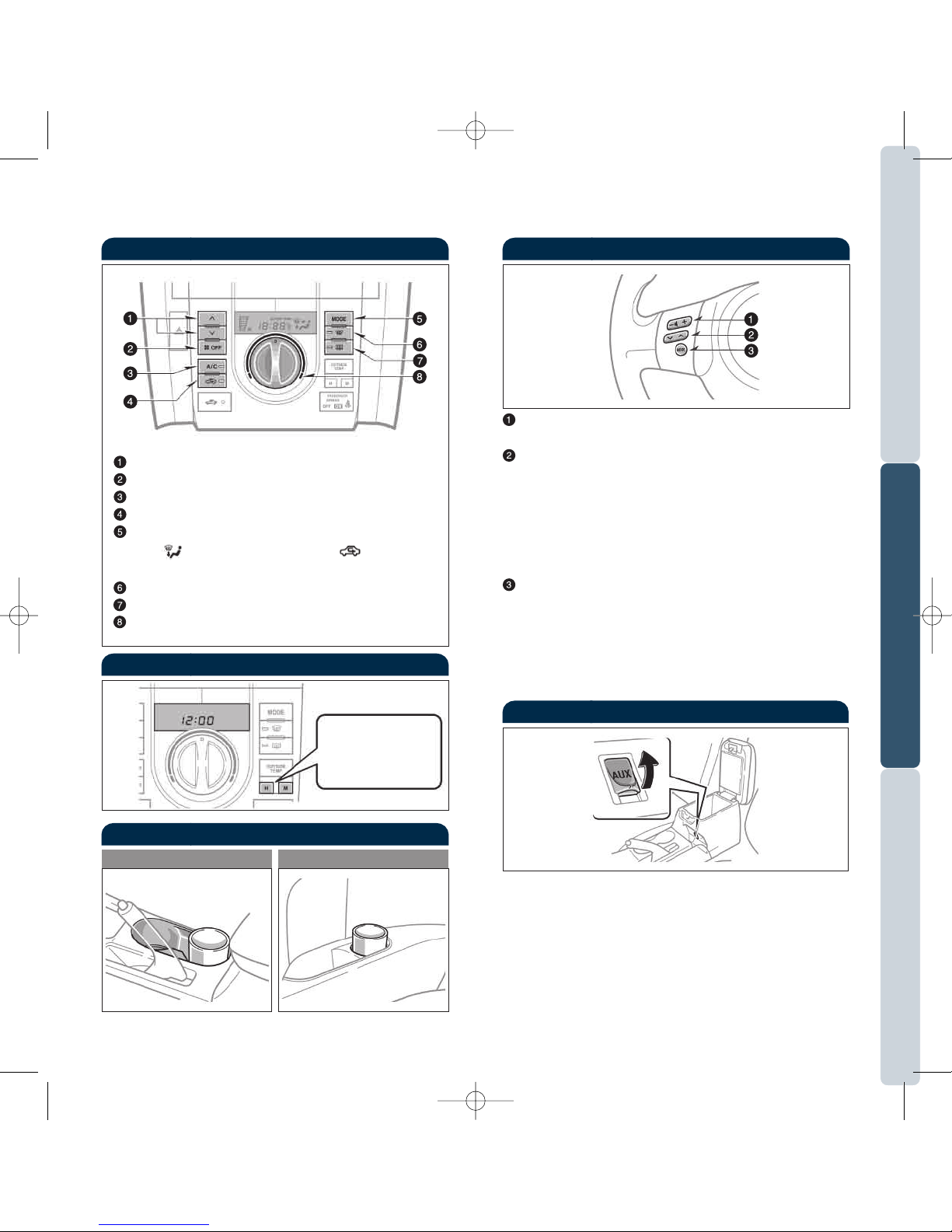

Air Conditioning/Heating

Fan speed

Air Conditioning/Heating system OFF

Air Conditioning ON/OFF

Fresh or recirculate cabin air

Vent selector

Windshield air flow

Rear defogger

Temperature

Steering wheel switches (if equipped)

“- +”

Volume control

“ ”

-In radio mode Push to select a preset station,

push and hold to seek the next strong station.

-In tape mode Push to skip up or down to a

next/previous track, push and hold to fast

forward or reverse.

-In CD mode Push to skip up or down to a

next/previous track.

“MODE”

Push to turn audio “ON” and select an audio

mode. Push and hold to turn the audio system

“OFF.”

Refer to the SCION Audio System Owner’s Manual for

more details.

AUX audio jack

Refer to the SCION Audio System Owner’s Manual for

more details.

In “ ” mode, use fresh air (“ ” indicator

light “OFF”) to reduce window fogging.

07 Scion-tC PRG Inside 6/13/06 5:06 PM Page 14

Altri manuali per 2007 tC

Indice

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Chevrolet

Chevrolet 2012 Malibu Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente
