2010
Scion xD
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in the vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better
understanding of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Scion xD.
This Quick Reference Guide is not a full description of
Scion xD operations. Every Scion xD owner should review
the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413622M2.qxd:413622M2 6/29/09 1:02 PM Page B
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1
6
Light control-Instrument panel 7
Air Conditioning/Heating 12
Automatic Transmission 8
Bottle holders 15
Clock 13
Cruise control 11
Cup holders 15
Lights & turn signals 10
Multi-information display 14
Parking brake 8
Power outlet 15
Seat adjustments 9
Seat-Folding down rear seat 9
Seats-Head restraints 8
Steering wheel switches 14
Tilt steering wheel 12
USB adapter/AUX audio jack 13
Windows 11
Window wipers & washers 10
Door locks 16
Doors-Child safety locks 16
Seat belts 16
Seat belts-Shoulder belt anchor 16
Spare tire & tools 17
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.
413622M2.qxd:413622M2 6/29/09 1:03 PM Page 1
2
OVERVIEW

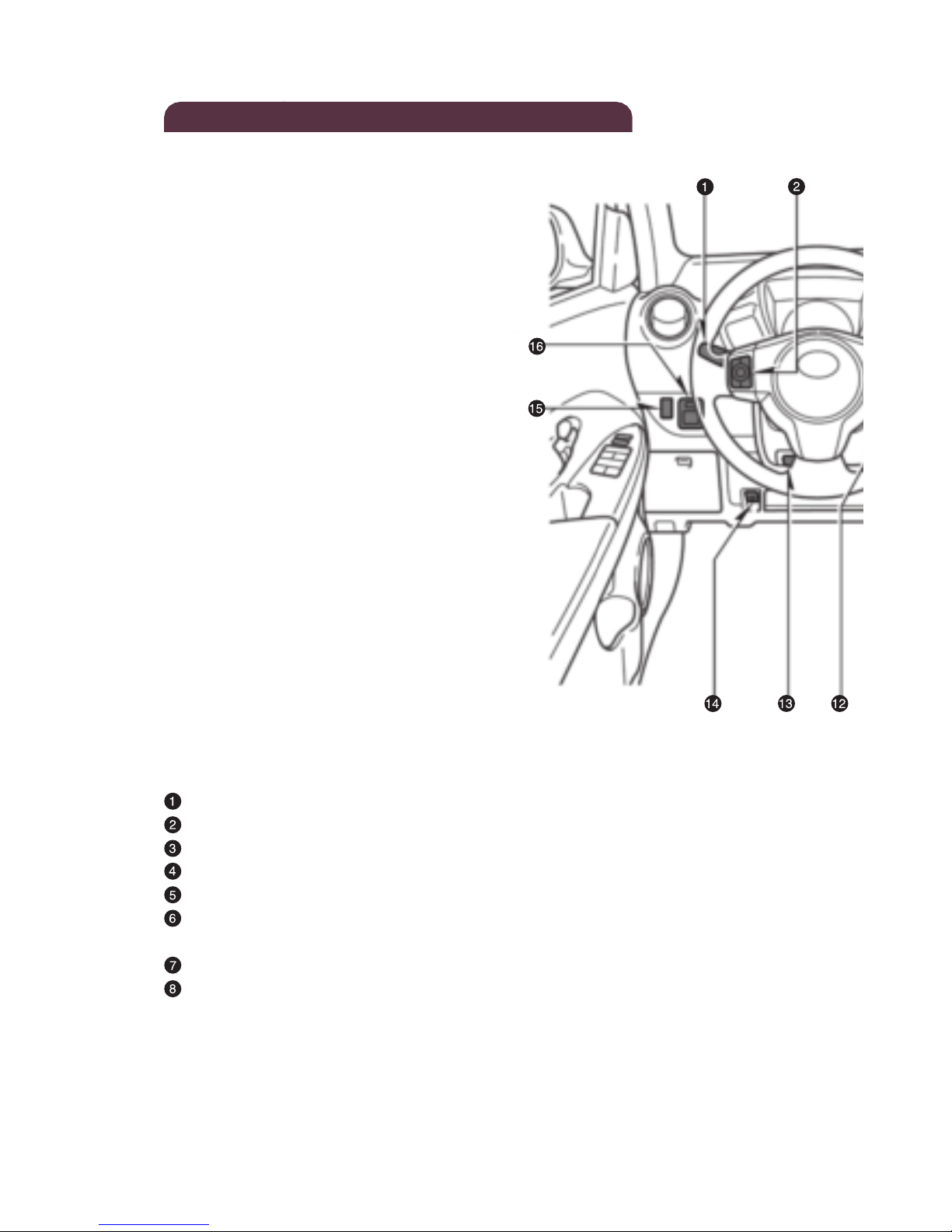

Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger
seatbelt reminder light
Air Conditioning controls
Rear window defogger button
Instrument panel
413622M2.qxd:413622M2 6/29/09 1:03 PM Page 2
3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

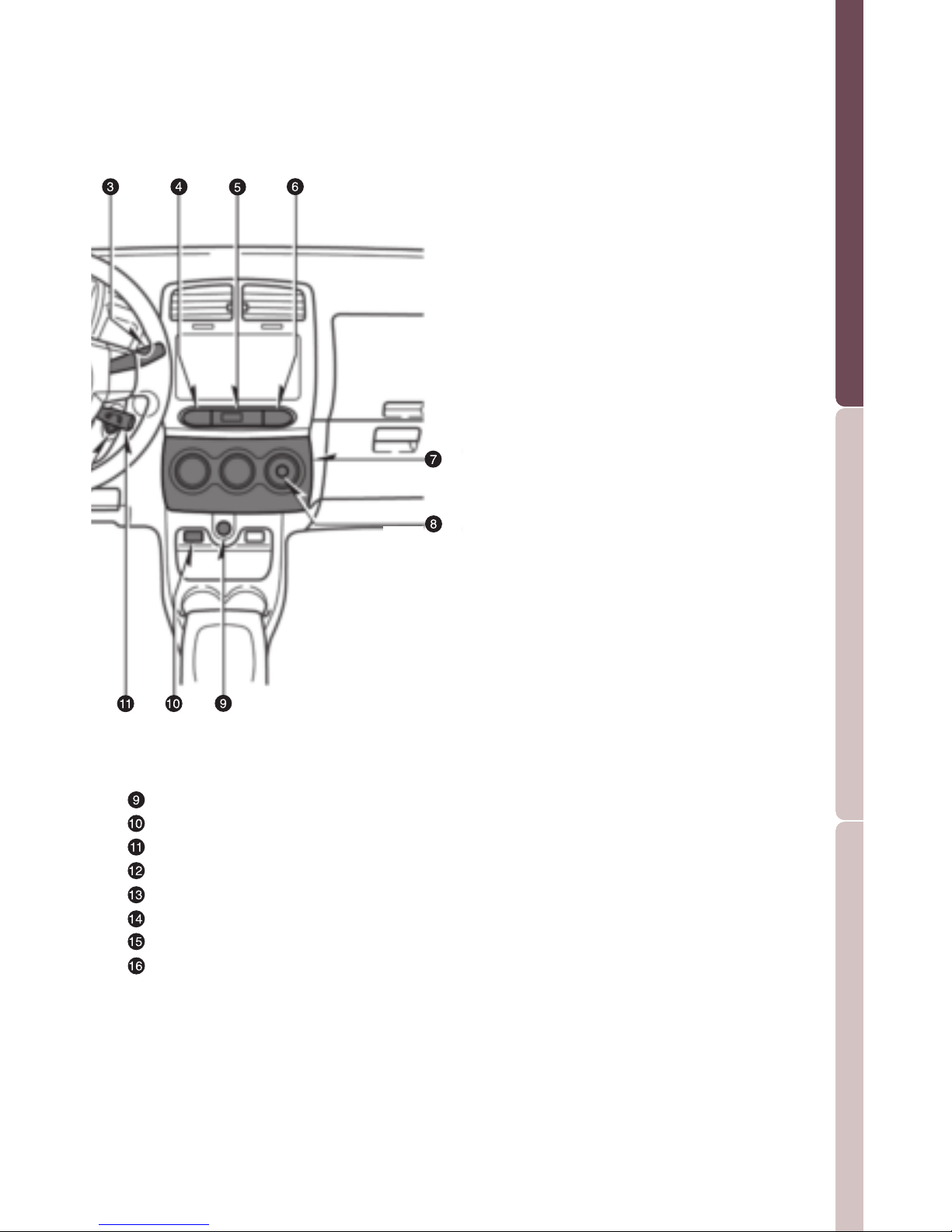

12V DC Power outlet
USB adapter/AUX audio jack*
Cruise control
Ignition switch
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
* For details, refer to the SCION Audio System, Owner’s Manual or
SCION Navigation System Owner’s Manual.
413622M2.qxd:413622M2 6/29/09 1:03 PM Page 3
4
OVERVIEW
Low engine oil pressure warning1
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder1
(alarm will sound if speed is over 12 mph)
Brake system warning1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols

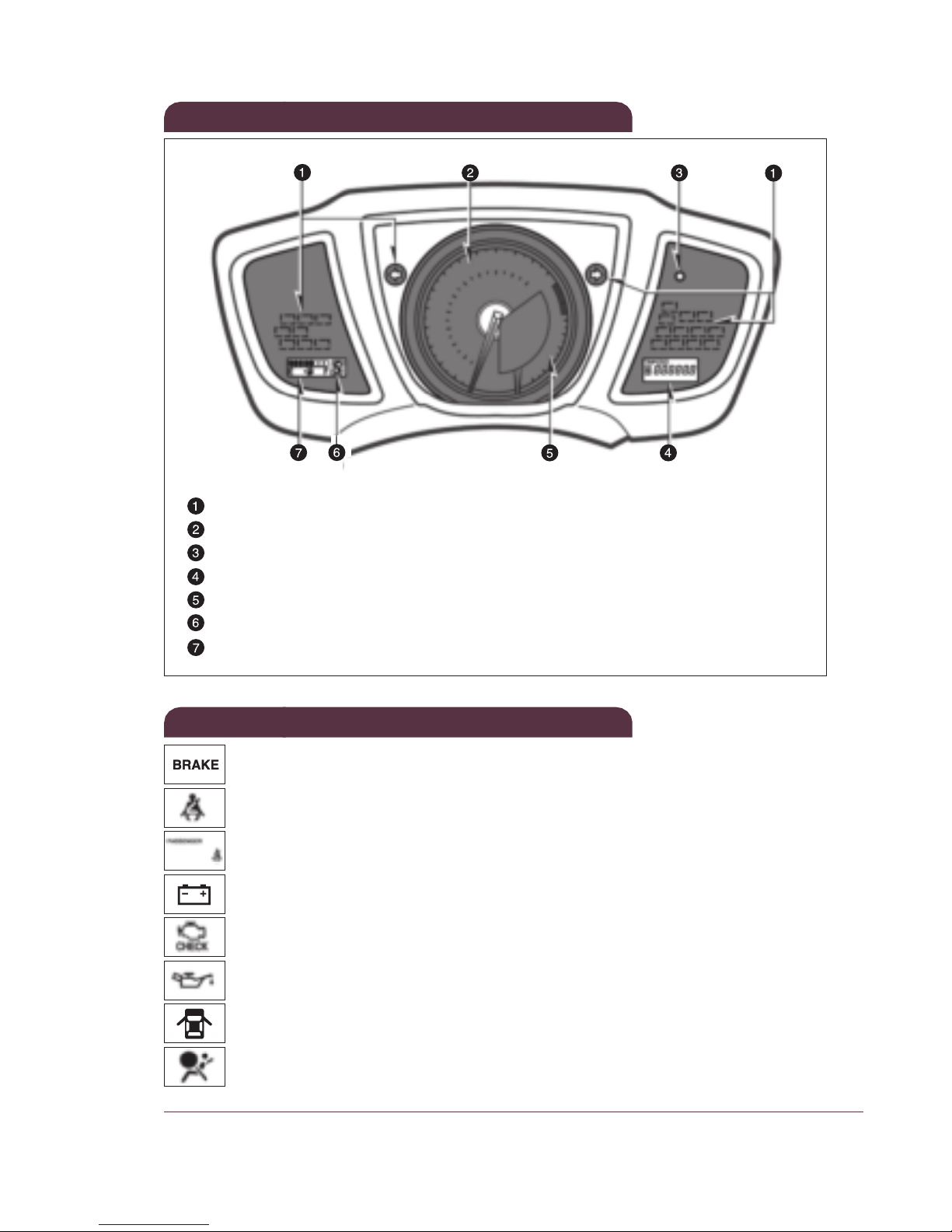

Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
1For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6,
2010 Owner’s Manual.
2For details, refer to “Engine coolant temperature indicator and warning light,”
Section 1-6, 2010 Owner’s Manual.
Open door warning1
Airbag SRS warning1
413622M2.qxd:413622M2 6/29/09 1:03 PM Page 4
5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicator
Turn signal indicator
Headlight high beam indicator
Cruise control indicator3
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator
Low fuel level warning1
High engine coolant temperature warning1
Low engine coolant temperature indicator2
3If this light flashes, refer to “Cruise control,” Section 1-7, 2010 Owner’s Manual.
Traction Control OFF indicator
Low Tire Pressure Warning1
Low windshield washer fluid level warning1
413622M2.qxd:413622M2 6/29/09 1:04 PM Page 5
6
OVERVIEW

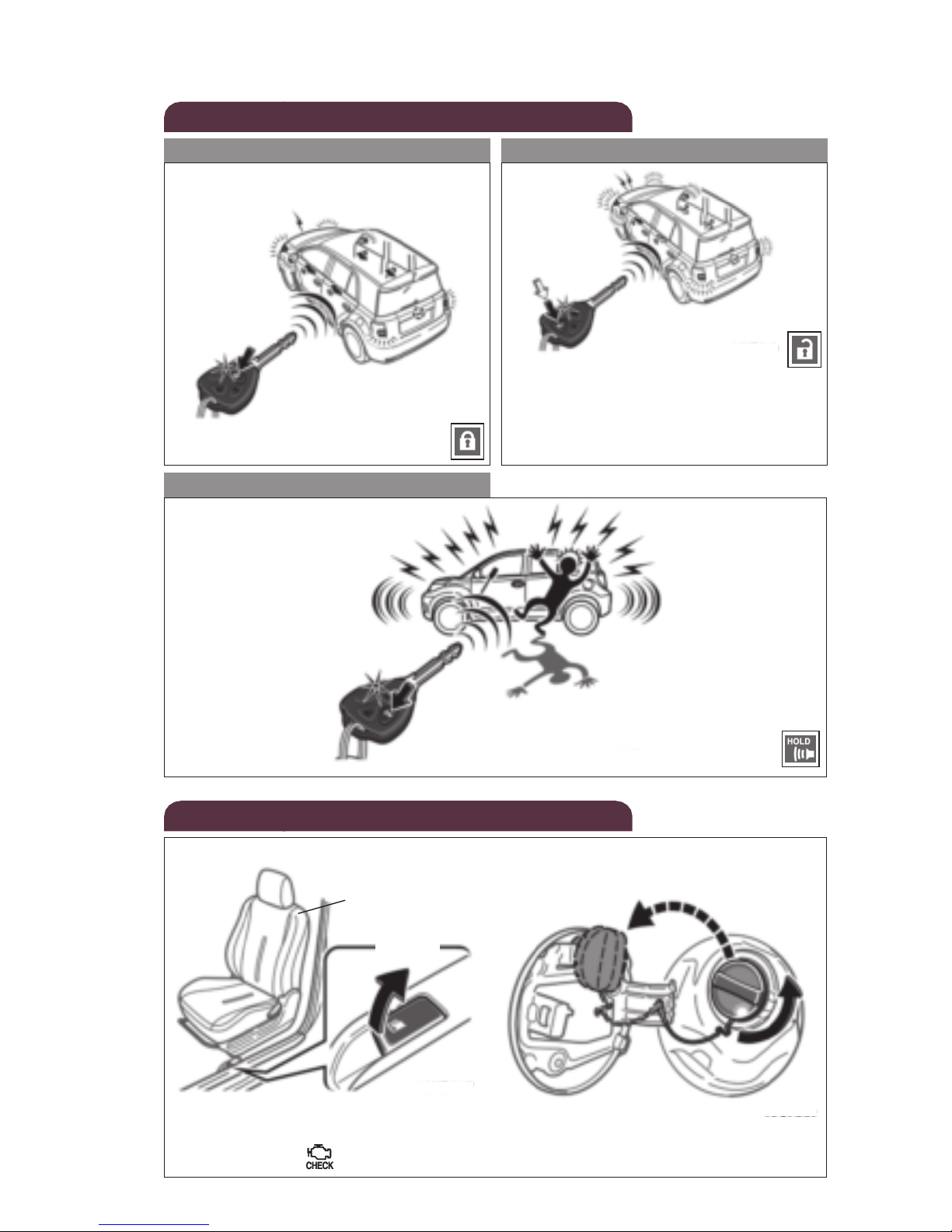

Fuel tank door release and cap
Pull up
Store
Turn
Keyless entry
Locking operation Unlocking operation
NOTE: If a door is not opened
within 30 seconds of unlocking, all
doors will relock for safety.
Push
Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Driver seat
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
413622M2.qxd:413622M2 6/29/09 1:04 PM Page 6
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

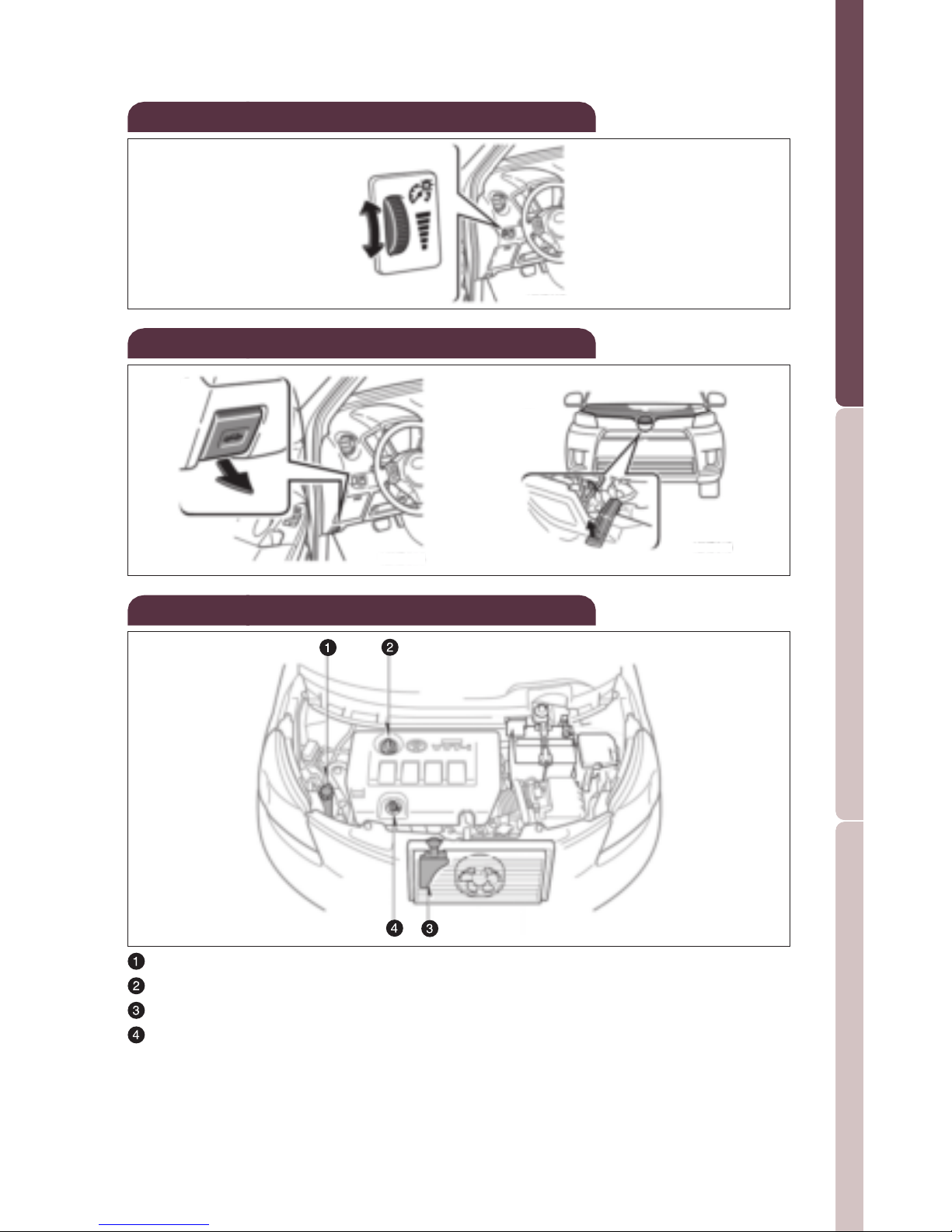

Hood release
Pull Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
413622M2.qxd:413622M2 6/29/09 1:04 PM Page 7
8
FEATURES/OPERATIONS

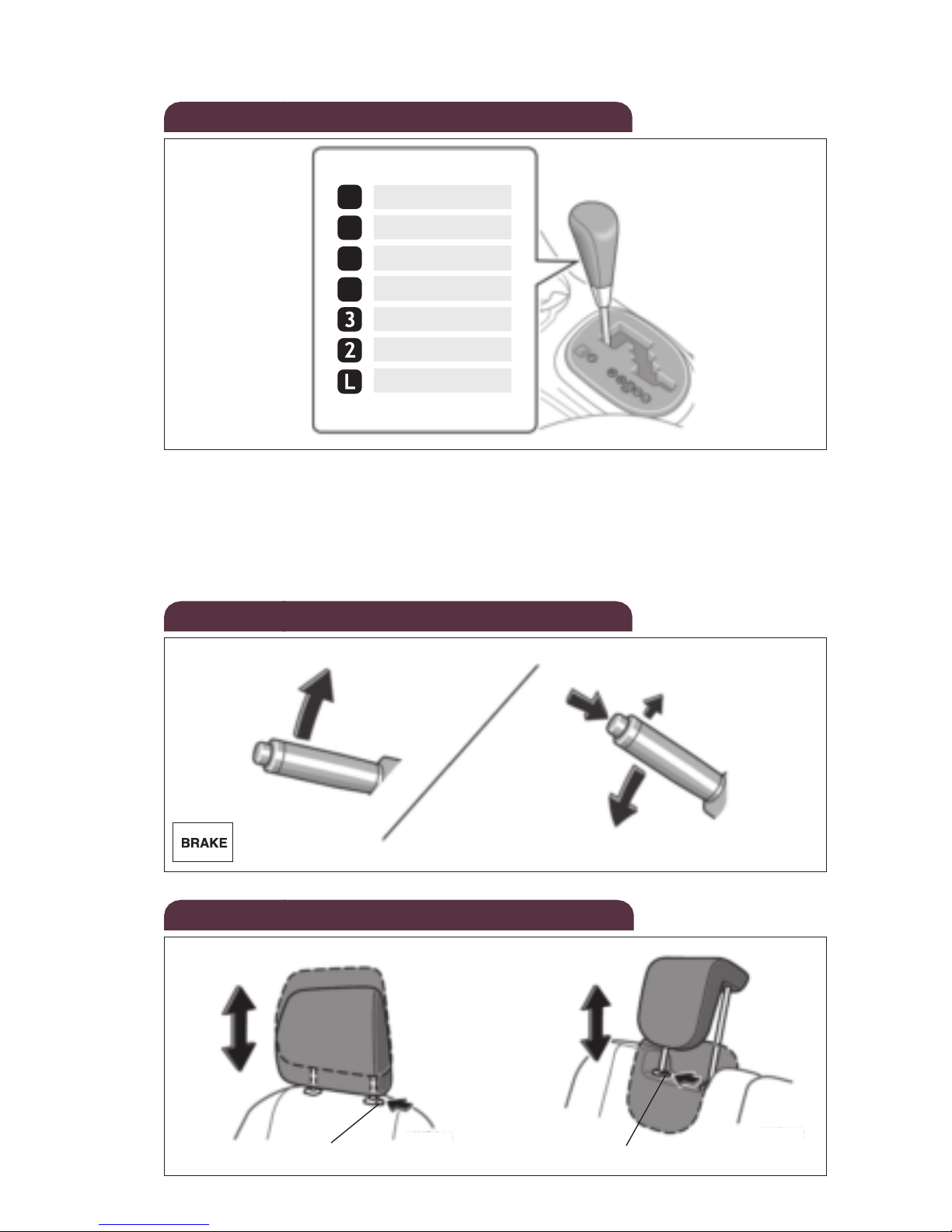

Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Parking brake
Pull
(2) Push
(1) Pull slightly
(3) Lower
Set Release
Park*
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
Seats-Head restraints
Lock release button Lock release button
Front Rear
