Thank you for your purchase.
Welcome to Scooty !
Table of contents
1. SAFETY GUIDELINES 06
2. CONTENTS AND TECHNICAL SPECIFICATIONS 10
3. USE 11
4. MAINTENANCE AND CLEANING 16
5. FAQ, WARRANTY & CONFORMITY 20
Before using this product, carefully read the user guidelines. These will allow
you to properly understand, use and service this product, and to get to know its
performances and features.
Keep this manual for future reference. If selling or giving this product to
someone.
06
EN 1. SAFETY GUIDELINES
1. This device is designed to transport one person, and is intended for use by
teenagers and adults.
Cleaning, maintenance and all other handling of the device must be performed by
someone over the age of 12.
This device may be used by children aged 12 and up, and may also be used by persons
with physical, sensory or mental disabilities, on condition that adequate supervision
is provided or they have been instructed on how to operate the device safely and are
aware of any potential risks. Children should not be allowed to play with the device.
Cleaning and user maintenance should not be performed by unsupervised children.
Parents should not let their child use this device unsupervised. The product should be
stored out of the reach of children.
Do not transport an additional person, children, or goods. Exceeding the weight limit
may cause injuries and damage the device. That the user is within the weight limit
does not mean they are tall enough to maintain control of the device.
The charger may be used by children aged 8 years and over and by persons with
reduced physical, sensory or mental capabilities or lacking experience or knowl-
edge, if they are properly supervised or if they have been given instructions on the
safe use of the device and are aware of the risks involved. Children must not play
with the device. Cleaning and maintenance by the user must not be carried out by
unsupervised children. Be sure to use only the charger supplied with the product.
2. This is an individual transportation device. It is therefore not suitable for
competitions or extreme sports, and must never be used in a skate park. Do not use
the scooter to go up or down stairs, perform jumps, jump over obstacles, or perform
tricks or dangerous acts. This device is neither a toy nor a tness device.
This product has not been designed for professional or commercial use, such as:
rentals, forming a eet of vehicles, business trips.
3. This device should be used with caution on a surface that is at, clean, dry and
free of gravel and grease, as there needs to be friction between the wheels and the
ground to move forward. Avoid obstacles, holes, bumps, and sewer grates that may
cause accidents. Slow down for speed bumps.
Stay away from other road users and observe trafc rules. You are not safe from
the risks posed by the behaviour of others. Anticipate obstacles and trafc by driv-
ing at an appropriate speed. The stopping distance is correlated with your speed, so
take care to anticipate braking distances in wet weather and/or on wet roads. Avoid
abrupt manoeuvres and sudden braking; the device may skid, lose its balance, or fall,
even on a smooth, at surface. You must always remain vigilant and stay away from
07
EN
pedestrians and other users on public roads or thoroughfares, who may cross without
having seen you. WARNING! Never use the product outside the areas permitted by
regulations.
4. Caution! This appliance is designed for outdoor use. It is your responsibility to know
and comply with the regulations in force on the public and private thoroughfares
where you use the device.
5. Learn how to use the device in an open and at location without many other road
users around you, and make sure you wear a helmet.
Always wear sturdy shoes and trousers when using this device. Do not operate this
device if you are barefoot or wearing open sandals. Avoid wearing clothing that is
excessively loose or has dangling cords or ties, scarves, etc., which could be caught
in the wheel. This could lead to choking, falling, and/or a collision.
6. Do not use the throttle if you are walking alongside the scooter, or make sure you
turn it off rst.
7. Do not ride in rain, snow, puddles, mud, or other wet areas with a water depth of
over 2 cm that would allow water to seep into the device. To clean your device, follow
the advice in section 4.3.
Do not use this device if visibility is poor. If you are riding at night or in dark weather,
we recommend wearing reective clothing or equipment, such as a high-visibility
jacket or armband. In addition to this recommendation, you should refer to the appli-
cable equipment requirements in the location and country of use.
8. Do not use this device under the inuence of alcohol or other drugs. For your
safety, such use is strictly prohibited.
9. Do not leave the product within the reach of anyone who could start it without the
authorisation of the main user or without prior information and knowledge of these
safety measures/guidelines and use.
If you lend the device to someone, ensure the other person knows how to use it and
explain to them all the safety guidelines. The person you are lending the scooter to
must be reminded to follow trafc regulations and to wear protective gear while rid-
ing.
To prevent unauthorised use, be sure to remove the key from the ignition between
uses, in order to prevent unintentional or intentional misuse.
08
EN 10. This device must be turned off before being folded and stored away. For
instructions on this, please refer to the “User guide” section of this manual.
When stopping or charging, because the unit is freewheeling, be sure to store your
unit at and in a convenient location when not in use to prevent unauthorized use or
unintentional movement due to its weight.
11. A mobility device is subject to physical constraints depending on its purpose,
design and use. Given this, the unit must be inspected before each use and you must
double check that all safety features work properly (brakes, lights). The various points
of inspection and maintenance to be carried out on your appliance are detailed in
section 4.2.
The folding mechanism must be securely locked into its vertical driving position.
If you notice any pieces have come loose, low battery level alerts, at tyres, excessive
wear and tear, strange noises, improper functioning or any other abnormality, stop
using the device immediately and seek professional assistance.
12. DO NOT USE THE DEVICE OR CHARGE ITS BATTERY IN THE FOLLOWING
CIRCUMSTANCES:
• The product is damaged.
• The battery is emitting an abnormal smell and heat.
• Brake controls, or other braking or safety devices (lights) are damaged.
Discontinue use and do not touch any liquid leaking out of the device. Do not expose
the device’s battery to excessive heat.
13. The battery must not be replaced by the user. Please contact your retailer or the
brand’s after-sales service for any device modications or maintenance.
14. The batteries must be disposed of appropriately. If you are unable to return your
product to your retailer, place it in the containers provided for this purpose (see the
brand’s manual for more information) in order to protect the environment.
15. Any opening of the device or product may modify the safety of the device or product,
and the brand does not take responsibility for this. Please note that opening the
device will void the warranty of the device or product. Should you nevertheless wish
to carry out repairs on your device yourself, the brand does not take any responsibility
for the reliability of the repairs and potential damage these may incur. Accidents that
may occur as a result of these repairs are not the brand’s responsibility. In case of
doubt or when in need of assistance, contact an authorised retailer or the brand’s
customer support.
09
EN
Pictogram Meaning
Always read the user manual carefully.
An exclamation mark within an equilateral triangle is intended to
alert the user to the presence of important operating and mainte-
nance instructions in the device’s user manual.
This device must not come into contact with water. Do not store the
device in a damp environment.
The lightning ash with an arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of “dangerous
voltage” within the device that may be of sufcient magnitude to
constitute a risk of electric shock.
This symbol indicates that this device is equipped with a double elec-
trical insulation between the power supply's (dangerous) voltage and
the parts that are accessible by the user.
Caution! Protective equipment including wrist guards, gloves, knee
pads, helmet and elbow pads should be worn.
Electrical and electronic equipment must be sorted and disposed
of separately. Do not dispose of electrical and electronic equipment
with normal and unsorted household waste, bring it to a recycling
centre instead.
This marking is used on the nameplate to indicate that the equip-
ment operates on direct current only or to identify the corresponding
terminals.
This marking is used to identify the electronic device comprising the
transformer and the electronic circuit, which converts electrical en-
ergy to one or more output connectors.
This marking is used to identify the electronic device comprising the
transformer and the electronic circuit, which converts
electrical energy to one or more output connectors.
This symbol indicates that the charger reference is indicated in the
user manual.
10
EN 2. CONTENTSANDTECHNICAL SPECIFICATIONS
This pack contains:
• Scooty EVO 2 electric scooter
• Tools
• Original mains charger
• Starter keys (2 keys provided)
• User manual
• Warranty manual
• CE declaration
• Warranty card TO BE KEPT (it contains the device’s serial number and manufacture
date, essential information for warranty purposes)
Technical specications:
Battery:
Charging time:
Autonomy:
Speed:
Motor:
Input-output charger:
Maximum supported weight:
Recommended size:
Device dimensions:
Device weight:
Charger part number:
Lithium-ion 6Ah 36V
4-6h
20-25 km max*
25 km/h max*
350W max (250W rated)
100-240V - 42V 1,5A
120 Kg
140-190 cm (min-max)
1000 x 425 x 1120 mm (unfolded)
12 kg
FY0634201500
* Generally speaking, range and speed are given as an indication. These vary according
to the weight of the user and the conditions of use (slope, outside temperature,
humidity, speed and motor load). Specications may change. These speed and range
guidelines do not constitute a contractual commitment on the part of the retailer or
the CIBOX INTERACTIVE company.
11
EN
3. USE

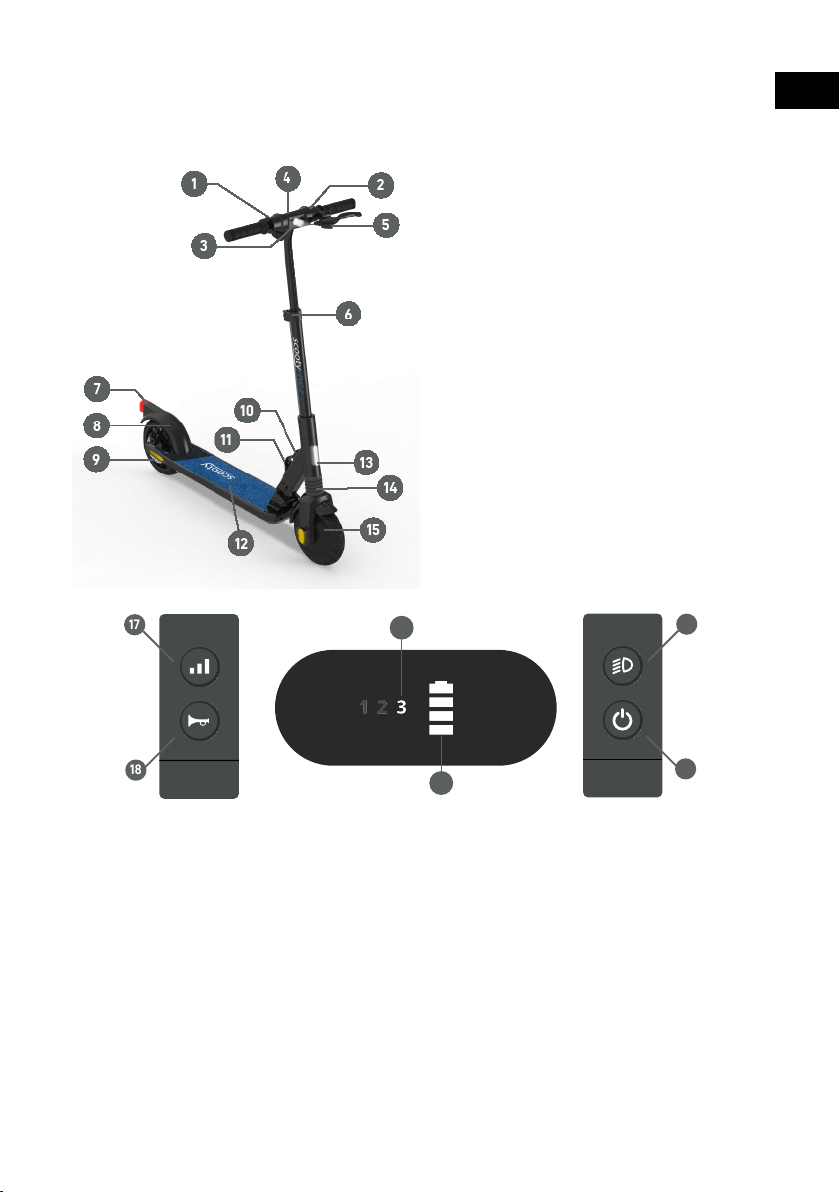

3.1. DEVICE OVERVIEW
(1). Gas pedal
(2). Speed mode / Horn
(3). LED front light
(4). Display
(5). Combined disc and electronic brake
(6). Locking of the column
(7). Rear light / brake light
(8). Foot brake / mudguards
(9). Brake disc
(10). Charging port / Battery switch button
(11). Release lever
(12). Tray
(13). Reective tape
(14). Shock absorber
(15). Front wheel / motor
19
20
21
22
17
18
(17). Speed mode change (18). Horn (19). Display of the selected speed mode (20).
Battery level indicator (21). LED light activation button (22). ON/OFF button
• To activate or deactivate the LED lights (3). press the button on the right handle (21).
• The brake light (7) is only active when the LED light (3) is active.
• To turn the unit on/off: press the ON/OFF button (22). on the right handle for 2
seconds. The unit will automatically shut off after 180 seconds of inactivity.
• To change the speed mode of the unit: briey press the speed mode switch (17).
located on the left handle.
12
EN There are 3 speed modes:
• Mode 1 is the pedestrian mode limited to 6km/h
• Mode 2 is the eco mode and is limited to 15km/h.
• Mode 3 is the Sport mode which is limited to 25km/h.
In order to ride safely and in compliance with local regulations, you can and should
control your speed using the mode indicators.
When using mode 1, the speed will be limited to 6km/h (maximum speed allowed on
sidewalks in some cities. It is your responsibility as a user to check local regulations).
Mode 2 allows to limit the speed to 15km/h.
Mode 3 allows you to drive up to 25km/h depending on your weight. You can also
check your speed with additional equipment such as a smartphone or other device.
3.2. UNPACKING AND ASSEMBLING THE DEVICE
To unpack the product, it is recommended to have a clear surface that is large enough
to unpack and prepare the device. Take the device out of its packaging, making sure
to not injure yourself or damage other products or your surroundings. Have someone
help you if the product is too heavy for you to handle on your own (the weight of the
device is indicated on the packaging).
Before using the product, the handles must be assembled. To do this, unfold the
device (see following sections) and install the brake lever and the handles as per the
following instructions:
An adult must unpack and assemble the device.
1. Before screwing on the handles, install the braking lever on the left-hand side and
adjust the position of the brake lever by screwing it on once the handles have been
installed.
2. Use the markings on the handles to help you. R marks the right-hand handle and L
marks the left-hand handle.
3. Screw on each handle in alignment with the handlebar axis. Do not tighten or apply
force if the handle is crooked. It should be possible to tighten the handle without
applying force.
4. Ensure you have properly tightened the handle once it reaches the stop.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Scooty Scooter
Scooty
Scooty eKicker Manuale utente
Scooty
Scooty CITY 4 Manuale utente
Scooty
Scooty DRIVE PRO Manuale utente
Scooty
Scooty Kick Manuale utente
Scooty
Scooty COUNTRY 28 Manuale utente
Scooty
Scooty RIde Plus Manuale utente
Scooty
Scooty SCOOTY CITY 26 + Manuale utente
Scooty
Scooty CITY GRAN Istruzioni operative
Scooty
Scooty SCOOT151 Manuale utente
