Scott GENIUS 2023 Manuale utente

2022 GENIUS / GENIUS ST | ENGLISH 1

2023 SCOT T

GENIUS/GENIUSST

M A N UA L

2022 GENIUS / GENIUS ST | ENGLISH 2

GENIUS / GENIUS ST

GEOMETRY & TECHNICAL DATA 03

HEADSET ADJUSTMENT 05

SETTING SAG 06

TWINLOC & TRACLOC 07

CABLE ROUTING 08

SPARE PARTS 10

MANUFACTURE’S GUARANTEE 12

LEGEND

10Nm

TORQUE REQUIRED TORX TOOL SIZE

HEX TOOL SIZE

TORQUE AMOUNT

TASK DIFFICULTY

NO GREASE REQUIRED

GREASE REQUIRED

CARBON GREASE REQUIRED

THREADLOC REQUIRED

CONTENT

THE GENIUS/GENIUS ST SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY

AND RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

BEARING FIT REQUIRED

2022 GENIUS / GENIUS ST | ENGLISH 3

GENIUS / GENIUS ST

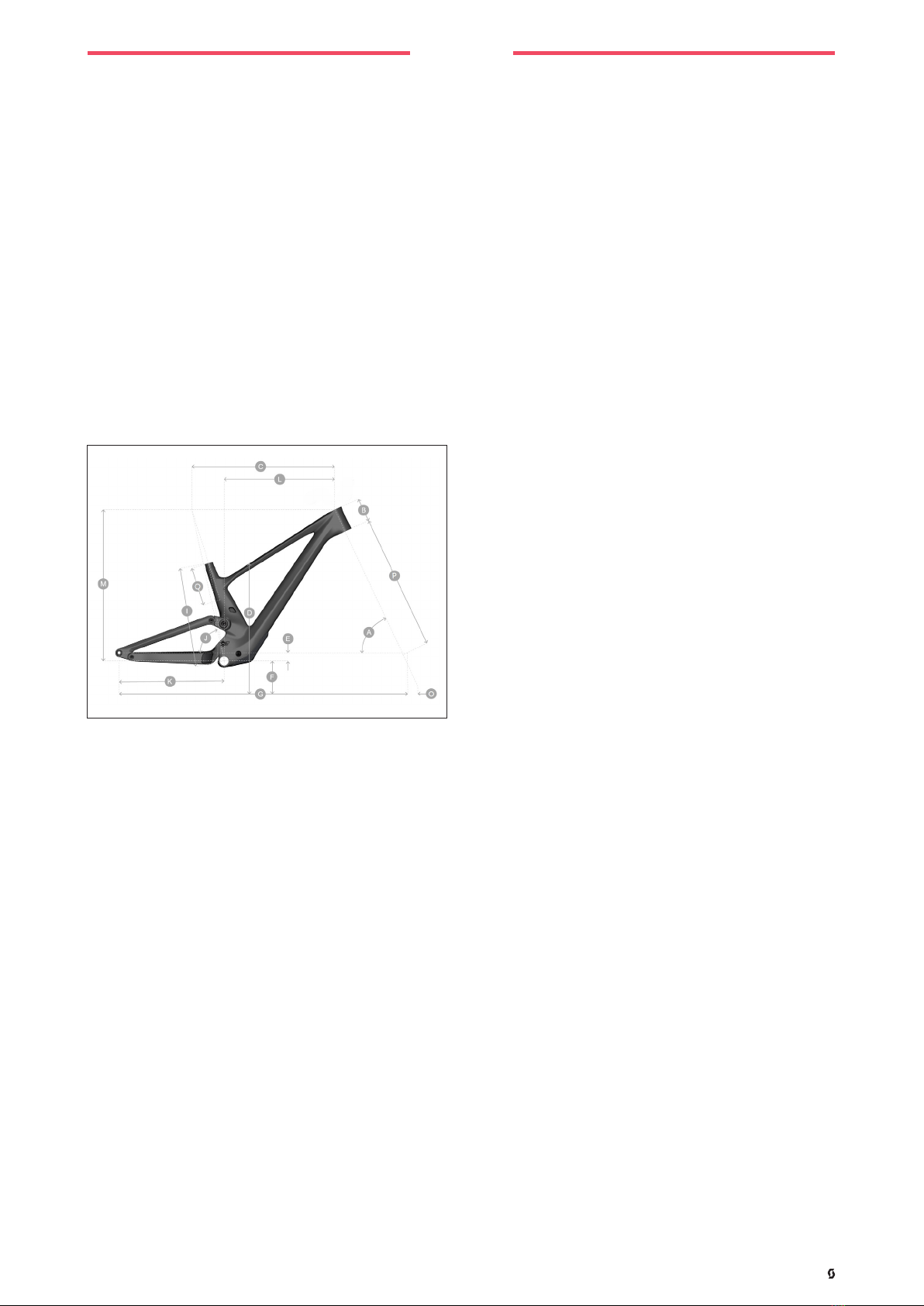

GEOMETRY & TECHNICAL DATA

MY23 GENIUS/ST SM /ST MED /ST LG /ST XL /ST

AHead tube angle °65.1 63.9 65.1 63.9 65.1 63.9 65.1 63.9

BHead tube length mm 90 90 100 100 120 120 135 135

CTop tube horizontal mm 570.1 570.1 602.2 602.2 631.3 631.3 659.3 659.3

Dstandover height mm 728.5 728.5 738.5 738.5 753.5 753.5 768.5 768.5

EBB offset mm -33 -33 -33 -33 -33 -33 -33 -33

FBB height mm 342.5 342.5 342.5 342.5 342.5 342.5 342.5 342.5

G Wheelbase mm 1182 1195 1216 1229 1249 1263 1281 1294

IBB center to TST mm 380 380 410 410 440 440 470 470

JSeat angle ° 76.8 76.8 77.1 77.1 77.2 77.2 77.4 77.4

K Chainstay mm 440 440 440 440 440 440 440 440

L Reach mm 430 430 460 460 485 485 510 510

M Stack mm 617 617 626.1 626.1 644.2 644.2 657.8 657.8

Fork Rake mm 44 44 44 44 44 44 44 44

Trail mm 125.8 125.8 125.8 125.8 125.8 125.8 125.8 125.8

SEATPOST mm 31.6

SEATPOST CLAMP mm 34.9

TRAVEL mm 150 Rr 160 Ft

SHOCK LENGTH mm 185

SHOCK STROKE mm 55

HARDWARE M.FRAME mm Trunnion

HARDWARE LINKAGE mm 8 X 20

MAX ROTOR mm 180 Rr 203 Ft

MAX CHAINRING Tooth 34

MAX TYRE WIDTH in 2.6

MAIN PIVOT / CHAINSTAY mm 61802-2RS x 2

LINKAGE / SEATTUBE mm 61806-2RS x 2

LINKAGE / SEATSTAY mm 61802-2RS x 2

SEATSTAY / CHAINSTAY mm 61801-2RS x 4

2022 GENIUS / GENIUS ST | ENGLISH 4

GENIUS / GENIUS ST

GEOMETRY & TECHNICAL DATA CONT.

Please observe the maximum seatpost insertion

so not to damage the frame.

Small: 173 mm Max Insertion

Medium: 204 mm Max Insertion

Large: 234 mm Max Insertion

X-Large: 265 mm Max Insertion

Please note that on the small sized frame it

is only possible to use a 500 ml water bottle,

with a side entry cage.

2022 GENIUS / GENIUS ST | ENGLISH 5

GENIUS / GENIUS ST

It is important to install the headset correctly

depending on the set up required. There are

two types of headset cups.

0° & 0.6° ( 64° & 65°) These can be indentiﬁed

from the stamp on the inner surface of the

headset cup

The headset is available in two options:

288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB

290060 SCO HEADSET CUP KIT SPARK 22

Do not use a standard headset tool

to remove these plastic headset

cups.

GENIUS / GENIUS ST

HEADSET ADJUSTMENT

Slacker

Steeper

2022 GENIUS / GENIUS ST | ENGLISH 6

GENIUS / GENIUS ST

SAG ADJUSTMENT

01 02

Wear your normal riding gear, set the

sage meter to zero & the twinloc in

the open position.

If the sag value is not to your liking

within the sag range indicated, adjust

the shock pressure as indicated above.

Gently sit on the bike allowing the

sag meter to move. Once completed

dismount the bike gently. Check the

value.

The sag indicator is available as a separate

part. Check with your Authorised Scott

Dealer for the correct installation.

297094 SCO SAG INDICATOR GENIUS 23

2022 GENIUS / GENIUS ST | ENGLISH 7

GENIUS / GENIUS ST

TWINLOC & TRACLOC

GENIUS NAME PART NO. CAM TYPE DROPPER

GENIUS 900 TWINLOC TSP3 290009 BLUE CAM YES

GENIUS 910 TWINLOC TSP3 290009 BLUE CAM YES

GENIUS 920 TWINLOC TSP3 290009 BLUE CAM YES

GENIUS 930 TWINLOC TSP3 290009 BLUE CAM YES

GENIUS 940 TWINLOC TSP3 290009 BLUE CAM YES

GENIUS ST

GENIUS ST 900 TRACLOC 291219 N/A YES

GENIUS ST 910 TRACLOC 291219 N/A YES

GENIUS ST 920 TRACLOC 291219 N/A YES

CONTESSA GENIUS

ST 910 TRACLOC 291219 N/A YES

CONTESSA GENIUS

920 TWINLOC 290009 BLUE CAM YES

The Genius Twinloc follows the same system as the Spark 2022.

The Genius ST is rear Tracloc only: 291219 BLD TRACLOC LINKIN 22

2022 GENIUS / GENIUS ST | ENGLISH 8

GENIUS / GENIUS ST

CABLE ROUTING

Rear Brake

Dropper Seatpost

For the alloy frames

there will be a

protective rubber

sleeve inside the

headtube for the

cables.

297134 SCO CABLE GUIDE H-TUBE INNER SCALE AL 23

Foam tubing: 277026 SCO CABLE ANTI-RATTLE LINER 90CM 20

2022 GENIUS / GENIUS ST | ENGLISH 9

GENIUS / GENIUS ST

CABLE ROUTING

Twinloc / Tracloc

Rear Derailleur

2022 GENIUS / GENIUS ST | ENGLISH 10

GENIUS / GENIUS ST

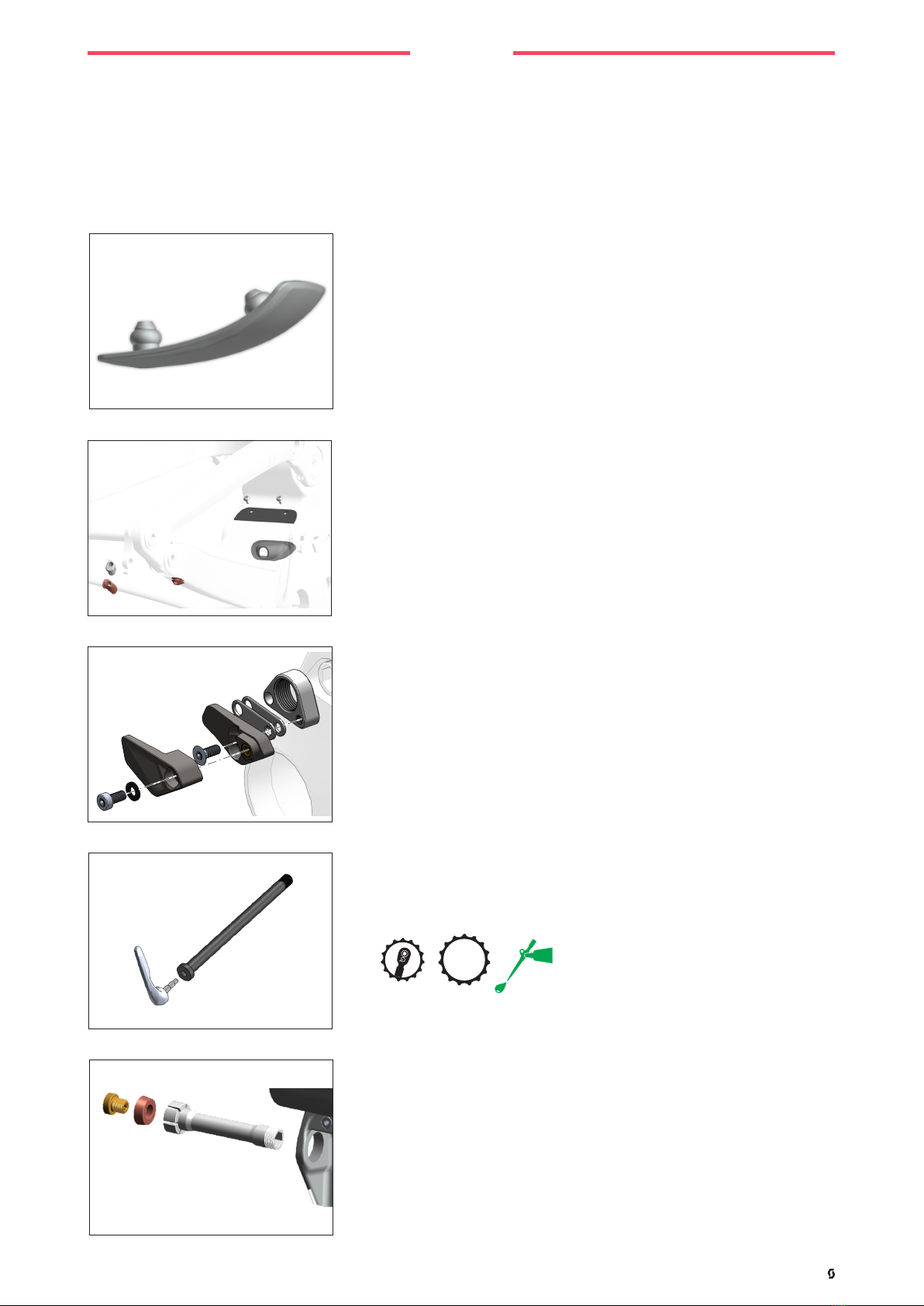

SPARE PARTS

297672 SCO CABLEGUIDE & BB COVER GENIUS 23

296606 SCO CHAINGUIDE GENIUS 23

296609 SCO AXLE RWS REAR 148X12 GENIUS PLUG 23

297673 SCO MAIN PIVOT SPARK 22 / LUMEN 23

296610 SCO SWINGARM REP KIT GENIUS 23

297086 SCO STEM ACCESSORY COVER COMBO 22

10Nm
