Screen Innovations LinkPro Manuale utente
Screen Innovations
9715-B Burnet Rd, Suite 400 Austin, TX 78758
512.832.6939
www.screeninnovations.com
LinkPro
Installation Instructions
Thank you for purchasing an SI product. If you have
any questions or need any assistance with your
LinkPro, we would love to help you.
Technical Support: 512.832.6939
Hours of Support: 7:30am - 5pm CST
screeninnovations.com
support@screeninnovations.com
INITIAL CONSIDERATIONS
Thank you for your purchase of LinkPro.
This is a WiFi to RTS gateway which operates at
433.42MHz. Minimize or eliminate any sources of RF
interference and shielding. Any metal, wire, or foliage
near the product can reduce or block the signal -
reducing the operating range of the device. Other
nearby transmitters may also cause interference.
Initial Considerations 1
2
• (1) LinkPro Unit
• (1) Original Mounting Ring
• (1) Magnetic Mounting Ring - Pre-installed
• (2) 48v Passive PoE Injector
• (1) Injector Power Cable
• (1) 5 Meter Cat5
• (1) 2 Meter Cat5
• (2) Drywall Anchor
• (2) Wall Mounting Screws (PH2)
• (2) Top Mounting Screws (PH2)
• (1) Quickstart Guide
PARTS IN THE BOX
LinkPro - Parts in the Box 3

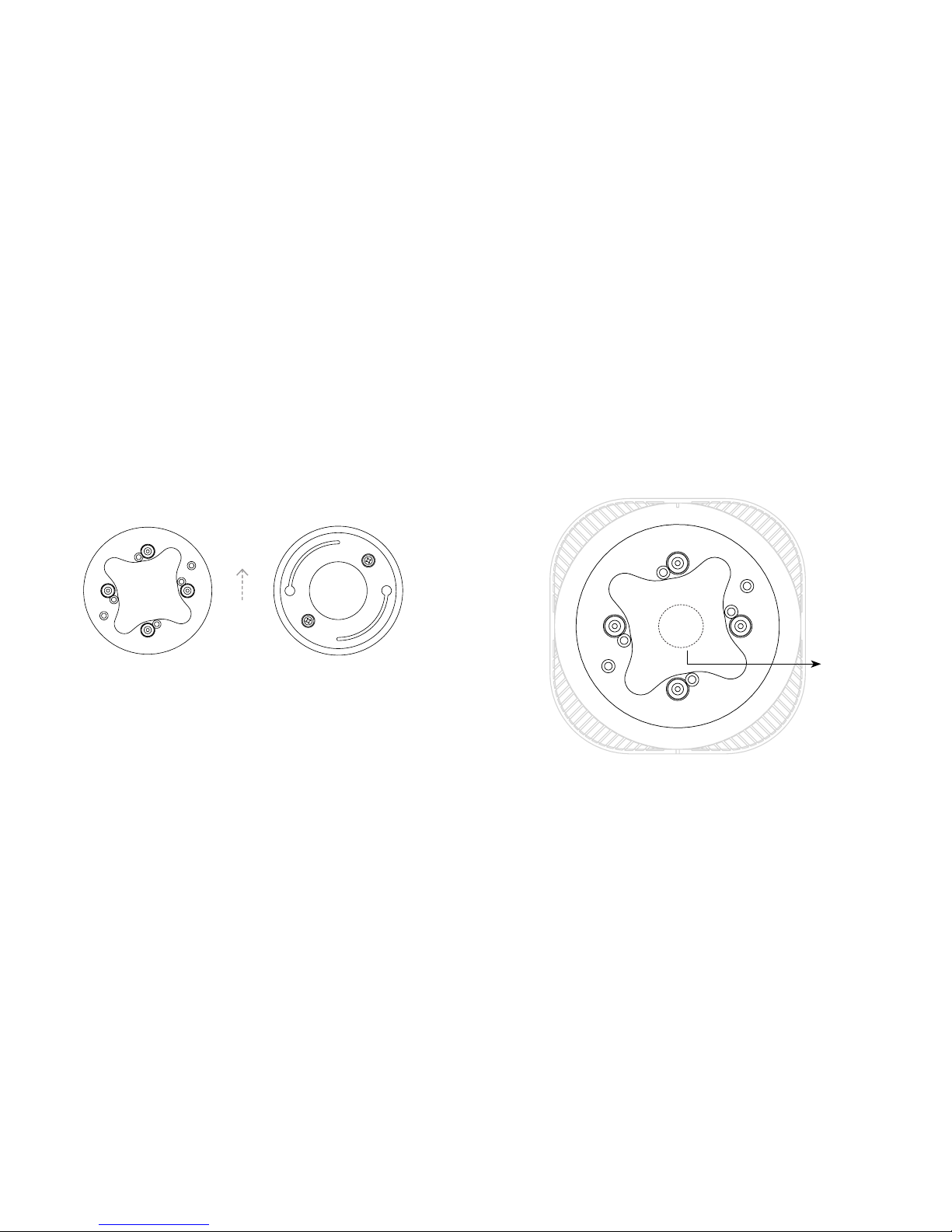

1. Position the Wall/ Magnetic mounting bracket in the
desired location in the orientation illustrated.
NOTE: Wall Mount installation process is similar as
Magnetic Mount. For more details contact support.
2. Mark the mounting hole locations (these holes are
properly spaced for a standard 4/0 ceiling junction
box if one is available). Drill holes using a 7/32" drill.
Wall Mounting RingMagnetic Mounting Ring
LinkPro - Installation 4
INSTALLATION - CEILING/WALL
MOUNT or MAGNETIC MOUNT
up
LinkPro - Installation 5
3/4" hole for
Ethernet cable
3. Drill a 3/4” hole in the center of the space illustrated
for the Ethernet cable.
(cont. on next pg)

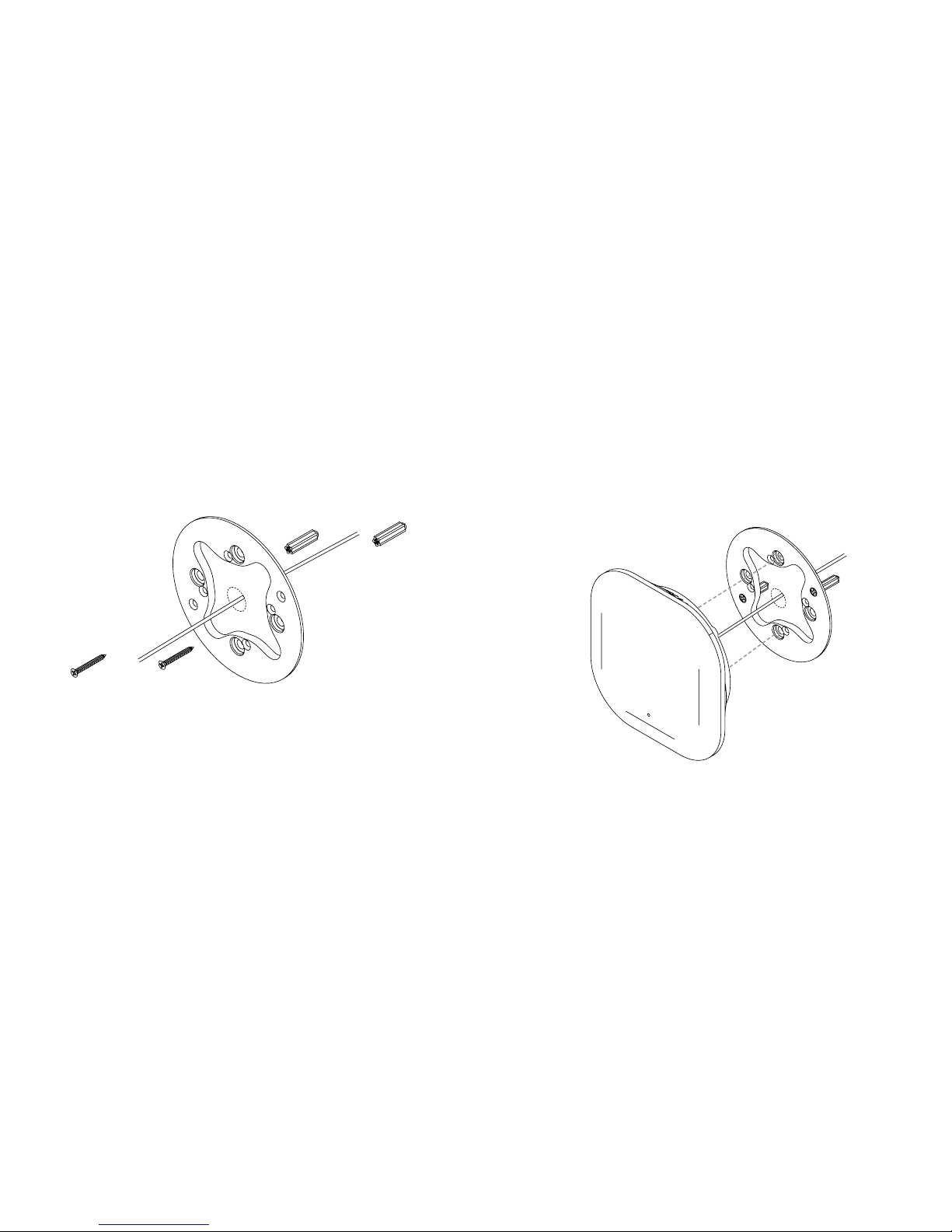

4. Gently drive the drywall anchors into the 7/32" holes.
Locate your Cat5 wire and run it throgh the hole drilled.
5. Mount the bracket to the ceiling using the provided
Phillips screws in the orientation illustrated.
LinkPro - Installation 6
6. Plug in the LinkPro and align the magnets on the
back of the device with two of the recessed areas
illustrated below. The magnets should fit snug in the
recessed areas, and the device should be flush
against the bracket.
LinkPro - Installation 7(cont. on next pg)
LinkPro - Installation 8
7. There should be an audible click.
LinkPro - Installation 9(cont. on next pg)

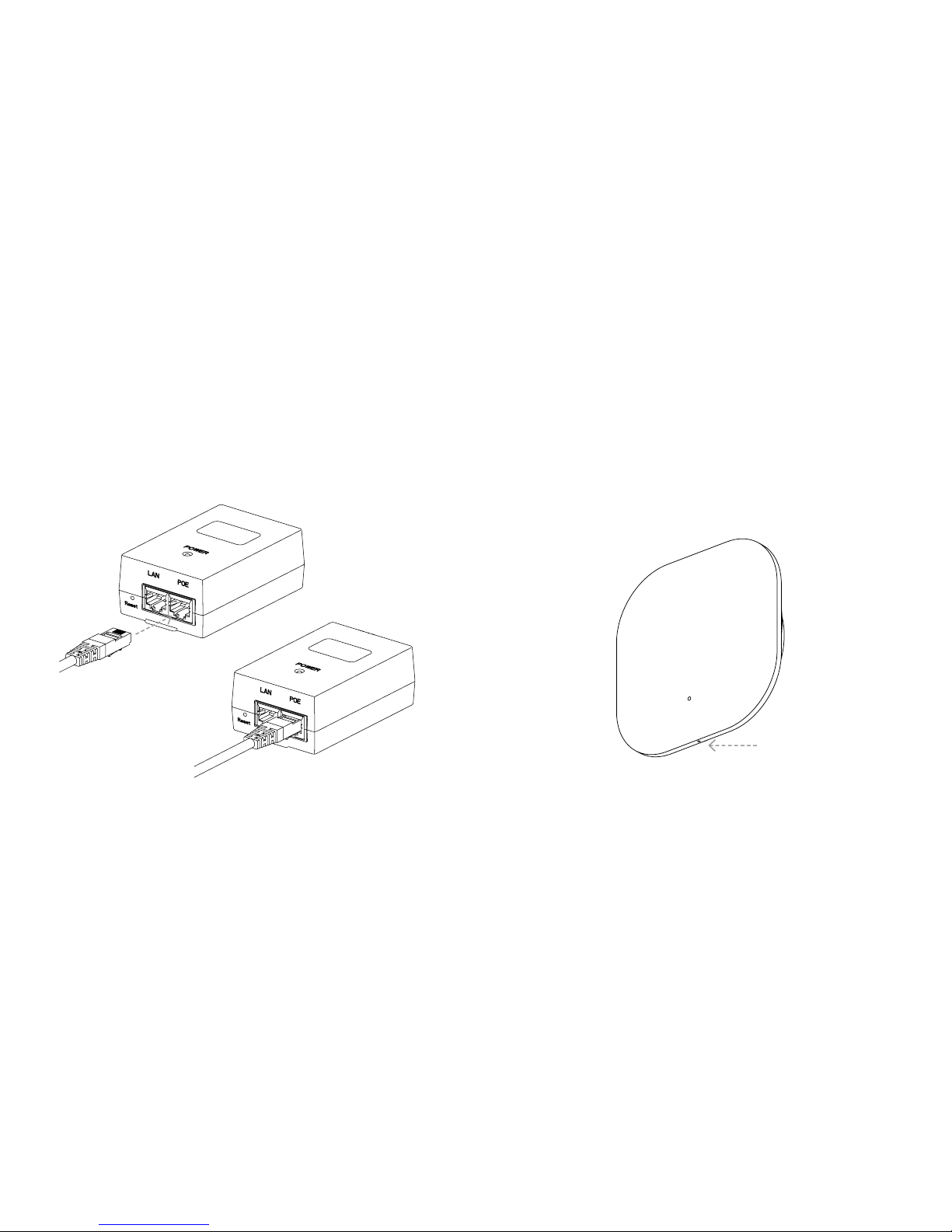

8. Now connect the other end of your Cat5 to PoE
switch (sold seperately)/ PoE injector (incl.)
Plug it into PoE/
Power Output
10LinkPro - Installation Reset 11
Use a thin tool (eg. paperclip) to hold down the reset
button on the side of the LinkPro (LED will turn red) for
approximately 20 seconds, or until the LED turns off.
RESET
Reset button
NOTE: Before proceeding, ensure all Nano shades are
installed and programmed along with group and limit
settings.
1. Download Somfy’s myLink application from the App
Store or Google Play.
2. Power your LinkPro using a PoE switch or the
provided PoE injector, and wait until the LED on the
LinkPro turns solid red.
3. Follow the in-app instructions to connect your
LinkPro (referred to as myLink in the application) to
the wireless network.
4. Once connected to WiFi, name the LinkPro and select
an icon.
SET UP
LinkPro - Set Up 12
5. Click “+” to add an RTS product, then select the
appropriate product type (eg. “Roller Shade”).
6. Press “Next” to skip until at the pairing page.
7. Hold the "Program" button on the installation remote
until the shade jogs.
8. Press “Program” in the myLink app. The shade will
jog again.
9. Press “Create Group” and repeat steps 6 - 8 for all of
the shades in the room.
10. Name the group (this will be used for Amazon
Alexa).
For more details download the Programming Guide
pdf under downloads at screeninnovations.com/
accessories/linkpro/.
LinkPro - Set Up 13
FCC INFORMATION
This device complies with Part 15 of the FCC Results.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including that which may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for CLASS B digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
www.screeninnovations.com/accessories/linkpro This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different
from that to which receiver is connected Consult the dealer or
experienced radionv technician for help.
Changes or modifications not expressly approved by
the manufacturer could void the user's authority to
operate the equipment.
