Scroll Trellis ADD A STACK KIT Manuale utente
1
This Product is
intended to be
used with the
Stack Trellis ™
Starter Kit and
a ¾” x 5’ Stake

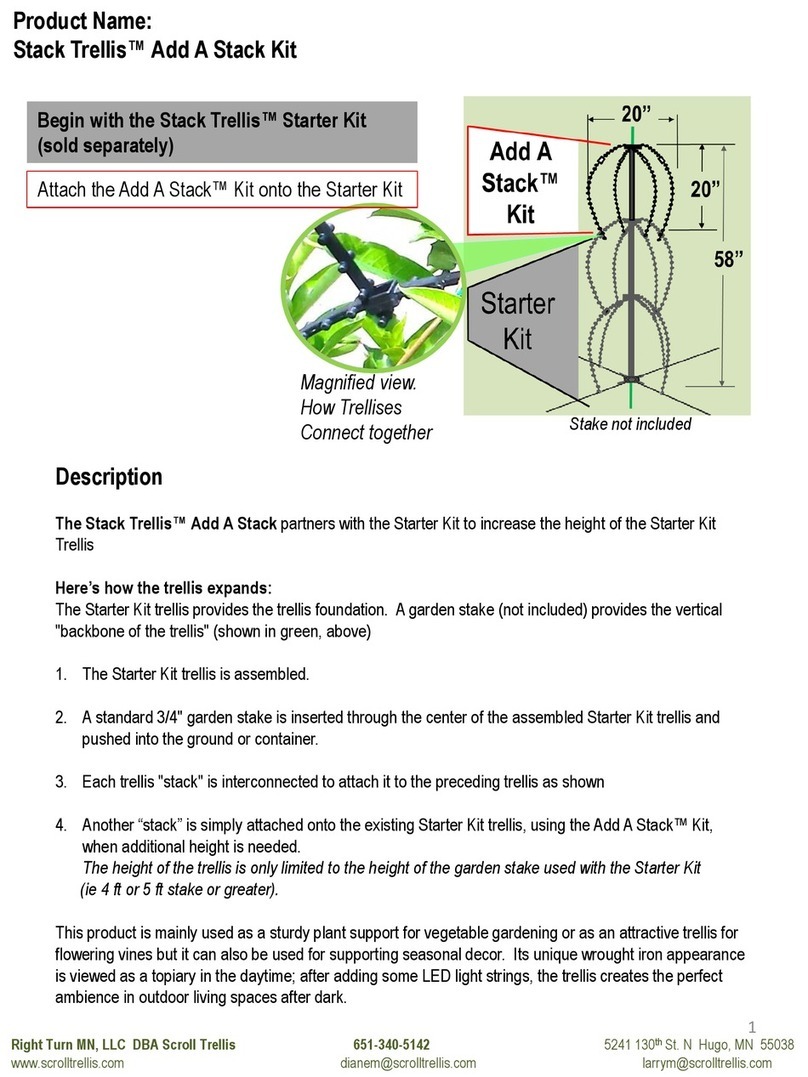

ASSEMBLY INSTRUCTIONS for the
ADD A STACK™ KIT
Begin with the Stack Trellis™
Starter Kit & Stake
(purchased separately)
58”
20”
20”
Add A
Stack™
Kit
Starter
Kit &
Stake
Attach the Add A Stack™ Kit
onto the Scroll Trellis™ Starter Kit
ASSEMBLY INSTRUCTIONS for the
ADD A STACK™ KIT
Parts Reference
Small
Holes
Key
Hole
Short
Tube
Pin
Stand-Off
Tube
Leg
Cable
Tie
Your Kit will come
assembled with the
above part.
Short Tube
1
Hold one of the parts
and rotate the 1st Leg
that is adjacent to the
Leg with Pins
Continue to rotate the
Legs and pinch together
to form the “Star”.
Pins
2
3
Insert two Cable Ties
through the Small Holes
that are opposite each
other on the Legs of the
Star, repeat for the
second Star. (Note:
The correct way to
connect the Cable Tie)
How to connect the
Cable Tie Loop
Insert stem into the flat
side of the flat end of
Cable Tie. Pull the
loose end to tighten
loop into place.
2
3
8
Insert each Leg end
into the Key Hole on
Stack directly below, a
slight twist is required
to lock in place.
Peel back both ends of the Stand-Off Tube to
create the “Stand-Off Tube Ends” (like peeling
a banana)
4
Attach all 4 Legs to the
Stand-Off Tube Ends with
Cable Ties (trim excess
Cable Tie after tightening),
remove the Small Tube
6
Starter
Kit &
Stake
7
Slide Assembly onto
the ¾” Stake on the
Starter Kit and attach
onto the top of the
Starter Kit per Step 6
Insert one Star’s short
tube into the Stand-Off
Tube and align the
four Star’s Legs with
each of the four Stand-
Off Tube Ends.
5
