Sea-doo ZS5A Manuale utente

User Manual

Model no. ZS5A

SEA-DOO®SEASCOOTER™ VS SUPERCHARGED

Daka Development Ltd.

Tel: (852) 2756 3862

Email: [email protected]

Website: www.daka-designs.com

Europe Sales Office:

Daka Europe Limited

Tel: +44 1628 478666

Email: [email protected]

Daka Customer Service Center:

Tel: 1-800-361-2781

Email: [email protected]

Daka Designs Limited (

Listed Company on the Singapore Stock Exchange

)

Wholly Owned Subsidiaries:

For customer enquiries please contact:

www.daka-designs.com

Design Registered • Patent Pending

Printed in China

SEA-DOO®and BRP logo are trademarks of

Bombardier Recreational Products Inc. or its affiliates,

used under license to Daka Development Ltd.

For more information on SEA-DOO®products visit www.seadoo.com

CAUTION:

ELECTRICALLY OPERATED PRODUCT

Not recommended for children under 16 years of age. As with all

electrical products, precautions should be observed during handling

and used to reduce the risk of electric shock.

Introduction

Parts diagram

WARNING

Getting started

Battery use

Care & Maintenance

Trouble Shooting

Technical Specifications

Contents Introduction

Thank you for having chosen the SEA-DOO®

SEASCOOTER™ VS Supercharged - the ultimate Dive

Propulsion Vehicle (DPV).

Years of design and engineering have resulted in a

personal water propeller that gives you power - twin

speed for up to 3mph/4.8km/h for up to 90 minutes of use

at a depth of up to 30m/100ft - but at the same time is

compact and light.

There are many features incorporated in this sophisticated

design, please take a little time to study this manual to

learn about them all to get the most out of your

SEASCOOTER™.

• Read the user's manual carefully.

• Never remove the grilles except for maintenance.

• Never stick body parts, clothing or other objects in the

vicinity of the Propeller. Do not wear loose or flowing

clothing or equipment that could be drawn into the

Propeller.

•

Particular care should be exercised when using the

SEASCOOTER™near anybody with long hair. Users with

long hair should tie it up or wear a swimming cap when

using the SEASCOOTER™.

• Always inspect the swimming area to ensure it is free of

hazards or obstacles such as boats and swimmers before

using the SEASCOOTER™.

• Always charge battery to its fullest before using the

SEASCOOTER™. Ensure sufficient battery charge remains

for return to shore or surface.

• Always wear a coast guard approved personal flotation

device when using the SEASCOOTER™.

• Be aware of appropriate water levels, tidal changes,

dangerous currents, weather changes and strong

offshore winds. Always scout unfamiliar water.

• Do not use alcohol or mind-altering drugs prior to using

this product.

Latch

Nose Cone

Inner Nose Cone

Vent Plug

Triggers

Handle

Nozzle

Propeller

Protective Grilles

Battery Housing

Master Switch

Battery Leads

Battery

Vent Hole

Buoyancy Control Chamber

Silicone Ring

Pump

Lubricant

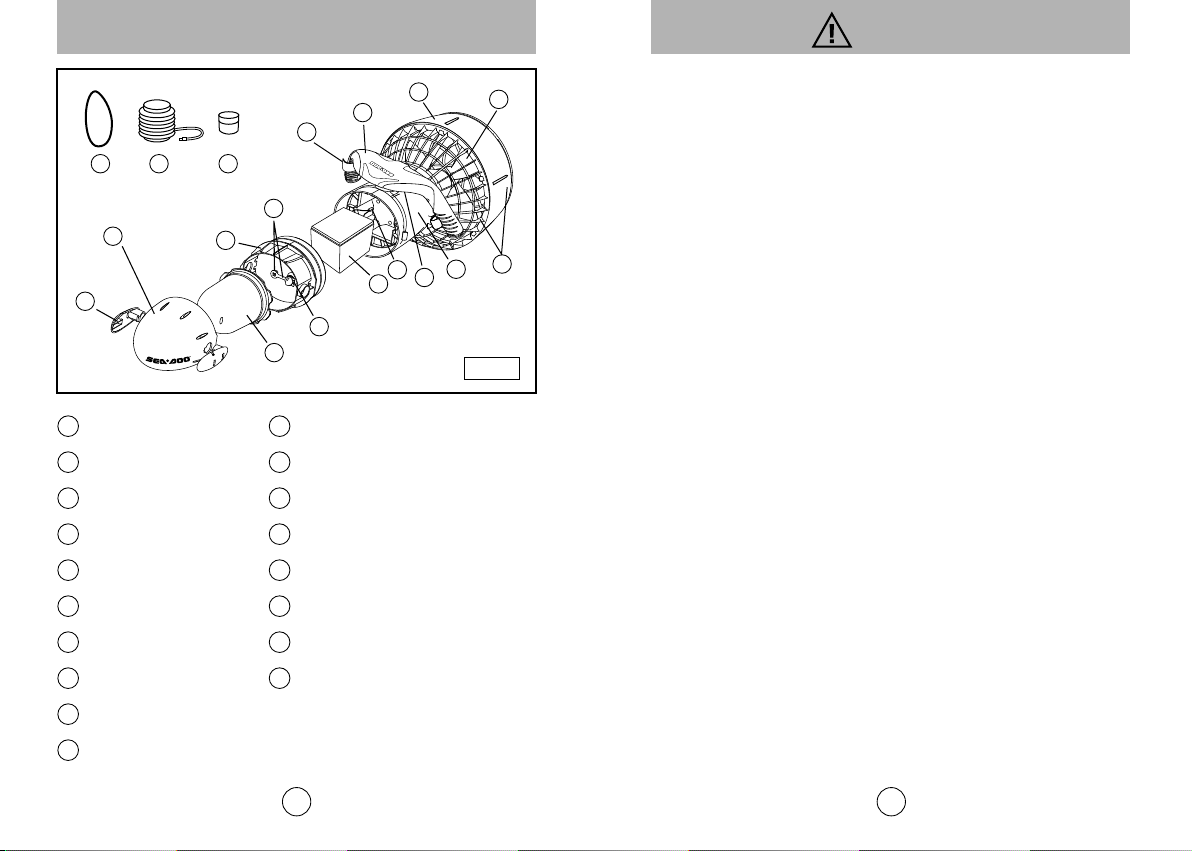

Parts Diagram

11 10

16 17 18

Fig.1

WARNING

Getting Started

When you buy the SEA-DOO®SEASCOOTER™VS

Supercharged the battery is disconnected and needs to be

charged, follow the instructions on page 9, Battery Use,

Charging the Battery, for charging and connection.

Using the SEASCOOTER™for swimming and snorkeling.

When swimming or snorkelling the SEA-DOO®

SEASCOOTER™ VS Supercharged should be kept positively

buoyant - this is done by simply making sure the Buoyancy

Chamber is empty and fitted inside the Nose Cone.

To use the SEASCOOTER™for swimming or snorkeling

follow these instructions.

1. Charge the battery - see page 9 for instructions (make

sure that when you finish charging the Vent Plug is

closed).

2. Place the SEA-DOO®SEASCOOTER™VS Supercharged

into the water so the Handle, Outer Nose Cone and

Nozzle fill with water.

3. When ready to set off, switch the Master Switch to the

On position shown in fig. 2.

4. Pull and hold one or both triggers to start the Propeller.

5. To stop the Propeller, simply release the Trigger.

Always turn the Master Switch off when out of the

water.

4 5

• ALWAYS keep the SEA-DOO®SEASCOOTER™

 VS Supercharged out of direct sunlight when not in use.

HEAT KILLS BATTERIES.

• When using the SEA-DOO®SEASCOOTER™

 VS Supercharged for SCUBA, ascents and descents should

be made in accordance with recognized diving practices.

• The SEA-DOO®SEASCOOTER™VS Supercharged should

only be used for SCUBA by qualified divers.

• Always follow this age recommendation: a child under 16

years old should never operate this SEA-DOO®

SEASCOOTER™ VS Supercharged .

•



Never open the Cover of the SEA-DOO®SEASCOOTER™

 VS Supercharged in the water.

•



When not in use, always turn the Master Switch to the

off position.

• Do not use the SEASCOOTER™below the recommended

maximum depth of 30m/100ft.

3. Open the Buoyancy Chamber and add a small amount

of rocks or a lead weight (see fig. 5).

4. Replace the Buoyancy Chamber and the Nose Cone and

latches and place the SEASCOOTER™ in the water. If the

SEASCOOTER™ is neutrally buoyant will just float in the

water.

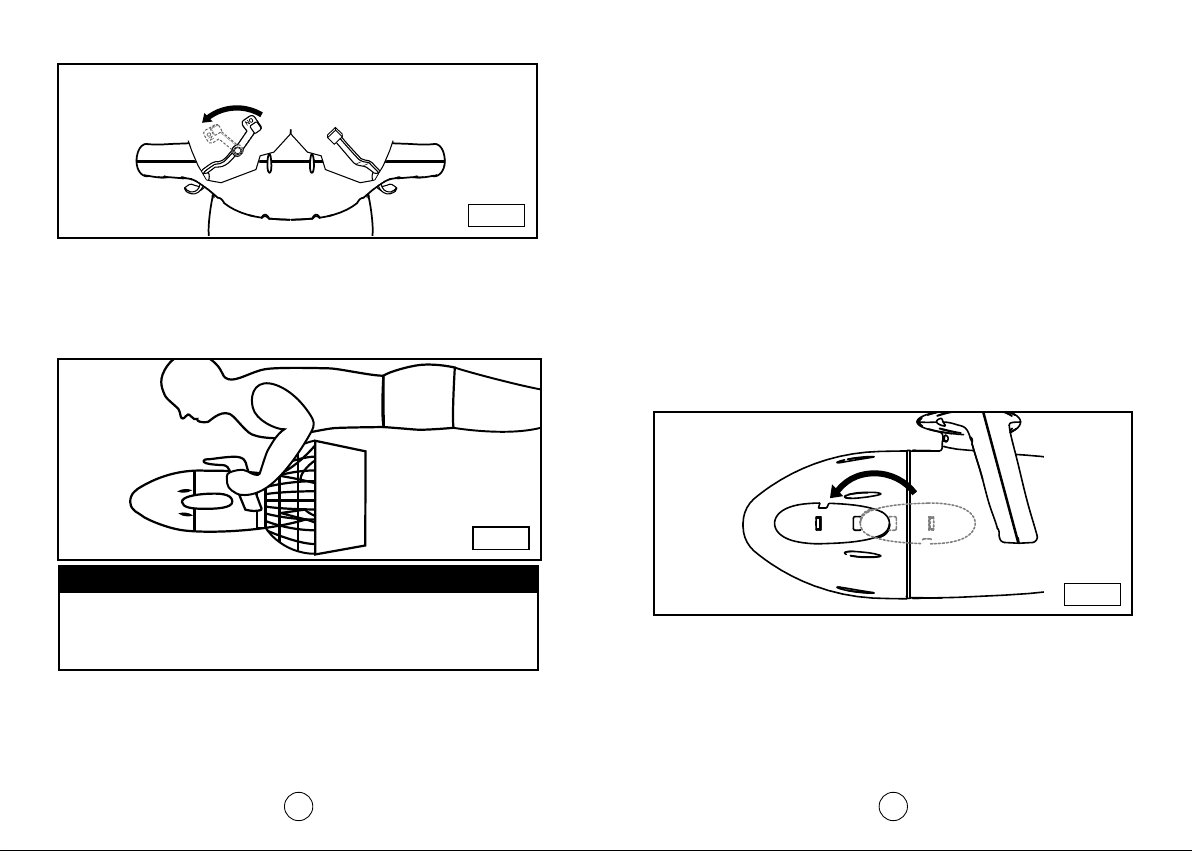

Fig.2

Shown in "ON" position

Rotate to turn "OFF"

6 7

Rotate 180oand remove to open

Fig.4

Do not dive deeper than you would normally when

snorkeling, to ensure you can get back to the surface

safely.

Use of Variable Speed.

Your Seascooter features two speeds - for normal speed,

pull the right trigger only. For the higher speed, pull both

triggers together.

Using the SEA-DOO®SEASCOOTER™ VS Supercharged

for diving - adjusting the buoyancy.

Your SEASCOOTER™can be used for diving up to 30m/100ft

but will need to be adjusted for neutral buoyancy. The

SEASCOOTER™must never be adjusted for negative

buoyancy to avoid it sinking if accidentally released.

To adjust for neutral buoyancy follow these instructions

1. Make sure the SEA-DOO®SEASCOOTER™

 VS Supercharged master switch is in the Off position.

2. Remove the SEASCOOTER™from the water, give a half

turn to the Latches, remove them (see fig. 4) and

remove

the Buoyancy Control Chamber.

CAUTION

Fig.3

Proper posture when using the SEA-DOO®

SEASCOOTER™ VS Supercharged is important to

achieve the maximum speed - see fig. 3 for the correct

position of the SEA-DOO®SEASCOOTER™ VS

Supercharged when using it.

Battery Use

5. If the SEASCOOTER™ sinks, remove rocks until it is 

neutrally buoyant.

If the SEASCOOTER™ is still positively buoyant repeat 

step 3, until it is neutrally buoyant.

8 9

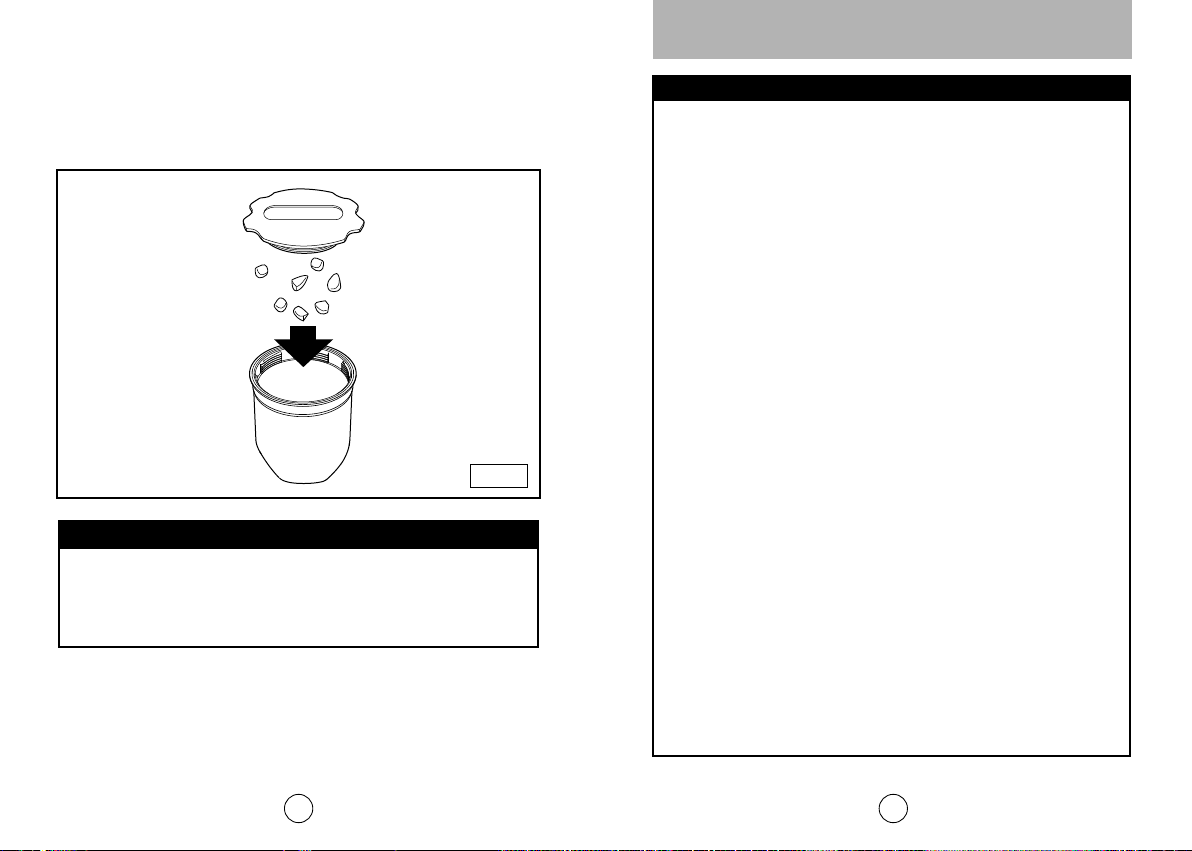

Fig.5

CAUTION

If the SEASCOOTER™is later used for swimming or

snorkeling be sure to remove the weight from the

Buoyancy Chamber so the SEA-DOO®SEASCOOTER™

VS Supercharged has positive buoyancy.

CAUTION

• The Battery Housing should always be ventilated            

during charging to allow potentially explosive gasses

to dissipate. Before removing/attaching any battery

cables always allow two minutes for any gasses to

dissipate.

• ALWAYS plug the charger jack into the charging  

socket first and then plug into the mains. When

charging is complete, unplug the charger from the

mains first and then from the charging socket.

• ALWAYS ensure the charger is DRY before plugging it

into a live socket.

• NEVER place the battery in a sealed container when

charging.

•Never charge battery near water.

• If in doubt of the state of the battery, recharge it    

until the indicator on the battery charger indicates a 

full charge.

• ALWAYS charge battery in a well-ventilated place

where unit is out of reach of children.

• ALWAYS ensure the unit is dried thoroughly before

opening the Nose Cone for charging or changing the

battery.

10 11

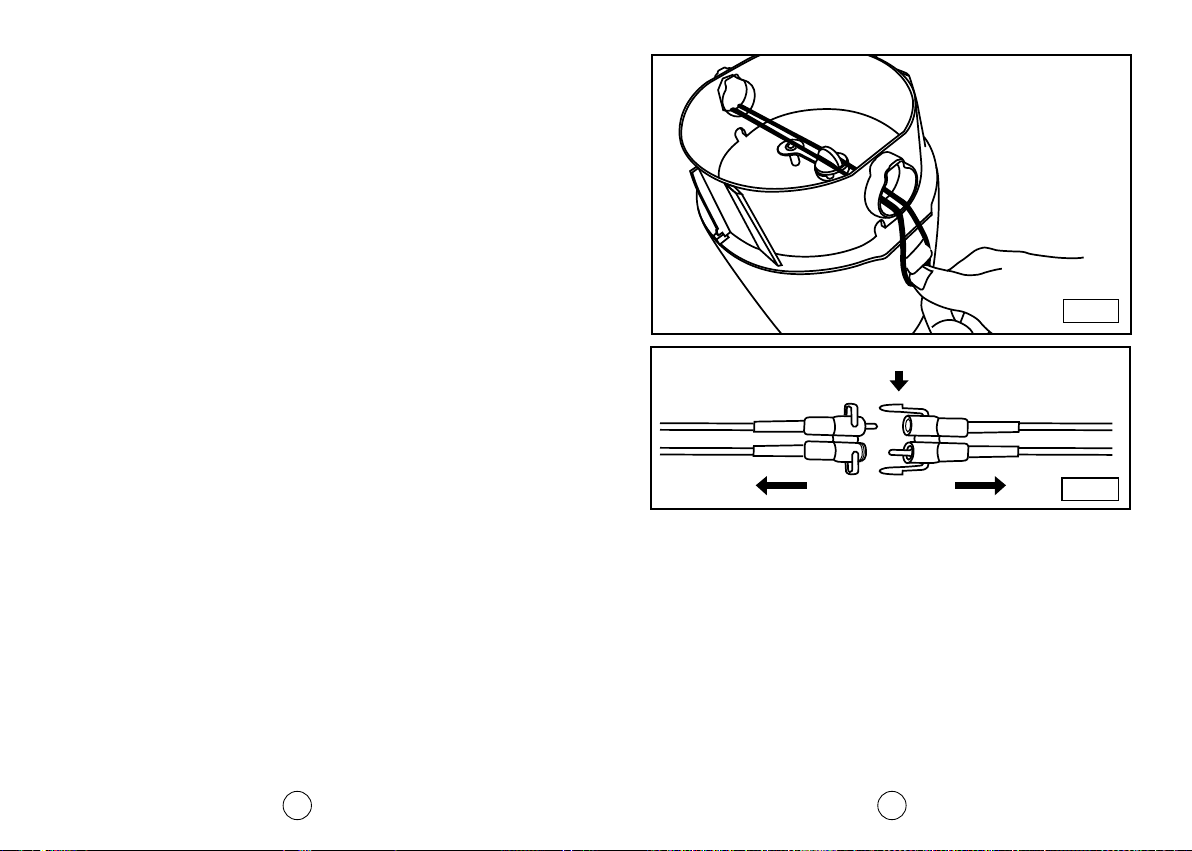

Fig.6

Press here to release and pull to disconnect

Fig.7

Charging the battery

For battery charging follow these instructions.

1. Always ensure that the Master Switch is Off - see fig. 2.

2. Always ensure that the SEA-DOO®SEASCOOTER™

 VS Supercharged is out of the water and placed in a dry

area.

Give a half turn to the Latches and remove them from

the Nose Cone as shown in fig. 4.

Remove the Outer Nose Cone and Buoyancy Control

Chamber.

5. Open the Vent by unscrewing the Vent Plug.

Remove the Inner Nose Cone. To do this, first feed the

silicone ring (provided with this manual) through the

latch holes in the Inner Nose Cone and hook over the

hooks on the Battery Housing (see fig. 6). Then screw the

Pump Nozzle onto the Vent Hole and pump air into the

Battery Chamber until the Inner Nose Cone pops off and

then remove the silicone ring.

7. Allow two minutes for any gasses to dissipate.

Disconnect the battery cable from the housing cable (if

not already disconnected - the cable will be disconnected

when you buy your SEASCOOTER™) by pressing the

locking feature, as shown in fig. 7.



Connect the battery cable to the charger cable.

10.

Plug charger into mains, and turn on the supply. Do  

not replace the Nose Cone.

11.

Charging will take 4 to 6 hours for a fully discharged  

battery. When the battery is charging the LED charger 

remains on, when the battery is charged the LED 

flashes.

12. Unplug the adapter from the mains.

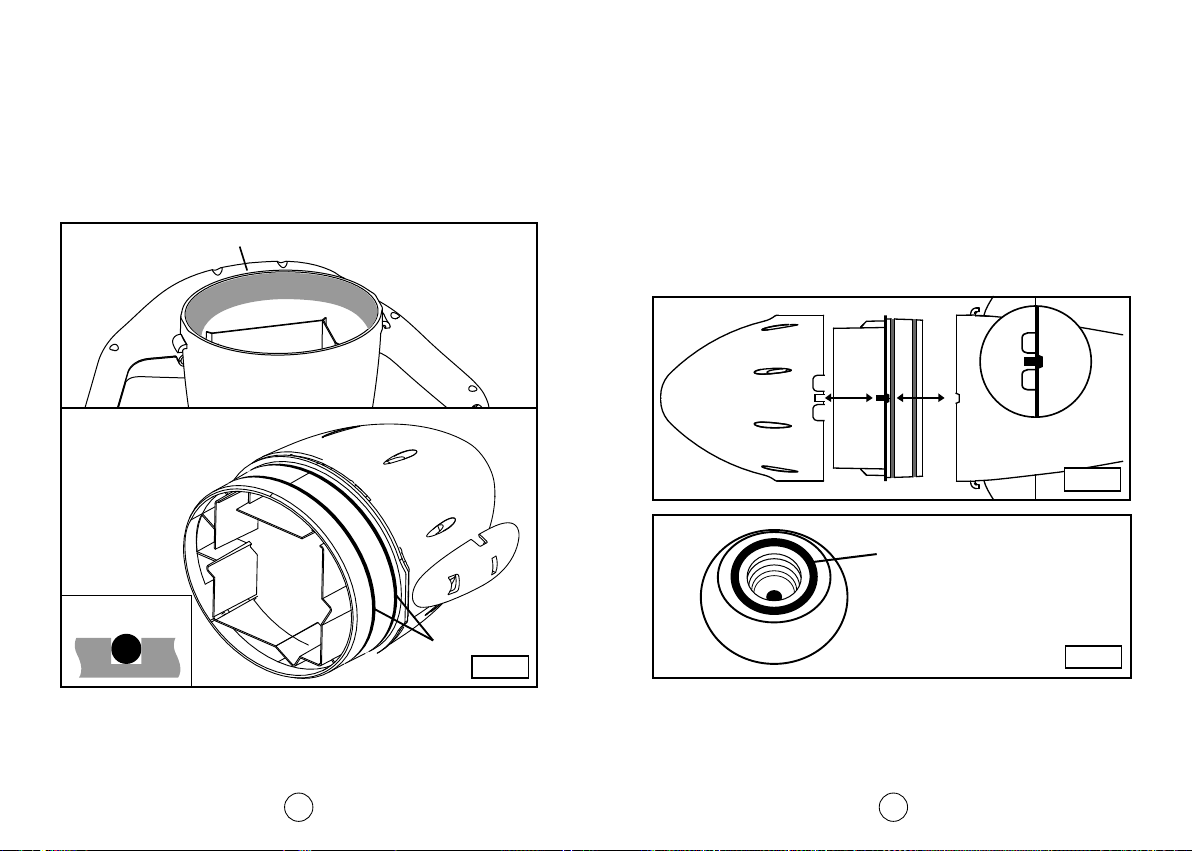

Fig.8

Ensure sealing surface is clean

Ensure the seals are

clean and lubricated

Seals

Close up view

of seals

Fig.9

Close up view

O Ring correctly fitted into

groove and lubricated

Fig.10

12 13

13. Unplug the battery cable from the charger cable and  

reconnect to the housing cable.

14. Make sure the seals and sealing surfaces are clean and 

lubricated before replacing the Inner Nose Cone. See 

fig. 8.

15. Replace the Inner Nose Cone making sure the key is

aligned correctly. See fig. 9.

16. Ensure the Vent O Ring is fitted correctly. See fig. 10.

17. Screw in the Vent Plug to seal the vent.

18. Replace the Buoyancy Control Chamber.

19. Replace the Outer Nose Cone making sure the key is

aligned correctly and insert the Latches and lock the

Nose Cone by giving them a half turn. See fig. 11.

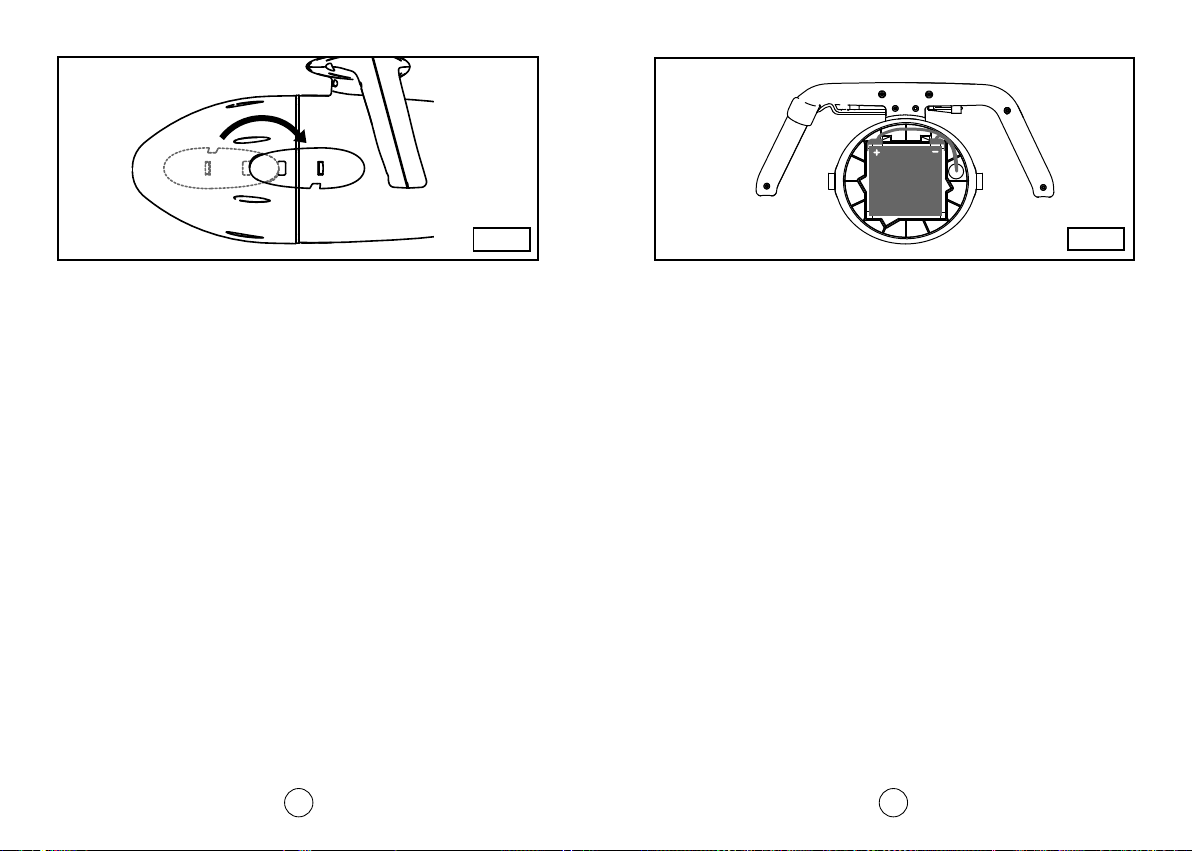

Rotate 180oto close

Fig.11

Note: To charge a battery outside of the unit, simply

connect to the charger , then plug the charging adapter

into the mains. When the battery is charged, unplug the

adapter first then the battery.

To replace a flat battery with a fully charged battery.

Follow the steps 1 to 6 on page 10, to open the

SEASCOOTER™.

Unplug the battery at the socket by pressing the

locking feature shown in fig. 7 on page 11.

Remove the flat battery.

4. Install and connect the charged battery in the correct

position - the leads of the battery must be oriented as

shown on the sticker on the battery, see fig. 12.

5. Follow steps 14 to 19 on page 12, to close the

SEASCOOTER™.

Buying batteries

Additional standard or extended batteries can be

purchased separately. Contact your dealer to purchase

them.

14 15

Fig.12

Care And Maintenance

16 17

Battery Care

• The battery should be recharged as soon as possible

after use.

• If the unit is not used for extended periods, the battery

should be removed from the unit and charged

overnight, every three months.

• Only use the charger supplied with the SEASCOOTER

™

• Never place the battery in a sealed container when

charging.

• Never short circuit the battery or battery cable.

• Never place/store the battery near a radiator/fire, etc.

•

To store the battery, remove it from the SEASCOOTER

™

or separate it from the charger, insulate the battery

terminals and keep in a place that is dry and cool.

• Ambient temperature for storage should be within the

range -20oC to 40oC (-4oF to 104oF).

Care after using the SEASCOOTER™

• Always rinse the SEASCOOTER

™

in fresh water and

allow it to dry before storage.

• Whenever possible rinse the SEASCOOTER

™

in fresh

water immediately after use.

• To clean the SEASCOOTER

™

do not use detergents,

only use a damp cloth to wipe the unit clean.

• The Battery Housing interior should be kept dry at all

times.

• If the Battery Housing interior ever gets wet, see page

22, Accidental Flooding for procedure.

• When storing the SEASCOOTER

™

for extended periods

of time, open the Vent Plug in the Inner Nose Cone.

• ALWAYS store your SEASCOOTER

™

vertically when not

in use to prevent deformation of the Propeller Nozzle.

Indice

Altri manuali Sea-doo Barca

Sea-doo

Sea-doo SPARK Series Manuale

Sea-doo

Sea-doo 1997 SP Manuale

Sea-doo

Sea-doo 2000 Islandia Manuale

Sea-doo

Sea-doo Speedster 5894 Guida all'installazione

Sea-doo

Sea-doo RXP-X 260 Manuale

Sea-doo

Sea-doo 2001 GTS Manuale

Sea-doo

Sea-doo GTI California 6116 Guida all'installazione

Sea-doo

Sea-doo 2004 3D RFI Manuale utente

Sea-doo

Sea-doo 2001 GS Guida all'installazione

Sea-doo

Sea-doo 2001 GS Manuale utente

Sea-doo

Sea-doo 2003 XP DI Guida all'installazione

Sea-doo

Sea-doo EXPLORER PRO 170 2023 Manuale

Sea-doo

Sea-doo GTX DI 5563 2002 Guida all'installazione

Sea-doo

Sea-doo 2012 Sea Doo GTX series Manuale

Sea-doo

Sea-doo Aqua Mate SD75005 Manuale utente

Sea-doo

Sea-doo SWITCH 13 FT 2022 Manuale

Sea-doo

Sea-doo 2002 GTX 4-TEC Manuale

Sea-doo

Sea-doo GS 2002 Manuale

Sea-doo

Sea-doo SP 5873 Guida all'installazione

Sea-doo

Sea-doo GSX 5620 Manuale utente

Sea-doo

Sea-doo 1997 SP Guida all'installazione

Sea-doo

Sea-doo XP DI 2003 Manuale

Sea-doo

Sea-doo 210 Challenger/SP Manuale

Sea-doo

Sea-doo 4-TEC series 2008 Guida all'installazione

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
