Sea Eagle Boats Fish-n-Troll Guida rapida

Fish-n-Troll

Instructions & Owner’s Manual

For video instructions visit, SeaEagle.com/Instructions

Sea Eagle Boats, Inc.

19 N. Columbia Street, Suite 1

Port Jeerson, NY 11777

1-800-748-8066

July 2016

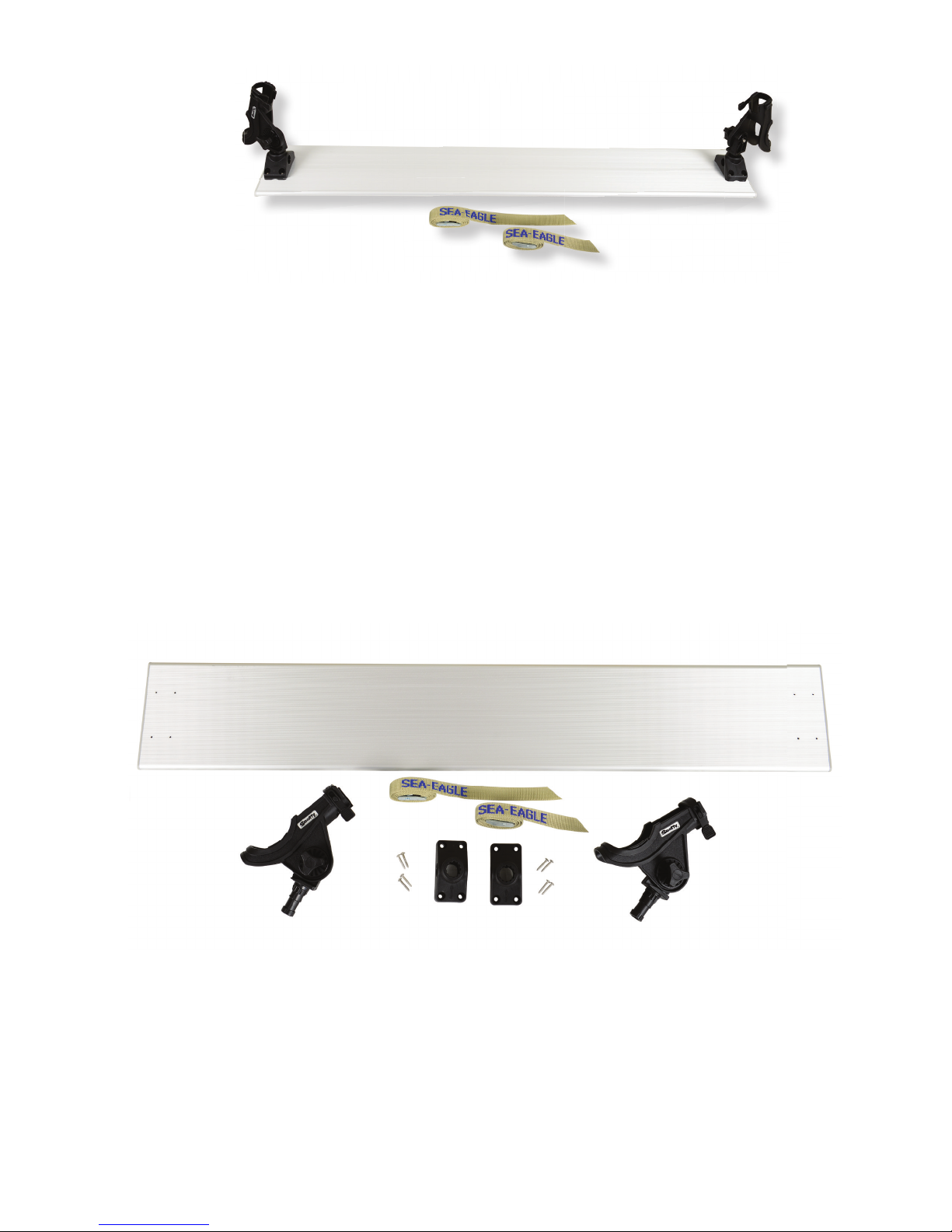

Sea Eagle Fish-n-Troll

(fully assembled with 4’ straps)

Check all parts are included and lay out all parts on a clean, dry area.

• 1 - 48” x 8” aluminum board with 8 pre-drilled holes

• 2- 4’ Sea Eagle self-locking straps (not included with SE9)

• 2 - Scotty Rod Holders

• 2 - Scotty Deck Mounts

• 8 - #6 x 1” screws

* You need a Phillips head screwdriver for the one time only pre-assembly

(Straps not included

with SE9)

(Straps not included

with SE9)

Remove the Scotty Deck

mount bases from the rod

holders. The bases attach to

the 4 holes on either side of

the board.

Place the bases over the

holes in the board with

the “INBOARD” arrow

pointing to the center of

the board.

Using a #2 phillips head

screwdriver, secure the

mounts to the board with

the #6 screws.

Align the slot in the rod

holder with the key in the

base. Push the rod holder

into the base. When the key

goes through the slot, turn

the rod holder to the desired

position, push down to lock

in place.

Adjust the angle of the rod

holder by loosening the

large screw knob.

Mounting the Fish-n-Troll:

Secures to the SE9 via the motormount frame and attaches to

FastTrack™ and Explorer™ kayaks with adjustable self-locking

straps.

To FastTrack & Explorer

Place the board

between the 4 rings

at the back of the

kayak.

Flip a 4’strap

upside down

and slip the end

through the

front d-ring, then

through the back

d-ring.

Loop the strap

over the board

and through the

cinch lock on the

other end of the

strap.

Pull the strap tight

to secure to the

Fish-n-Troll to the

kayak.

Repeat on the

other side.

To the SE9

Place the

Fish-n-Troll

between the 4

motormount

grommets at the

back of the boat.

Slide a

motormount

bar through the

back grommet

and over the

Fish-n-Troll.

Continue to

push the bar

through the front

grommet.

Once the bar is in

place, secure the

motormount bar

with the pin.

Repeat on the

other side.

Unlike many other companies today we pride ourselves on

answering the phone and helping you with any concerns,

questions or special ordering needs that you may have! Feel

free to give us a call at 1-800-748-8066 and we will be happy

to talk with you! Our business hours are Monday to Friday from

9AM to 5PM, EST.

Sea Eagle Boats Inc.

19 N. Columbia Street, Suite 1

Port Jefferson NY 11777

631-473-7308

1-800-748-8066

[email protected]

Sea Eagle Warranty

All Sea Eagle products come standard with a 3 year warranty

against manufacturing defects The warranty begins the date that

your product is delivered. Sea Eagle must inspect equipment in

order to determine if there is a defect. In the event that an item

must be shipped back to us, Sea Eagle will only reimburse the

standard return shipping charge through FedEx, UPS, or U.S.P.S. at

published shipping rates. Fees charged by retail shipping outlets,

like The UPS Store, will not be reimbursed and you are responsible

for handling and packing charges.

Sea Eagle will refuse delivery on packages without a valid return

authorization number and will not be responsible for shipping

or handling charges. To obtain a return authorization number,

please contact Sea Eagle directly, unless you purchased from an

authorized dealer/reseller in which case contact them for more

information.

If you receive a damaged item, please call the shipping carrier to

report the issue. Do not return damaged merchandise until it has

been inspected by the carrier. Sea Eagle will be notied by the car-

rier when they have completed their inspection and if necessary,

Sea Eagle will arrange for the repair or replacement of damaged

merchandise.

See complete warranty details at SeaEagle.com/Warranty.
