350 Su n d a n c e r Sp e c i f i c in f o r m a t i o n ma n u a l

Ta b l e o f Co n T e n T s

1. Load Capacity..........................................................1

2. Passenger Locations ...............................................1

3. Safety Label Locations ............................................2

4. Basic Boat Dimensions and Clearances ................. 6

5. Function and Location of Through-Hull Cutouts ...... 7

6. Helm, Gauge & Switch Layout................................8

7. Deck Layout ........................................................... 10

8. Cabin Layout.......................................................... 11

9. Cleats..................................................................... 12

10. Navigation and Anchor Lights..............................12

11. Lighting ................................................................12

12. Bilge Layout .........................................................14

13. Fire Extinguishing System ...................................18

14. Fuel System.........................................................18

A. Gasoline Fuel System..................................... 18

B. Diesel Fuel System (Optional) ........................ 18

15. Water System ......................................................18

16. Aft Facing Transom Seat......................................18

17. Entertainment System ......................................... 19

18. DC to AC Inverter ................................................20

19. Engine Hatch .......................................................20

20. Canvas................................................................. 20

21. Electrical Schematic ............................................ 20

Information in this publication is based upon the latest product speciﬁcations available at printing. Sea Ray®

Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, speciﬁcations,

materials and prices of all models, or to discontinue models. Should changes in production models be made, Sea

Ray® is not obligated to make similar changes or modiﬁcations to models sold prior to the date of such changes.

Owner’s Manual

350 Sundancer®

Printed in the U.S.A. June 2008

Sea Ray Boats, Inc. 0 Sea Ray Blvd., Knoxville, TN 37914

For information call 1-800-SRBOATS or fax 1-314-213-7878

(International 1-314-216-3333)

Internet Address: http://www.searay.com

Note: Not all accessories shown in pictures or described herein are

standard equipment or even available as options.

Options and features are subject to change without notice.

The following are registered trademarks of the Brunswick Corporation: Sea Ray®& The SR Wave Logo

350 Sundancer®

ii Manual Part Number: MRP 1944467

THIS PAGE INTENTIONALLY LEFT BLANK

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®Manual Part Number: MRP 1944467

1. lo a d Ca p a C i T y

Refer to the General Information Manual for a

detailed explanation of Load Capacity.

1360

350 DA

Bu i l d e r ’Spl a t e (i n t e r n a t i o n a l )

(fi g . 1.1)

BOAT MANUFACTURER MFR’S MODEL

DESIGNATION

MAXIMUM NUMBER

OF PASSENGERS

MAXIMUM LOAD

CAPACITY

Never carry more weight or passengers than indicated

on the certiﬁcation plate, regardless of weather or

water conditions.

The boat can capsize, swamp or sink.

! DANGER

pa S S e n g e r lo c a t i o n S

(fi g . 1.2)

Rotating propellers can injure or kill you.

Shut off engine when persons are in water near

boat, or on swim platform or ladder.

!DANGER

ACCOMMODATION DECK

(DECK AREA INTENDED FOR

OCCUPATION DURING NORMAL

OPERATION)

WORKING DECK

(DECK AREA INTENDED

FOR OCCUPATION DURING

ANCHORING, MOORING AND

EMERGENCY OPERATION ONLY

Rear facing transom seats MUST NOT be used while

engine is running or boat is moving.

! WARNING

2. pa s s e n g e r lo C a T i o n s

Refer to the General Information Manual for a

detailed explanation of Passenger Locations.

Boat motion can be erratic.

You can fall overboard or be injured by hitting

something in or on the boat.

All persons must be in cockpit area or cabin and be

prepared for sudden boat movement.

Use front or bow deck area only during anchoring,

mooring or emergencies.

! WARNING

Wet decks are slippery.

You can be seriously injured if you slip and fall.

Wear slip resistant footwear secured to your feet and

hold on to rails or boat structure.

! WARNING

DO NOT STAND OR WALK ON THIS

AREA WHILE UNDERWAY.

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®

Manual Part Number: MRP 1944467

!DANGER

Carbon monoxide (CO) can cause brain damage

or death.

Engine and generator exhaust contains odorless

and colorless carbon monoxide gas.

Carbon monoxide will be around the back of the

boat when engines or generators are running.

Move to fresh air, if you feel nausea, headache,

dizziness, or drowsiness. NW-206-05

CO CO

3. sa f e T y la b e l lo C a T i o n s

MRP 1743571 SR-7102

DANGER

TRANSOM DOOR MUST BE

CLOSED AND SECURE WHEN

ENGINE IS RUNNING

MRP 1745158 SR-7119B

DANGER

NO SMOKING

GASOLINE VAPORS ARE EXPLOSIVE

LPG Appliances can ignite gasoline

vapor causing ﬁre or explosion.Turn off

all LPG appliances while fueling.

NOTICE

GASOLINE RECOMMENDATION

Minimum octane rating of 87 AKI.

Refer to the engine owner’s manual for

additional information.

TO AVOID RISK OF SERIOUS INJURY OR DEATH

SHUT OFF ENGINE WHEN NEAR SWIMMERS

OR PRIOR TO USING SWIM PLATFORM AND

BOARDING LADDER.

MRP 1745519 SR-7214

DANGER

Sa f e t y la B e l lo c a t i o n S

(fi g . 2.1)

MRP 1745162 SR-7124

INSIDE COMPARTMENT

WARNING

- DO NOT LEAVE BOAT UNATTENDED WITH THE

DOCKSIDE WATER HOSE CONNECTED.

- DOCKSIDE WATER SHOULD BE CONNECTED

DURING PERIODS OF HEAVY WATER USE ONLY.

LOCATED UNDER ANCHOR HATCH

STAY CLEAR OF MOVING PARTS

MRP # 1746896 SR-7162

DANGER

DOOR MUST BE CLOSED AND LATCHED

FOR ENGINE HATCH LIFT TO BE ACTUATED.

MRP # 1907439 SRS-7425

NOTICE

DO NOT STAND OR WALK ON

THIS AREA SERIOUS INJURY

COULD RESULT.

MRP # 1745515 SR-7216

DANGER

YOU CAN DIE OR BE SERIOUSLY INJURED BY

BREATHING CARBON MONOXIDE

OR BY THE PROPELLER IF YOU

FALL OVERBOARD.

REAR FACING TRANSOM SEATS MUST NOT

BE USED WHILE ENGINE IS RUNNING OR

BOAT IS MOVING.

WARNING

1792393

MRP 852558 SR-140

FORE AND AFT SUN PADS SHOULD NOT

BE USED WHEN VESSEL IS UNDER WAY.

DANGER

RUNNING BOAT WITH DOOR OPEN COULD

INDUCE EXHAUST FUMES INTO CABIN.

SEE OWNER’S MANUAL FOR INSTRUCTIONS

CONCERNING CARBON MONOXIDE.

MRP # 1743548 SR-7285

WARNING

MRP # 1743507 SR-7313

WARNING

- SECURE DOOR WHEN CRUISING.

- DO NOT SIT, STAND, OR PLACE HEAVY

OBJECTS ON DOOR.

- KEEP CABIN DOOR CLOSED WHEN ENGINES

OR GENERATOR ARE RUNNING.

- DO NOT USE CAUSTIC MATERIALS TO CLEAN.

- WASH WITH MILD SOAP AND WATER.

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®Manual Part Number: MRP 1944467

MRP 1746224 SR-7218

IMPORTANT SAFETY AND OPERATIONAL INFORMATION

!WARNING

Carbon monoxide (CO) can cause brain damage or death.

Engine and generator exhaust contains odorless and colorless carbon monoxide gas.

Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness,

and lack of consciousness.

Get fresh air if anyone shows signs of carbon monoxide poisoning.

See Owner's Manual for information regarding carbon monoxide poisoning.

NW-204-05

CO CO

sa f e T y la b e l lo C a T i o n s (Co n T i n u e d )

Sa f e t y la B e l lo c a t i o n S

(fi g . 3.1)

1360

350 DA

THIS TAG INSTALLED WHEN BOAT IS ORDERED

WITH CE INTERNATIONAL OPTION

NMMA CERTIFICATION TAG

CHECK BATTERY CELL FLUID LEVEL

APPROXIMATELY EVERY 4 WEEKS, AND MORE

OFTEN IN SUMMER AND HOT ZONES.

MRP # 1746895 SR-7139

NOTICE

STAY CLEAR OF MOVING PARTS

WHILE ENGINE IS RUNNING.

MRP 1745512 SR-7149

DANGER

LEAKING FUEL IS A FIRE AND EXPLOSION

HAZARD. INSPECT SYSTEM REGULARLY.

EXAMINE FUEL TANKS FOR LEAKS OR

CORROSION AT LEAST ANNUALLY.

MRP 1745513 SR-7151

WARNING

DISCHARGE OF OIL PROHIBITED

THE

FEDERAL WATER POLLUTION CONTROL ACT PROHIBITS THE

DISCHARGE OF OIL OR OILY WASTE INTO OR UPON THE NAVIGABLE

WATERS OF THE UNITED STATES OR THE WATERS OF THE CONTIGUOUS

IF SUCH DISCHARGE CAUSES A FILM OR SHEEN UPON OR A

DISCOLORATION OF THE SURFACE OF THE WATER OR CAUSES A

SLUDGE OR EMULSION BENEATH THE SURFACE OF THE WATER.

VIOLATORS ARE SUBJECT TO A PENALTY OF $5,000.

MRP 1744737 SR-744

VISIBILITY FROM THE SEATED POSITION AT

THIS HELM STATION IS LIMITED.

AVOID SERIOUS INJURY OR DEATH FROM COLLISIONS.

OPERATION FROM A STANDING POSITION

MAY BE NECESSARY TO MAINTAIN LOOKOUT

AS REQUIRED BY RULES OF THE ROAD.

READ OWNERS MANUAL.

MRP 1743528 BCM-714

WARNING

PRIOR TO TOWING VESSEL:

CAUTION

• LOCK PROPELLER SHAFT(S) TO PREVENT

DAMAGE TO SHAFT SEAL AND TRANSMISSION

BEARINGS.

• CLOSE SEACOCKS ON NON-OPERATING

ENGINES TO PREVENT SEA WATER INGESTION.

MRP 1751885 SR-7203

MRP 1745156 SR-7118

NOTICE

THIS BOAT IS EQUIPPED WITH

AN OPTIONAL DIRECT OVERBOARD

DISCHARGE VALVE. DISCHARGING

OF SEWAGE DIRECTLY OVERBOARD

IS FOR USE WHERE APPROVED ONLY

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®

Manual Part Number: MRP 1944467

MRP 1747493 SR-7135

LEAVING WINDOW OPEN COULD

INDUCE EXHAUST FUMES

INTO CABIN RESULTING IN SEVERE

PERSONAL INJURY OR DEATH

DANGER

NOTICE

EXHAUST FAN MUST BE ON

WHEN USING COOKING

APPLIANCES

MRP #1745124 SR-7106

MRP 1743616 SR-7154

UNPLUG SHORE POWER AND

TURN OFF GENERATOR

BEFORE REMOVING COVER

DANGER

LOCATED ON ALL AC JUNCTION BOXES

DO NOT USE AFT SUNSHADE IN THE DEPLOYED

POSITION AT SPEEDS IN EXCESS OF 10 MPH.

MRP # 1894013 SR-7418

NOTICE

DO NOT CLIMB UPON OR STORE

EQUIPMENT ON HARDTOP

! DANGER

MRP 1765879 SR-7198

DANGER

In all gasoline powered boats, engine and generator exhaust

systems produce colorless and odorless carbon monoxide gas

(“CO”). Direct prolonged exposure can result in CO poisoning

which may be harmful or fatal. To prevent excess exposure and

reduce the possibility of accumulations of CO in the cabin and

cockpit of the boat, the operator should insure adequate ventilation

in each the cabin and cockpit areas, through utilization of cabin

hatches, cabin doors, cabin windows, cockpit windshield windows

and side windshield vents to increase air movement through the

cabin and cockpit areas. The following conditions tend to increase

the accumulation of CO in and about the boat and require the

operator’s particular attention:

1. Operation at slow speeds or dead in the water.

2. Operation with a high bow angle attitude.

3. The utilization of canvas tops, side curtains and back

curtains.

4. Contributing climatic conditions, such as a head wind.

5. Operation of engines and/or generator in conﬁned

spaces or at dockside.

6. Any blockage of hull exhaust outlets.

Indications of excessive exposure to CO concentrations may

include nausea, dizziness and drowsiness.

MRP 1746899 SR-7126

!WARNING

Carbon monoxide (CO) can cause brain damage or death.

Carbon monoxide can be present in the cabin.

Signs of carbon monoxide poisoning include nausea, headache,

dizziness, drowsiness, and lack of consciousness.

Get fresh air if anyone shows signs of carbon monoxide poisoning.

Get fresh air is carbon monoxide detector alarm sounds.

Carbon monoxide detoctor must be functioning at all times.

NW-205-05

CO CO

MRP 1747493 SR-7135

LEAVING WINDOW OPEN COULD

INDUCE EXHAUST FUMES

INTO CABIN RESULTING IN SEVERE

PERSONAL INJURY OR DEATH

DANGER

sa f e T y la b e l lo C a T i o n s (Co n T i n u e d )

Sa f e t y la B e l lo c a t i o n S

(fi g . 4.1)

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®Manual Part Number: MRP 1944467

LOCATED ON INSIDE OF GALLEY CABINET DOOR

Save Our Seas

It is illegal to dump plastic trash anywhere into the ocean or navigable

waters of the United States. Violation of these requirements may result

in civil penalty up to $25,000, a ﬁne of $50,000 and imprisonment for up

to ﬁve years.

PLASTIC - Includes but is

not limited to: plastic bags,

styrofoam cups and lids, six-

pack holders, stirrers, straws,

milk jugs, egg cartons, syn-

thetic ﬁshing nets, ropes, lines,

and bio or photo degradable

plastics.

GARBAGE - Means paper,

rags, glass, metal, crockery

(generated in living spaces

aboard the vessel-what we

normally call trash), and all

kinds of food, maintenance and

cargo-associated waste.

“Garbage” does not include

fresh ﬁsh or ﬁsh parts, dishwa-

ter, and gray water.

DUNNAGE- Material used to

block and brace cargo, and is

considered a cargo associated

waste.

DISHWATER- Means the liquid

residue from the manual or au-

tomatic washing of dishes and

cooking utensils which, have

been pre-cleaned to the extent

that any food particles adher-

ing to them would not normally

interfere with the operation of

automatic dishwashers.

GRAYWATER - Means drain-

age from a dishwasher, shower,

laundry, bath, and washbasin,

and does not include drainage

from toilets, urinals, hospitals,

and cargo spaces.

(and in U.S. Lakes, Rivers,

Bays and Sounds)

PLASTICS

DUNNAGE, LINING AND PACKING

MATERIALS THAT FLOAT

ANY GARBAGE EXCEPT DISHWATER/

GRAYWATER/FRESH FISH PARTS

PLASTICS

DUNNAGE, LINNING AND PACKING

MATERIALS THAT FLOAT

ANY GARBAGE NOT GROUND TO LESS

THAN ONE SQUARE INCH

PLASTICS

DUNNAGE, LINING AND PACKING

MATERIALS THAT FLOAT

PLASTICS

3 TO 12 MILES

INSIDE 3 MILES

12 TO 25 MILES

sa f e T y la b e l lo C a T i o n s (Co n T i n u e d )

Sa f e t y la B e l lo c a t i o n S

(fi g . 5.1)

350 Su n d a n c e r ®ow n e r S ma n u a l

350 Sundancer®

Manual Part Number: MRP 1944467

(D)

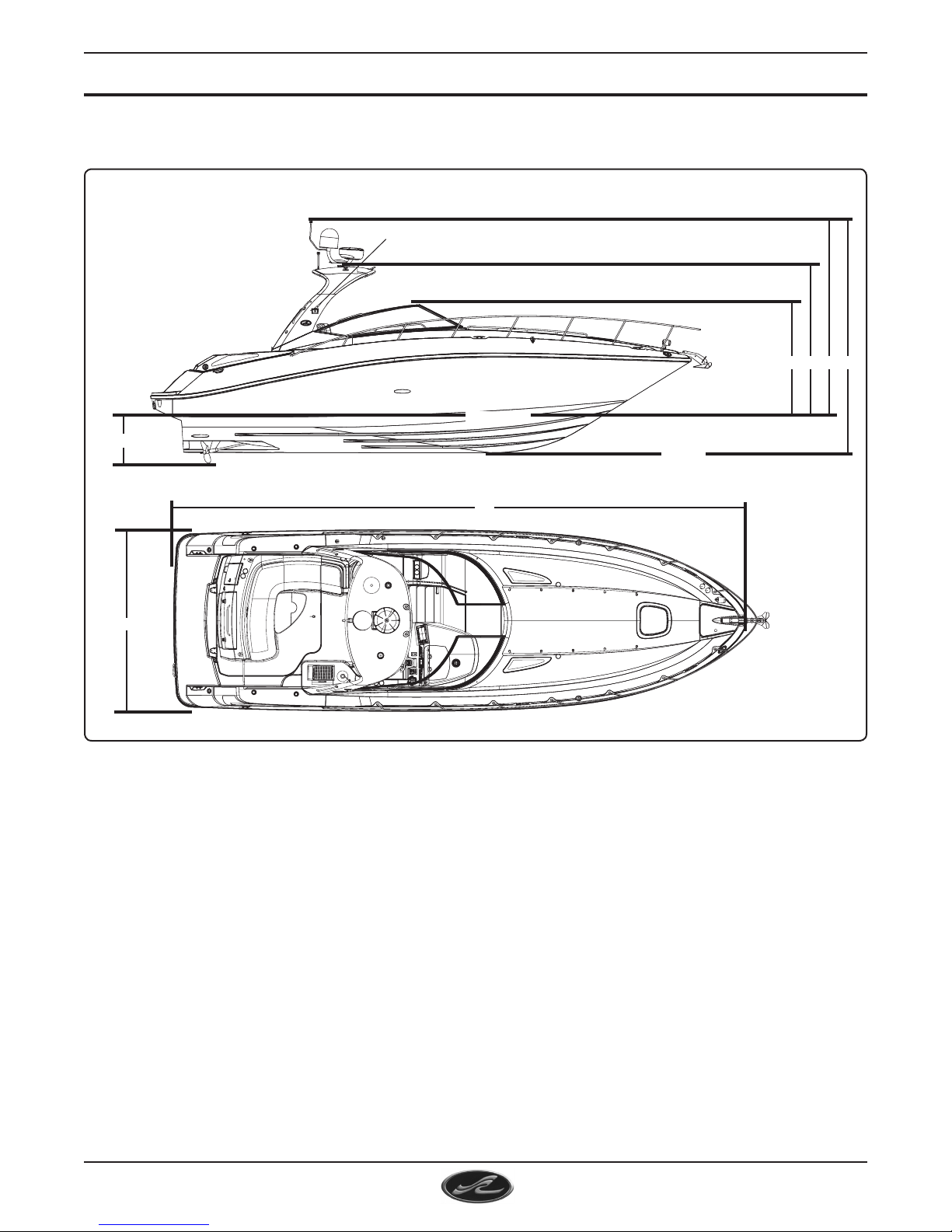

4. ba s i C bo a T di m e n s i o n s a n d Cl e a r a n C e s

Bo a t di m e n S i o n S a n d cl e a r a n c e S

(fi g . 6.1)

(A) Overall Length

With Std. Swim Platform......... 37' 6" 11.43 m

(B) Beam (Width)........................... 12' 0" 3.66 m

Draft (Stern Drive Down) ............... 37"* 94 cm*

Draft (Stern Drive Up).................... 27in.* 69 cm*

* MINIMUM WATER DEPTH TO PREVENT RUNNING AGROUND

Dry Weight..................................... 18,100 lbs. 8,200 kg.

Fuel Capacity................................. 225 gal. 851 liters

Usable Fuel ................................... 202 gal. 765 liters

Fresh Water Capacity .................... 50 gal. 189 liters

Holding Tank.................................. 28 gal. 106 liters

Dead Rise...................................... 21°

350 Sundancer®SpecificationS HeigHt dimenSionS

(D) Keel to Top of Mast Light ...............16' 1½" 4.91 m

(E) Waterline to Top of Mast Light........13' 7½" 4.15 m

(F) Waterline to Top of Spoiler .............10' 5½" 3.19 m

(G) Waterline to Top of Windshield ......7' 9" 2.36 m

(A)

WATERLINE

KEEL

(C)

(B)

(E)(F)(G)

NOTE - DIMENSIONS CAN VARY DEPENDING ON LOAD AND RUNNING CONDITIONS.

NOTE: DIMENSIONS CAN VARY DEPENDING ON LOAD

AND RUNNING CONDITIONS

Altri manuali per 350 Sundancer

Indice

Altri manuali Sea Ray Barca

Sea Ray

Sea Ray 280 Sundancer Guida rapida alla configurazione

Sea Ray

Sea Ray 280 Sundancer Manuale utente

Sea Ray

Sea Ray 250 Select EX Guida rapida alla configurazione

Sea Ray

Sea Ray 300 Select Ex Guida rapida alla configurazione

Sea Ray

Sea Ray 260 Sundancer Manuale utente

Sea Ray

Sea Ray 270 Sundeck 2017 Manuale utente

Sea Ray

Sea Ray Express Cruiser 390 1989 Manuale utente

Sea Ray

Sea Ray 250 Select EX Manuale utente

Sea Ray

Sea Ray 52 Sundancer Manuale utente

Sea Ray

Sea Ray 200 Sundeck Manuale utente

Sea Ray

Sea Ray 330 Sundancer Guida rapida alla configurazione

Sea Ray

Sea Ray 180 Bow Rider Guida alla configurazione

Sea Ray

Sea Ray 600 Super Sun Sport Manuale utente

Sea Ray

Sea Ray 310 Sundancer Guida rapida alla configurazione

Sea Ray

Sea Ray AMBERJACK 250 Manuale utente

Sea Ray

Sea Ray 350 Sundancer Manuale utente

Sea Ray

Sea Ray 190 Sport Manuale utente

Sea Ray

Sea Ray 205 Sport Guida rapida alla configurazione

Sea Ray

Sea Ray 310 Sundancer Manuale del proprietario

Sea Ray

Sea Ray 310 Sundancer Guida alla configurazione

Sea Ray

Sea Ray 205 Sport Manuale utente

Sea Ray

Sea Ray 260 Sundancer Manuale utente

Sea Ray

Sea Ray 40 Sundancer Guida rapida alla configurazione

Sea Ray

Sea Ray 220 Select Manuale utente

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Regal

Regal 2300 Manuale utente

Grand

Grand Silver Line S250 Manuale utente
