Field Service Procedure – Replacement Pol Pot Kit, 4012



Page1of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



1. BriefSummary:

Troubleshootingdocumentfordiagnosingafaultwithandreplacingthepolpotonthe4012antenna.

2. Checklist:



VerifyRangeofMotion

VerifyPotFeedback

MeasureResistance

3. TheoryofOperation:

Apolangpotentiometerisusedtoprovideafeedbackreferenceforthepositionofthefeedassemblyforlinear

polarization.Thepotactsasapotentialdividergivinganoutputvoltagewhichvariesfrom0VDCto5VDCthroughoutthe

feedassembly’s270degreerangeofmotion.The4012antennahasaphasecardinstalledinthefeedhornwhichwill

reflectthesignalmeaningforeach0.5degreeofphysicalrotationofthefeedthechangeinsignalwillbe1.0degree

meaningthatthefeedassemblyofthe4012antennaonlyhastophysicallydrive135degreestoviewthefull270degrees

ofrotation.

TheICUconvertsthevoltageoutputfromthepotintothenumericalvaluetoalignthefeedintherequiredposition

basedonthevesselsGPSlocationandthelookangletotherequiredsatellite.Afailurewiththepotwillcauseittooutput

anincorrectvoltagewillresultinthefeedassemblynotbeingalignedcorrectlycausingbadcrosspolisolation.

Oneindicationthatthereisafaultwiththefeedalignmentofthesystemisthatthetargetlightwillbepermanently

illuminatedontheMXPandthattheantennawon’ttargetcorrectly.Itwillsit8degreesabove(or8degreesbelowat

highelevationlookangles)thesatelliteselevationlookangle.Aspartoftheantennastargetingprocedurethesystem

willtarget8degreesabove(or8degreesbelowathighelevationlookangles)thesatellite,calculatetheautothreshold

settingbasedonthenoisefloorlevelandthenalignthefeedforthecorrectreceptionpositionbasedonthevesselsGPS

locationandthelookuptable.Ifthesystemisunabletodrivethepolmotortoobtainthecorrectfeedback,orifthepot

hasfailedandwon’tgivethecorrectfeedback,theantennacan’tcompletethetargetprocessandtheantennawillstay

inthisposition.Settingthepolsettingtomanualwillmaketheantennatargetbyremovingtheautomaticfunctionfrom

thetargetingprocess;howeverthemissalignmentofthefeedwillcausebadcrosspolisolation.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page2of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



4. VerifythePolPotsCalibration:

Toverifyifthe4012antennaspolarityfunctioniscalibratedandoperatingcorrectlydrivethepoltoverifythatthefeedis

alignedcorrectly(thepolpotiscorrectlycalibrated)andalsothatthepotisoutputtingthecorrectresistances

throughoutitsrange.Thiswillalsoverifyifthepolmotorisdrivingcorrectly.

LogintotheMXPandfromtheconfigurationmenuselectthe“Reflector”pagefromtheconfigurationsectionandverify

thepolangdriveoptionissetto“Automatic”.



Nowselectthe“PositionAntenna”screenfromthetoolswindowandconfigurethesatellitesettingsasfollows:

Longitude=EnterthelongitudinalvalueofyourcurrentGPSlocation.I.e.ifyourcurrentlocationis1degree

westofGMTenter“1.0W”intothelongitudeofthesatelliteparameters.

TXPolarity=HORZ

Nowpressthesubmitbutton(asshownbelow).



Theantennawillnowtargetthedesiredpositionandalignthefeedaccordingly.Oncetheantennahasstopped

targeting,turnoffthetrackingfunctiontopreventitfromgoingintoasearch.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page3of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



Viewthefeedhornandverifythatthealignmentpinsofthephasecardarealignedvertically(onthetopandbottomof

thefeedhorn)youshouldalsonoticethetammountingscrewsareparallelwitheachotherasshownbelow…



Anyerrorinalignmentisanindicationthatthepolpotisnotcorrectlycalibrated.Howeverasmallamountoferrorcould

becalibratedoutbyusingthelinearoffsetsetting(toelectronicallyadjustthepolpostion).

Ifit’sdeemedthereisalargeamountoferrorthencalibratingthepolpotwillberequiredasperFig.22toFig.27in

section8ofthisdocument.

Ifnodrivewasissuedthefunctionofthe24VDCpolangmotorshouldbeverifiedaspersection7ofthisdocument.



5. VerifytheFeedAssembliesRangeofMotion:

Toverifyifthe4012antennaspolarityfunctioniscalibratedcorrectlyrefertosection3ofthisdocument.

Onceverifiedthatthepotiscalibratedthenextstepwillbetoverifythatthesystemhasthefullrangeofmotion(135

degreesofphysicalrotation),verifyingthatthepolpotisoutputtingthecorrectresistancethroughitsrangeandalso

thatthepolmotorisdrivingtheassemblycorrectly.



1. Toverifytherangeofmotiononthefeedassemblyenterintothe“Reflector”screenundertheconfiguration

optionsandsetthepolangdrivemodetomanualandclickthesavebutton.



Thiswillnowgiveyoutheabilitytomanuallydrivethepolasopposedtothefeedautomaticallyaligningitself

basedonthevesselsGPSlocationandthelookangletothedesiredsatellite.

2. Nowenterintothe“PositionAntenna”screenfromthetoolsmenuandenterthevalue“‐90.0”intothelinear

windowofthepolangtargetoptionandpresstheenterkeyonthekeyboard.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page4of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 







Thefeedhornshouldrotate45.0degreesclockwise(whenviewedfromthefrontofthereflector)sothatthe

alignmentmarksofthephasecardinthefeedhornarealignedvertically,fromlefttoright(asshownabove).

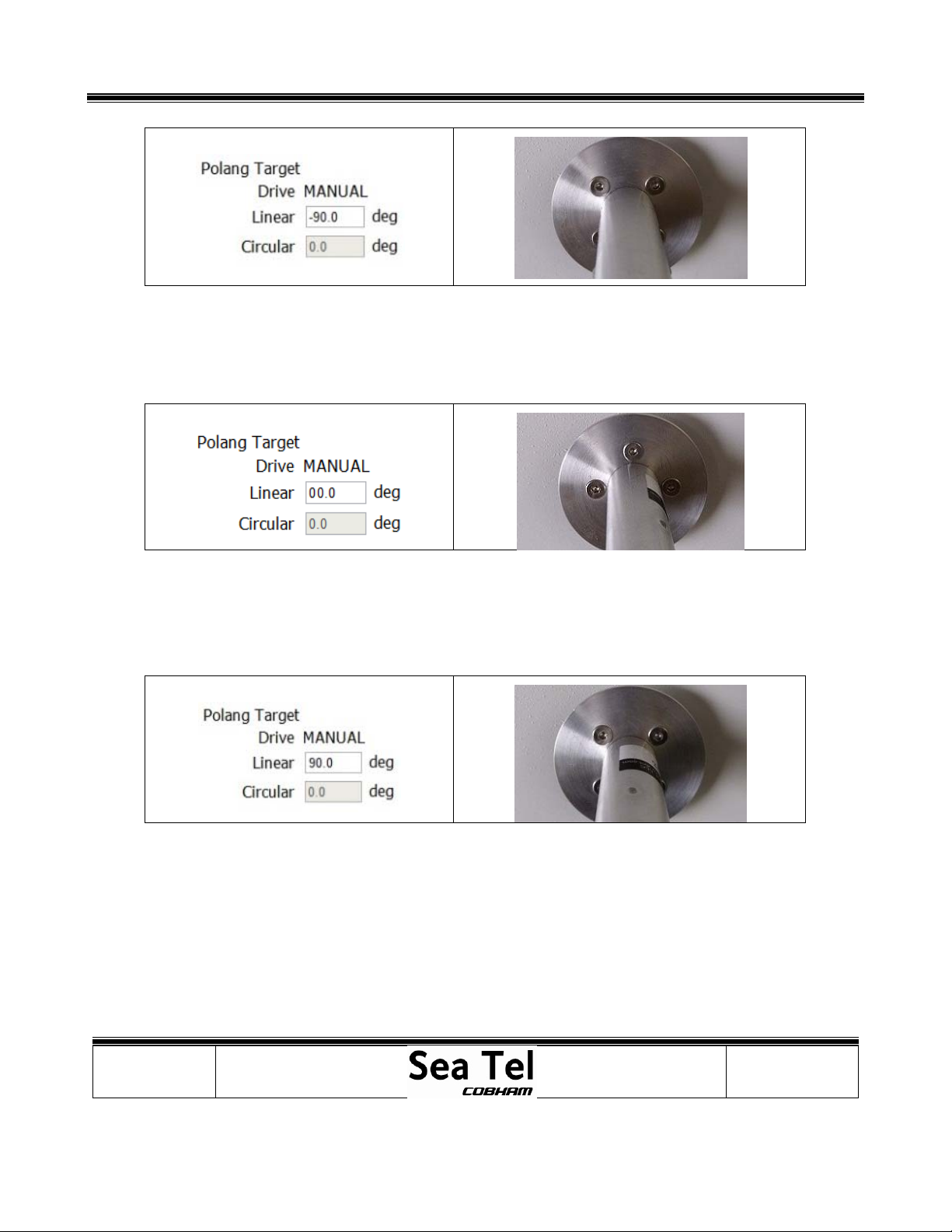

3. Nowenterintothevalue“00.0”intothelinearwindowofthepolangtargetoptionandpresstheenterkeyon

thekeyboard.



Thefeedhornshouldrotate45.0degreescounter‐clockwise(whenviewedfromthefrontofthereflector)so

thatthealignmentmarksofthephasecardinthefeedhornarealigneddiagonallyinanorth/eastposition(as

shownabove).

4. Nowenterintothevalue“90.0”intothelinearwindowofthepolangtargetoptionandpresstheenterkeyon

thekeyboard.



Thefeedhornshouldrotate45.0degreesclockwise(whenviewedfromthefrontofthereflector)sothatthe

alignmentmarksofthephasecardinthefeedhornarealignedhorizontally,fromtoptobottom(asshown

above).



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page5of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



5. Nowenterintothevalue“180.0”intothelinearwindowofthepolangtargetoptionandpresstheenterkeyon

thekeyboard.



Thefeedhornshouldrotate90.0degreesclockwise(whenviewedfromthefrontofthereflector)sothatthe

alignmentmarksofthephasecardinthefeedhornarealigneddiagonally,inanorth/westposition(asshown

above).

6. Ifthesystemcompletesalloftheaboveteststhanthepolangassemblyisoperatingcorrectly.

Settheantennabackintoautomaticpolangmodebyenteringintothe“Reflector”screenunderthe

configurationoptionsandsetthepolangdrivemodeto“Automatic”andclickthesavebutton.



TheantennawillnowautomaticallycalculatethecorrectreceptionpositionforthefeedbasedonthevesselsGPS

locationandthelookangletothedesiredsatellite.

Shouldthefeedassemblydrive,butnottargetthecorrectpositionthisisanindicationthatthepolpotisnotcalculating

thefeedbackcorrectlyanditsresistanceshouldbeverifiedaspersection6ofthisdocument.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page6of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



6. VerifytheResistanceofthePolPot:

Thepolangpotentiometer(polpot)consistsofaninternalslideraswellasaclockwiseandcounter‐clockwisecontact.To

verifytheresistanceofthepotamultimetercanbeusedtomeasurebetweenthesliderandoneofthewiperswhilst

rotatingtheshaftthroughitsrangeandverifyingthe0–5ohmsisoutputtedcorrectly.RemovethepotfromtheRFcage

asperthereplacementprocedureofthisdocumentandmeasuretheresistance.



Lookingdownontotheshaftofthepotrotateitclockwiseuntilit

reachesitsendstop.

NowmeasuretheresistancebetweenthesliderandtheCCW

contact(greycable,pin2ontheIDCconnectorandtheredcable

pin3ontheIDCconnector).

Thefeedbackshouldbeapproximately5kohms.



Nowslowlyrotatetheshaftofthepotcounterclockwise,the

readingshouldcountdownsequentially.Afteroneandahalfturns

thepotwillbeinthecenterofitsrangegivingaresistanceof

approximately2.5kohms.



Continuetorotatethepotuntilthecounterclockwiseendstop(it

willnowhaveturnedthroughall3rotationsofitsrange),the

resistanceshouldbeapproximately0ohms.



Leavingthepotatitscounterclockwiseendstopmeasurebetweentheclockwisecontactandtheslider(greycable,pin2

ontheIDCconnectorandthebrowncablepin1ontheIDCconnector)theresistanceshouldbereversedfromthe

previousrotation,reading5ohms.Rotatingtheshaftofthepotclockwiseshouldreducetheresistancethroughitsrange

to0ohms.Anyerrorwiththepotnotgivingthecorrectresistanceisanindicationthepotisdefectiveandneeds

replacing.

Field Service Procedure – Replacement Pol Pot Kit, 4012



Page7of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



7. MeasureMotorVoltage:

Leavingthepolangsettinginmanualmodeapplydrivetothefeedassemblyandmeasurethevoltagetothemotoron

theIDCconnector,24VDCshouldbepresent.Ifvoltageispresentbutthemotorisn’tdrivingthemotorisdefectiveand

needsreplacing.Ifnovoltageispresentverifytheconnectionsofthereflectorharnessbymeasuringpintopinasperthe

belowdiagram.



Iftheharnessconnectionsaregood,thentheICUmainPCBisn’toutputtingthevoltagetodrivethemotorandneeds

replacing.AslongasthepolrangeiswithinthepotlimitstheICUwillissuethevoltagetodrivethemotorbasedonthe

antennatargeting,achangeinthevesselsGPSpositionoroperatorinputs.Themotorwillthendrivethefeeduntilthe

correctoutputfromthepothasbeenreceived,atwhichpointthefeedwillbeinthecorrectreceptionposition(providing

thesystemisfunctioningandcalibratedcorrectly).Thereforethereisalsothepossibilityforapoldrivefaulttobecaused

bytheICUmotherboardPCB.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page8of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



8. Replacingthe4012PolPotAssembly:

8.1. Tools.



2.5mmAllenWrench/Key

4mmAllenwrench/Key

Snips/Cutters

17mmWrench/Spanner

3mmAllenWrench/Key

2mmFlatBlade(Terminal)Screwdriver

Ruler/StraightEdge

CableTies/TieWraps

Loctite242



8.2. Procedure.

Procedureforreplacingthepolpot,SeaTelkitpartnumber:136741(polpotpartnumber:115425‐6).



*Caution:Powerdownthepedestalbeforefollowingthis

procedure.

1.Usinga2.5mmAllenwrenchremovethefourscrews

securingthefeedhorntothefrontofthereflectorand

removethefeedhorn.Savethehardwareforfuturesuse.



2.Disconnectthemilitaryspecconnectorfromitssocketto

allowaccesstothescrewstoremovetheupperbracket.



3.Removethe5screwswhichsecuringthemountingplate

withthecannonconnectionandIDCconnectionPCBtothe

RFcage.Retainthehardwareforfutureuse.

*Note:Themountingplatewillremainattachedtothe

harnesswhiletheRFcageisremovedfromtherearofthe

reflector.



Field Service Procedure – Replacement Pol Pot Kit, 4012



Page9of16



Document No

136829 Rev A

Tel, Inc. This document may not be reproduced or distributed in any form without prior written

consent of Sea Tel, Inc. 



4.SnipthecabletiesecuringtheRFcageharnesstothe

mountingplate



5.Disconnectthepolpot,polmotorandopticalswitchIDC

connectionsfromtheterminationblockonthe



6.DisconnecttheorangecoaxcablefromtheX‐PolLNB.



7.DisconnecttheyellowcoaxcablefromtheCo‐PolLNB,

mountedontheundersideoftheRFcage.



8.Snipthecabletiesecuringthereceivecoaxcablestothe

RFcage.


