ST5660A

. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .

AT Interface Drive

. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Installation Guide

. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .

Publication Number: 36265-001, Rev. B

June 1994

Seagate®, Seagate Technology®and the Seagate logo are

registered trademarks of Seagate Technology, Inc. SeaFAX,

SeaFONE, SeaBOARDand SeaTDDare trademarks of

Seagate Technology, Inc. Other product names are registered

trademarks or trademarks of their owners.

Seagate reserves the right to change, without notice, product

offerings or specifications. No part of this publication may be

reproduced in any form without written permission from Seagate

Technology, Inc.

Contents

Read before you begin... . . . . . . . . . . . . . . . . . . . 1

Configuring the drive . . . . . . . . . . . . . . . . . . . . . 3

Attaching cables . . . . . . . . . . . . . . . . . . . . . . . 5

Configuring the computer . . . . . . . . . . . . . . . . . . . 9

Low-level formatting . . . . . . . . . . . . . . . . . . . . . 10

Partitioning . . . . . . . . . . . . . . . . . . . . . . . . . . 10

High-level formatting . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 11

Technical support services . . . . . . . . . . . . . . . . . . 16

Storing and shipping your drive . . . . . . . . . . . . . . . . 19

Read before you begin...

Application. This Seagate® drive is designed for IBM AT and

compatible personal computers. It uses the ATA interface.

Warning. Turn off your computer before you open the case,

touch any internal components or install the drive.

Static discharge. Observe these precautions to avoid static

electricity, which can damage a drive or a computer. Static

electricity can be created by wool or synthetic clothing, carpets

and plastics of any kind, including most bags.

•Keep the drive in its static-shielded bag until you are ready to

install it. Do not attach any cables to the drive while it is in its

static-shielded bag.

•Before you handle the drive, put on a grounded wrist strap, or

ground yourself frequently by touching the metal chassis of a

computer plugged into a grounded outlet. Wear a grounded

wrist strap throughout the installation procedure.

•Handle the drive gently and only by its edges or frame. Until

you are ready to install it, place itonly onanantistaticsurface.

•Do not touch the drive’s connector pins or its printed circuit

board.

Drive handling. The drive is extremely fragile—handle it with

care. Do not attach labels to any part of the drive.

Inspection. After you are familiar with the handling precautions

listed above, inspect the drive. If it appears to be damaged, call

your distributor or dealer immediately.

Warranty. See your authorized Seagate distributor or dealer.

ST5660A Installation Guide, Rev. B 1

Maintenance and repair. Seagate drives do notrequire mainte-

nance. The head/disc assembly is sealed; a broken seal voids

the warranty. Seagate customer service centers are the only

facilities authorized to repair Seagate drives. Seagate does not

sanction any third-party repair facilities.

Radio and television interference. This product complies with

ClassBlimitsfor radionoiseemissionsfromcomputerequipment

as set out in the radio interference regulations of the Canadian

Department of Communications.

Le présent appareil numérique n′émet pas de bruits radioélectriques

depassant les limites applicable aux appareils numériques de Classe B

prescrites dans le règlement sur le brouillage radioélectrique edicté par

le Ministère des Communications du Canada.

Sicherheitsanleitung

1. Das Gerrät ist ein Einbaugerät, das für eine maximale Umegebung-

stemperatur von 55°C vorgesehen ist.

2. Zur Befestigung des Laufwerks werden 4 Schrauben 6-32 UNC-2A

benötigt. Bei seitlicher Befestigung darf die maximale Länge der

Schrauben im Chassis nicht mehr als 5,08 mm und bei Befestigung

an der Unterseite nicht mehr als 5,08 mm betragen.

3. Als Versorgungsspannugen werden benötigt:

+5V ± 5% 0,65A

+12V ± 5% 0,45A (1,9A fur ca. 10 Sek. fur ±10%)

4. Die Versorgungsspannung muβSELV entsprechen.

5. Alle Arbeiten dürfen nur von ausgebildetem Servicepersonal durchge-

führt werden.

6. Der Einbau des Drives muβden Anforderungen gemäβDIN IEC

950V DC 0805/05.90 entsprechen.

2 ST5660A Installation Guide, Rev. B

Configuring the drive

1. Turn the computer off.

2. Remove your computer’s outer case.

Caution. Special training or tools may be needed to service

portable computers. Removing the cover may void

your warranty. Review the terms and conditions of

your warranty before removing the cover.

3. Ground yourself. Wear a grounded wrist strap throughout

this procedure, or frequently touch the metal chassis of a

computer that is plugged into a grounded outlet.

4. Remove the drive from its antistatic bag.

5. Install master/slave jumpers. The options jumper block J8,

shown in Figure 1 on page 4, accepts 2-mm connectors and

jumpers. UseSeagate part number 13211-001 or equivalent.

One-drivesystem:Configurethedriveforaone-drivesystem

as shown in Figure 1.

Two-drive system: Do not use an ATA interface drive in a

systemwithanotherdrivehavingacontrollerthatdoesnotuse

the ATA interface. With two ATA interface drives, you must

designate one drive as the master, or drive 0, and the other

astheslave,ordrive1.Thiscanbedoneineitheroftwoways:

•When using cable select, if your computer and both drives

support cable select and you want to use this option, first

install three cable-select jumpers on pins 1 through 6 of J8

as shown in Figure 1;then use aspecial cableas described

instep5of“Attachingcables”onpage5todesignatemaster

and slave drives.

ST5660A Installation Guide, Rev. B 3

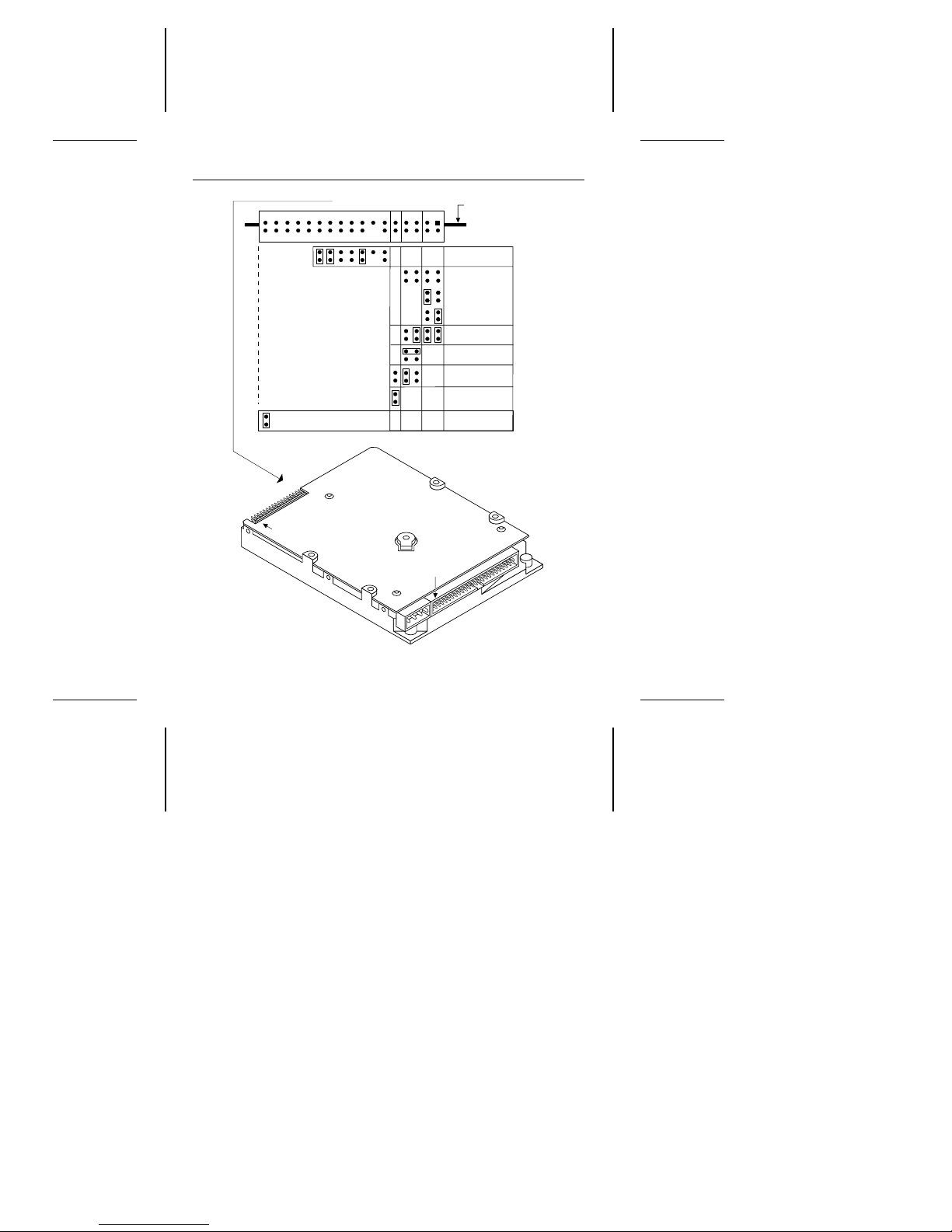

J8. Options jumper block

Circuit

board

11

9

7

5

3

13

1

15

17

19

21

33

31

29

27

25

23

One drive only

Drive is master;

slave is present

Drive is slave

Cable select

(Reserved)

Remote LED

connection

Note. All other pins are reserved.

Do not use them.

Spares

(Reserved)

J1 pin 1

J8 pin 1

1,024 cylinder

option

Figure 1. ST5660A Jumpers

4 ST5660A Installation Guide, Rev. B

•If you are not using cable select and instead are using a

standard ATA interface cable, configure the drive as a

master or a slave as shownin Figure 1.

Attaching cables

Figure 2 on page 6 shows the locations of the drive connectors.

1. Make sure the computer is off.

2. Put on a grounded wrist strap.

3. Connect the remote LED (optional). If you want to connect

the drive-activity indicating LED of your computer front panel to

thedrive,attachthetwo-wireLEDconnectorcablefromthecase

topins 9 (–) and 10(+) ofjumper blockJ8 (shownin Figure 1).

4. Attach the power cable. Connect a system power cable to

the 4-pin power connector.

5. Attach the interface cable. Note that the cable length must

be 18 inches or less.

Caution. Connector misalignment can damage the computer

and the drive.

One-drive system using standard ATA 40-pin interface cable:

Connect one end of the cable to the computer’s host adapter

card or the hard drive connector located on the motherboard,

and theother end to interface connector J1on the drive. Align

pin 1 on each cable connector with pin 1 on its matching

equipment connector. (Typically, an edge-stripe on the cable

denotes cable lead 1 going to pin 1). Pin 1 of J1 on the drive

is identified in Figure 2.

ST5660A Installation Guide, Rev. B 5

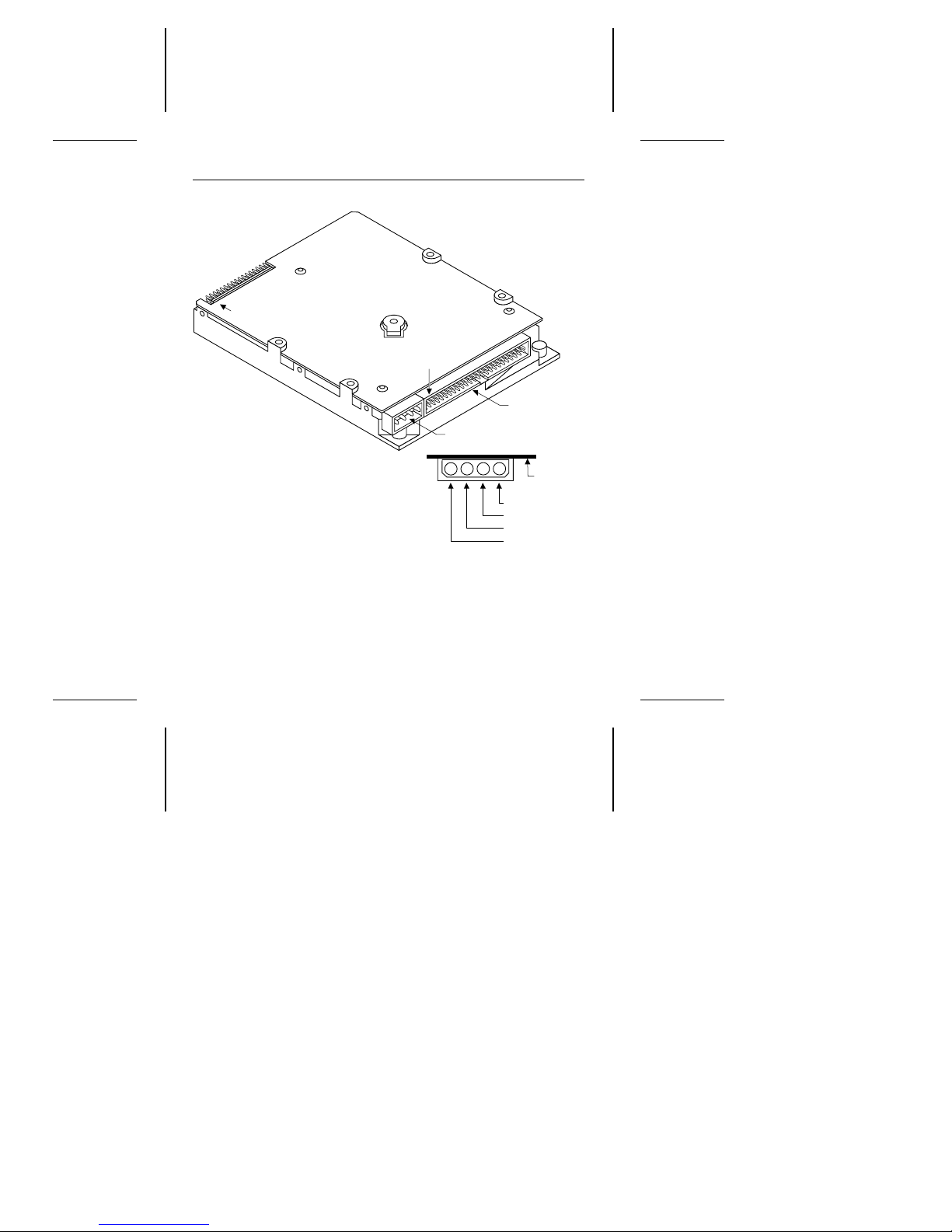

J3. Standard

power connector

+5V

+5V return

+12V return

+12V

1234

Circuit

board

J1. Interface

connector

J1 pin 1

J8 pin 1

Figure 2. ST5660A Connectors

6 ST5660A Installation Guide, Rev. B

Two-drive system with standard ATA 40-pin interface cable:

If you areusinga standard40-pintwo-driveribbon cable, plug

one connector into J1 on each drive andattach theremaining

connector to the host adapter. Align pin 1 on connectors as

described above for a one-drive system.

Two-drive system using cable select:

Useofthismethodrequiresdrivessupportingthecableselect

option and also requires a special daisy-chain interface cable

built for cable-select; this cable is not the same as a standard

40 pin hard drive cable. To make a drivethe master, attach it

to the connector that has the CSEL signal line connected to

pin 28. To make a drive the slave, attach it to the connector

thathas pin 28 unconnected. Finally, connect the cable tothe

hostadapter.NotethatCSELisgroundedonthehostadapter.

Mounting the drive

Mountthedrivesecurelyinthecomputer,followingrecommended

mounting orientations as shownin Figure 3 on page 8. When you

position the drive, avoid crimping or stretching thedrive cables.

Caution. Topreventdrivemountingholedamage,useonly6-32

UNC-2A mounting screws. Tighten them gently using

less than 6 inch-pounds of torque.

Bottom hole mounting method. Insert screws in all of the four

bottom mounting holes as shown in Figure 3. Do not drive the

screws more than 0.20 inches (6 turns) into the drive frame.

Side hole mounting method. Insert screws in four of the six

available side mounting holes as shown in Figure 3. Use two

mounting holes on each side. Do not drive the screws more than

0.20 inches (6 turns) into the drive frame.

ST5660A Installation Guide, Rev. B 7

Figure 3. Recommended mounting orientations

8 ST5660A Installation Guide, Rev. B
