Relio R2 User Manual

RELIO R2

©Sealevel Systems, Inc. R2 Manual 2

SL9247 2/2017

Contents

Introduction .............................................................................................................................................................. 4

Features..................................................................................................................................................................... 5

COM Express Module/RAM Configuration options ............................................................................................ 5

Before You Get Started ............................................................................................................................................. 6

What’s Included..................................................................................................................................................... 6

Advisory Conventions ........................................................................................................................................... 6

Optional Items....................................................................................................................................................... 7

Specifications............................................................................................................................................................ 9

Mechanical Dimensions ........................................................................................................................................ 9

Environmental Specifications ............................................................................................................................... 9

Operating Temperature Range............................................................................................................................. 9

Power Supply ....................................................................................................................................................... 10

Power Input.......................................................................................................................................................... 11

System Operation ................................................................................................................................................... 12

Power Button ....................................................................................................................................................... 12

Power States ........................................................................................................................................................ 12

Reset Button ........................................................................................................................................................ 12

High Performance Serial Communication Ports................................................................................................ 12

CMOS Battery....................................................................................................................................................... 16

System Description................................................................................................................................................. 16

Front Panel I/O Connectors................................................................................................................................ 17

Rear Panel I/O Connectors ................................................................................................................................. 17

Mechanical Drawings .......................................................................................................................................... 18

Getting Started........................................................................................................................................................ 23

Where to Get Software ........................................................................................................................................ 23

SeaCOM Windows Installation ............................................................................................................................ 24

©Sealevel Systems, Inc. R2 Manual 3

SL9247 2/2017

Upgrading to the current SeaCOM driver .......................................................................................................... 25

Linux Support ...................................................................................................................................................... 25

Serviceable Parts..................................................................................................................................................... 26

Removal of Core Electronics............................................................................................................................... 26

Serial Port 3 ConfiguratioN ................................................................................................................................ 29

Input Current Protection Fuse............................................................................................................................ 29

Disk Drive Removal ............................................................................................................................................. 29

BIOS Considerations ............................................................................................................................................... 33

Appendix A - Handling Instructions...................................................................................................................... 34

Appendix B – Electrical Interface ........................................................................................................................... 35

Appendix C – Asynchronous Communications .................................................................................................... 36

Warranty .................................................................................................................................................................. 37

©Sealevel Systems, Inc. R2 Manual 4

SL9247 2/2017

Introduction

The Relio R2 is an exceptionally rugged embedded controller for operating in harsh environments. The R2’s

fanless and nearly cable-less structure ensures extensive durability for long-term usage. The R2 differs from

traditional industrial computer systems in that it is built using the PICMG COM Express architecture.

Sealevel has partnered with the leading COM Express module manufacturers to ensure our customers

benefit from the best in the industry. This manual will focus on the higher level features of the R2 computer

system. More detailed information (for example, connector pin outs) can be found in the 12000 COM

Express carrier board manual.

http://www.sealevel.com/support/article/AA-00588/

The R2 is compatible with Basic and Compact form factor Type 6 pin out COM Express modules. COM

Express is a widely supported implementation of Computer on Module (COM) design. The COM Express

architecture reduces the complexity, cost and time required for custom computer system design by

combining the processing, memory, video, Ethernet and USB functionality in a small, highly integrated

module. COM Express modules install on a carrier board that provides the application specific I/O and

external connectors best suited for the system requirements.

Sealevel COM Express carrier boards leverage the company’s years as a leader in I/O and communication

products to provide carrier board and full system solutions in the fastest time possible. Common I/O

features include serial, analog and digital I/O. Sealevel’s extensive library of proven I/O circuits can be

included as required to meet the specific I/O count, voltage ranges, and connector types.

©Sealevel Systems, Inc. R2 Manual 5

SL9247 2/2017

Features

The following features are included and installed on the Relio R2 models.

1 Display Port Compatible Video Output

2 Gigabit Ethernet Ports

2 RS-232 Serial Ports

1 RS-485 Serial Port

4 USB 2.0 Ports

1 Audio Line Input

1 Audio Line Output

Power and SATA Activity LED Indicators

Reset Button

Power Switch Button

PCI Express Mini Card Expansion (half-length only)

Accepts 2.5” SATA Disk Drive (not externally accessible)

18-36 VDC Input

COM EXPRESS MODULE/RAM CONFIGURATION OPTIONS

Part Number COM Express Module COM Express Module Description RAM

R21004 TCA/N2800 Type 6 Compact Module with Intel

Atom N2800 Cedarview CPU

4GB DDR3 1333 Non

-ECC

R23004 IBR-i3-3217UE Type 6 Standard Module with Intel

Core i3 3217UE Ivy Bridge CPU

4GB DDR3 1333 ECC

R23008 IBR-i3-3217UE Type 6 Standard Module with Intel

Core i3 3217UE Ivy Bridge CPU

8GB DDR3 1333 ECC

R23016 IBR-i3-3217UE Type 6 Standard Module with Intel

Core i3 3217UE Ivy Bridge CPU

16GB DDR3 1333 ECC

R27004 IBR-i7-3517UE Type 6 Standard Module with Intel

Core i7 3517UE Ivy Bridge CPU

4GB DDR3 1333 ECC

R27008 IBR-i7-3517UE Type 6 Standard Module with Intel

Core i7 3517UE Ivy Bridge CPU

8GB DDR3 1333 ECC

R27016 IBR-i7-3517UE Type 6 Standard Module with Intel

Core i7 3517UE Ivy Bridge CPU

16GB

DDR3 1333 ECC

©Sealevel Systems, Inc. R2 Manual 6

SL9247 2/2017

Before You Get Started

WHAT’S INCLUDED

The R2 is shipped with the following items. If any of these items are missing or damaged, please contact

Sealevel at 864.843.4343 for a replacement.

•R2 Computer System

•BK1042 (Wall mount brackets)

•TR140-US AC/DC Power Supply – Desktop 100VAC-240VAC input, 24V 2.7A output w/AC power

cable

ADVISORY CONVENTIONS

Warning - The highest level of importance used to stress a condition where damage could result to

the product or the user could suffer serious injury.

Important

– The middle level of importance used to highlight information that might not seem

obvious or a situation that could cause the product to fail.

Note – The lowest level of importance used to provide background information, additional tips, or

other non-critical facts that will not affect the use of the product.

©Sealevel Systems, Inc. R2 Manual 7

SL9247 2/2017

OPTIONAL ITEMS

Depending upon your application, you are likely to find one or more of the following items useful with the

R2. All items can be purchased from our website (www.sealevel.com)or by calling our sales team at

(864) 843-4343.

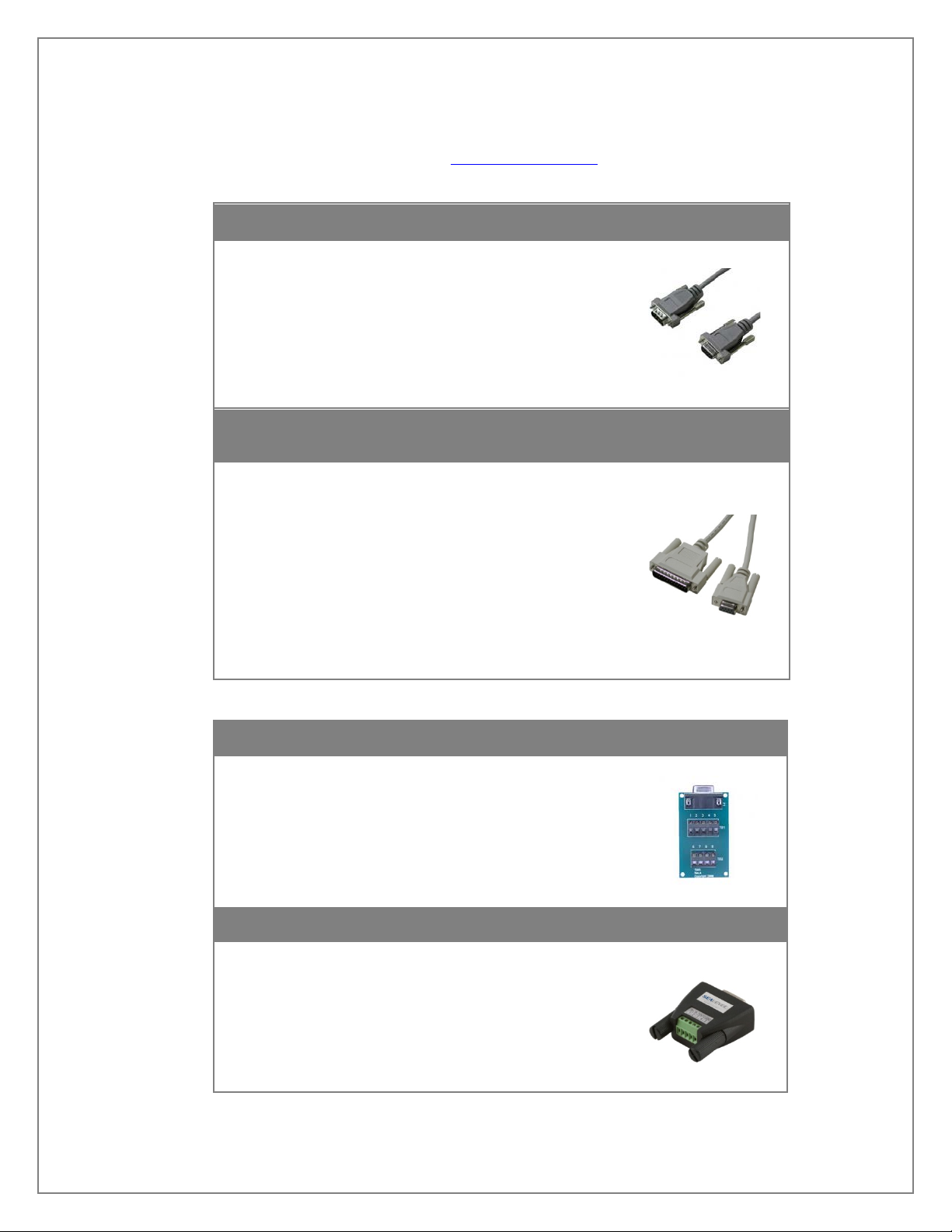

DB9 Female to DB9 Male Extension Cable, 72” Length (Item# CA127)

The CA127 is a standard DB9F to DB9M serial extension

cable. Extend a DB9 cable or locate a piece of hardware

where it is needed with this six foot (72) cable. The

connectors are pinned one-to-one so the cable is

compatible with any device or cable with DB9

connectors. The cable is fully shielded against

interference and the connectors are molded to provide

strain relief. Dual metal thumbscrews secure the cable

connections and prevent accidental disconnection.

9 Female to DB25 Male Standard RS-232 Modem Cable, 72” Length

(Item# CA177)

The CA177 is a standard AT-style RS-232 modem cable

with a DB9 female connector on one end and a DB25

male connector on the other end. Simply connect the

DB9 female connector to the DB9 serial port on the R2,

and then connect the DB25 male connector to your

RS232 serial modem or other compatible RS-232 serial

device. The six foot cable is fully shielded with dual

thumbscrews at each connector. The molded connectors

integrate strain relief to prevent damage to the cable or

connectors. All DB9 modem control signals are

implemented and the cable is pinned to EIA-232

standards.

Terminal Blocks

DB9 Female to 9 Screw Terminal Block (Item# TB05)

The TB05 terminal block breaks out a DB9 connector to

9 screw terminals to simplify field wiring of serial

connections. It is ideal for RS-422 and RS-485 networks,

yet it will work with any DB9 serial connection, including

RS-232. The TB05 includes holes for board or panel

mounting. The TB05 is designed to connect directly to

the R2 DB9 serial ports or any cable with a DB9M

connector.

DB9 Female to 5 Screw Terminal Block (RS-485) (Item# TB34)

The TB34 terminal block adapter offers a simple solution

for connecting RS485 field wiring to the R2’s serial port

3. The terminal block is compatible with 2-wire and

4wire RS485 networks. A pair of thumbscrews secures

the adapter to the DB9 male connector and prevents

accidental disconnection.

©Sealevel Systems, Inc. R2 Manual 8

SL9247 2/2017

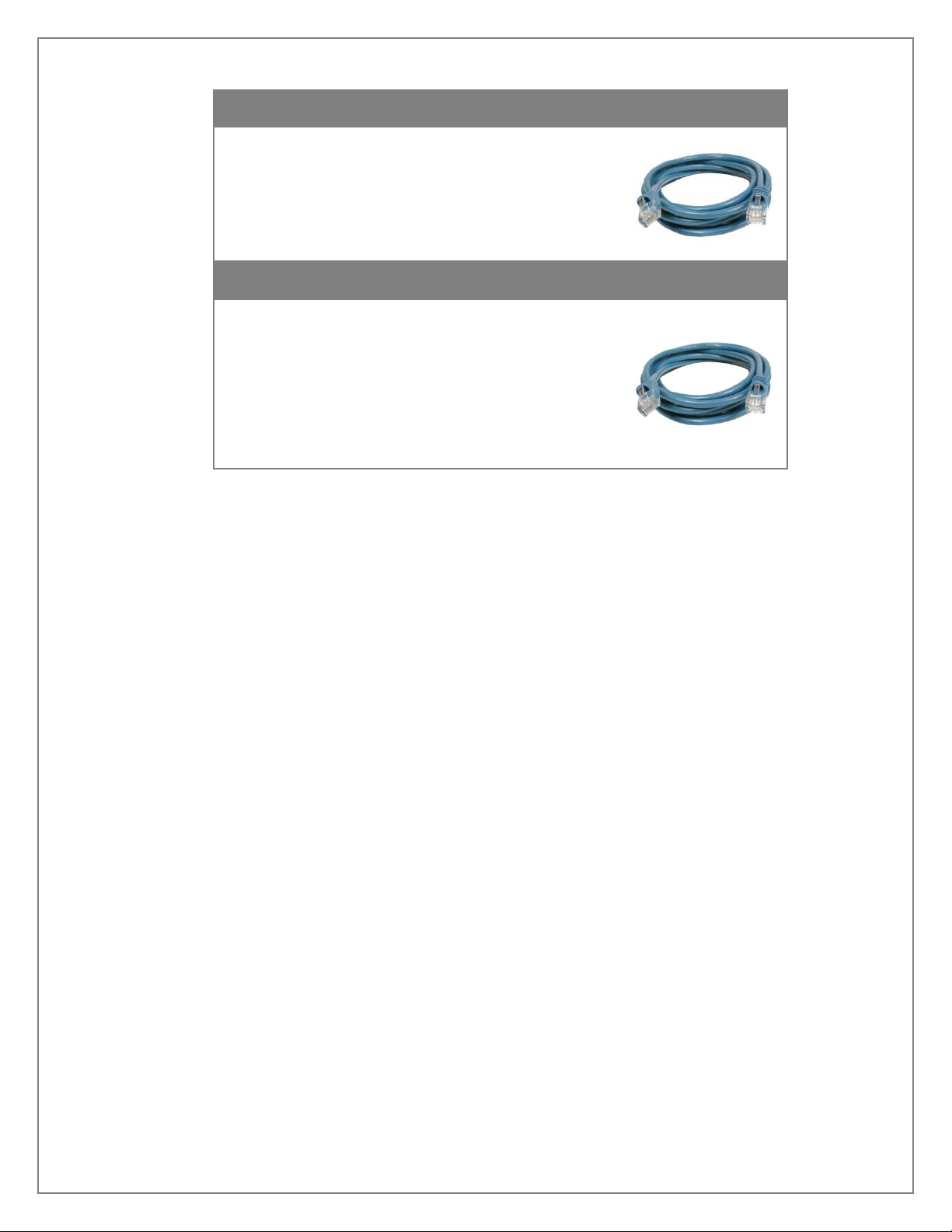

CAT5 Patch Cable, 7’ In Length (Part# CA246)

Standard 7' CAT5 Unshielded Twisted Ethernet Pair Patch

Cable (RJ45) with blue jacket.

CAT5 Patch Cable, 10' In Length (Part# CA247)

Standard 10’ CAT5 Unshielded Twisted Pair Ethernet

Patch Cable (RJ45) with blue jacket.

©Sealevel Systems, Inc. R2 Manual 9

SL9247 2/2017

Specifications

MECHANICAL DIMENSIONS

Length 7.820 inches (19.86 cm)

Width14.744 inches (12.04 cm)

Height 2.672 inches (6.90 cm)

ENVIRONMENTAL SPECIFICATIONS

Specification Operating Storage

Temperature Range -40 to 50 ºC (-40 to 122 ºF)2-40 to 85 ºC (-40 to 185 ºF)

Humidity Range 10 to 90% R.H. Non-Condensing 10 to 90% R.H. Non-Condensing

OPERATING TEMPERATURE RANGE

Part Number COM Express Module Operating Temperature

Range Comment

R21004 TCA/N2800 0 - 50 °C

Requires Industrial Temperature SSD

for operating temperatures above 35C

with no airflow or conduction.

-40C to 50 °C optional. Contact Sales

R23004 IBR-i3-3217UE -40 - 50 °C Requires Industrial Temperature SSD3

R23008 IBR-i3-3217UE -40 - 50 °C Requires Industrial Temperature SSD3

R23016 IBR-i3-3217UE -40 - 50 °C Requires Industrial Temperature SSD3

R27004 IBR-i7-3517UE -40 - 50 °C Requires Industrial Temperature SSD3

R27008 IBR-i7-3517UE -40 - 50 °C Requires Industrial Temperature SSD3

1Width listed is for computer without mounting brackets. Total width with brackets is shown in drawings.

2Operating temperature is dependent on particular model. See the Operating Temperature Range section

for model capabilities.

3The minimum operating temperature rating of the SSD determines the minimum operating range of the

entire system during a cold start scenario. To ensure the full operating range, an SSD rated to operate at

-40C is required. Max operating temperature of 85C is required for operation at 50C.

SL9247 2/2017

R27016 IBR-i7-3517UE -40 - 50 °C Requires Industrial Temperature SSD3

The R27004, R27008 and R27016 can operate with no airflow at 50C as long as the steady-state CPU usage

does not exceed 50%. If CPU usage is sustained at a workload greater than 50%, the CPU will throttle itself

back to keep its internal temperature in a safe range.

If the application environment requires the computer to operate at 50C with steady state CPU usage greater

than 50%, some additional cooling must be used to ensure safe operation of the electronics.

The R2 computer system is a fan-less, solid state computer that relies on thermal conduction to move heat

from internal components to the outside of the enclosure. The lid is designed as a finned heat sink to

increase overall surface area. Three main cooling methods can be used to optimize removal of heat from

the system.

1. Airflow

2. Thermal conduction through mounting

3. Computer orientation

Airflow over the lid provides the most effective heat removal of these three options. It is optimal to mount

the computer in an area that has either natural or forced airflow to constantly remove heat from the

enclosure.

Mounting the computer to a large thermally conductive surface (such as an I-Beam, steel cabinet or other

large metal surface) allows heat to travel through the enclosure and be dissipated into the large structure.

POWER SUPPLY

The power supply provided has a universal AC input. It provides 24 VDC @ 2.7 A max output to the R2

system. Typical power consumption varies depending on COM Express Module, memory capacity,

OS/software activity and peripheral devices. AC current draw will never exceed 1.4 A.

The included AC/DC power supply has an operational temperature range of 0 °C to 40 °C. If the

computer must be located in an environment greater than 40

°C, a different power source should

be used. Ensure the power source can supply the power listed below.

All necessary system voltages are generated from a single DC input capable of accepting 18 VDC to 36 VDC

(fed by above DC power supply).

Acceptable System Input Voltage 18 VDC-36 VDC

DC Current Rating (Dependent on COM

Express Module , input voltage and load)

375 mA-2150 mA

Indice

Altri manuali SeaLevel Controllori

SeaLevel

SeaLevel Relio R2 SYNC Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
