Sealey TP955.V2 Manuale utente

56L/MIN WALL MOUNTING DIESEL/FLUID

TRANSFER SYSTEM WITH METER

MODEL NO: TP955.V2

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURYAND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

WARNING! It is the user’s responsibility to check the following:

Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and

all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical

products. You may obtain an RCD by contacting your local Sealey stockist.

If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable

Appliance Test) tested.

Electrical safety information, it is important that the following information is read and understood.

Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.

Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.

Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the

correct fuse - see fuse rating in these instructions.

8DO NOT pull or carry the appliance by the power cable.

8DO NOT pull the plug from the socket by the cable.

8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is

replaced immediately by a qualied electrician.

If the cable or plug is damaged during use, switch o󰀨 the electricity supply and remove from use.

Ensure that repairs are carried out by a qualied electrician.

Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.

b) Connect the BROWN live wire to the live terminal ‘L’.

c) Connect the BLUE neutral wire to the neutral terminal ‘N’.

Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.

Sealey recommend that repairs are carried out by a qualied electrician.

1.1. GENERAL SAFETY

WARNING! Ensure Health & Safety, government and local authority regulations relating to the transfer of

diesel are adhered to when using this equipment. Familiarise yourself with the application, limitations and specific hazards peculiar to the

pump.

WARNING! Disconnect pump from the mains power before changing accessories, servicing or performing any maintenance.

▲DANGER: DO NOT use pump for the transfer of fluid other than diesel fuel of a viscosity from 2 to 5.35 cSt at 37.8OC, with a minimum

flash point (PM) of >55OC, or for any other purpose.

▲DANGER: Motor is not explosion proof and must not be used where flammable vapours may be present.

WARNING! On first use or after running out of fuel perform the following:

Switch on power and squeeze and release the trigger to attempt to discharge fuel for max. 2 minutes. If no fuel flows remove

nozzle from dispensing hose and run pump again for max. 2 mins. DO NOT allow pump to run for more than 2 minutes if no fuel

flows out - refer to instruction manual. RUNNING PUMP WITH NO FUEL FLOW FOR OVER MINS. CAUSES INTERNAL DAMAGE.

9Filters (if fitted) should be changed regularly to ensure unrestricted fuel flow.

9Maintain pump in good condition (use authorised service agent). Drain meter and pipes before dismantling.

9Ensure unit is correctly calibrated before use, and after having been dismantling for maintenance.

9Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

9Ensure the transfer area is free of clutter and has adequate lighting.

9The motor is equipped with a thermal cut-out which will shut the motor off should the unit over heat. If this happens, turn the unit off and

allow to cool, by which time the cut-out will automatically reset.

9Keep children and unauthorised persons away from the working area.

9Replace/repair damaged parts. Use genuine parts. Unauthorised parts are dangerous and will invalidate warranty.

9Installation site must protect the unit from the weather.

9Retain manual with the unit for reference for any new user.

8DO NOT use the pump without the delivery nozzle attached.

8DO NOT start or stop the pump by switching on or off at the mains power supply.

8DO NOT use to dispense: petrol, inflammable liquieds, water, food liquids, liquids with viscosity>20 cSt, corrosive chemical products,

solvents.

8DO NOT operate the unit with wet hands. We recommend the use of diesel resistant gloves and goggles.

Refer to

instruction

manual

Wear

protective

gloves

Wear protective

clothing

TP955.V2 Issue:2 (H,F) 12/10/21

Original Language Version

Recommended fuse rating

13 Amp

Wear

eye

protection

8DO NOT use with a motor other than that built into the unit (incorrect flow pressure will distort pump accuracy).

IMPORTANT: It is installer’s responsibility to ensure all supply pipes, fixtures and fittings are adequate for the safe flow of diesel fuel.

2. INTRODUCTION

Self-priming, rotary vane pump with bypass valve. Direct drive 230V motor tted with overload protector. Volumetric, nutating disc, resettable

meter with large 3-digit display. Supplied with Model No. TP109 Automatic Delivery Nozzle and 4m of reinforced 3/4” hose. Unit is suitable for

wall, tank or pedestal installation. Flow rate 56L/min.

3. SPECIFICATION

Model no:...............................................................TP955.V2

Current:..............................................................................3A

Flow Rate:................................................................. 56L/min

Pressure: .............................................................29psi(2bar)

Protection:......................................................................... No

Speed: .....................................................................2900rpm

4. CONTENTS/FEATURES

5. INTSTALLATION

5.1. The CUBE dispenser can be installed outside. Nevertheless, it is advisable to locate it under the shelter of a roof to ensure the

dispenser’s longevity and provide greater comfort during refuelling in the event of bad weather. The installation of the dispenser must

be carried out by skilled personnel and performed according to the instructions provided in this manual.

5.2. MECHANICAL INSTALLATION g.1

Before beginning the installation, verify that no packing material has been trapped in the tubing.

Prepare suitable stilts or xing brackets depending on the xing position of the unit. The tube coming from the tank must be aligned to

the threaded inlet of the pump lter which is located under the unit.

5.3. HYDRAULIC CONNECTIONS

WARNING! Remove the protective caps from the threads. The hydraulic connections can be made with exible or rigid tubes with

adequate joints, as long as they are done by skilled personnel, in a workmanlike manner, with respect for the regulations in e󰀨ect in

the country of installation.

5.3.1. Maximum length of hydraulic tubing

Suction is a󰀨ected by the length and diameter of the tubing and the di󰀨erence in height between the tank and the height of the pump. A

back pressure must not be created greater than 0.6bar.

fig.1

Original Language Version

The back pressure progressively increases by 0.08 bar for every meter increase in the static height of the pump with respect to the

level of the diesel fuel in the tank.

5.3.2. Recommendations and Warnings!

• The suction tubing must resist a pressure of at least 10 bar and must be of a diameter NOT LOWER than 1’’.

• The tubing must be suitable to function under backpressure.

• Use tubing and accessories suitable for use with diesel fuel.

• Any curves in the suction tubes must be of the widest radius possible to limit the loss of head.

• Make sure that the suction tubing is clean and free of scum.

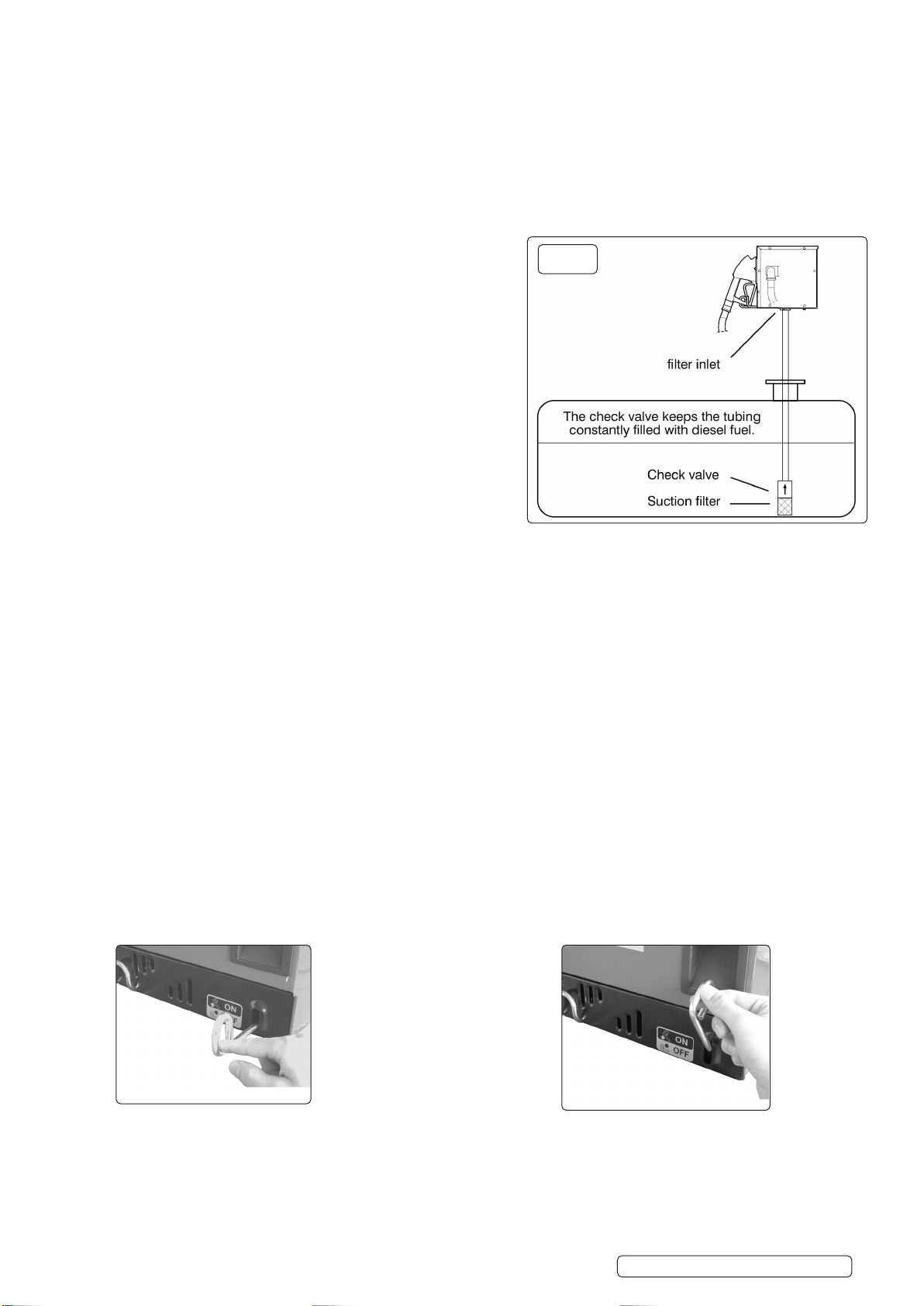

5.3.3. Installation of the check valve and lter g.2

The check valve and a suction lter must be attached to the pick up tube. They must remain immersed at the bottom of the tank. The

check valve and the lter are provided as part of the equipment with the unit.

NOTE: Before connecting the tubing to the pump lter, ll the tubing

with diesel fuel to help prime the pump.

5.3.4. Connecting the tubing to the unit

Screw the other end of the tubing to the pump lter.

WARNING! DO NOT use conical threaded connectors that could

cause damage to the threaded connector on the pump lter.

5.4. ELECTRICAL CONNECTION

Electrical connection must be carried out by professionals only.

WARNING! the unit is not equipped with circuit breakers.

It is therefore strongly recommended to install on the plug a 30-mA

residual current operated circuit breaker.

5.5. STARTING

5.5.1. Filling the pump

The pump provided with the unit is a self-priming pump capable of

suctioning an empty tube, nevertheless, the pump should be partially

lled with diesel fuel before turning it on for the rst time.

5.5.2. Priming the pump

It is advisable to oversee the rst priming phase to make sure that it is

happening in a reasonable amount of time.

Depending on the length and ll status of the priming tubes, the priming of the pump can require from several seconds to several

minutes.

Recommendations and Warnings!

If priming takes a long time, stop the pump and verify that:

- the pump is not running completely dry;

- the suction tubing is air-tight and completely immersed in the uid to be pumped;

- the suction lter is not clogged;

- the di󰀨erence in height for priming is not greater than 3 meters refer to g.1;

- the residual air in the tubes has been evacuated.

5.5.3. Calibrating the meter

Before using the unit station, check the METER ACCURACY.

Proceed as follows:

• Take out the nozzle and start the pump as described in the above paragraph.

• Run the fuel into a calibrated container.

Recommendations and Warnings!

• To correctly check accuracy:

• Use a precision sample container, featuring a graduated measuring scale, with a capacity of at least 20 litres.

• Before making the check, always make sure you have eliminated all the air from the system and then run the fuel until a full and

regular ow is achieved.

• Dispense continuously at maximum ow rate.

• Stop the ow by quickly closing the nozzle.

• Compare the reading provided by the container, with that provided by the unit, after waiting for all the froth to disappear.

WARNING! Di󰀨erences of up to 0.2 litres out of every 20 litres fall within the guaranteed accuracy of +/- 1%.

5.5.4. Turning on the unit

Lift the dispensing nozzle away from the rest Lift the rest (ON)

fig.2

Original Language Version

6. OPERATION

Recommendations and Warnings!

• Transfer of fuel must always occur in the presence and under the control of the Operator.

• Keep the dispensing nozzle closed until it is inserted in the container to be lled.

• If the nozzle lever is not completely pressed, the automatic release device will not work.

6.1. HOW TO DISPENSE FUEL

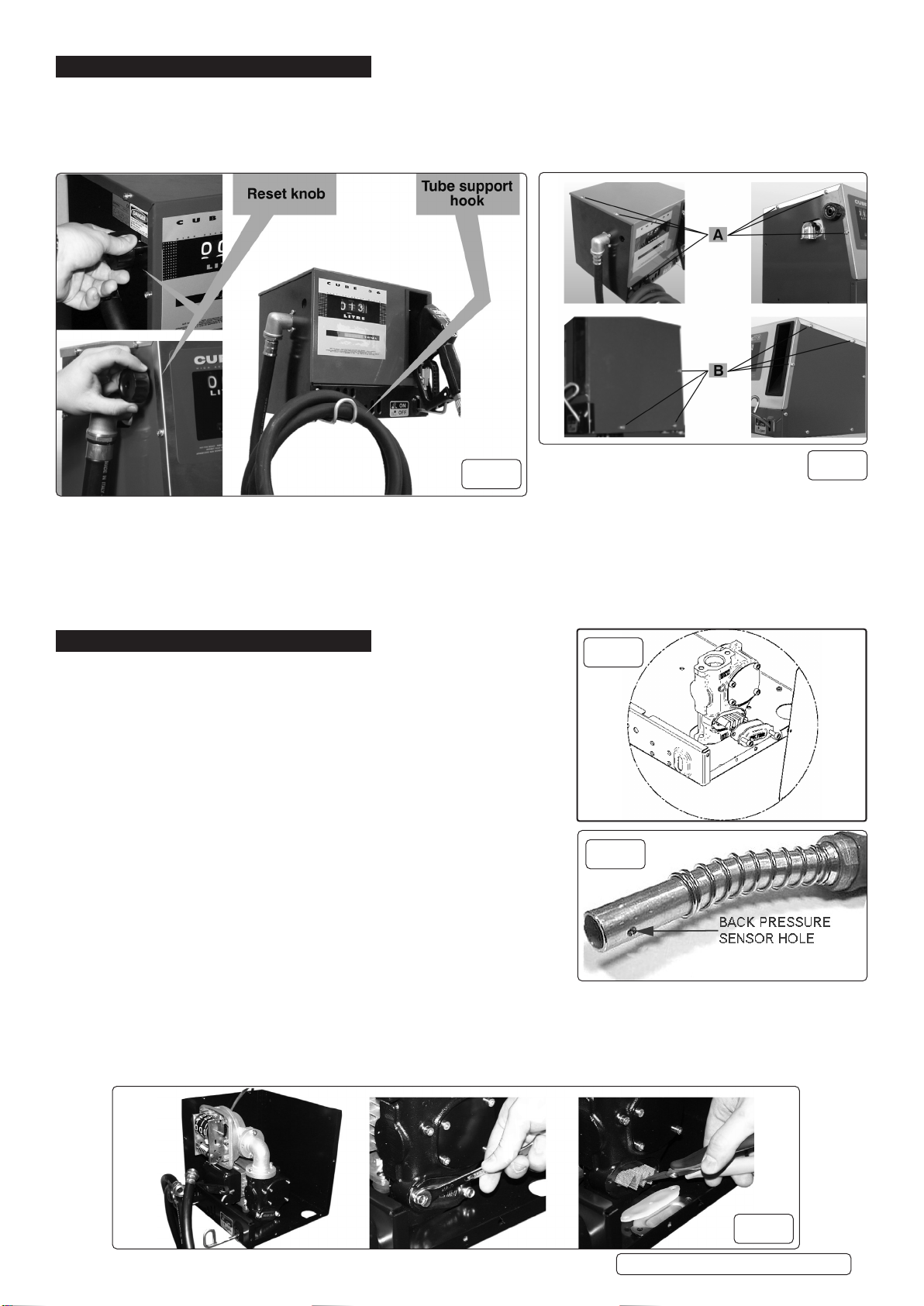

6.1.1. Rotate the reset knob in a counter-clockwise direction to completely zero-out the partial indicator. The total indicator cannot be reset to

zero.

6.1.2. Extract the dispensing nozzle (a) and insert it in the container to be lled.

6.1.3. Set the starting handle to position ON (b): the pump starts.

6.1.4. Press the nozzle lever and keep it pressed until you have dispensed the desired quantity.

6.1.5. When dispensing is nished, set the start handle to OFF (c): the pump stops. Replace the nozzle (d).

6.1.6. Rehang the tube on the tube support hook, so that it will not be crushed by moving vehicles.

7. a MAINTENANCE

7.1. OPENING AND CLOSING THE CUBE fig.4

Unscrew and remove the three cross-head screws on the left side

of the unit ( A).

Unscrew and remove the three cross-head screws on the right side

of the unit (B).

Lift o󰀨 the top cover.

To reclose it, perform these steps in reverse order.

7.2. PERIODIC INSPECTIONS

Weekly checks:

- keep the pump body, tubing and anges clean to promptly reveal any leaks.

- Keep the dispensing nozzle tube clean and especially the hole

for the excess pressure probe at the end of the nozzle tube g 6.

- With equal frequency or at least every time the tank is lled,

clean the lter and check valve at the bottom of the tank.

Every three months (or more often in case of doubt) verify the accuracy of the

meter.

7.3. CLEANING THE PUMP FILTER gs 5 & 7

The pump lter must be cleaned weekly or more often whenever a reduction in

ow rate is noticed.

The frequency required depends most of all on the quantity of fuel dispensed, but

also on other causes as well, such as dispensing fuel immediately after relling the tank, which stirs up sediment which normally lies at

the bottom.

To gain access to the lter:

• Remove the upper part of the unit, by unscrewing the 6 side screws (see Opening and Closing the Cube)

• Screw o󰀨 the 2 screws on the lter cover.

• To clean it, it is su󰀩cient to wash it and blow through it.

fig.7

Original Language Version

fig.5

fig.6

fig.4

fig.3

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call

our technical team on technical@sealey.co.uk or 01284 757505.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment

(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid

waste authority for recycling information.

8. TROUBLESHOOTING

Problem Possible causes Solution

Motor not turning Lack of electric power Set the starting handle to position ON

Reset the external residual current circuit-breaker

Check the electrical connections

Fuses burned out Replace the fuses in the electric panel

Faulty switch on the electric panel Change the switch

Motor problems If the rotor is jammed, dismount and check for damage and

obstructions, then remount

Contact the Service Department

Motor will not start with the nozzle

closed Electric voltage too low Check that the voltage is not more than 5% below the

nominal voltage

Low or no ow rate Excessive suction pressure Lower the CUBE with respect to the tank or increase the

diameter of the tubing

High loss of head Use shorter tubing or of greater diameter

Suction tube resting on the bottom of

the tank Raise the suction tube

Low level in the suction tank Rell the tank

Air entering the suction tube or in the

pump Check the connections seal in the tubing and the level of

diesel fuel in the tank

Motor low rotation speed Check the voltage at the motor.

Adjust the voltage and/or use cables of greater cross-section

Check valve blocked Clean or replace

Tank lter clogged Clean the lter

Pump lter clogged Clean the lter

Fluid leaking Check the seal of the connections and the condition of the

rubber tubes

Meter chamber obstructed Clean the meter chamber

Meter accuracy not su󰀩cient Air in the suction line Check the sels of the connections

Measuring chamber dirty Clean the meter measuring chamber

Original Language Version

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sealey Sistema di lubrificazione

Sealey

Sealey SM221 Manuale utente

Sealey

Sealey SM22.V3 Manuale utente

Manuali Sistema di lubrificazione popolari di altre marche

Atlanta

Atlanta BKI 109 e Manuale utente

Viper

Viper Maxi MK 2 Supplemento

MEMOLUB

MEMOLUB HPS Manuale utente

BEROTEC

BEROTEC Mofessor Manuale utente

TUTORO

TUTORO Auto Manuale di istruzioni

Bijur Delimon

Bijur Delimon V5B Manuale utente

iSHAN

iSHAN YGL-L Manuale utente

iSHAN

iSHAN YET-A1 Manuale utente

DLS

DLS FlexxPump 1500 Manuale utente

SKF

SKF 501-301-310-S1 Manuale utente

Lincoln

Lincoln SKF KFU2 Series Manuale utente

Sumake

Sumake SA-2362M Manuale utente

SKF

SKF LUBRILEAN Vario Manuale utente

Graco

Graco 203-697 E Series Manuale operativo

SMC Networks

SMC Networks AL Series Manuale utente

MEMOLUB

MEMOLUB HPS Manuale utente

Wittenstein Alpha

Wittenstein Alpha LUC+400 Manuale utente

Burks

Burks 104300 Manuale utente
