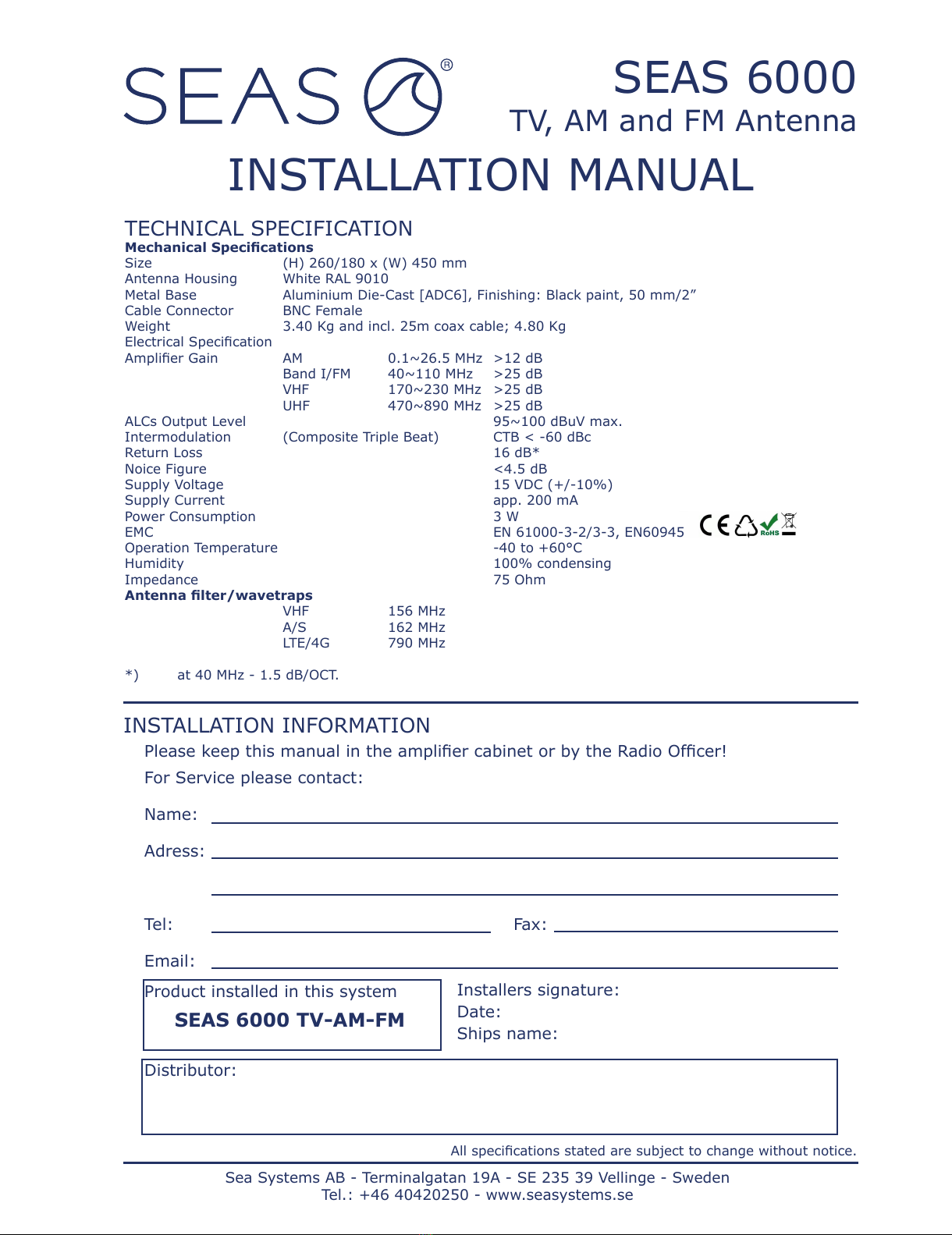

TECHNICAL SPECIFICATION
Mechanical Specications
Size (H) 260/180 x (W) 450 mm
Antenna Housing White RAL 9010
Metal Base Aluminium Die-Cast [ADC6], Finishing: Black paint, 50 mm/2”
Cable Connector BNC Female
Weight 3.40 Kg and incl. 25m coax cable; 4.80 Kg
Electrical Specication
Amplier Gain AM 0.1~26.5 MHz >12 dB
Band I/FM 40~110 MHz >25 dB
VHF 170~230 MHz >25 dB
UHF 470~890 MHz >25 dB
ALCs Output Level 95~100 dBuV max.
Intermodulation (Composite Triple Beat) CTB < -60 dBc
Return Loss 16 dB*
Noice Figure <4.5 dB
Supply Voltage 15 VDC (+/-10%)
Supply Current app. 200 mA
Power Consumption 3 W
EMC EN 61000-3-2/3-3, EN60945
Operation Temperature -40 to +60°C
Humidity 100% condensing
Impedance 75 Ohm
Antenna lter/wavetraps
VHF 156 MHz
A/S 162 MHz
LTE/4G 790 MHz
*) at 40 MHz - 1.5 dB/OCT.
SEAS 6000
TV, AM and FM Antenna
INSTALLATION INFORMATION
Please keep this manual in the amplier cabinet or by the Radio Ofcer!
For Service please contact:
Name:
Adress:
Tel: Fax:
Email:
Product installed in this system
SEAS 6000 TV-AM-FM
Installers signature:
Date:
Ships name:
Distributor:
INSTALLATION MANUAL
