Seating Matters Sorrento 2 Manuale utente
Sorrento 2
TM
Instruction Manual
This Instruction Manual is frequently updated to ensure safe use of your chair.
Visit seatingmatters.com where you can nd a free copy of the most up to date version.
Terminologies
Patient
The person sitting in the chair.
User
Competent person with responsibility for the persons sitting in the chair as well as the
suitability of the equipment for the Patient. The User is responsible for checking the chair
for faults during the course of its use.
All instructions must be read and understood before the chair may be used.
1
Contents
2Technical Specication
4Operating Instructions
4Tilt in Space (Manual Option)
5Back Angle Adjustment (Manual Option)
6Leg Elevation (Manual Option)
7Back Height Adjustment
8Seat Depth Adjustment
9Seat Width Adjustment
10 Arm Removal
11 Arm Height Adjustment
12 Footplate Angle
13 Footplate Height
14 Seat Cushion
15 Chair Function (Motorised Option)
18 Chair Movement
20 Cleaning Instructions
21 Safety Instructions
22 Maintenance & Servicing
23 Recycling Policy
24 Warranty
25 Intellectual Property
2
Sorrento 2TM
Technical
Specication
3
Basic Dimensions
A Overall Height*
BBack Height
C Seat Height*
D Overall Length
Standard: 50" / 1270mm
Range: 48"-54" / 1220mm-1370mm
Standard: 28" / 710mm
Range: 26"-32" / 660mm-810mm
24" / 600mm
49" / 1250mm
*Height measurements are based on 100mm castors.
Footplate Height Adjustments (from seat)
EHigh
FLow
15" / 380mm
20" / 510mm
Available Seat and Overall Widths
G (Seat Width)
14" / 350mm*
16" / 400mm
18" / 450mm
20" / 500mm
22" / 550mm
24" / 600mm
H (Overall Width)
25" / 660mm
25" / 660mm
26" / 670mm
28" / 720mm
30" / 770mm
32" / 820mm
* This seat width is achieved using a 400mm/16" seat
width and a set of 25mm/1" padded arm covers.
Arm Height Options (from seat cushion)
ILow
JMedium
KHigh
6" / 160mm
7" / 185mm
8" / 210mm
Seat Depth
L17 - 22" / 430mm - 550mm
Clearance Height
M 5" / 130mm*
*Height measurements are based on 100mm castors.
Full Recline Length
N 69" / 1750mm
Recline and Tilt Angles
ii Back Angle Recline
90° - 130°
40° range
iii Leg Rest Angle
80° - 150°
70° range
iv Tilt in Space
From 5° forward, or anterior, tilt to 30° or 45°
backward tilt (dependent on chair model)
Chair Weight Unloaded
Motorised: 10 Stone / 64 Kg / 141 lb
Manual: 8 Stone / 51 Kg / 111 lb
Patient Weight Limit
31.5 Stone / 200 Kg / 440 lb
A
B
C
E
F
G
H
ii
iii iv
IJ
L
K
N
M
D
4
For motorised option, see page 15.

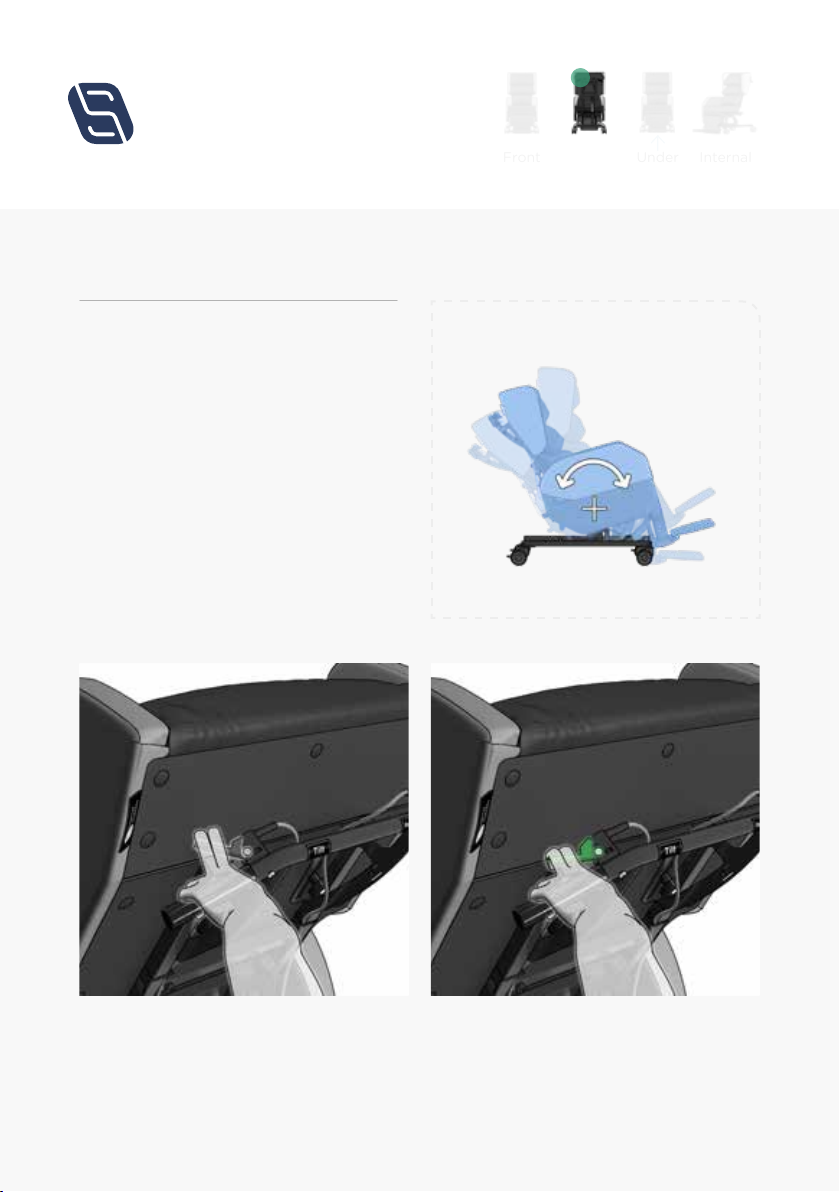

To adjust the tilt angle of the chair (g.1).
From the back of the chair, place both
hands on the push handle and locate the
left release lever (g.1a) with your
left hand. To tilt the chair, close your left
hand pulling the lever towards you (g.1b).
With the lever engaged, tilt the chair to the
required angle and release the lever again
to lock the tilt in this position.
Operating
Instructions
Back
Under
Internal
Front
Tilt in Space (Manual Option)
(g.1)
(g.1a) (g.1b)
5
For motorised option, see page 15.

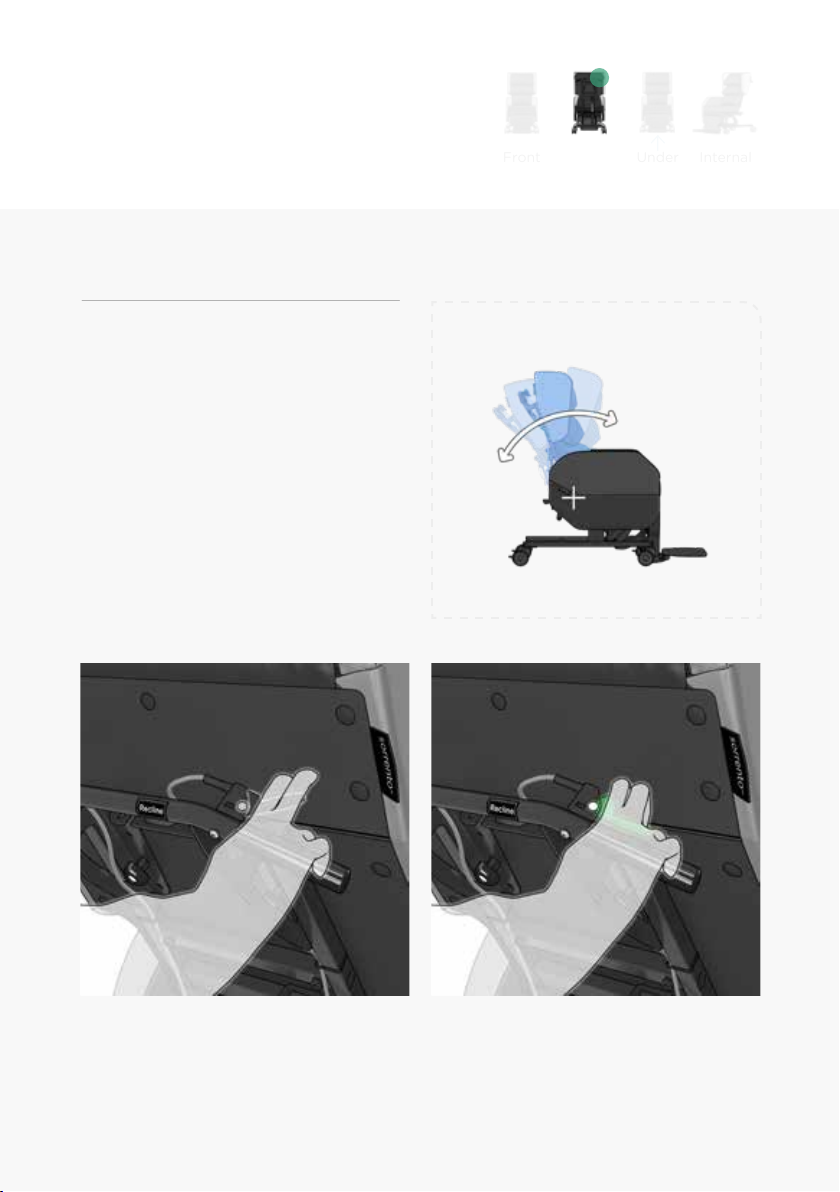

To adjust the back recline of the
chair (g.2).
From the back of the chair, place both
hands on the push handle and locate the
right release lever with your right
hand (g.2a). To recline the back of the
chair, close your right hand pulling the
lever towards you (g.2b). With the lever
engaged, recline the back to the required
angle and release the lever again to lock
the back in this position.
Back Angle Adjustment (Manual Option)
(g.2)
(g.2a) (g.2b)
Back
Under
Internal
Front
6
For motorised option, see page 15.
To adjust the angle of legrest
elevation (g.3).
From the front of the chair, locate the
leg rest lever attached to the right side
base frame. (g.3a). To elevate the leg
rest, engage the release lever, pushing it
downwards. (g.3b). If adjusting the legrest
elevation while the patient is in the chair,
assist the elevation. To retract the leg rest,
engage the release lever and pushing the
leg rest assembly inwards.
Leg Elevation (Manual Option)
(g.3)
(g.3a) (g.3b)
Back
Under
Internal
Front
7
To adjust the back height of the
chair (g.4).
Remove left safety knob fully and loosen
right adjustment knob so the back can slide
freely (g.4a). Loosen the sliding bolts if
necessary. Slide the back up or down to the
desired back height position, tighten the
right adjustment knob then reattach and
tighten the left safety knob (g.4b).
Back Height Adjustment
(g.4)
(g.4a) (g.4b)
Back
Under
Internal
Front
8
Back
Under
Internal
Front
To adjust the seat depth of the chair (g.5).
From the back of the chair, disengage the
seat depth clamping lever by pushing it
downwards (g.5a).With your right hand
disengage the seat depth safety plunger
and push the seat base assembly forward
or back to the required position (g.5b).
Ensure the safety pin locates to the desired
position before re-engaging the seat depth
clamping lever. The seat depth settings can
be found below.
Seat Depth Adjustment
(g.5)
(g.5a) (g.5b)
*There are six options for seat depth.
0430mm 1450mm 2475mm 3500mm 4525mm 5550mm
17" 18" 19" 20" 21" 22"
