Sebury BT1 Manuale utente

BT1

User Manual V1.0

Contents

1 Product overview........................................................................................................................................ 3

1.1 Product introduction............................................................................................................................ 3

1.2 Product Features.................................................................................................................................. 3

1.3 Technical parameters........................................................................................................................... 3

2 Installation, wiring and Debugging............................................................................................................ 3

2.1 Installation............................................................................................................................................3

2.2 Wiring.................................................................................................................................................. 4

2.3 Debug................................................................................................................................................... 4

3 Basic functions............................................................................................................................................4

3.1 Enter into administrator mode............................................................................................................. 5

3.2 Change the administrator password.....................................................................................................5

3.3 Add card user....................................................................................................................................... 5

3.3.1 Quickly to add card user...............................................................................................................5

3.3.2 Specifying the ID number to add a card.......................................................................................5

3.3.3 Specifying the ID number to add a user password.......................................................................5

3.4 Deleting users.......................................................................................................................................6

3.4.1 Quickly delete the card................................................................................................................. 6

3.4.2 Specify ID Number to Delete Card or Password......................................................................... 6

3.4.3 Deleting all users.......................................................................................................................... 6

3.5 Setting the door opening method.........................................................................................................6

3.6 Setting the open time........................................................................................................................... 6

3.7 Setting the alarm time..........................................................................................................................6

3.8 Set the door contact..............................................................................................................................6

3.9 Setting the security mode.....................................................................................................................7

3.10 Exit from the administrator mode......................................................................................................7

3.11 Change user’s password.....................................................................................................................7

3.11.1 Change password by card........................................................................................................... 7

3.11.2 Change password by ID number.................................................................................................7

3.12 Users open the door........................................................................................................................... 7

3.13 Resetting To Factory Default Setting................................................................................................ 7

4 Administrator mode operation summary table........................................................................................... 8

5 Simple Troubleshooting..............................................................................................................................8

6 Mobile operating function.......................................................................................................................... 9

6.1 Download and install mobile APP.......................................................................................................9

6.2 Administrator's mobile operations.......................................................................................................9

6.3 Other users add device.......................................................................................................................12

6.4 Users open doors with mobile phones...............................................................................................12

6.5 Device upgrade.................................................................................................................................. 13

6.6 APP Common Questions................................................................................................................... 13

7 Packing list................................................................................................................................................14

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 3

1Product overview

1.1 Product introduction

This product uses high-strength ABS plastic body, with proximity card (EM card, also known as ID card)

or password or mobile Bluetooth to open the door, built-in highly integrated microcontroller, simple

circuit, safe and reliable, economical and durable, suitable for office, villa etc.

1.2 Product Features

• Mobile Bluetooth opens the door and an administrator shares it with multiple users.

• 1000 user cards bound with 1000 user passwords, and the user can modify password by himself

• Opening door modes: card, card + password, card or password, password.

• Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode;

• It can connect with the door magnetic detection for alarm or door closing prompts;

• Built-in high current MOS tube, can directly drive external alarm;

• Safe mode can be set: 10 times of invalid card or password will automatically lock the machine

for 10 minutes;

• Can connect with an exit button, convenient to open the door from inside.

• Safety screw at the bottom to prevent malicious destroy.

1.3 Technical parameters

• Working voltage: DC 12V±2V

• Static current: up to 30mA

• Operating current: up to 100mA

• Contact current of relay: up to 1A

• Working temperature: -20 to 50

• Working humidity: 0 to 95%

• Maximum Card Reading Distance

• Product Size: 130mm Long X 75mm Wide X 17mm High

2Installation, wiring and Debugging

2.1 Installation

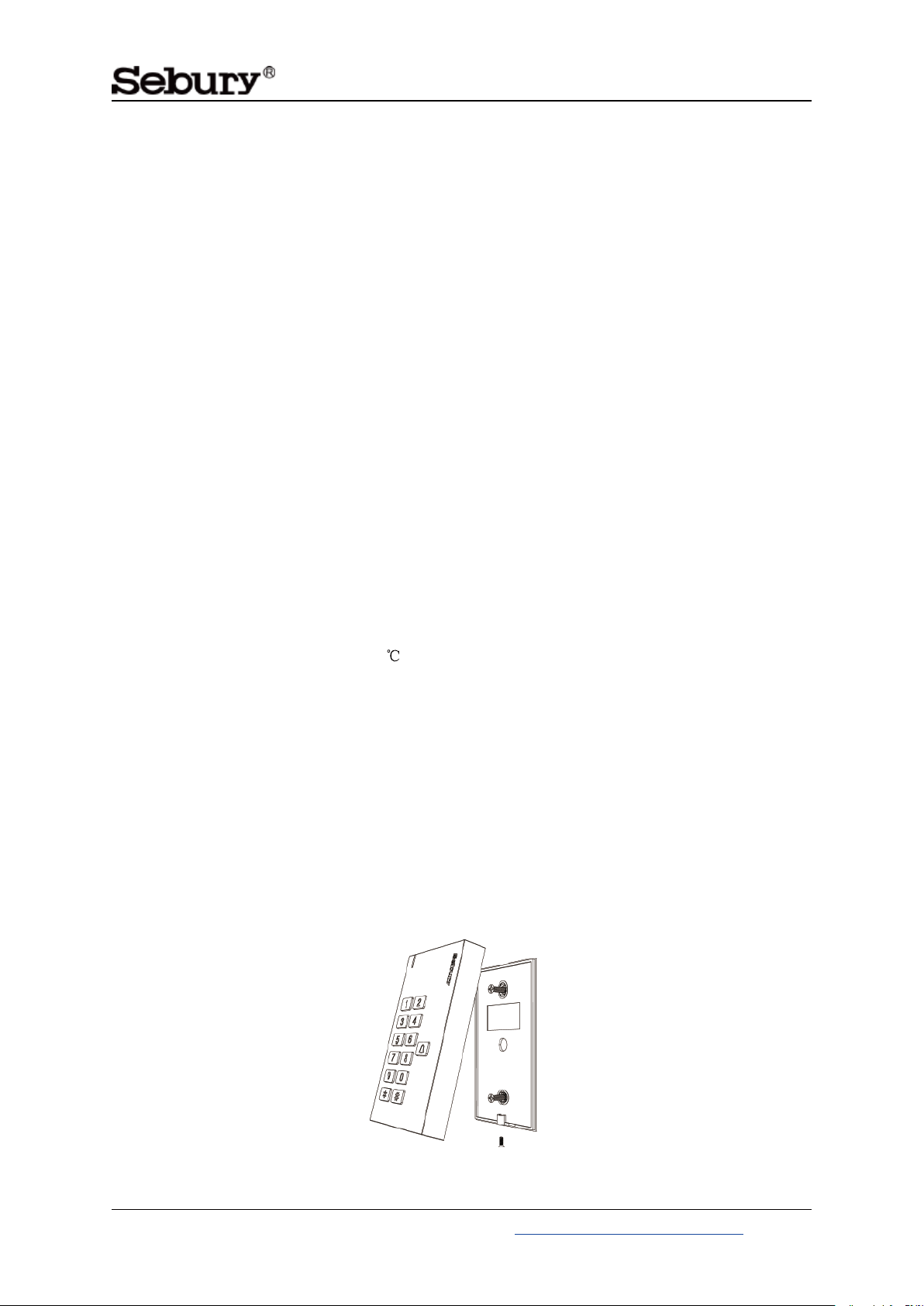

Unscrew the anti-tamper screw on the bottom of the product with the special anti-tamper screwdriver,

remove the back case of the product, then according to the opening position of the back case, use the

impact drill to open the corresponding holes on the wall, make a hole with diameter larger than 8mm,

and two holes with diameter of 6mm, then insert two matching plastic expansion screws, and fix the

back case to the wall with four matching self-tapping screws. As shown below:

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 4

2.2 Wiring

According to the selected wiring diagram, connect the wire according to the wiring diagram one by one.

The rest unused wire should be wrapped by the electrical tape. Be careful not to short circuit, or the

power supply will be burned out, then insert the wires into the access control keypad 8P and 2P socket.

check every wire is correct, briefly turn on the power to see if the indicator LED light is normal, and the

buzzer will beep once, otherwise cut off the power supply immediately, Check the wires again. If

everything is correct, install the front case of the product on the bottom case on the wall, and fix with

disassembly-proof screw.

The corresponding relationship between product wiring color and function is shown in the following

table:

NO. Sign Colour Function

ALARM-

Grey

Negative pole of alarm

2 OPEN Yellow One end of the exit button

3 D_IN Brown One end of gate magnetic switch

4 +12V Red Positive pole of power supply

5 GND Black Negative pole of power supply

6 NO Blue NO of Relay

7 COM Purple COM of Relay

8 NC Orange NC of Relay

9 BELL Pink One end of doorbell button

10 BELL Pink One end of doorbell button

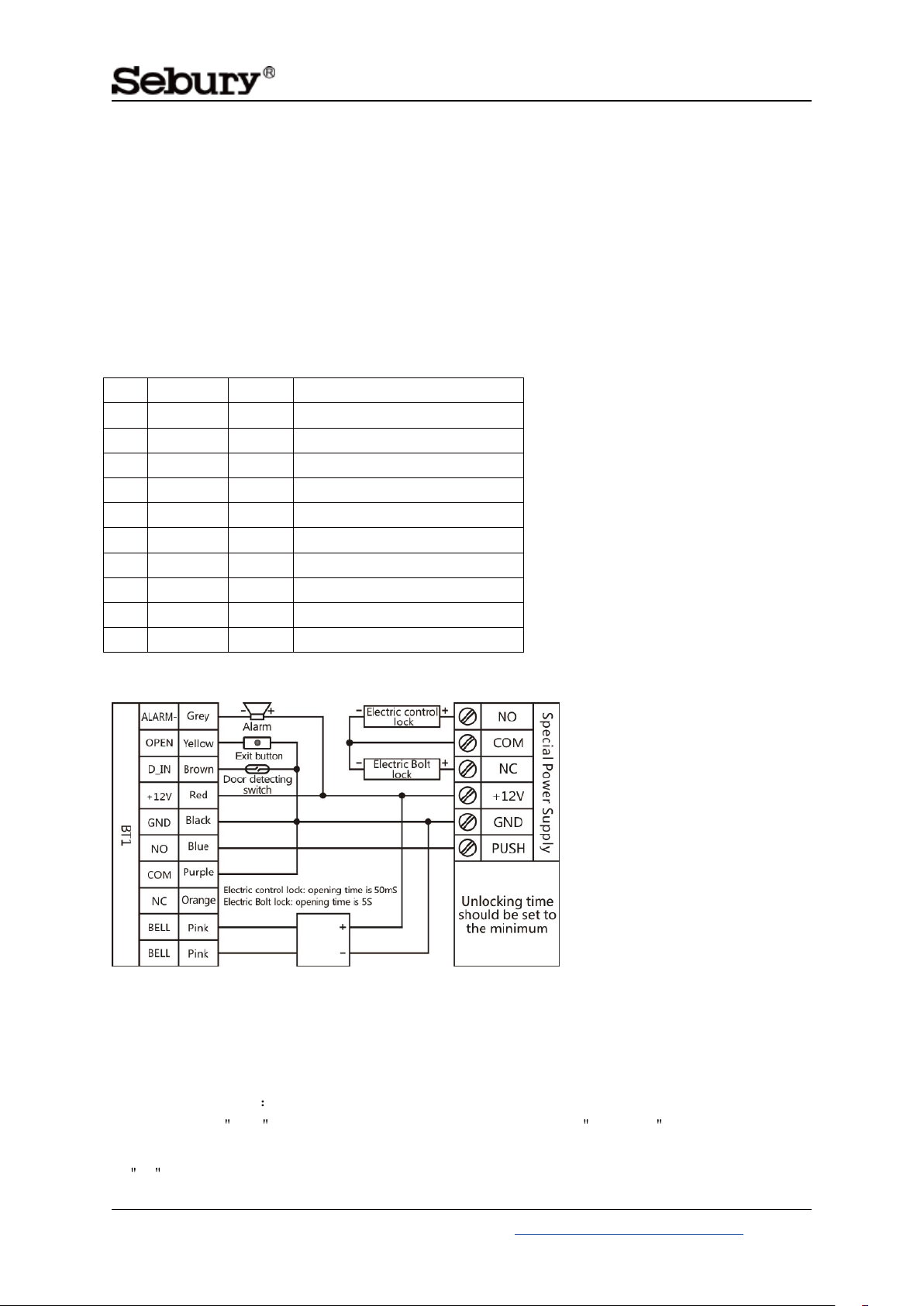

The wiring diagram of the product is as follows:

2.3 Debug

Turn on the power supply and test according to the instructions. The debugging will be completed until

the lock can be opened correctly by reading card, password and exit button.

3Basic functions

Operating conventions

• A long sound Di- indicates correct operation. Three short sounds Di Di Di indicate wrong

operation . The indicator light flash in green means operate correctly.

•# indicate confirm completed, normally used behind pass word, ID number, or parameter.



BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 5

• * indicate cancel the current operation or return to the previous menu.

• The management menu is fixed to 1 digit from 0-6, cannot press key # after it. After entering

setting menu, the indicator light turns to orange.

• Under administrator mode, it will automatically exit to standby state if there is no operation

within 30 seconds.

• Under non- administrator mode, it will automatically exit to standby state if there is no operation

within 5 seconds.

Light and buzzer indication:

Operation status

Light color

Buzzer

Standby Red

PIN inputting Red flash

Read the card in Card & PIN mode Red flash

Enter into administrator mode Red flash

Enter menu setting status Orange

Successful operation Green A long sound

Unlock period Green

Press numeric key A short sound

Press * A long sound

Failed operation Three short sound

3.1 Enter into administrator mode

* 6 digits administrator password #

For example:

*888888#

Note: 888888 is the default factory administrator code. It fixed to 6 digits. Enter into the administrator

mode first before start the below operations.

3.2 Change the administrator password

0 new password # new password #

For example:

0999999#999999#

3.3 Add card user

Below 3 methods to add a card user, the ID number range is 0-999, the user password is fixed to 6 digits,

and it can be operated continuously. Press * to exit the add user menu.

3.3.1 Quickly to add card user

1, read card, … , *

For example, continuously add 3 cards:

1, read card, read card, read card *

3.3.2 Specifying the ID number to add a card

1, ID number #, read card, … , *

For example, continuously add 3 cards with ID number as 1,2,3:

11# read card 2# read card 3# read card *

3.3.3 Specifying the ID number to add a user password

1, ID number #, 6 digits user password #, ... , *

For example, consecutively set 3 passwords with ID numbers 4, 5, and 6:

14#444444#5#555555#6#666666#*

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 6

3.4 Deleting users

There are three ways to delete a user, where the ID number ranges from 0 to 999, every ID number

corresponds to a card or password, and the deletion ID number indicates that a card or a password is

deleted, and the operation can be continued. Press the * key to exit the delete user menu.

3.4.1 Quickly delete the card

2, read card, … , *

For example, delete 3 cards continuously:

2, read card, read card, read card, *

3.4.2 Specify ID Number to Delete Card or Password

2, ID number #, …, *

For example, continuously delete three users with ID numbers 1, 2, and 3:

2,1#2#3#*

3.4.3 Deleting all users

2, 0000#, *

For example:

20000#*

3.5 Setting the door opening method

3, 0# Open the door by card.

3, 1# Open the door by card and password.

3, 2# Default value, open the door by card or password.

3, 3# Open the door by password.

For Example, set the card and password to open the door:

31#

3.6 Setting the open time

4, 0# Default value, set the opening time to 50 milliseconds.

4, (1-98) # set the opening time to 1-98 seconds, the default value is 5 seconds.

4, 99# Set the machine to switch mode, that is, change the lock status every time once door opened.

For example, set the opening time to 5 seconds:

45#

Note: The 50 millisecond door opening time is suitable for the electric control lock. The switch mode is

suitable for the normally open or normally closed door.

3.7 Setting the alarm time

5, 0# Default , No alarm.

5, (1-3)# Alarm time is 1-3 minutes.

For example, set the alarm time to 1 minute:

51#

3.8 Set the door contact

6, 0# Default , door contact invalid.

6, 1# Door contact valid.

For example, set the safe mode in lock mode :

61#

There are two functions if connect with door contact by default:

1. The door left open in 10 seconds after opening, the built-in buzzer will ring. Close the door ,

swipe the valid card or input correct user PIN Code #, wait for more than 1 minutes will release alarm.

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 7

2. If the door was opened by force, or open the door after 120 seconds when normal unlock. The

outer connecting alarm and built-in buzzer will alarm simultaneously. swipe the valid card or input

correct user PIN Code #, wait for more than 1 minutes will release alarm.

3.9 Setting the security mode

7, 0# Default value, set to normal mode.

7, 1# Set to lock mode. When the invalid card, user password or administrator password is

continuously tried 10 times, the keypad will be automatically locked for 10 minutes.

7, 2#

Alarm mode. If there are continuously 10 invalid cards, 10 incorrect PIN number or administrator code

within 10 minutes, both the buzzer and alarm output will be operated. Swiping valid card, or input valid

PIN number, or wait for 1 minute will release the alarm output.

For example, set to lock mode:

71#

3.10 Exit from the administrator mode

In the administrator mode of operation, press the * key many times until the indicator light is always red,

that is, to exit the administrator mode of operation.

3.11 Change user’s password

3.11.1 Change password by card

*, Read user card, Old user password #, New password #, New password #

For example, Change user password by card:

* Read user card 1234#123456#123456#

Note: A initial password 1234 will be generated when adding a new card user. The initial password can’t

open the door, Just can be used to change the card user’s password. The new password should be in 6

digits.

3.11.2 Change password by ID number

*, ID number #, old password #, new password #, new password #

For example, Change user’s password by ID:

*1#123456#111111#111111#

Note: when changing password by ID number, the old user password can not be initial password 1234.

3.12 Users open the door

Read the card, or enter 6 digits user’s passwords, or press the Exit button

Note: No pressing # key after entering the password reduces frequency of using # key and greatly

improves the service life of # key. When opening the door, there will be a long sound of "beep" and the

indicator light will turn green during unlock. when the opening mode is card and password, the interval

between reading card and enter the password cannot exceed more than 5 seconds.

3.13 Resetting To Factory Default Setting

When administrator password is out of mind, or after user randomly adjust various parameters, you can

return to the normal situation by resetting to factory default setting. As following:

power off, press *and hold it, then power on, release it until hear two beeps, and master password

will revert to 888888,And the keypad parameters are reset to factory default setting, detail is in the

“administrator mode operation summary table”, the user’s card and password won’t be deleted.

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 8

4Administrator mode operation summary table

Enter master operation mode: * ( 6 digits administrator ) #

Menu Parameters or operation steps Function Default

0( new administrator password ) #

( new administrator password again )# Modify administrator password 888888

Read card, … ,* Quickly add user card

( ID No. ) #, read card, … ,* Add user card with ID No.

( ID No. ) #, ( user pin ), … ,* Add user pin with ID No.

Read card, … ,* Quick delete card

( ID No. ) #, … ,* Delete card or pin with ID No.

0000#, * Delete all the users

0# Entry by card

1# Entry by card with pin together

2# Entry by card or pin

3# Entry by only pin

0# Set open time to 50mS

5( 1-98 ) # Set open time to 1-98S

99# Set to switch mode

50# Set to no alarm 0

(1-3)# Set alarm time to 1-3 minutes

60# Set door contact invalid 0

Set door contact valid

Set to normal mode

1# Set to lock mode

2# Set alarm output

5Simple Troubleshooting

Fault

phenomenon

Possible causes Solution

Unusual

indicator light Power voltage too low or too much interference. Change to qualified power supply,

cable or restoring power.

No response

When the security mode is set to lock mode, the

number of consecutive card swipes or password

entries exceeds 10 times.

Restart power or wait 10 minutes.

Abnormal

unlocking

1. Incorrect opening time setting.

Setting Opening Time According

to Different Electric Lock

Requirements

2. Wiring error. Strictly follow the requirements of

wiring.

Can’t enter

administrator

mode

1. Make sure the light is always red before

pressing the * key. Operate in the right way.

2. Forget administrator password. Restore factory settings.

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 9

Can’t enter by

card

1. The way to open the door may be set to

password. Set the right way to open the door.

2. Too much power interference or too low

voltage.

Replacement of high quality power

supply or wire.

Can’t enter by

1. The password needs to be pre-set.

Administrators set or users use the card to modify

the original password 1234 to a new six-digit

password.

Setting or modifying user

passwords.

2. Password Input Error. Enter the correct password.

Digits key

invalid

Opening mode may be set as card opening or card

and encryption code opening. Set the right way to open the door.

6Mobile operating function

6.1 Download and install mobile APP

Click or scan the following QR code, and download and install the "Sebury BleAccess" mobile APP.

For ios For Android

6.2 Administrator's mobile operations

There can only be one administrator on this machine. Administrators must be added first, and then other

users can be added by administrators. Administrator is added as follows:

1. Turn off the power supply of the machine and then turn it on again. Follow-up operation will be

carried out within 10 minutes.

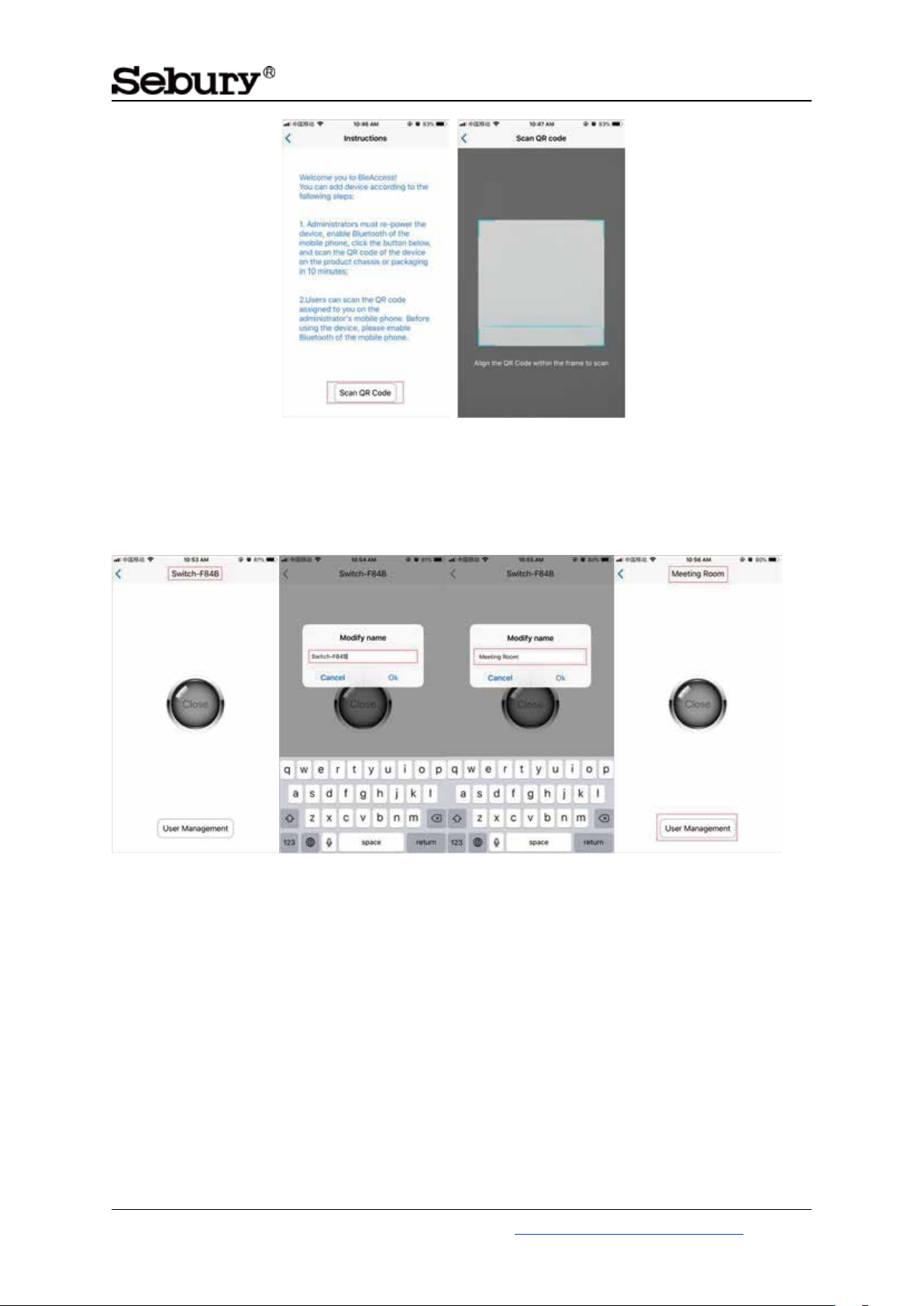

2. Open APP, the user instructions interface shown in Figure 1. After clicking on "Scan QR Code", a

scanning window appears as shown in Figure 2, aiming at the QR code of the device on the product

chassis. After a moment, the device interface shown in Figure 3 appears, that is, the addition is

successful.

BT1 User Manual V1.0

Sebury Technology Co.,Ltd http://www.sebury.com.cn

Page 10

Figure 1 Figure 2

3. Click on the device name at the top of Figure 3. A dialog box for modifying the device name appears

as shown in Figure 4. Enter a new device name. As shown in Figure 5, click OK, that is, the

modification is successful, as shown in Figure 6. When assign users, the device name in the user's

mobile phone displays the last modified name.

Figure 3 Figure 4 Figure 5 Figure 6

Administrators add users as follows:

1. Click on "User Management" in Figure 6 and enter the list of users as shown in Figure 7.

Administrators are automatically added and can not modify their names.

2. Click "Add User" to add a user bar, as shown in Figure 8.

Indice

Altri manuali Sebury Lettore di schede

Sebury

Sebury W2 Manuale utente

Manuali Lettore di schede popolari di altre marche

Lindy

Lindy 43185 Manuale utente

Lindy

Lindy 43185 Manuale utente

ViziT

ViziT RD-4F Manuale utente

Jinmuyu Electronics

Jinmuyu Electronics MR811 Series Manuale utente

AVID ID

AVID ID AVID1043 Manuale utente

Conrad

Conrad PCMCIA Manuale utente

Rosslare

Rosslare DR-6255 Manuale utente

Lindy

Lindy 51541 Manuale utente

Diapro T?bbi Ürünler

Diapro T?bbi Ürünler Across System Manuale utente

Johnson Controls

Johnson Controls Kantech tyco ioSmart Manuale utente

ACS

ACS ACR122L Manuale utente

Secukey

Secukey S2-MF Manuale utente

Elecom

Elecom MR-SMC07 series Manuale utente

Alien

Alien ALR-9800 Manuale utente

ACS

ACS ACR310 Manuale utente

Datamars

Datamars R-IN1300 MID Manuale utente

Alarm Lock

Alarm Lock AL-PRE2 Manuale utente

xpr

xpr B100PROX-AH Guida utente
