sReader-w / sReader-s

User Manual

Please read this instruction completely and keep it properly

Product Introduction

sReader adopts high-strength ABS plastic appearance.EM,HID and IC card reading

are supported.Bluetooth analog card Wiegand output function of mobile phone,

built-in high integration micro-controller and simple circuit are applied. safety and

reliability are assured. sReader is cost effective and durable, suitable for office,

communiy and other context using.

Performance Parameters

Body Material:

Bluetooth Function:

Card Type:

Reading range:

Output format:

Input voltage:

Quiescent current:

Operating temperature:

Operating humidity:

ABS Plastic

Mobile phone Bluetooth analog output card number，shared by

one administrator to multiple users

EM, HID card (125kHz)

IC card (including Mifare and CPU card, 13.56MHz, ISO14443a)

≤ 5cm

Wiegand 26-37bit (Default 26bit, Customized for other formats)

DC12 ± 2V

≤ 50mA

- 20 ～ 50 ℃

0-95%

sReader-w Dimension: 120 * 85 * 23mm

sReader-s Dimension: 107 * 48 * 23mm

Ingress protection: IP65 (water and dust-resistant)

Wires and Instruction

1 Red +12V

2 Black GND

3 Green D0

4 White D1

5 Brown LED

6 Yellow BZ

Serial No. Color Definition Instruction

Positive pole

Negative pole

Wiegand output

Green LED control input

Buzzer control input

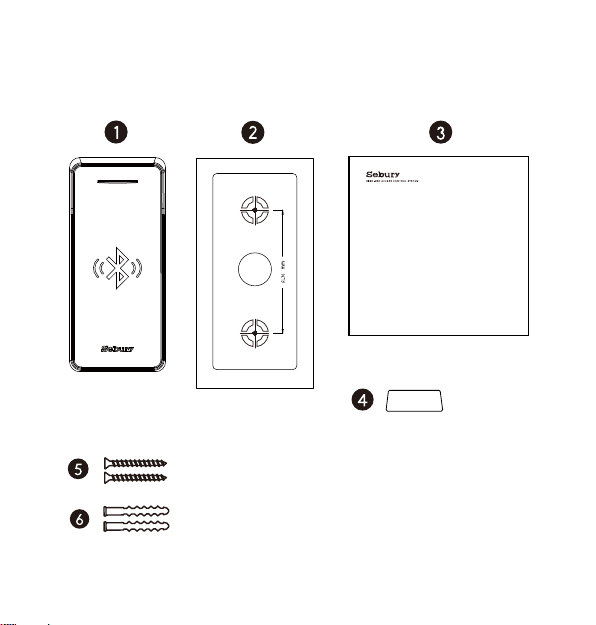

Packing List

Card Reader*1

Self Tapping Screw KA4*25mm ( sReader-w*4 ）

Punch Sticker*1

User Manual*1

Screw Hole Decoration Piece*1

Expansion Rubber Bung Φ6*24mm ( sReader-w*4）

sReader-w / sReader-s

User Manual

Please read this instruction completely and keep it properly

Installation

Stick the punch sticker on the wall. Drill 2 Φ6mm intallation holes with purcussion drill

with the depth of 26mm.（4 holes for sReader-w ）

Drill Installation Holes

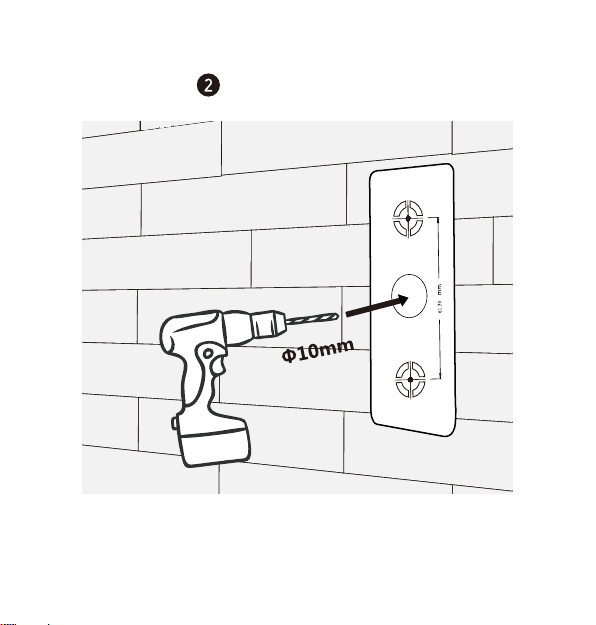

Drill Φ10mm hole for outlet with the depth according to the practical situation of

electric lines.

Drill the Hole for Outlet

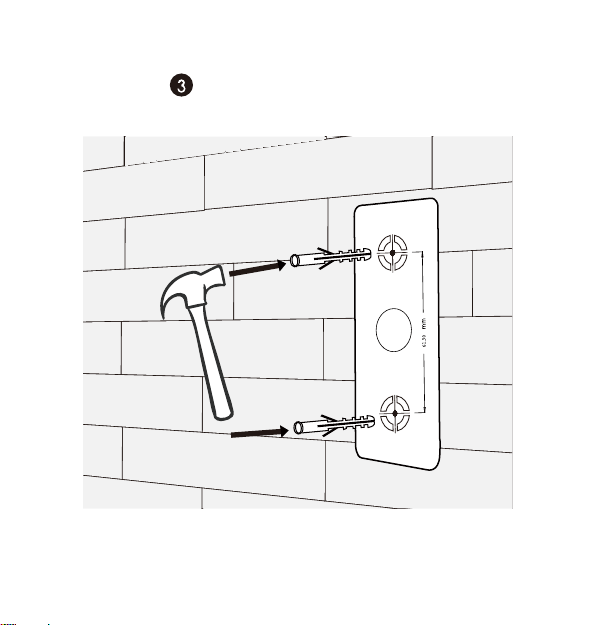

Click 2 expansion rubber bungs into the installation holes （4 expansion rubber

bungs for sReader-w）

Click Expansion Rubber Bung

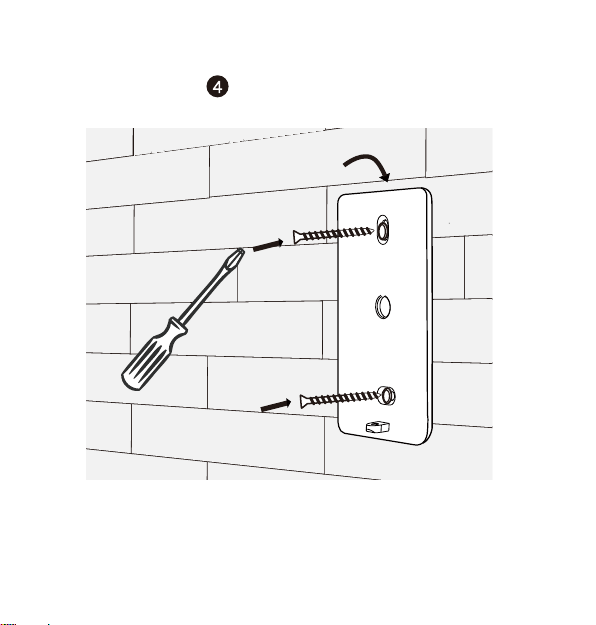

Fix the back shell on the wall with 2 K4*25 self tapping screws（4 screws for sReader-w）

（The percussion drill,hammer and screwdriver in figure2,3 and 4 should be self prepared.）

Fix the Back Shell

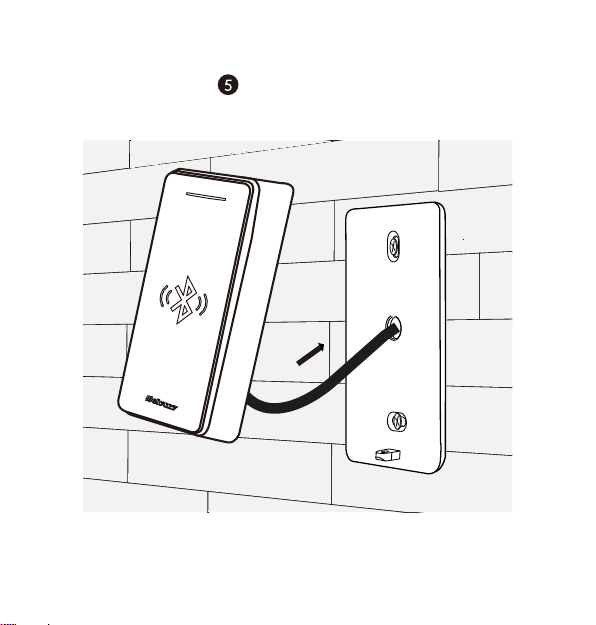

Put the outlet cables through the Φ10mm hole and connect the needed cables.(Pack

the useless cables with the insulating tape.)

Connect Cables

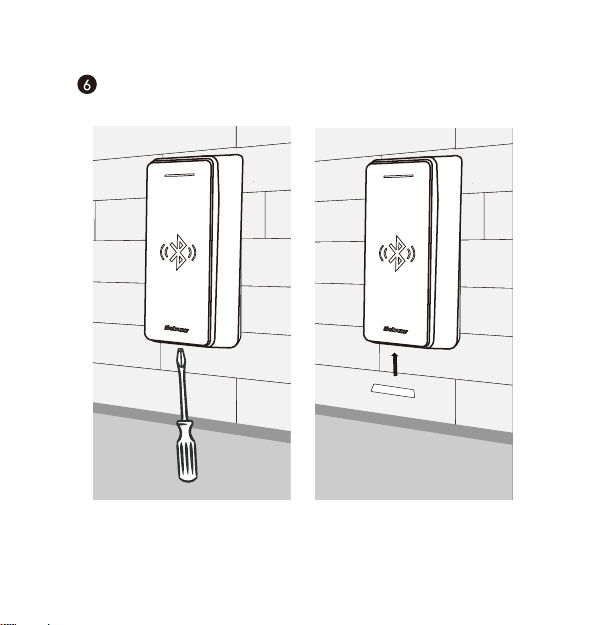

Put the front shell on the back shell. Install the tamper screw from the bottom of the

device with screwdriver and stick the screw hole decoration piece onto the device.

Install the Front Shell and Screw Hole Decoration Piece
