SECO-LARM SD-991A-D1Q Manuale utente

Mini fail-secure electric door strike

12VDC operation

Includes no-cut and low-cut strike plates

Door remains locked if power is lost

Reversible non-handed design

SD-991A-D1Q

Mini Electric Door Strike

Manual

Features:

Can be used with almost any cylindrical

door locking system

Suitable for office-type applications

Compatible with digital keypads, pushbutton

switches and other entry devices

SECO-LARM Mini Electric Door Strike

SECO-LARM U.S.A., Inc. 2

Door strike

Mounting screws

Splice connectors

Strike plate screws

Mounting template

Manual

Stainless steel no-cut strike plate

(SD-991SS-61Q/S)

Silver low-cut strike plate

(SD-991RA-61Q/A)

Operating voltage

12VDC

Current draw

280mA@12VDC

Holding force

1,000-lb (454kg)

Endurance

250,000 Cycles (Factory tested)

Latch throw

1/2" (13mm)

Keeper

width

SD-991SS-61Q/S

11/8" (28mm)

SD-991RA-61Q/A or B

13/16" (30mm)

Operating humidity

0~85% (Non-condensing)

Operating temperature

14°~120° F (-10°~49° C)

Specifications:

Overview:

Features:

Parts List:

Converts cylindrical lock sets into an electronic

access-controlled locking system

Fail-secure operation –Door remains locked if

power to the strike is lost

2-wire installation, non-polarized connection

Stainless steel keeper for strength and

long life

Can be used with virtually any cylindrical door

locking system

Can be used with an optional digital keypad,

pushbutton switch, etc.

Suitable for office-type applications

Reversible non-handed design fits either

right-hand or left-hand doors

Shallow design for use with most metal doors

Powered by a solenoid, not a buzzer coil

For indoor use only

Optional bronze low-cut strike plate

(SD-991RA-61Q/B) available:

oFits most metal or wood doors with

minimum cutting of door frame beyond the

hole for the strike

Stainless Steel No-Cut Plate

SD-991SS-61Q/S

Silver/Bronze Low-Cut Plate

SD-991RA-61Q/A or B

(25mm)

1/8"

(3mm)

1/2"

(13mm)

15/16"

(24mm)

1/16"

(2mm)

5/8"

(16mm)

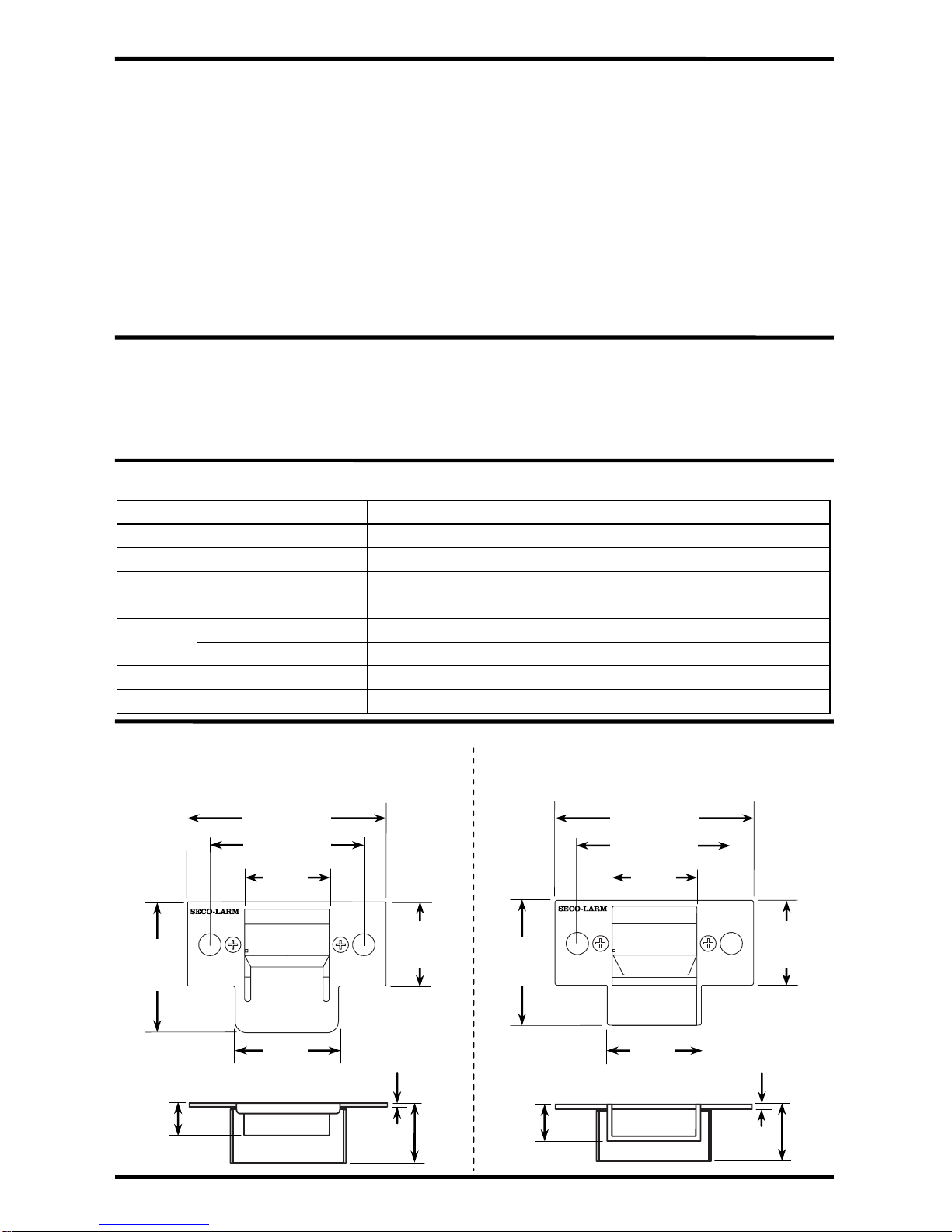

23/4" (70mm)

13/16"

(30mm)

23/4" (70mm)

11/8"

(28mm)

111/16"

(43mm)

21/8" (54mm)

11/8"

(28mm)

17/16"

(36mm)

13/4"

(45mm)

11/8"

(28mm)

11/2"

(38mm)

21/8" (54mm)

SECO-LARM Mini Electric Door Strike

SECO-LARM U.S.A., Inc. 3

Features:

Installation:

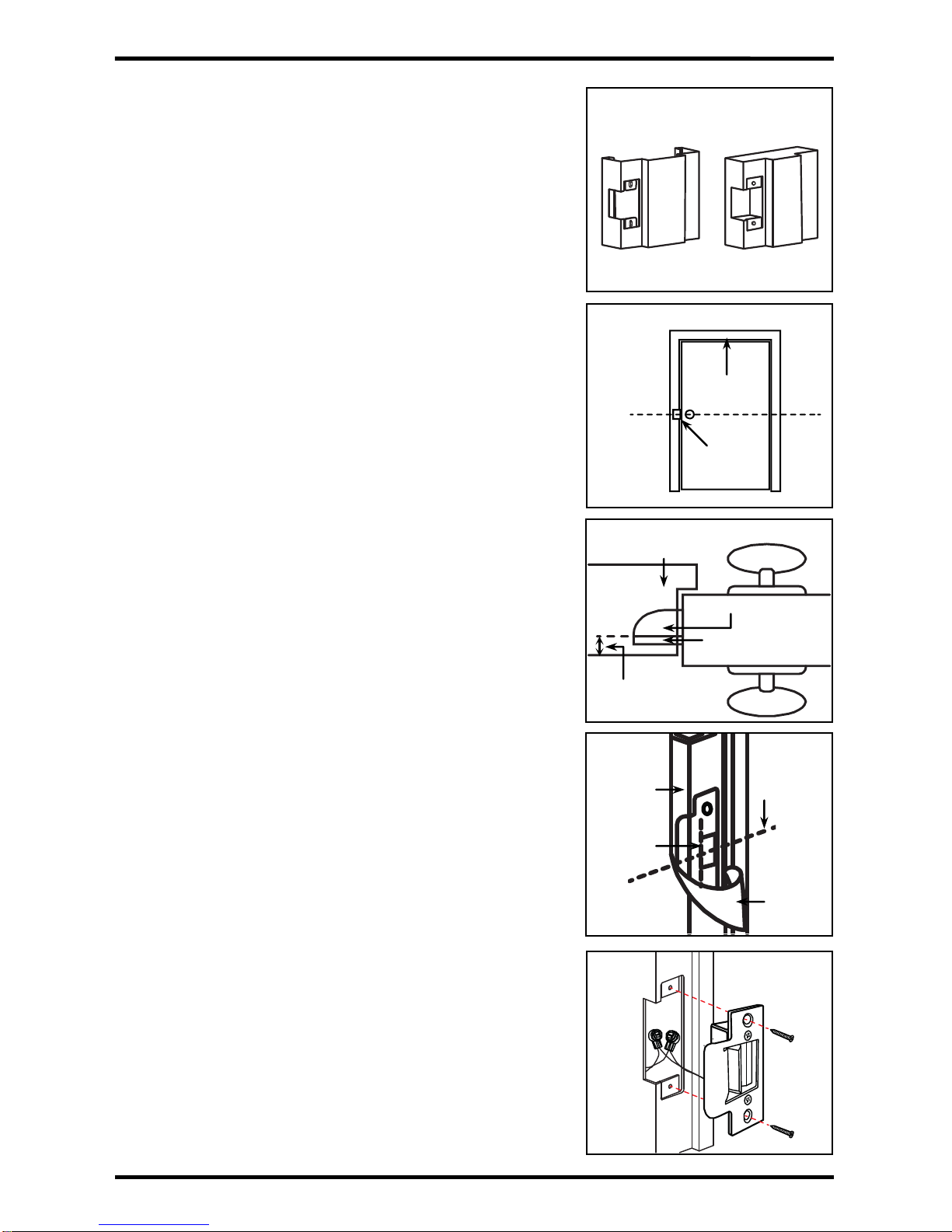

For Timely®interior door frames (see Fig. 1):

The no-cut door strike should fit into the door strike cutout of

Timely interior door frames without making any new cuts or

screw holes. However, in rare cases because of how the door

latch was installed, it may be necessary to cut out a small piece

of the frame, or drill new screw holes.

For non-Timely®interior door frames:

1. Measure the center line (see Fig. 2):

a. Measure the distance from the floor to the center

of the door latch. Ignore the location of the

deadlatch pin when taking measurements.

2. Measure the latch line (see Fig. 3):

a. Measure the distance from the door latch to the

edge of the door jamb. This is the “door latch line”.

3. Align the included mounting template to the latch line

and center line (see Fig. 4).

4. Using the template as a guide, cut a hole in the frame

to fit the door strike. In most cases, the surface-mount

no-cut strike plate will work.

5. In the rare case where a deeper cut into the frame is

needed to match the door latch, use the template to

cut out space for the low-cut strike plate.

6. Mount the electric door strike with the appropriate

strike plate into the hole to ensure it does not interfere

with the closing of the door, and that it properly

catches the door latch. Make adjustments if needed.

Wire the electric door strike (see Fig. 5):

1. Connect the two wires of the electric door strike to

the wires from the access control or egress device

(keypad, pushbutton switch, pushbar, etc.), and

insulate with electrical connectors or electrical

tape. Polarity is not important. Make sure no bare

wires are exposed.

2. Conceal all wires in the door frame.

3. Tightly mount the electric door strike to the frame

with the included door frame mounting screws.

Door jamb

Door latch

Fig. 4

Door jamb

Latch line

Center line

Mounting

template

Fig. 3

Door latch

Deadlatch pin

Door latch line

Door jamb

Fig. 5

Fig. 1

Metal frame

Wood frame

Fig. 2

Center line

SECO-LARM Mini Electric Door Strike

SECO-LARM U.S.A., Inc. 4

Electric strike does not activate

Unmount the strike and check that the two wires are

connected properly

Ensure the wires are connected to a 12VDC source

Use a multimeter to test that the strike is receiving the

proper voltage and amperage. If it is not, it may be

necessary to use heavier gauge wires, or increase the

output of the power supply

Make sure the activation device (keypad, pushbutton

switch, etc.) is working properly

Door does not open when the electric strike

is activated

Check that the door latch is operating properly and

replace if necessary

The position of the electric strike may need to be adjusted

by moving it or adding washers or shims

Troubleshooting:
