Security Camera King DVR-CVI8240M Manuale utente

HD-CVI Mini Series - Quick Start Guide

DVR-CVI4120M

DVR-CVI8240M

720P

Resolution

1yr

Warranty

Motion

Activated

Recording

PTZ

Control

Welcome

Thank you for purchasing our HDCVI DVR! This Quick Start Guide will help you become

familiar with your new HDCVI DVR in a very short time. Prior to installation and operation,

please read the following safeguard and warning carefully.

Important Safeguard and Warning

All installation and operationsshould conform to your local electrical safety codes. We

assume no liability or responsibility for fires or electrical shock due to improper handling or

installation. We are not liable for any problems caused by unauthorized modifications or

attempted repair or equipment. Improper battery use may result in fire, explosion, or

personal injury. When replacing the battery, please make sure to use the same model!

Note: All the installation and operations here should conform to your local

electric safety rules.

1. Check Unpacked DVR

Upon receiving your new HDCVI DVR, please check to ensure there is no visible damage.

The shipping materials used in the packaging of the DVR can protect against most

accidental damage during transportation and should be retained for any future shipping

needs. You should also check the items included with your DVR to ensure complete

packaging.

2. About Front Panel and Rear Panel

For detailed information about the function keys on the front panel and the ports in the rear

panel of your HDCVI DVR, please refer to the User’s Manual located on the resource CD.

3. HDD Installation

This series of HDCVI DVR contains only one SATA port for HDD connection. Please use

SATA HDDsof 7200rpm or higher that are not "Green" or energy conserving drives. Please

follow the instructions below for help in the physical installation of hard disk drives.

The figurers listed below are for reference only. Slight differencesmay be found on

the front or rear panel.

Important

zYou may connect the HDD SATA and power cable prior to installing the HDD within the

case.

zWhen removing the DVR cover, gently tip up from the rear of the unit and lift upwards to

avoid damaging the front panel clip.

4. Front Panel

The front panel is shown as in Figure 1.

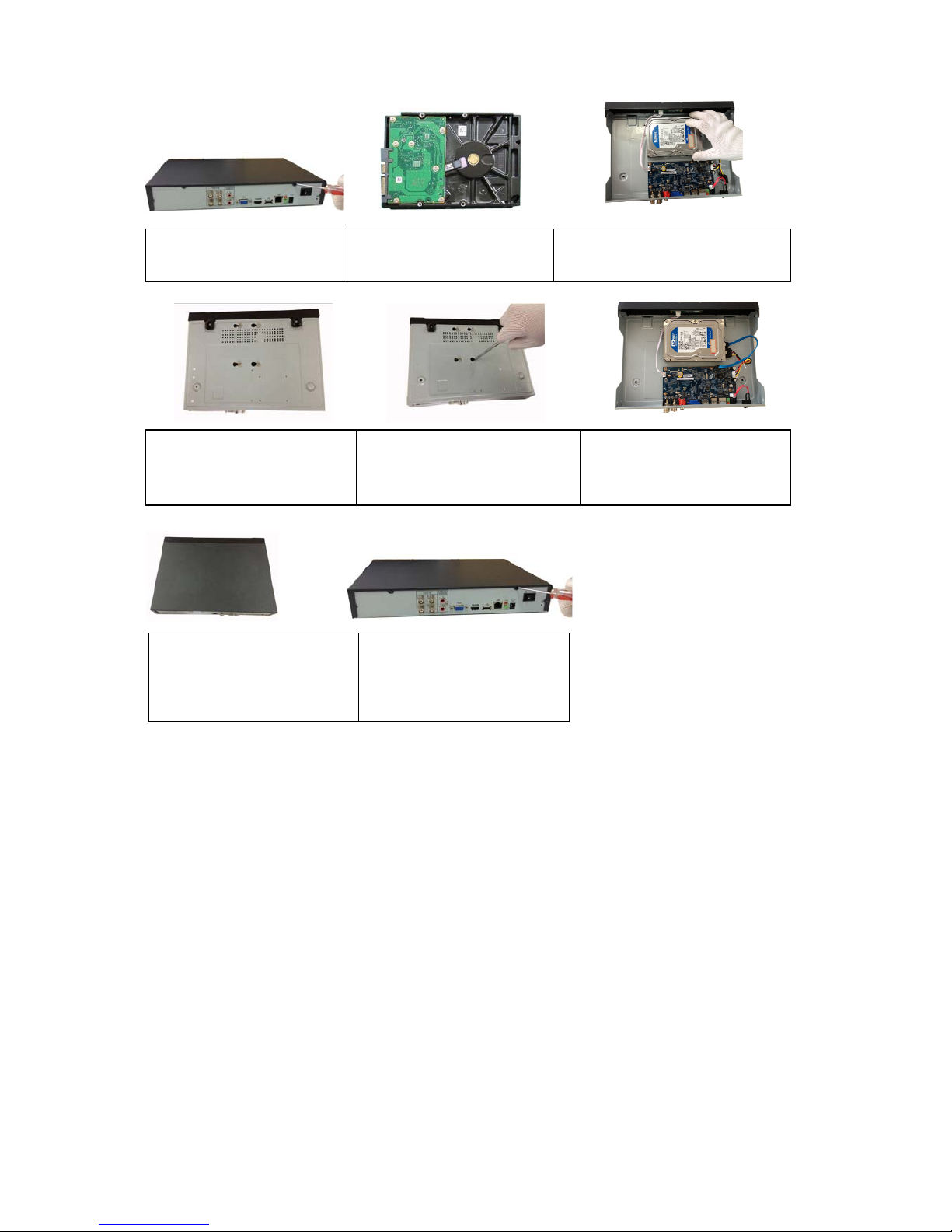

1. Remove the top cover

from the DVR.

2. Loosely attach four screws

to the HDD.

3.Align the HDD with the mounting

holes in the bottom tray.

4. Flip the case over and

tighten the HDD mounting

screws

5. Ensure that the HDD is 6. Connect the SATA and power

cables to the HDD and system

board.

7. Replace the cover while

aligning the front panel clip

and lowering the back side.

8. Secure the screws in the

rear side panels.

firmly attached to the case.

Figure 1

Please refer to the following sheet for front panel button information.

SN Icon Name Function

1 USB port To connect USB storage device or USB mouse

2 Alarm Alarm indicator light When an alarm occurs, this light will appear red

to alert you.

3 NET Network abnormal

indicator light

If no network connection is present, this light

will appear red to alert you.

HDD HDD abnormal

indicator light

5 IR IR Receiver Receives input signal from the remote control.

Go to previous menu, or cancel current

operation.

ESC ESC When in playback, click to return to real-time

monitor mode.

One-window monitor mode, click this button to

display assistant function: PTZ control and

image color.

Backspace function when entering text.

Press for 1.5seconds to delete the previous

character before the cursor.

In motion detect setup, use the Fn and

direction keys to configure.

In text mode, click to switch between alphabetic,

numeric, special characters and upper or

lower case.

FN Assist

Other miscellaneous special functions.

Confirm current operation

Go to default button

Enter ENTER

Go to menu

9 Power button Power button, press and hold for three

seconds to shut down DVR.

Activate current control, modify setup, and then

move up and down.

Increase/decrease numeric value.

S、TUp

Down

Assistant function such as PTZ menu.

Shift current activated control,

W、XLeft

Right When in playback, click these buttons to control

playback the bar.

If an HDD error occurs or available space is below

the threshold, this light will appear red to alert you.

5. Rear Panel

The 4-channel series HDCVI rear panel is shown below in Figure 2.

Figure 2

The 8-channel series rear panel is shown below in Figure 3.

Figure 3

Please refer to the following sheet for detailed information.

SN Icon Name Note

1 VIDEO IN Video input port Connect to HDCVI camera,

video input signal.

2 AUDIO OUT Audio output port Connect to audio output device

such as powered PC speakers.

3 AUDIO IN Audio input port Connect to audio input device

such as powered microphone.

4 VGA VGA video output

port Connect to computer monitor or

other VGA device to view main

DVR display.

5 HDMI High Definition

Multimedia

Interface video

output port

Connect to computer monitor,

television or other HDMI device to

view main DVR display.

6 USB2.0 port Connect to USB mouse or external

storage device.

7 Network port 10/100M Ethernet port.

A RS485 positive port.

RS485

communication port

RS485 negative port.

9 Power input port Input 12V DC.

Power on-off button Power on/off button.

11 GND Ground connection.

6. Local Login

After system has booted up, the default video display is in multiple-window mode. Click Enter or

left clicking the mouse will bring up the login interface. See Figure 4.

The default (3) system accounts consist of four accounts:

z Username: admin. Password: admin. (administrator, local and remote).

z Username: 888888. Password: 888888. (administrator, local only).

z Username: 666666. Password: 666666. (user-level account for only monitor, playback,

backup and etc.).

z Username: default. Password: default. (non-interactive system user).

Note:

For security purposes, please change your password upon first logging in. Three

incorrect login attempts within 30 minutes will trigger asystem alarm and five incorrect login

attempts within 30 minutes will result in the account being locked!

Figure 4

7. Web Service (Internet Explorer)

Open Internet Explorer and enter the DVR IP address in the address bar. The default IP

address for your HDCVI DVR is 192.168.1.108, you may access it by entering

http://192.168.1.108 in the address bar. Your system may present a warning asking if you

wish to install webrec.cab which is the name of the ActiveX control. Click the Yes button to

accept the installation.

If you can’t download the ActiveX file, you may need to modify your IE security settings to

allow unsigned ActiveX controls to be installed.After installation, the interface will appear as

shown in Figure 5.

Please input your user name and password. The default login name is admin and the

password is admin also.

Note: For security reasons, please modify your password after you first login.

Figure 5

For more detailed instructions on the operation of your HDCVI DVR,please refer to

the User’s Manual included on the resources CD.

Appendix Toxic or Hazardous Materials or Elements

Toxic or Hazardous Materials or Elements

Component

Name Pb Hg Cd Cr VI PBB PBDE

Sheet

Metal(Case) ○○○○○○

Plastic Parts

（Panel）○○○○○○

Circuit Board ○○○○○○

Fastener ○○○○○○

Wire and

Cable/AC

Adapter

○○○○○○

Packing

Material ○○○○○○

Accessories ○○○○○○

Note

O: Indicates that the concentration of the hazardous substance in all homogeneous materials in

the parts is below the relevant threshold of the SJ/T11363-2006 standard.

X: Indicates that the concentration of the hazardous substance of at least one of all

homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006

standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous

substance or elements contained in products will not leak or mutate so that the use of these

(substances or elements) will not result in any severe environmental pollution, any bodily injury or

damage to any assets. The consumer is not authorized to process such kind of substances or

elements, please return to the corresponding local authorities to process according to your local

government statutes.

Note

z For detailed operation introduction, please refer to our resource CD included in your

package for the electronic version of the User’s Manual.

zThis quick start guide is for reference only. Slight differencesmay be found in the user

interface.

z All the designs and software here are subject to change without prior written notice.

zAll trademarks and registered trademarks mentioned are the properties of their

respective owners.
