Security Dynamics Fastrax IV Manuale utente

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE. DO NOTINSERTANYMETALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR

OTHER OPENINGS ON THE EQUIPMENT.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instruction in the literature

WARNIN

CAUTION

accompanying the product.

FCC COMPLIANCE STATEMENT

FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND

FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,

PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE

DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL

INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL

ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE

RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS

EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL

INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED

BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S

AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME

NMB-003 DU CANADA.

CE COMPLIANCE STATEMENT

WARNING

THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS

PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER

MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.

CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

III

IMPORTANT SAFEGUARDS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been moisture, does not operate normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use Certified/Listed Class 2 power source only.

17. Apparatus shall not be exposed to dripping or splashing and no object filled with liquids,

such as vases, shall be placed on the apparatus.

Table of Contents

Chapter 1 — Introduction..............................................................................................1

1.1 Features............................................................................................................................. 1

Chapter 2 — Installation and Configuration................................................................3

2.1 Package Contents............................................................................................................. 3

2.2 Basic Configuration of Fastrax IV Dome Camera System............................................ 4

2.3 Setting Dome Camera Termination................................................................................. 5

2.4 Fail-safe Network.............................................................................................................. 6

2.5 Setting Dome Camera Address (ID)................................................................................ 7

2.6 Setting Dome Camera Protocol....................................................................................... 8

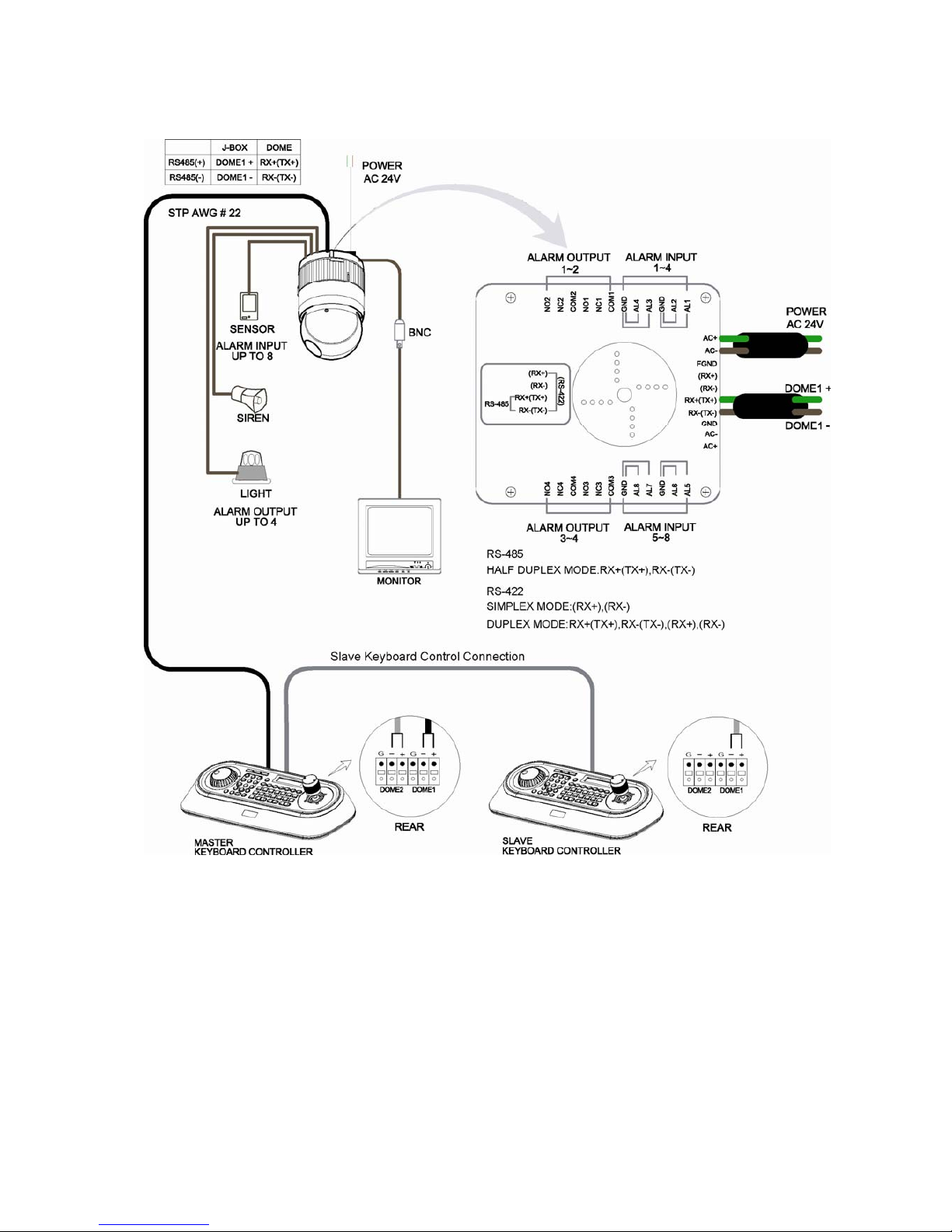

2.7 Connections...................................................................................................................... 9

• Connecting to the RS485/ 422......................................................................................................... 9

• Connecting Video out connector.................................................................................................... 9

• Connecting Alarms .......................................................................................................................... 9

• Connecting the Power ..................................................................................................................... 9

2.8 Getting Started................................................................................................................ 10

Chapter 3 — Program and Operation ........................................................................11

3.1 Dome Camera Selection................................................................................................. 11

3.2 Accessing the On-Screen Menu Utility......................................................................... 11

3.3 How to control the On-Screen Menu Utility.................................................................. 11

3.4 Auto Scan (Shortcut: SCAN) ......................................................................................... 12

3.5 Preset (Shortcut: PRST) ................................................................................................ 15

3.5.1 Event Function........................................................................................................................ 18

3.5.2 Motion...................................................................................................................................... 19

3.5.3. Tracking................................................................................................................................... 21

3.5.4 Cross ....................................................................................................................................... 22

3.5.5 Enter ........................................................................................................................................ 23

3.5.6 Abandon.................................................................................................................................. 24

3.5.7 Removal................................................................................................................................... 25

3.6 Shortcut of Preset Program......................................................................................... 266

3.7 Tour (Shortcut: TOUR)................................................................................................... 26

3.8 Pattern (Shortcut: PTRN)............................................................................................... 28

3.9 Alarm................................................................................................................................29

3.10 Schedule........................................................................................................................ 31

3.11 Event History................................................................................................................. 32

3.12 Camera Menu Type 1.................................................................................................... 33

3.12.1 Auto Focus............................................................................................................................ 33

3.12.2 WB (White Balance) Control................................................................................................ 33

3.12.3 Auto Exposure...................................................................................................................... 34

3.12.4 DIS (Digital Image Stabilization).......................................................................................... 35

3.12.5 Camera Setup ....................................................................................................................... 36

3.13 Camera Menu Type 2.................................................................................................... 37

3.13.1 Auto Focus............................................................................................................................ 37

3.13.2 WB (White Balance) Control................................................................................................ 37

3.13.3 Auto Exposure...................................................................................................................... 38

3.13.4 DIS (Digital Image Stabilization).......................................................................................... 39

3.13.5 Camera Setup ....................................................................................................................... 40

3.14 OSD Setup.................................................................................................................... 41

3.15 Privacy Zone ................................................................................................................ 43

3.16 Time & Date Setup....................................................................................................... 44

3.17 Home Function Setup.................................................................................................. 44

3.18 View Angle.................................................................................................................... 45

3.19 Origin Offset................................................................................................................. 47

3.20 Dome Reset.................................................................................................................. 48

3.21 System Menu................................................................................................................ 48

3.22 Function Run................................................................................................................ 50

3.23 Initialize Data................................................................................................................ 51

3.24 System Information..................................................................................................... 52

Appendix A — Specifications.....................................................................................53

Appendix B — Troubleshooting.................................................................................55

Appendix C — Glossary..............................................................................................56

Appendix D — Short Cut Key.....................................................................................59

Chapter 1 — Introduction

1.1 Features

The Fastrax IV dome camera and the keyboard controller make up the building blocks for

any surveillance/security system. Using multiple Keyboard Controllers and multiple dome

cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates

remote control functions for a variety of external switching devices such as multiplexers and

DVRs.

•Built-in optical power zoom camera with True Night Shot function.

•240 Preset positions (Individual AE and Event).

•8 Tours consist of Preset, Pattern, Auto-Scan and other Tours can be programmed with

over 300 functions and Preset location. While moving, each Preset scan can be watched in

smooth Vector Scan mode.

•16 Auto Scans with the normal, the vector, and the random mode and the Endless Auto-

Pan with 13 speed steps.

•8 Patterns (up to 500 second) and 8 Privacy zones.

•Motion Detection (Bounding Box, Trace)

•Auto Tracking and Cross Tracking.

•Video Analytics Function (Cross, Enter, Abandon and Removal).

•DIS (Digital Image Stabilization) Function.

•Function Scheduling.

•16 Area Titles.

•8 Alarm inputs / 4 Aux outs (NC & NO).

•Variable speed from 0.1°/sec to 380°/sec.

Three Variable speed (SLOW, NORMAL, TURBO)

Turbo speed is Max 380°/sec with Ctrl key pressed.

•Pan / Tilt speed is inversely proportional to the zoom ratio with the option.

•Maximum speed is 380°/sec when preset command.

•Auto Calibration from 0.1°to 6°(Tilt range is 0°to 180°).

•Programmable user preferences (alarm, preset, title, etc.).

•180°Digital Flip or 90°Auto Flip depended on the model.

•Up to 999 selectable camera addresses (3999 by software setting).

•Multi-language Menu Display, Password Confirmation.

•Function Run menu using DVR without function key (Pattern, SCAN,..)

•Coaxial Communication with Coaxitron of Pelco & Fastrax

•Built-in RS-485/422 receiver driver.

•Optional Clear bubble with black liner (shelter) for concealing the camera.

•Optional Tinted Bubble, Indoor & Outdoor pendant housing with heater & blower, Indoor

Flush mount, Parapet mount & Roof Top mount.

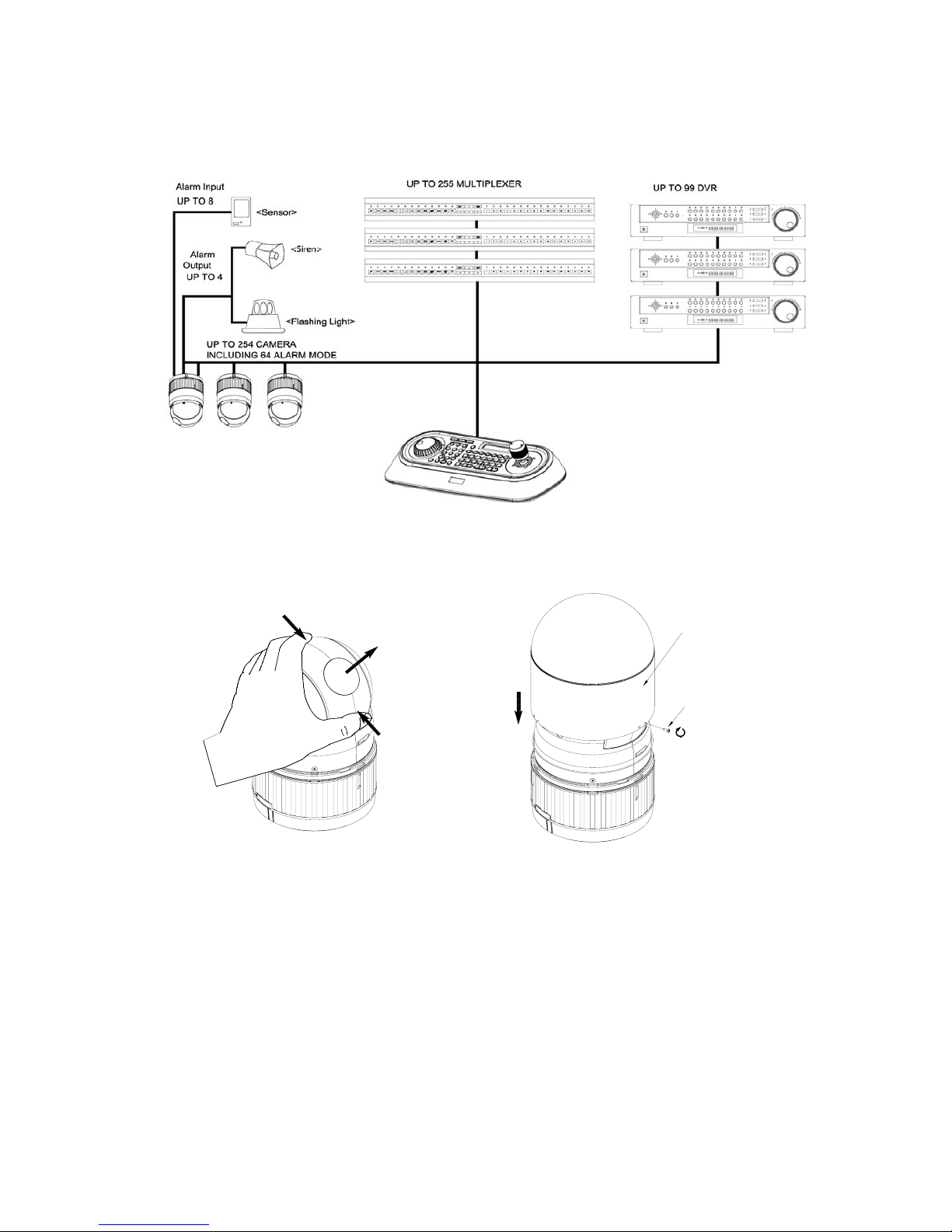

Figure 1 – Typical System Configuration

push

remove camera window

remove window assemble bubble ring ass'y

bubble ring ass'y

screw

Figure 2 –Assemble bubble ring ass’y (Optional)

Note : It is recommended to remove camera window for improving picture quality

when you use bubble ring ass’y.

CAUTION : When installing a Fastrax dome on a high pole outside, caution should be

taken to avoid vibration and shaking of Fastrax dome due to windload or

shock of passing heavy vehicles. If pole is not stable enough, it may

cause malfunction in accurate tilt positioning.

Chapter 2 — Installation and Configuration

2.1 Package Contents

The package contains the following.

Fastrax IV (Dome Camera) ………………………1

Bubble Ring ………………………1(Optional)

Instruction Manual (This Document) ………………………1

Assembly Screws for Attaching Fastrax IV ………………………3

Plastic Anchor ………………………3

10Pin Connector ………………………1

12Pin Connector ………………………2

CAUTION : Be sure to have caution labels (E version only) on both the body and the

base of the camera. Different version will not support input and output.

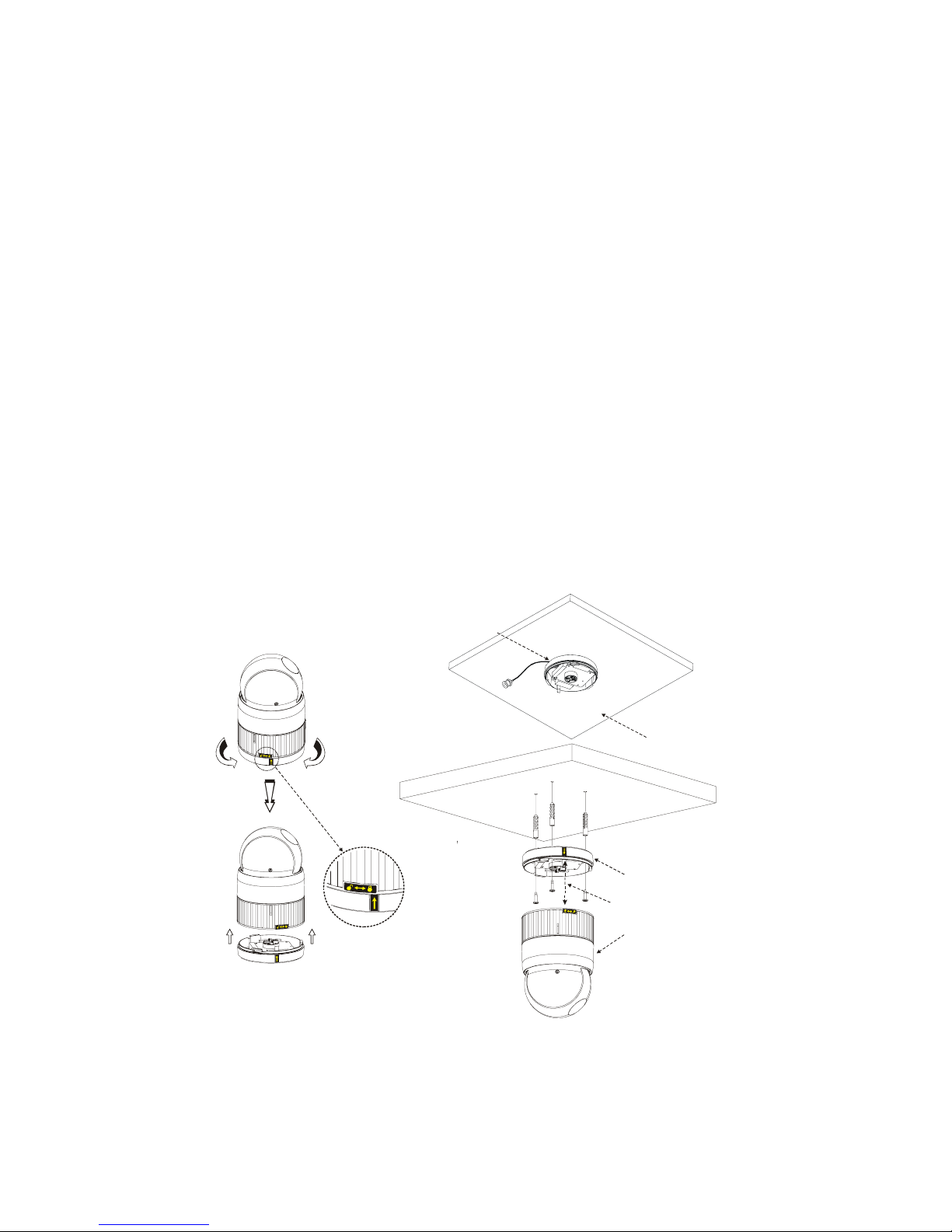

The dome camera is for use in surface mounting applications and the mounting surface

should be capable of supporting loads up to 10lb (4.5kg).

The dome camera’s base should be attached to a structural object, such as hard wood,

wall stud or ceiling rafter that supports the weight of the dome camera.

Unlock Lock

Lock BODY

BASE

lign extruded tap in the base to

the Keyhole on the pcb in the body

SURFACE(CEILING)

CABLE ENTRY

Figure 3 – Installation

2.2 Basic Configuration of Fastrax IV Dome Camera System

Figure 4 – Basic installation diagram

The dome camera must be installed by qualified service personnel in accordance with all

local and federal electrical and building codes. The system should be installed according to

Figures 4 through 9.

Indice

Altri manuali Security Dynamics Telecamera di sicurezza

Security Dynamics

Security Dynamics VISAGE MSD630X22WDR Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
