SecurityMan DigioutAir Manuale utente

DigioutAir User’s Manual

Digital Wireless Outdoor/Indoor Color

Camera Kit with Audio and Night Vision

This manual is furnished under license and may be used or copied only in

accordance with the terms of such license. Except as permitted by such license,

no part of this publication may be reproduced, stored in a retrieval system, or

transmitted, in any form or any means, electronic, mechanical, recording, or

otherwise, including translation to another language or format, without the

prior written permission of SecurityMan. The content of this manual is furnished

for informational use only, is subject to change without notice, and should not

be construed as a commitment by SecurityMan. SecurityMan Inc assumes no

responsibility or liability for any errors or inaccuracies that may appear in this book.

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device should not cause harmful interference.

(2) This device must accept any interference received, including interference that

may cause undesired operation. Operation of this equipment in a residential area

is likely to cause interference in which case, the user at his or her own risk and

expense will be required to correct the interference.

Warranty

SecurityMan Inc warrants that this product will be free from defects in title,

materials and manufacturing workmanship for one year or otherwise specified

on the product packaging. This limited warranty shall commence from the date

of purchase. SecurityMan products warranty is not transferable and is limited

to the original purchaser. If the product is found to be defective then, as your

sole remedy and as the manufacturer’s only obligation, SecurityMan will repair

or replace the product. This warranty shall not apply to products that have been

subjected to abuse, misuse, abnormal electrical or environmental conditions,

normal wear and tear, or any condition other than what can be considered normal use.

Warranty Disclaimers

SecurityMan Inc, makes no other warranties, express, implied or otherwise,

regarding this product, and specifically disclaims any warranty for merchantability

or fitness for a particular purpose. The exclusion of implied warranties is not

permitted in some states and the exclusions specified herein may not apply to you.

This warranty provides you with specific legal rights. There may be other rights

that you have which vary from state to state.

Limitation of Liability

The liability of SecurityMan Inc, arising from this warranty and sale shall be limited

to a refund of the purchase price. In no event shall SecurityMan be liable for costs

of procurement of substitute products or services, or for any lost profits, or for any

consequential, incidental, direct or indirect damages, however caused and on any

theory of liability, arising from this warranty and sale. These limitations shall apply

not withstanding any failure of essential purpose of any limited remedy.

For Tech Support Call: 888-977-3777

SecurityMan

4601 E. Airport Drive

Ontario, CA, 91761, USA

Tel: 909-230-6668

Fax: 909-230-6889

Email: info@securitymaninc.com

Website: www.securitymaninc.com

Table of Contents

Introduction

Important

Restrictions

Conditions

Package Contents

Speciﬁcations

Features

Product Basics

Camera (SM-703DT)

Receiver (SM-451DR)

Quick Start

On-Screen Display

Operation

Troubleshooting

Introduction

Thank you for purchasing the SecurityMan DigioutAir. The DigioutAir

is a “Do-It-Yourself” Digital Wireless Security camera kit designed for

easy installation and operation. With surveillance made easy, this DIY

kit will allow you to monitor your home, business, front or back doors,

garage, backyard, or any location that you would like to keep an eye on.

In comparison to the traditional wireless technology (analog), digital

wireless provides three key features which include: Increased range of

transmission, secure signal (neighbors cannot pick up the signal) and

unlike analog, the digital signals are virtually interference-free from

crowded wireless analog devices such as: Wi-Fi routers, Bluetooth

devices, cordless phones, microwaves, and cell phones.

Important

This guide provides important information on the use and operation of

your DigioutAir. Please read all the information carefully prior to using

the product for the best performance and to prevent any damage/

injuries or misuse of the device(s). Customers are entitled to have read

through this complete user’s manual before using the DigioutAir. Any

unapproved changes or modiﬁcations will void your warranty. Please

ensure to have a complete understanding of the following restrictions.

Restrictions

When using this product, the safety precautions below must be taken

to avoid possible legal liabilities and damages. Retain and follow all

product safety and operating instructions. Observe all warnings in

the product operating instructions. To reduce the risk of bodily injury,

electric shock, ﬁre, and damage to the equipment, observes the

following precautions.

PLEASE NOTE that under certain circumstances, audio/video recording

may be PROHIBITED by law. This device should be used only in

compliance with all applicable federal, state and local statutes.

• DO NOT place this product too close to medical equipments.

1. Radio waves might potentially cause breakdown of medical

electrical equipments and thus cause incidents.

2. Place the product at least 22cm from the heart pacemaker.

Radio wave potentially inﬂuences heart pacemaker and thus leads to

respiratory disturbance.

• DO NOT use this product to monitor equipments or activities that are

relevant to one’s privacy.Monitoring one’s private activities without

consent is illegal and this product is not designed and manufactured

for these purposes.

• DO NOT this product to carry out any illegal activities such as sneak

preview, and etc. SecurityMan shall not be responsible for any

consequences of illegal conducts made by users.

• DO NOT put the plastic package bags in reach of children or babies.

Young children can choke on these items if they put them into their mouths.

• DO NOT plug the AC adapter into the outlet in improper situations.

• Plugging in an AC adapter with wet hands might cause electric shock.

• Plugging in the AC adapter unsteadily might cause re or electric shock.

• DO NOT cover the AC adapter when it is connected to an outlet, place

the adapter near heaters, or put it on the ﬂoor which is equipped with

a heater. The above mentioned operation might cause ﬁre or incidents.

• DO NOT use it aboard; please abide by the airway’s provision. It might

inﬂuence communication aboard and the ﬂying apparatus if departing

from the airway’s regulation. This will result in accident, possible death

and severe physical hurt.

• DO NOT disassemble or repair the camera, receiver or other relevant

peripheral equipments by yourself. Improper disassembly might

cause damages to the product or the peripheral equipment.

• DO NOT put the camera in quaky paces. The camera may be unstable

or out of operation if installed improperly. Such installation may also

cause breakdown.

• DO NOT touch, shake or hold the antenna. Touching, shaking or holing

the antenna might inﬂuence the receiving of electromagnetic wave,

and thereby inﬂuence the receiving effect.

• DO NOT use the camera in complex environment, the obstruction of

stumbling block will affect the electromagnetic wave and inﬂuence

the receiving range. Wall, tree and other stumbling block might absorb,

reﬂect the electromagnetic wave, and inﬂuence the receiving range.

• DO NOT use the camera in the places which are covered with

metal.The around metal, such as elevator and cabin, might shield the

electromagnetic wave, and result in inability to receive signals.

Conditions

Please read the following messages to make sure your working

environment is suitable.

• The temperature should be kept between –20˚C and 50˚C (-4˚F to

122˚F). The relative humidity should be kept between 20% and 80%.

• Avoid putting the product in places where temperature or humidity

may change rapidly.

• Keep product away from heat sources such as electric heaters.

• Do not use the camera near harmful chemicals.

• Do not place product near any strong magnetic objects

• It might inﬂuence the normal operation of the product if used at the

fringe range of normal temperature. Please turn off the power when

not in use.

• Do not disassemble the product.

• Do not shake or strike the product.

• Please obey the local government’s environment protection policy.

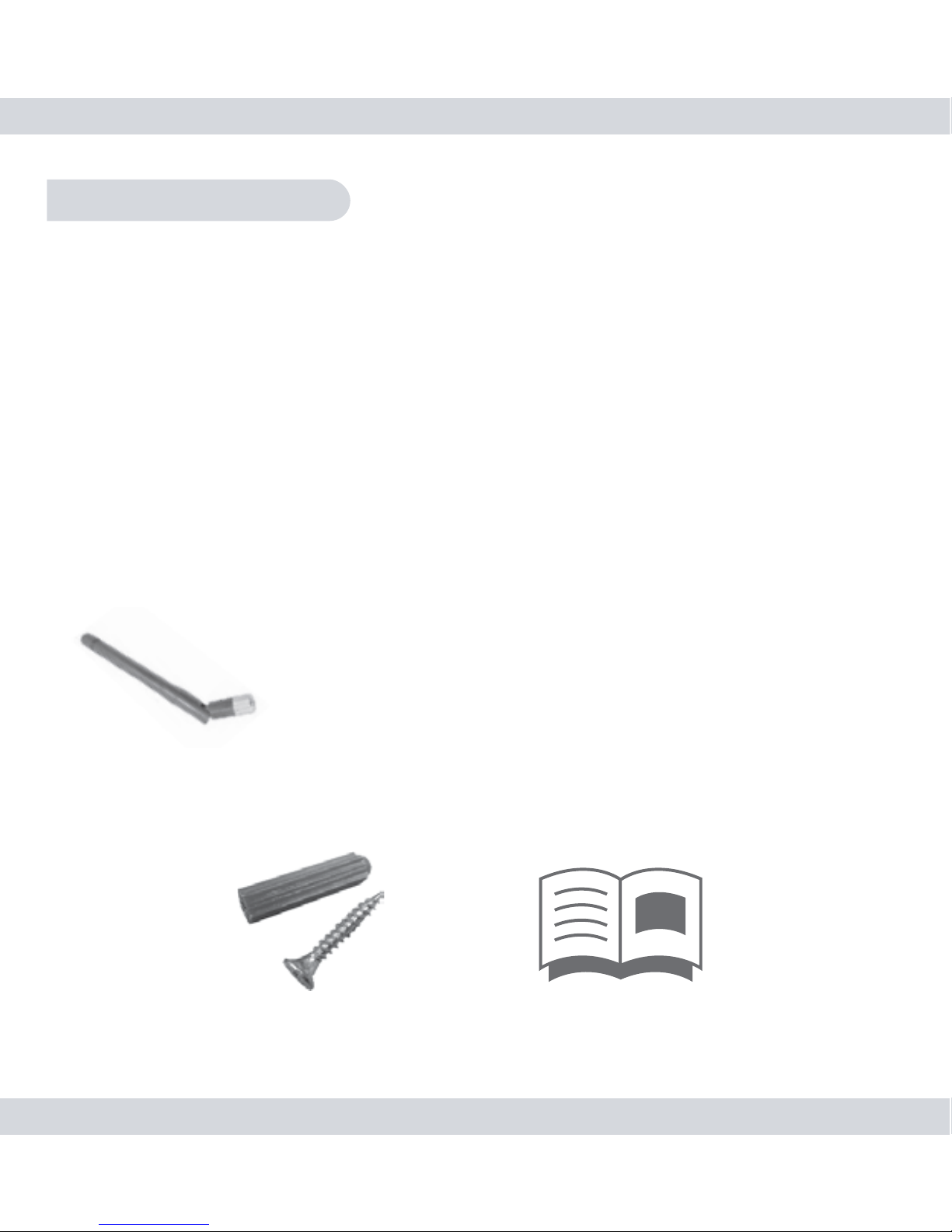

Package Contents

1 x Receiver

(SM-451DR)

1 x Antenna

1 x Camera

(SM-703DT)

2 x AC Adapters

5 x Screws

1 x Bracket

1 x AV Cable

User’s Manual

Speciﬁcations

Image Sensor

Resolution

View Angle

Weatherproof Rating

Night Vision Range

Audio

Minimum Illumination

Pairing Button

IR LEDs

Power Supply

Dimensions (LxWxH)

Pairing Button

Channel Button

AV Output

Power Supply

Dimensions

Stand

Frequency

Transmission power

Receiver Sensitivity

Modulation

Antenna

Transmission Distance

Operating Temperature

Operating Humidity

1/4” CMOS Color

510 x 492 pixels (NTSC)

35 degree

IP65

Up to 50ft / 15m (B/W)

Microphone built-in

(audio monitoring up to 20ft)

3 Lux/F1.2 (IR off); 0 Lux (IR on)

24 LEDs

DC 5V / 1.5A

3.5” x 2.4” x 2.4”

1 CH button (Manually Select CH1~CH4)

1 x Video out (RCA); 1 x Audio out (RCA)

DC 5V / 1.5A

4.2” x 2.7” x 0.9”

1 x docking stand

ISM 2400 – 2480 MHz (CH1/CH2/CH3/CH4)

17 dBm

≤-85dBm

GFSK

Omni 3dBi

Up to 490 ft (150m) clear line of site;

up to 200ft (indoor)

-20°C to 60°C (-4°F~140°F)

20% -80% RH

SM-703DT

(Camera)

SM-451DR

(Receiver)

Wireless
