USER MANUAL

ST-PTZ-RC

Infrared Remote PTZ Controller

v1.2 8/22/11

PACKAGE CONTENTS

This package contains:

One ST-PTZ-RC handheld infrared remote controller

One PT Dome Controller

One connection block

One user manual

Note: The ST-PTZ-RC handheld infrared remote controller requires 2 AAA batteries (not supplied).

The PT Dome Controller requires a 12VDC 1A power supply (not supplied) such as the

Securitytronix ST-PS12VDC1A.

PRODUCT DESCRIPTION

The ST-PTZ-RC is a consumer grade pan, tilt, zoom (PTZ) controller designed for PTZ dome

cameras. The ST-PTZ-RC comes with one PT Dome controller allowing PTZ control of up to 255

PTZ cameras.

SPECIFICATIONS

ST-PTZ-RC

Specifications (Typical)

1. Communications Protocol

RS-485

2. Baud Rate

1200, 2400, 4800, 9600BPS

3. Camera Protocol

PELCO-D, PELCO-P

4. Power

2 AAA batteries for handheld remote (not supplied)

12VDC 1A power supply for PT Dome Controller (not supplied)

IMPORTANT NOTE

PTZ controllers are designed to perform a wide variety of PTZ camera control functions.

However, the utility of any PTZ controller is highly dependant upon the particular PTZ

camera to be controlled as each camera has not only its own functions but specific

methods of how those native functions are accessed and managed. Further, a particular

PTZ controller’s terminology may differ from that used by a particular PTZ camera.

Therefore, it will be necessary for the installer and/or user to consult BOTH the PTZ

controller and PTZ camera’s user manuals to ensure proper set-up, configuration and

application.

INSTALLATION AND OPERATION

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or Securitytronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the PT Dome Controller and the camera’s communication and power

lines, power supplies and video lines and any high voltage equipment and/or cables.

b. Do not open up or dismantle the ST-PTZ-RC or the PT Dome Controller’s cases.

There are no serviceable parts inside the unit.

c. Do not install ST-PTZ-RC or the PT Dome Controller in an environment where the

temperature is above 104°F.

d. Do not install the ST-PTZ-RC or the PT Dome Controller in a damp environment.

e. Only use a dry cloth to clean the units. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

f. A minimum 12VDC 1Apower supply must be used. AC power cannot be applied.

Using an AC or other incorrect power supply will damage the unit. The SecurityTronix

ST-PS12VDC1A power supply is recommended.

g. Only qualified installers are allowed to install, test and disassemble the ST-PTZ-RC

and the PT Dome Controller.

h. As the ST-PTZ-RC and PT Dome Controllers are sensitive devices any shock or

collision to the units or shaking of the units will cause damage and void the warranty.

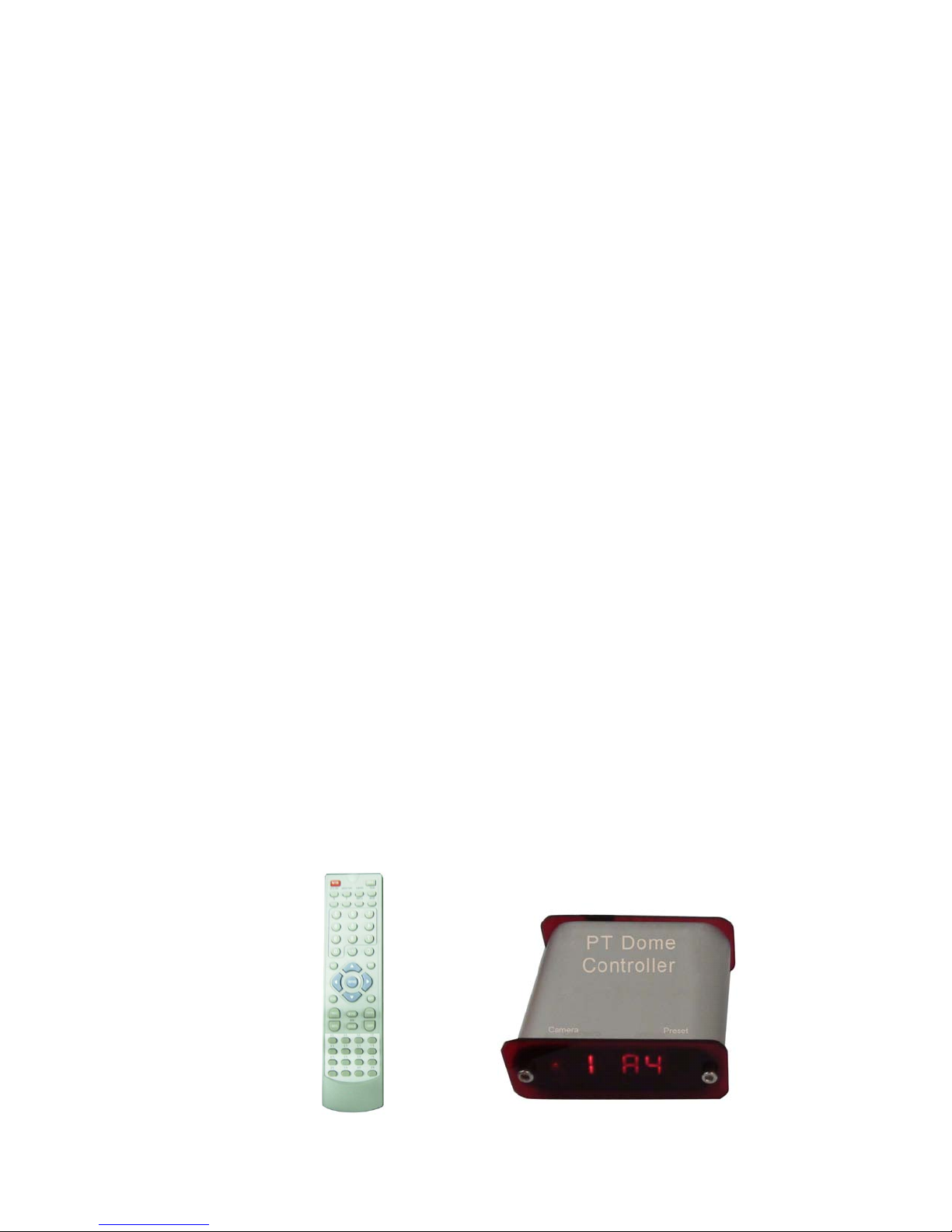

4. PRODUCT PICTURES

5. WIRING CONNECTIONS

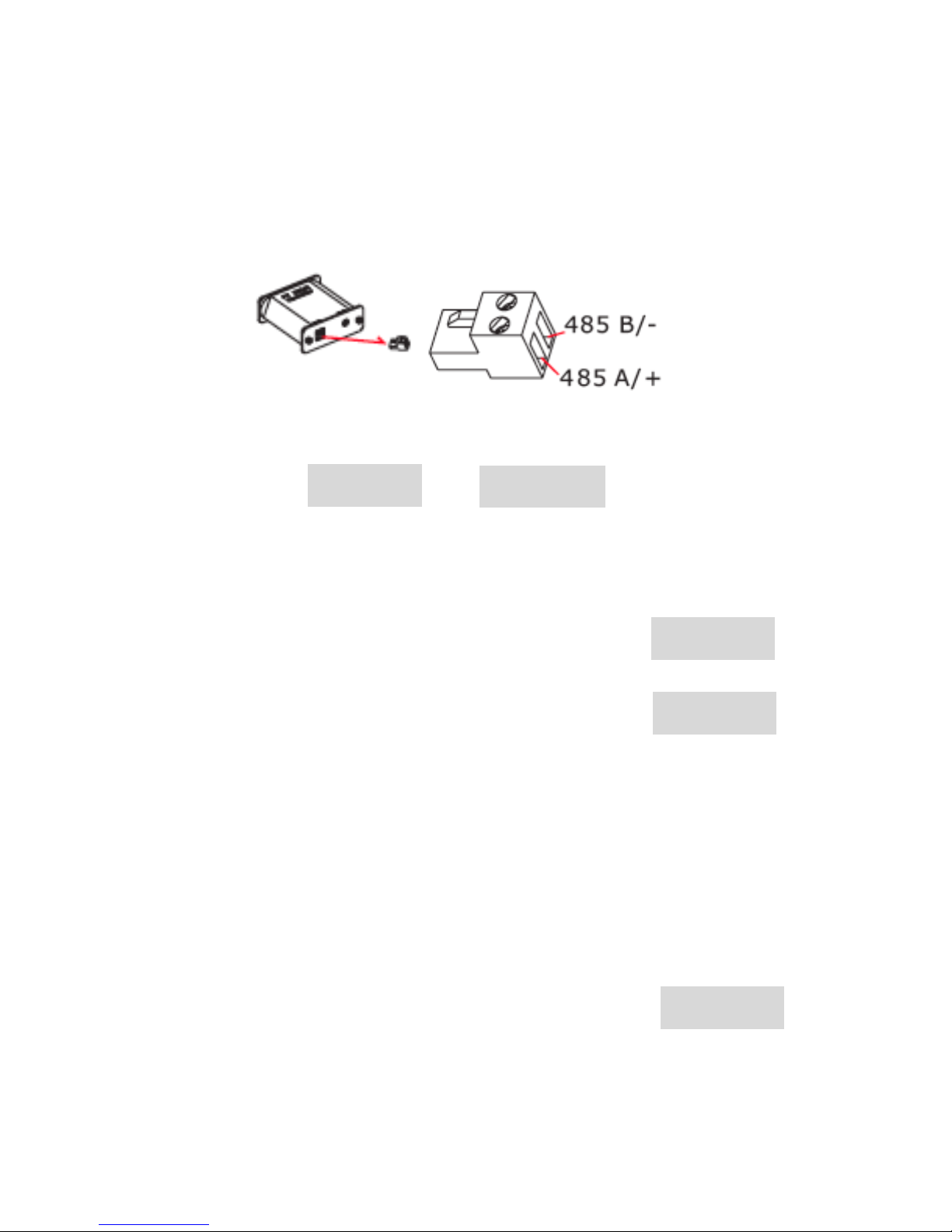

a. Per the diagram below, connect an unshielded twisted pair (UTP) control cable

between the PTZ dome camera and the PT Dome Controller using the PT Dome

Controller’s connection block. Be sure the connection polarities at the camera and the

PT Dome Controller are the same.

b. Connect a 12VDC 1A power supply to the PT Dome Controller’s power port.

c. After the PT Dome Controller is powered on the unit will display

Arefers to “address” so A001 = address 1. Prefers to “preset point” so P001 = preset 1.

6. SETTINGS and FUNCTIONS

Set Target Camera Protocol and Baud Rate

a. Press the Infrared Remote Controller’s DISP one time. The

PT Dome Controller’s screen will display the current

firmware version (in this case version 18).

b. Press the DISP one more time and the PT Dome

Controller’s screen will display the current camera protocol

and baud rate. The first letter indicates the protocol where d

is for PELCO-D and pis for PELCO-P. The last two digits indicate the current baud

rate where 12 = 1200BPS, 24 = 2400BPS, 48 = 4800BPS and 96 = 9600BPS.

c. If the settings need to be changed press SETUP. The protocol may be changed by

using the Infrared Remote Controller’s UP/DOWN buttons and the baud rate via the

LEFT/RIGHT buttons. Select the desired protocol and/or baud rate then press

ENTER to save and confirm. The ST-PTZ-RC default protocol and baud rate settings

are PELCO-D at 2400BPS.

Set Target Camera Address

a. Press the Infrared Remote Controller’s CAM button to go to the address command

mode. This command will select your target camera.

b. In this mode you can input a number by pressing any Infrared

Remote Controller’s numeric key. For example, pressing key

1 will set the target camera address as

c. If you want to input a number greater than 10, you need to press the -/-- buttons to

enter a “plus 10” mode. At this point you can input up to 3 numbers. Press the C

button to backspace. Once you have input the numbers press the ENTER button to

confirm.

A001

P001

A001

UO 18

d -24

d. Within any mode you can press the ESC button and the system will return you to the

address mode.

e. If you only want to change an address number below 10, you only need to press the

appropriate numeric key one time.

Set Preset Position

a. Using the Infrared Remote Controller’s LEFT/RIGHT, UP/DOWN buttons move the

camera to a location for the Preset Position.

b. Press the PRSET button and hold for 3 seconds. The PT Dome Controller will display

“SET”. At this time you can input a number using the Infrared Remote Controller’s

numeric key. If you need to input a number greater than 10, you need to press the -/--

buttons to enter a “plus 10” mode. At this point you can input up to 3 numbers. Press

the Cbutton to backspace. Once you have input the numbers press the ENTER

button to confirm.

c. Repeat steps “a” and “b” for each desired Preset Position.

Call a Preset Position

a. Press the SHOT button to go to the preset select mode. This command will allow you

to select the Preset Position for your camera.

b. In this mode you can input a number by press any Infrared

Remote Controller’s numeric key. For example, Prefers to “

Preset Position” pressing key 1 refers to Preset Position

number 1.

c. If you want to input a number greater than 10, you need to press the -/-- buttons to

enter a “plus 10” mode. At this point you can input up to 3 numbers. Press the C

button to backspace. Once you have input the numbers press the ENTER button to

confirm. The camera will then move to the Preset Position you just entered.

Delete a Preset Position

a. Call the Preset Position your want to delete using the steps above.

b. Press the DELETE button and hold for 3 seconds. The PT Dome Controller will

display “CLR-”.

A- - -

A- 26

Set-

P- - -

P001

P- - -

P-32

P-12

CLr-

P001

Set HOME Position

a. Setting the HOME position is very similar to setting Preset Positions.

b. Using the LEFT/RIGHT and UP/DOWN buttons move the camera to the desired

Home Position.

c. Press PRESET and hold for 3 seconds.

d. Press HOME followed by ENTER to confirm.

Set A and B Limiting Positions

a. Setting the A and B Limiting Positions is very similar setting Preset Positions and the

HOME position.

b. Using the LEFT/RIGHT and UP/DOWN buttons move the camera to the desired A

Position.

c. Press PRESET and hold for 3 seconds.

d. Press Afollowed by ENTER to confirm.

e. Repeat the above steps for the BLimiting Position.

Delete HOME and A and B Limiting Positions

a. Press and hold DELETE for 3 seconds. The PT Controller’s screen will display

b. Press HOME, Aor Bfollowed by ENTER to confirm.

Set Up and Run Pattern Tour

A Pattern Tour allows the camera to automatically track a select group of Preset Positions.

a. Pressing PATTERN once puts the ST-PTZ-RC into Pattern

Track Setup Mode. The PT Dome Controller will display

b. In the setup mode up to 16 pre-existing Preset Positions

can be selected. For example, if the camera is to tour Preset Position 6, Preset

Position 2, Preset Position 3 and Preset Position 8:

Press SHOT, 6, ENTER

Press SHOT, 2, ENTER

Press SHOT, 3, ENTER

Press SHOT, 8, ENTER

d. It is possible to set both the camera movement speed from one Preset Position to

another as well as the dwell time the camera stays on a Preset Position. See “Set

Speed” below for details.

e. To end the Pattern Track Setup Mode press PATTERN and

the PT Dome Controller will display

CLr-

PStA

PStO

f. To run a Pattern Tour press RUN and the PT Dome

Controller’s will display

g. Press RUN again to stop the Pattern Tour.

Setting Camera Speed

a. For camera travel time (i.e., camera rotation from one Preset Position to another

either manually or by running Pattern Tour) four separate speed settings are

available:

S1 = 8, S2 = 40, S3 = 51 and S4 = 63

S1 is the slowest and S4 is the fastest

b. Speed can be set by pressing SPEED then S1, S2, S3 or S4 and ENTER

c. For Pattern Tour the default settings are 63 for camera travel speed and

approximately 8 seconds dwell time (time the camera will remain on a particular

Preset Position). Other speed settings may be made during the Pattern Track Setup

Mode described above.

Functions

The UP, DOWN, LEFT, and RIGHT buttons control the corresponding

movement of the PTZ camera.

The ENTER button serves as a movement “stop” key. It is also a “confirm” key when

inputting a number.

Numeric keys 0 through 9 are number input buttons.

The Cbutton is to backspace during number input.

The -/-- button is to enter into the “plus 10” mode if you want to enter a number

greater than 10 (from 0 to 255). It can also place you into “normal” mode where you

can only input numbers from 0 through 9.

Pressing the ESC button will put the system into the address input mode.

The CAM button places the system into the address input mode.

PrUN

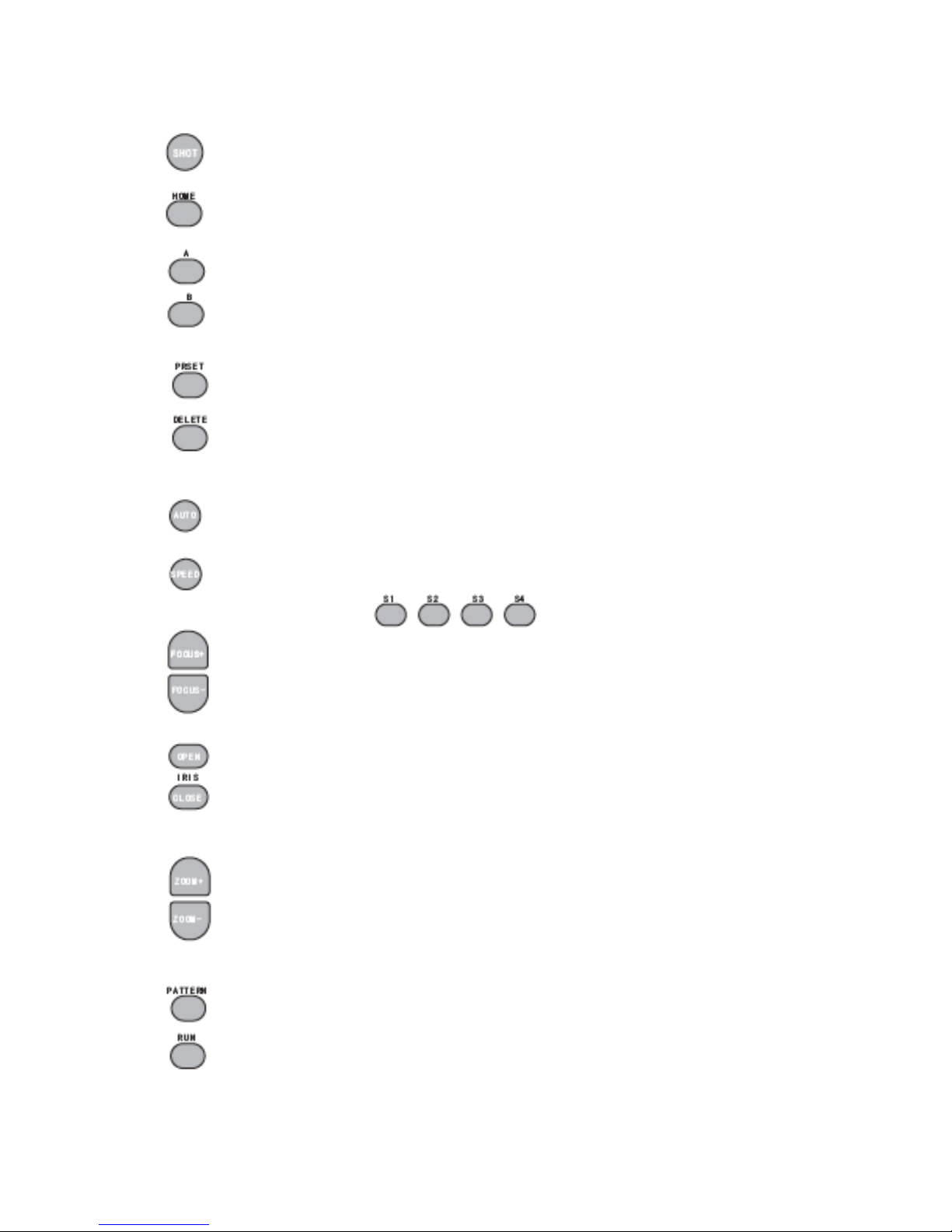

The SHOT button calls the desired Preset Position.

HOME is for a Home Preset Position.

Aand Bare Preset Positions that can serve as Left and Right Limiting Positions

allowing the camera to automatically scan between the two positions.

The PRESET button is to set a preset point.

The DELETE button is to clear a preset point.

Each of these keys needs to be pressed and held for 3 seconds to achieve the

desired function.

Pressing AUTO puts the system into auto cruise mode.

Pressing SPEED sets the speed of the target camera’s movement. S1 through S4

are shortcut keys for speeds: S1 = 8, S2 = 40, S3 = 51, S4 = 63 with S1 the slowest

and S4 the fastest.

Pressing FOCUS + focuses the target camera far.

Pressing FOCUS –focuses the target camera near.

Pressing IRIS OPEN opens the target camera’s iris.

Pressing IRIS CLOSE closes the target camera’s iris.

Pressing ZOOM + zooms the target camera wide.

Pressing ZOOM -zooms the target camera near (telephoto).

Pressing PATTERN starts / stops pattern learning (Pattern Tour Setup)

Pressing RUN runs a Pattern Tour.

Pressing DISP displays the system’s software version.

Pressing SETUP allows the configuring of the ST-PTZ-RC’s protocol and baud rate.

7. TROUBLESHOOTING TIPS

a. The ST-PTZ-RC is not controlling the camera at all – (i) be sure the R485 connections

between the ST-PTZ-RC and the camera are using the same polarities; (ii) check to

see if the correct baud rate has been set with the camera; (iii) check to see if the

correct protocol has been with the camera.

b. The ST-PTZ-RC is communicating with the camera, but certain functions do not work

– PTZ controllers are designed to perform a wide variety of PTZ camera control

functions. However, the utility of any PTZ controller is highly dependant upon the

particular PTZ camera to be controlled as each camera has not only its own functions

but specific methods of how those native functions are accessed and managed.

Further, a particular PTZ controller’s terminology may differ from that used by a

particular PTZ camera. Therefore, it will be necessary for the installer and/or user to

consult BOTH the PTZ controller and PTZ camera’s user manuals to ensure proper

set-up, configuration and application.

c. Additional troubleshooting assistance can be found on-line at www.securitytronix.com

in addition to support from Securitytronix sales engineers at 1-610-429-1511.

Indice

Altri manuali Securitytronix Controllori

Securitytronix

Securitytronix ST-PTZMINI-KB Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
