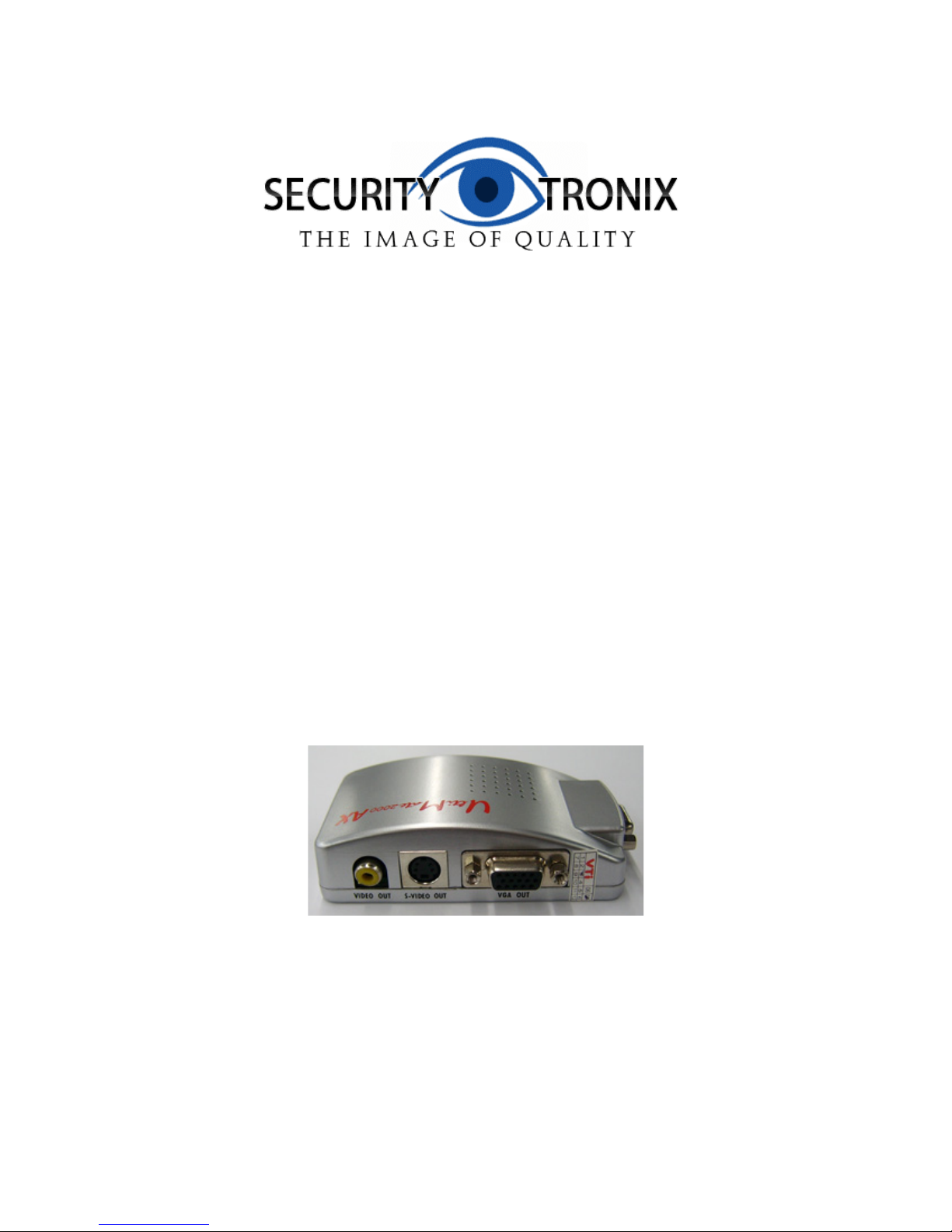

INSTALLATION MANUAL
ST-VGA/RCA
VGA to Baseband Video Converter
2
PACKAGE CONTENTS
This package contains:
One ST-VGA/RCA VGA to baseband video converter
One USB power cable
One VGA cable
One S-Video cable
One RCA video cable
One installation manual
PRODUCT DESCRIPTION
The ST-VGA/RCA converts VGA video to baseband video and is perfect for PC video games,
multimedia and Internet TV applications. The unit has 1 RCA, 1 S-Video and 1 VGA output
connections and 1 VGA input. As the ST-VGA/RCA is powered by the PC’s USB port no separate
power supply or connection is needed. The unit’s 2D flicker filter provides perfect static image
quality with a display resolution up to 1024x768. Display features include zoom of selected image
areas; adjustable brightness, contract and saturation; and window resizing and movement.
SPECIFICATIONS
ST-VGA/RCA
Specifications (Typical)
1. Video input
1 channel VGA
2. Video Output
1 channel VGA out
1 channel S-Video out
1 channel RCA Video out
3. Video Signal
VGA, S-Video, Video and CVBS
4. Output Resolution
800x600@60Hz, 800x600@75Hz, 1024x768@75Hz
5. PC Operating System Requirement
DOS/Windows98/2000/NT/XP/Vista and standard
VGA RGB analog input
6. Dimensions
3.7”x2.2”x1.2”
3
INSTALLATION AND OPERATION
CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this
unit. No user serviceable parts are inside.
CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than
specified power source.
1. UNPACKING and HANDLING
Each unit is shipped assembled and factory tested.
Ensure that all accessories are removed from the container before discarding packing material
2. MECHANICAL INSPECTION
Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is
clean, and no connectors are broken, damaged, or loose. If equipment appears to be
damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for
assistance.
3. WIRING CONNECTIONS
a. VGA IN – Using a standard VGA cable connect the ST-VGA/RCA to the PC or
laptop’s VGA port.
b. Video Output can be achieved in three ways:
VGA OUT –Using a standard VGA cable connect the ST-VGA/RCA to monitor’s
VGA port.
RCA Video OUT –Using the supplied RCA video cable connect the ST-VGA/RCA
to a display device (e.g., DVR, monitor) using an RCA composite video port.
S-Video OUT –Using the supplied S-Video cable connect the ST-VGA/RCA to a
display device (e.g., DVR, monitor) using that device’s S-Video port.
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions.
This symbol is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electrical shock.
4
Troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support
from SecurityTronix sales engineers at 1-610-429-1511.

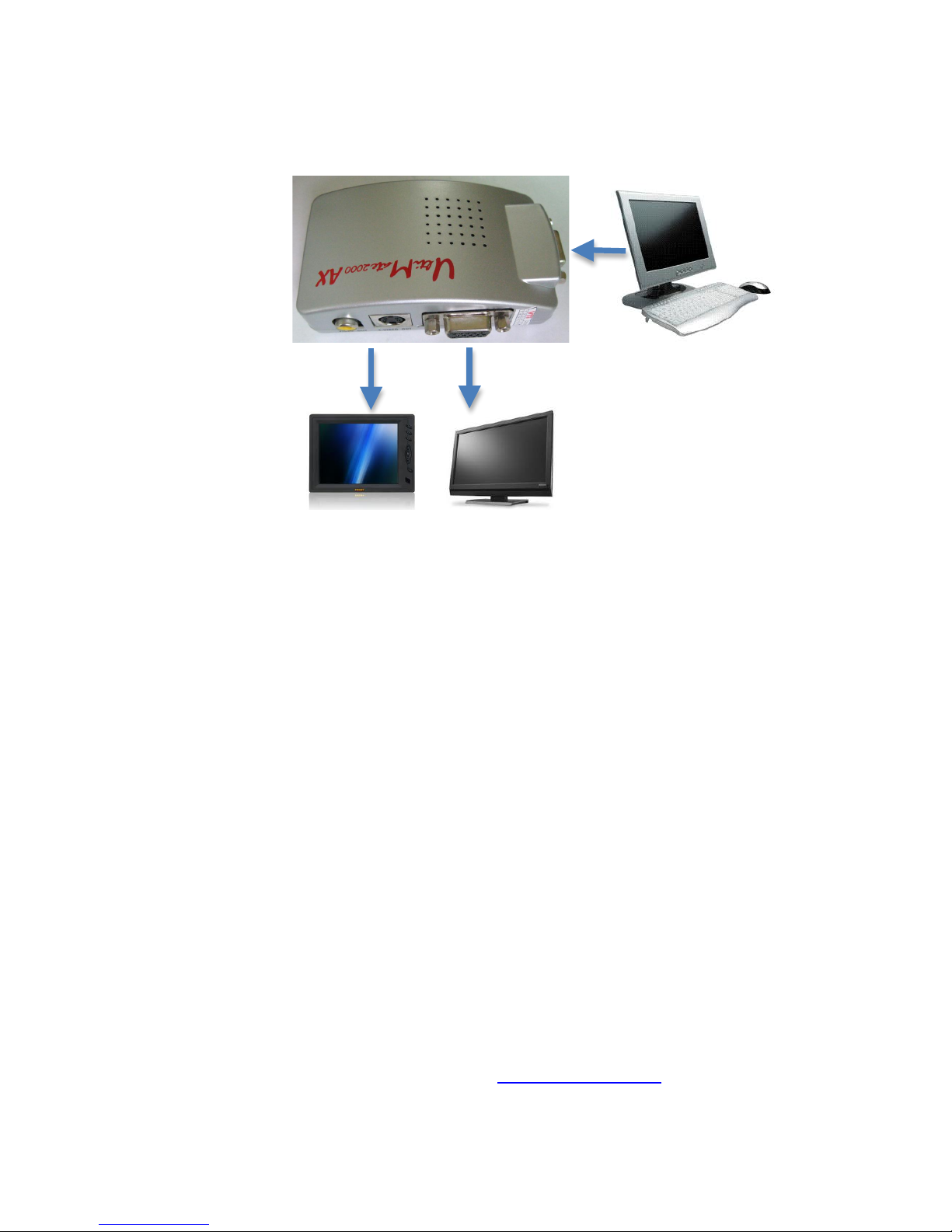

PC VGA Input
RCA or S-Video
Output
VGA Video
Output
