Securitytronix ST-BT1000IR2812-G Manuale utente

INSTALLATION MANUAL

ST-BT1000IR2812-G

Varifocal IR Bullet Camera

v1.0 8/4/14 1

PACKAGE CONTENTS

This package contains:

One ST-BT1000IR2812-G varifocal infrared bullet color camera

Mounting Hardware

One installation manual

Note: The ST-BT1000IR2812-G requires a minimum 12VDC 200mA power supply such

as the ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-BT1000IR2812-G is a varifocal infrared color bullet camera. The camera uses a 1/3” Color

CCD sensor providing 1000TV lines of resolution. The ST-BT1000IR2812-G has a 2.8mm-12mm lens

for optimal viewing. The 42 infrared LEDs support low light illumination down to 0 Lux.

SPECIFICATIONS

ST-BT1000IR2812-G

Specifications (Typical)

Image Sensor

1/3” CCD

Scanning System

NTSC

Horizontal Resolution

1000TV Lines

Synchronization

Internal, Negative Sync

Minimum Illumination

0 lux B&W

Auto Electronic Shutter

1/60s~1/100,000s

Lens

2.8-12mm Manual Zoom

S/N Ratio

>50dB

IR LED

φ5x42PCS

10.

IR Distance

130ft

11.

IR Power On

CDS Auto Control

12.

Video Output

1.0Vp-p @ 75

13.

Operating Temperature

14F- 113F

14.

OSD

Yes

15.

Power Requirements

200mA @ 12VDC

16.

Dimensions

11”x3.75”x3”

17. Weight

2.2lbs

v1.0 8/4/14 2

INSTALLATION AND OPERATION

This symbol is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electrical shock.

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of

this unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other

than specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or

defective please contact your distributor or SecurityTronix at 1-610-429-1511 for assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 113F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

g. This camera requires a 12VDC 200mA power supply. Using AC power or a power

supply other than specified will damage the camera.

h. Only qualified installers are allowed to install, test and disassemble the camera.

i. The camera is a low voltage product. If installed outdoors proper safety and

lightening grounding are required.

v1.0 8/4/14 3

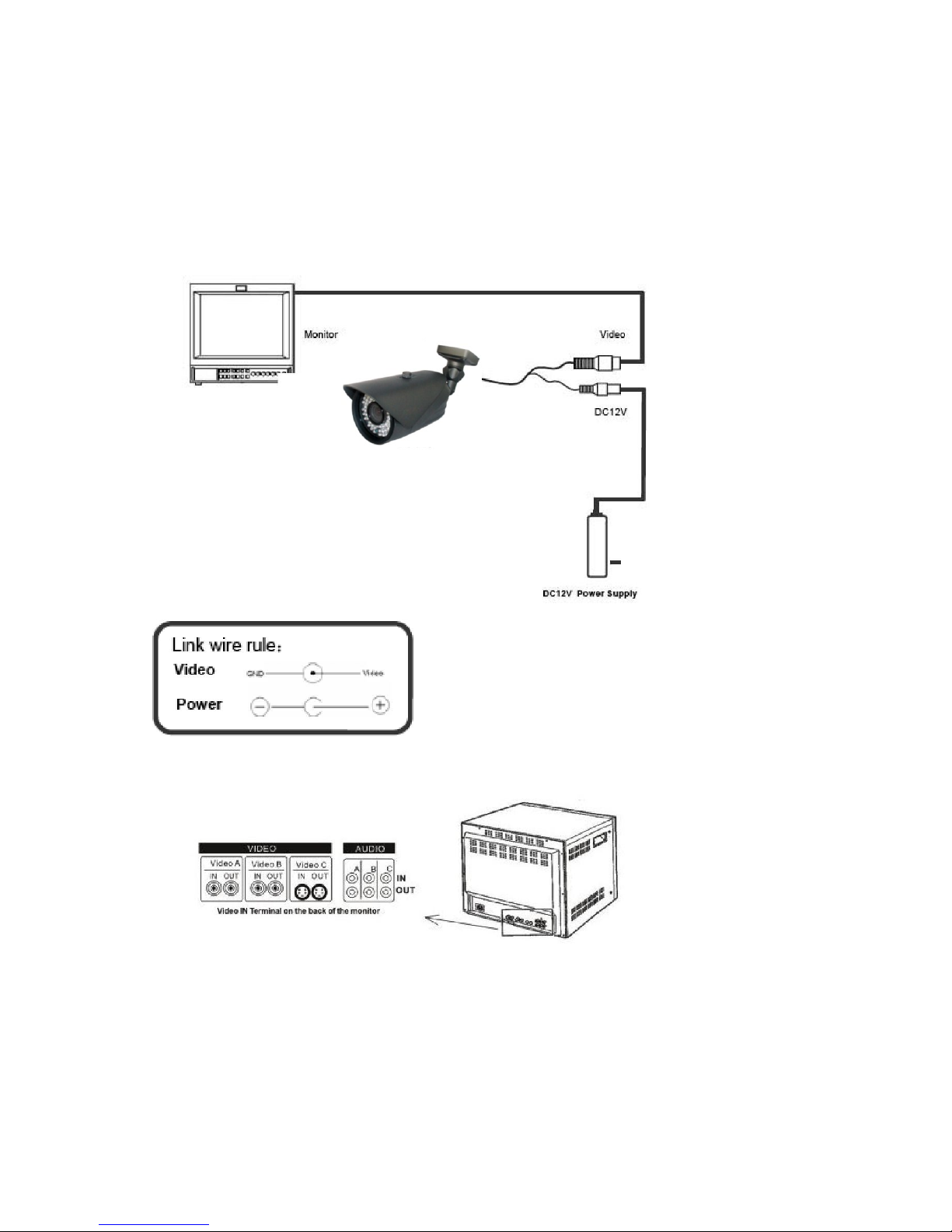

4. WIRING CONNECTIONS

a. Connect the power supply’s DC plug to the camera’s power port.

b. Connect the camera to the monitor with a 75coaxial video cable.

c. Connect power supply’s AC plug to a suitable AC power outlet.

d. Adjust the lens direction according to the required surveillance area and environment.

v1.0 8/4/14 4

5. OSD

OSD

LENS

ELC

SHUTTER

AUTO，1/60,AFLK,1/250,1/350

,1/500,1/1K,1/2K,1/4K,1/5K,

1/10K,1/100K

BRIGHT D

1-100

BRIGHT H

0-100

LSC

OFF,ON

WHITE

ATW

PUSH

LOCK

PRESS SET

MANUAL

R GAIN

0-255

B GAIN

0-255

ANTI CR

DAY/NTGHT

EXT

AUTO

D-N DELAY

1-30

N-D DELAY

1-30

BURST

OFF,ON

SMART IR

OFF,ON

COLOR

BURST

OFF,ON

BACKLIGHT

OFF

BLC

POSITION ADJUSTMENT

HLC

LEVEL

0-255

POSITION ADJUSTMENT

DWDR

LEVEL

0-8

FUNCTIONS

DNR

0-8

AGC GAIN

OFF,LOW,MID,HIGH

MIRROR

OFF,ON

MOTION

OFF

SENSITIVITY 0-100

POSITION ADJUSTMENT

MASK

ACTIVE

PRIVACY

AREA

1-8

MODE

OFF,ON

COLOR

1--8

POSITION ADJUSTMENT

BPC

0-255

DEFOG

OFF,ON

PICT ADJ.

SHARPNESS

0-100

BRIGHT

0-100

CONTRAST

0-100

COLOR

0-100

HUE

0-100

WB RED

0-100

WB BLUE

0-100

Y-GAMMA

0-100

C-GAMMA

0-100

CAMERA SET

CAM ID

0-255

CAM TITLE

PROTOCOL

PELCO-D,PELCO-C,PELCO-P

BAUD RATE

LANGUAGE

ENG,CHINESE

INITIAL

EXIT

SAVE

NO SAVE

v1.0 8/4/14 5

6. TROUBLESHOOTING

a. No picture after applying power –(i) check all plugs and cables are securely

connected to the proper connectors; (ii) ensure your power supply is providing the

correct voltage and current.

b. The picture has ripples –(i) check to see if the power supply is experiencing AC ripple, if

so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if other

peripheral equipment is causing ripple and if so make the necessary adjustments.

c. The picture background continuously changes color –a fluorescent lamp’s magnetic

field may cause color roll, therefore, reduce the number of fluorescent lamps or

increase the distance between the camera and the lamps.

d. The picture appears smeared –(i) the power supply voltage level may be unstable,

therefore, try another power supply; (ii) ensure the cables are correctly connected

and/or the cables are of the correct impedance.

e. Other interference may require a Securitytronix ground loop isolation filter.

f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com in

addition to support from Securitytronix technicians at 1-800-688-9282, option 3, then

option 2.

v1.0 8/4/14 6
