Ultrasonic Pro™ Level Sensor
Installation and Operation Manual
UPRO-3003
Features:
Dimensions:
• Supports M49*1.5mm threaded into type installation and coil clamping type
installation
• Many output options: Customizable with a 4-20mA three-wire system, 1-5v,
RS485 and more
• Less than 9°C design, resolution 3mm, less than 200ms response time
• Sealed so that it can be safely used for liquid level measurement in a wide
variety of applications, including with high-temperature toxic, volatile,
ammable, and strongly corrosive liquids
• Housing consists of NLEPF synthetic material, IP66 waterproof, anti-skid,
anti-corrosion, anti-explosion structure
• Anti-jamming high quality terminal blocks for long-term stability and reliability
• Two-year limited warranty
Electrical Properties:
Mechanical Properties:
Operating Condition:
• Power Requirement: DC24V/300mA
• Output Signal:
• Analog Signal: 4~20mA; 1~5V; Load>300Ω;
1~10V
• Digital Signal: RS485/RS232
• Scanning Frequency: 20.0KHz ~ 43.0KHz
• Electrical Connection: Wire pigtail
• Consumption: <1.5W
• Accuracy: 0.5%FS (at blind-fold drive away, 25°C)
• Material: ABS/Nylon
• Explosion Proof: Exiall BT4Gb
• Protection Class: IP65 (default); IP67, IP68
(customized)
• Operating Temperature: -20°C ~ 60°C
(-4°F ~ 140°F)
104
Ø71
M68X2
M20X1.5
Ø75
WARNING: A voltage potential between the ground wire of the unit and the
ground of other equipment can lead to electrolytic corrosion. Always ensure the
grounding system provides an equipotential between the transmitter and the
earthing ground connection. Avoid using the power system protective ground since
this will often have a signicant potential difference to the transmitter ground.
Also, note that dissimilar metals in the ground system may cause electrolysis
corrosion of the transmitter or other components in the ground system.
During installation, connect a voltmeter or ammeter between the shield ground
wire and the grounding connection. If there is a measurable voltage or current
electrolytic corrosion may be a serious possibility. If there is a potential
difference then some isolation system will be required. Improper grounding
may lead to damage or poor function.
Page 1-2 IM 5335 REV. 12/23
Model Range: ft (m) Cable Length: ft (m)
UPRO-3003 15ft (5m) 50ft (15m)
www.seewaterinc.com
951.487.8073 • 888.733.9283 • [email protected]
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
Ultrasonic Pro™ Distance/Level Sensor
See Water’s Ultrasonic Pro™ Level Sensor combines an ultrasonic sensor,
temperature sensor, ultrasonic servo circuit, and transmission circuit; It also uses
SMD components and ASIC. The shell is made of quality NLEPF synthetic material
with solid texture and good acoustic characteristics. The body is waterproof and
can be used in a wide variety of applications. The Ultrasonic Pro™ Level Sensor is
also easy to install and simple to maintain.
Ultrasonic Pro™ Level Sensor
Installation and Operation Manual
UPRO-3003

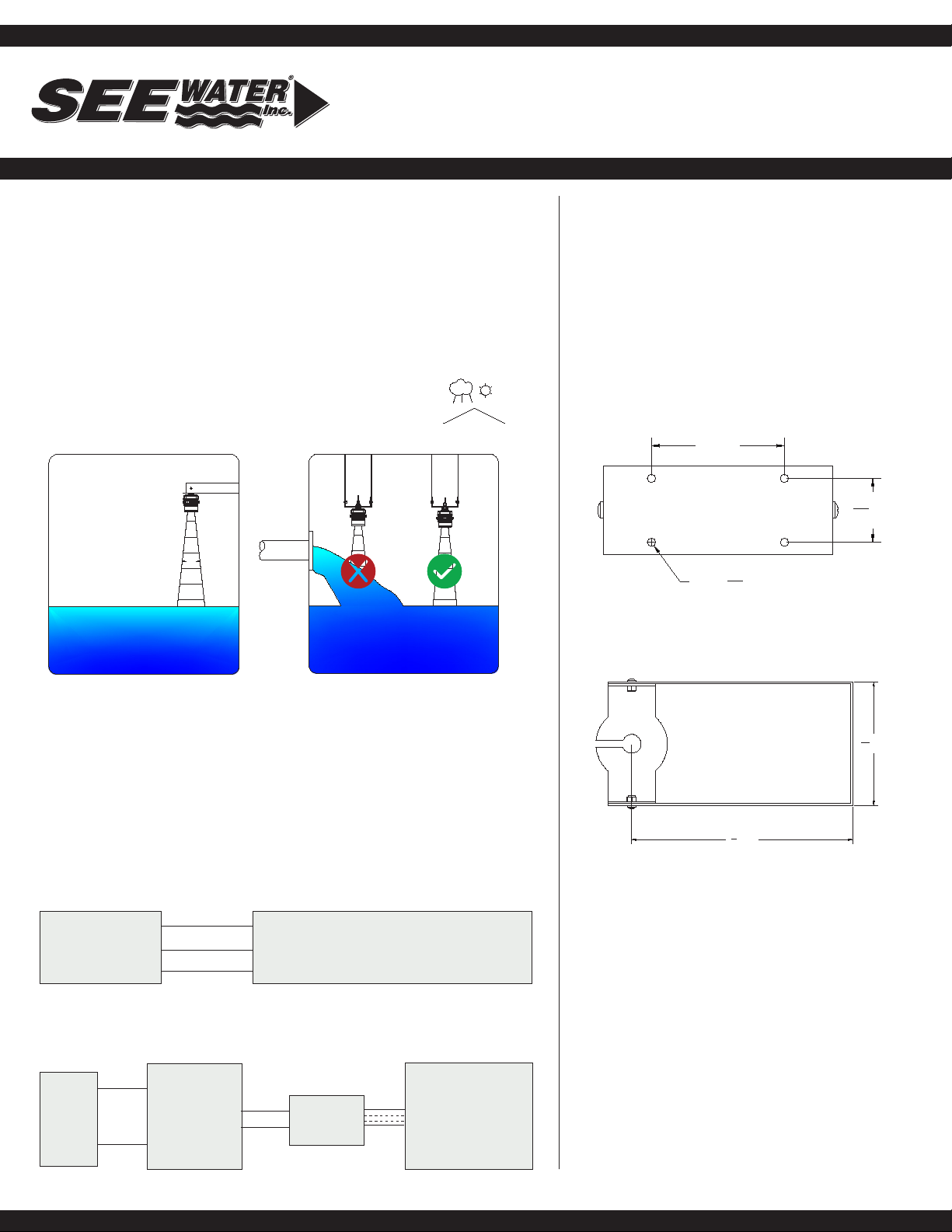

The measure reference surface is the bottom line of the sensor. The highest solid
level cannot enter the blind area.The level measurement should avoid the feeling
hole; aim toward the smoother level surface. It is better to use a sun/rain shade
when mounting in an application that is exposed to weather elements. When
mounting, sensor should be kept a distance from the wall surface because of the
beam angle of the ultrasonic wave. When measuring the object level, the feeding
hole should be avoided to prevent interference with the ultrasound echo.
Using the bracket as a template, place a level across the
top and hold it in the desired location. Mark the four 3/16”
holes. Use a drill bit suitable for the intended substrate
and screw diameter and drill out the four holes (A 10-32
x 1 1/2” stainless steel screw is recommended). The
mounting holes can be bored to 1/4” to accept a larger
screw (A minimum of 1” penetration into the substrate
is recommended).The tolerances of the drill bit used
should meet the requirements of ANSI Standard B212.15.
Position the bracket, insert the screw through the
mounting hole of the bracket and tighten the screw until it
is fully embedded.
12°
3 [76]
17
16 [37]
4X Ø 3
16
[Ø5]
53
16 [131]
91
4 [235]
TOP VIEW
Slide the cord of the sensor through the slot in the
mounting bracket and use the included nut to secure
the sensor to the mount.
Page 2-2 IM 5335 REV. 12/23
Inowing medium: Do not mount the sensor in or above the lling stream. Make
sure to detect the medium surface, not the inowing liquid.
It is possible to achieve both horizontal and vertical mounting orientations by
rotating the sensor holder to the appropriate angle. The sensor holder can also
be adjusted to compensate for out of plumb conditions allowing the sensor to be
perpendicular to the medium.
www.seewaterinc.com
951.487.8073 • 888.733.9283 • [email protected]
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
Installation:
Mounting Bracket:
Ultrasonic Sensor:
1. Wiring diagram of current (voltage) output connect with secondary unit.
2. Wiring diagram of serial output connecting with PC
External power / instrument / 485-232 / PC
Wiring Connection:
Instrument Secondary Instrument
Red
Yellow
Black
Supply + DC24V / 100mA Voltage Output
Input
GND
Output Supply -
DC Regulated
Voltage
Standard
Serial Port
Supply +
A
B
Output A
Output B
Supply -
Warranty:
See Water, Inc. warrants that products of its
manufacture are free from defects in material and
workmanship for a period of 2 years from the date of
purchase. This date shall be determined by the date on
the invoice and the serial number on the product.
Replacement of the product is at the discretion of See
Water, Inc. This warranty is valid when the product
is installed in compliance with the manufacturer’s
installation instructions. The manufacturer’s obligation
under this warranty shall be limited to the repair or
replacement of any parts found by the manufacturer
to be defective.
Green
Blue
