Seeley CP12CW2 Manuale utente

(English) (CP12CW2)

CP12CW2

OWNER’S MANUAL

Portable Refrigerated Air Conditioner

iCP12CW2 Portable Refrigerated Air Conditioner

INTRODUCTION

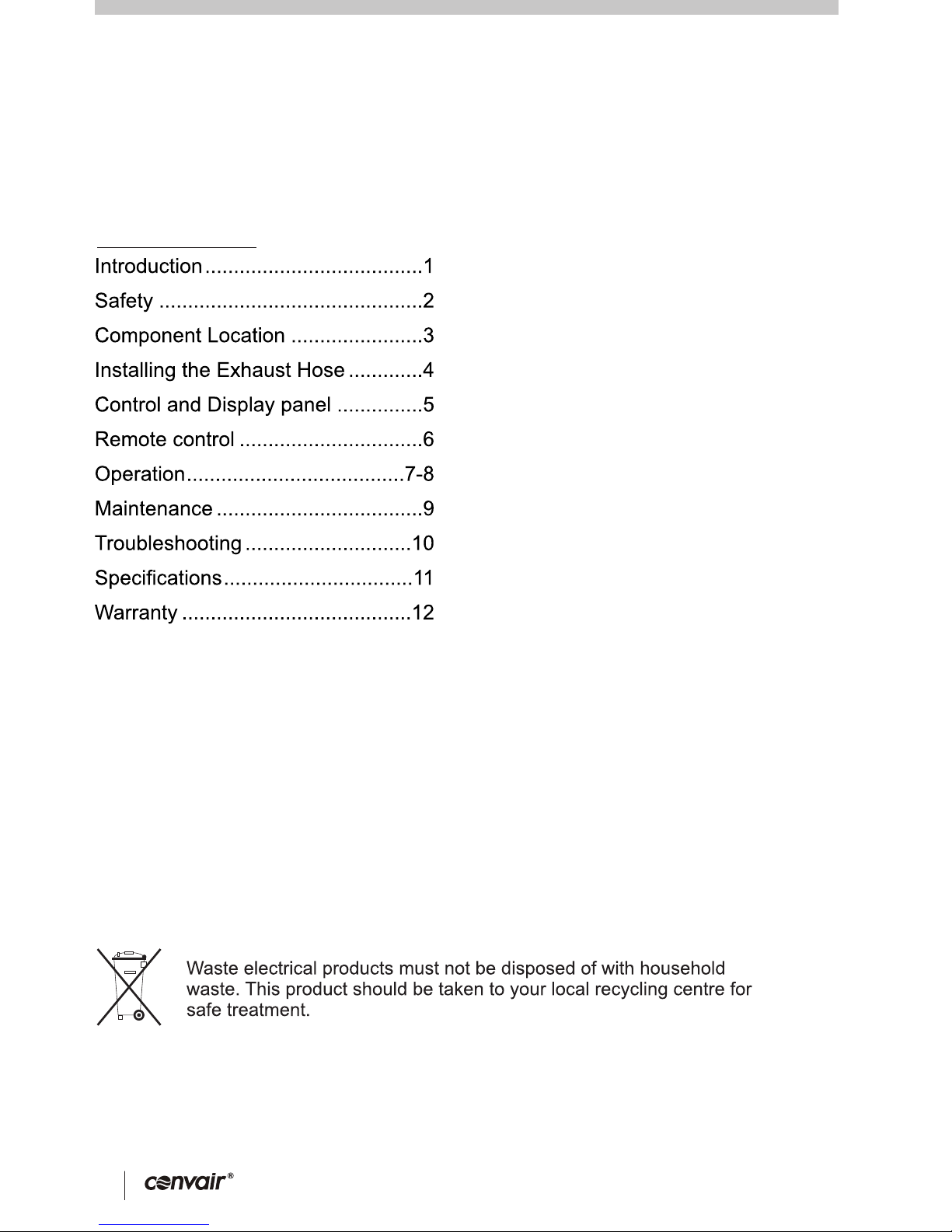

CONTENTS

Please read these instructions prior to using the appliance and

save them for future reference.

iCP12CW2 Portable Refrigerated Air Conditioner

INTRODUCTION

CONTENTS

Please read these instructions prior to using the appliance and

save them for future reference.

2CP12CW2 Portable Refrigerated Air Conditioner

Remote

Control

Air Outlet

Display Panel

Handle

Control

Panel

Exhaust Hose

Hose Ends (x 2)

Exhaust Fitting and cover

(window end)

Screws (8)

Air Filter

Drain

Air Intake

Power

Cord

Rating

Label

Air Intake

(Condenser)

ON/OFF

SPEED

TIMER

MODE

DOWN

Hose End

Hose Exhaust Nozzle

(window end)

SAFETY

For indoor use only.

Transport the air conditioner in an upright

position only, or leave it in an upright position

for at least 2 hours before use (Fig 1).

Use only in the upright position on a flat level

surface and at least 50cm from any objects.

Do not place objects on the air conditioner, or

through the ventilating slots or restrict the air

inlets & outlets (Fig 2).

Closely supervise any children and pets

when the air conditioner is in use.

Do not store or operate the appliance near

any flammable substances.

During operation, water will collect in the

bottom tank of the air conditioner. Be careful

when moving the unit to prevent water from

spilling.

Electrical Safety

Ensure the appliance has been installed in

accordance with national wiring regulations.

Window Attachment

(2 pieces)

2CP12CW2 Portable Refrigerated Air Conditioner

Remote

Control

Air Outlet

Display Panel

Handle

Control

Panel

Exhaust Hose

Hose Ends (x 2)

Exhaust Fitting and cover

(window end)

Screws (8)

Air Filter

Drain

Air Intake

Power

Cord

Rating

Label

Air Intake

(Condenser)

ON/OFF

SPEED

TIMER

MODE

DOWN

Hose End

Hose Exhaust Nozzle

(window end)

SAFETY

For indoor use only.

Transport the air conditioner in an upright

position only, or leave it in an upright position

for at least 2 hours before use (Fig 1).

Use only in the upright position on a flat level

surface and at least 50cm from any objects.

Do not place objects on the air conditioner, or

through the ventilating slots or restrict the air

inlets & outlets (Fig 2).

Closely supervise any children and pets

when the air conditioner is in use.

Do not store or operate the appliance near

any flammable substances.

During operation, water will collect in the

bottom tank of the air conditioner. Be careful

when moving the unit to prevent water from

spilling.

Electrical Safety

Ensure the appliance has been installed in

accordance with national wiring regulations.

Window Attachment

(2 pieces)

4CP12CW2 Portable Refrigerated Air Conditioner

50cm

To avoid damage to the control panel, do not operate with sharp objects.

NOTE!

CONTROL AND DISPLAY PANEL

Press to turn the air

conditioner on and off

Press to cycle the fan

speed between low,

medium and high

Press to enter the

timer setting mode

and time

Press to cycle from

Cooling,Dehumidifying

and Fan modes.

Press to increase,

to decrease the

set temperature

In Timer mode, press

to increase, to

decrease the timer

from 01-24 hours

In Cooling mode, press

at same time to toggle

between °C and °F

Power ON / OFF

button

Fan Speed

control button

Timer Set

button

Mode Select

button

Set

Temperature

and Timer

Display

Remote

Control

Receiver

Fan Speed

Indicator Lights

Low - 1 Light

Medium - 2 Lights

High - 3 Lights

Mode

Indicator

Light

Blue - Cooling

Yellow - Dehumidify

Green - Fan

Water Full

Indicator

Timer

Indicator

4CP12CW2 Portable Refrigerated Air Conditioner

50cm

To avoid damage to the control panel, do not operate with sharp objects.

NOTE!

CONTROL AND DISPLAY PANEL

Press to turn the air

conditioner on and off

Press to cycle the fan

speed between low,

medium and high

Press to enter the

timer setting mode

and time

Press to cycle from

Cooling,Dehumidifying

and Fan modes.

Press to increase,

to decrease the

set temperature

In Timer mode, press

to increase, to

decrease the timer

from 01-24 hours

In Cooling mode, press

at same time to toggle

between °C and °F

Power ON / OFF

button

Fan Speed

control button

Timer Set

button

Mode Select

button

Set

Temperature

and Timer

Display

Remote

Control

Receiver

Fan Speed

Indicator Lights

Low - 1 Light

Medium - 2 Lights

High - 3 Lights

Mode

Indicator

Light

Blue - Cooling

Yellow - Dehumidify

Green - Fan

Water Full

Indicator

Timer

Indicator

NOTE:

WASTE BATTERIES SHOULD

BE DISPOSED OF CORRECTLY

REMOTE CONTROL

Signal

transmission point

Power ON / OFF

button

Fan speed

adjust button

Mode buttons

(Cool-Dehumidify-Fan)

Battery

compartment

6CP12CW2 Portable Refrigerated Air Conditioner

Important! During cooling mode, water will

collect in the air conditioner’s tank. This

water is reticulated and some will be

exhausted out with the hot air, but will

slowly fill up the tank. This occurs more

quickly in humid conditions. If the tank

should fill, the ‘water full’ indicator will be lit

on the control display and the unit will shut

down. The cooler cannot be restarted until

the water tank is drained. Refer to the

Maintenance section for draining the tank

should this occur.

ON/OFF

SPEED

TIMER

MODE

DOWN

Step.4

Step.5

Step.3

Step.6

Step.8

ON/OFF

SPEED

TIMER

MODE

DOWN

1.5V

Battery cover

Signal

transmission point

Power ON / OFF

button

Fan speed

adjust button

Mode buttons

(Cool-Dehumidify-Fan)

Battery

compartment

Battery cover

Temperature /Timer

adjust buttons

Tip! Do not set the temperature too low.

This will consume more power. 24°C is

the recommended set temperature, with

high fan speed.

The set temperature range is 16°C-32°C

Step 6: Press the FAN SPEED button

on the Control Panel or remote control to

adjust the fan speed. Each press will cycle

the fan speed between low, medium and

high.

NOTE:

WASTE BATTERIES SHOULD

BE DISPOSED OF CORRECTLY

REMOTE CONTROL

Signal

transmission point

Power ON / OFF

button

Fan speed

adjust button

Mode buttons

(Cool-Dehumidify-Fan)

Battery

compartment

6CP12CW2 Portable Refrigerated Air Conditioner

Important! During cooling mode, water will

collect in the air conditioner’s tank. This

water is reticulated and some will be

exhausted out with the hot air, but will

slowly fill up the tank. This occurs more

quickly in humid conditions. If the tank

should fill, the ‘water full’ indicator will be lit

on the control display and the unit will shut

down. The cooler cannot be restarted until

the water tank is drained. Refer to the

Maintenance section for draining the tank

should this occur.

ON/OFF

SPEED

TIMER

MODE

DOWN

Step.4

Step.5

Step.3

Step.6

Step.8

ON/OFF

SPEED

TIMER

MODE

DOWN

1.5V

Battery cover

Signal

transmission point

Power ON / OFF

button

Fan speed

adjust button

Mode buttons

(Cool-Dehumidify-Fan)

Battery

compartment

Battery cover

Temperature /Timer

adjust buttons

Tip! Do not set the temperature too low.

This will consume more power. 24°C is

the recommended set temperature, with

high fan speed.

The set temperature range is 16°C-32°C

Step 6: Press the FAN SPEED button

on the Control Panel or remote control to

adjust the fan speed. Each press will cycle

the fan speed between low, medium and

high.

CP12CW2 Portable Refrigerated Air Conditioner

Draining the Air Conditioner

To drain the air conditioner, place it over a

drain point before unscrewing the cap and

removing the drain plug, as water will flow

out as soon as the plug is removed.

Remove the plug at the bottom rear of the

appliance and allow the tank to

completely drain (Fig 12B).

Note! Always replace the drain plug

immediately after draining.

End of season storage:

• Drain any water from the unit.

• Operate the unit in fan only mode for a few hours, to thoroughly dry the inside.

• Clean or change the filter.

• Unplug and carefully store the power cord and plug end.

• Replace in the original carton or cover for storage.

MAINTENANCE

12 A

Remove filter from the

air conditioner and

clean every 2 weeks.

Timer Function

The air conditioner is fitted with a timer

function. This can be set up to 24 hours in

advance. To use this function, the cooler

must be plugged in and ready to operate.

Step 8: Setting the timer

With the air conditioner ON, press the

TIMER button on the Remote Control or

Control Panel to set the number of hours

before the air conditioner powers off.

The Control Panel display will flash and

show the time setting. Press the or

buttons to increase or decrease the time in

1 hour increments from 1 - 24hrs. After 10

seconds the display will stop flashing and

the TIMER indicator will be lit on the display

panel (Fig 7).

When the air conditioner is OFF (but still

plugged in), repeat the above to set the

number of hours before the cooler powers

ON. The air conditioner will start up with the

last settings used.

Note! When the air conditioner is working,

only the TIMER OFF can be set. When the

air conditioner is off, only the TIMER ON

can be set.

How to cancel the timer

To cancel the timer, set the timer to ‘00'. The

TIMER indicator will stop glowing.

Indice

Altri manuali Seeley Condizionatore d'aria

Seeley

Seeley Award 2000 Manuale utente

Seeley

Seeley Braemar SBHVD1S Series Manuale utente

Seeley

Seeley CP15HW1 Manuale utente

Seeley

Seeley Climate Wizard CW-H10 Manuale utente

Seeley

Seeley Convair CP9CW3 Manuale utente

Seeley

Seeley convair CP35CW1 Manuale utente

Seeley

Seeley Breezair EAS265 Manuale utente

Seeley

Seeley 800CB Manuale utente

Seeley

Seeley Breezair EXH Series Manuale utente

Seeley

Seeley Breezair EXQ Manuale utente

Seeley

Seeley HSU-09HEK03/R2DB Manuale utente

Seeley

Seeley CP18CW1 Manuale utente

Seeley

Seeley Braemar MBHVD1S Series Manuale utente

Seeley

Seeley Prestige 900 Manuale utente

Seeley

Seeley Braemar XK55 Manuale utente

Seeley

Seeley MASTERCOOL MIC Manuale utente

Seeley

Seeley Millenia 1000 Manuale utente

Seeley

Seeley CP15HW2 Manuale utente

Seeley

Seeley 3000 Manuale

Seeley

Seeley Climate Master CM12W Manuale utente

Seeley

Seeley Braemar SDHV 3Phase Series Manuale utente

Seeley

Seeley Braemar EA Series Manuale utente

Seeley

Seeley BreezeAir ILL239-D Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
